Vollrath  |  SKU: 3640710

Vollrath 3640710 Steam Tables & Food Wells

$3,163.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

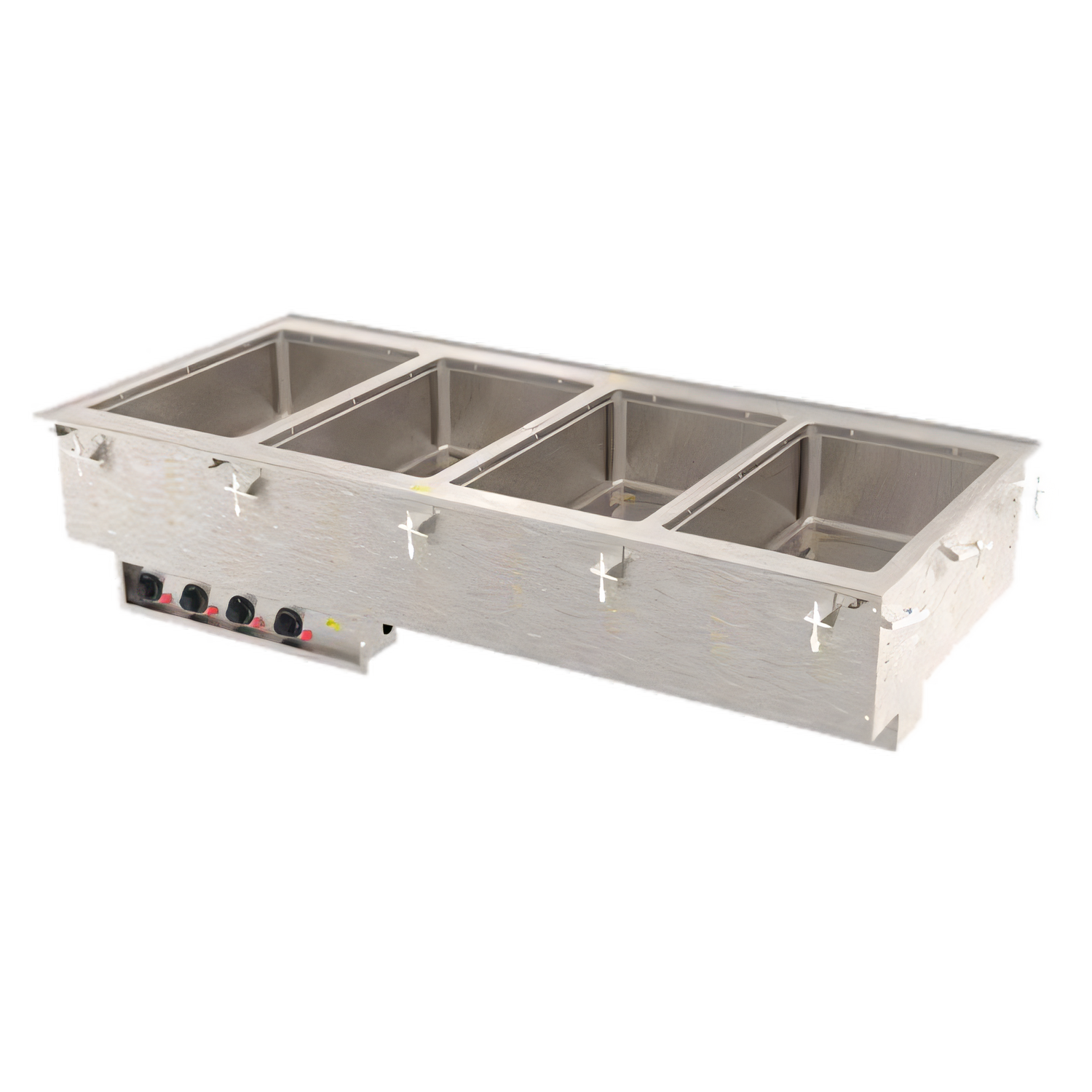

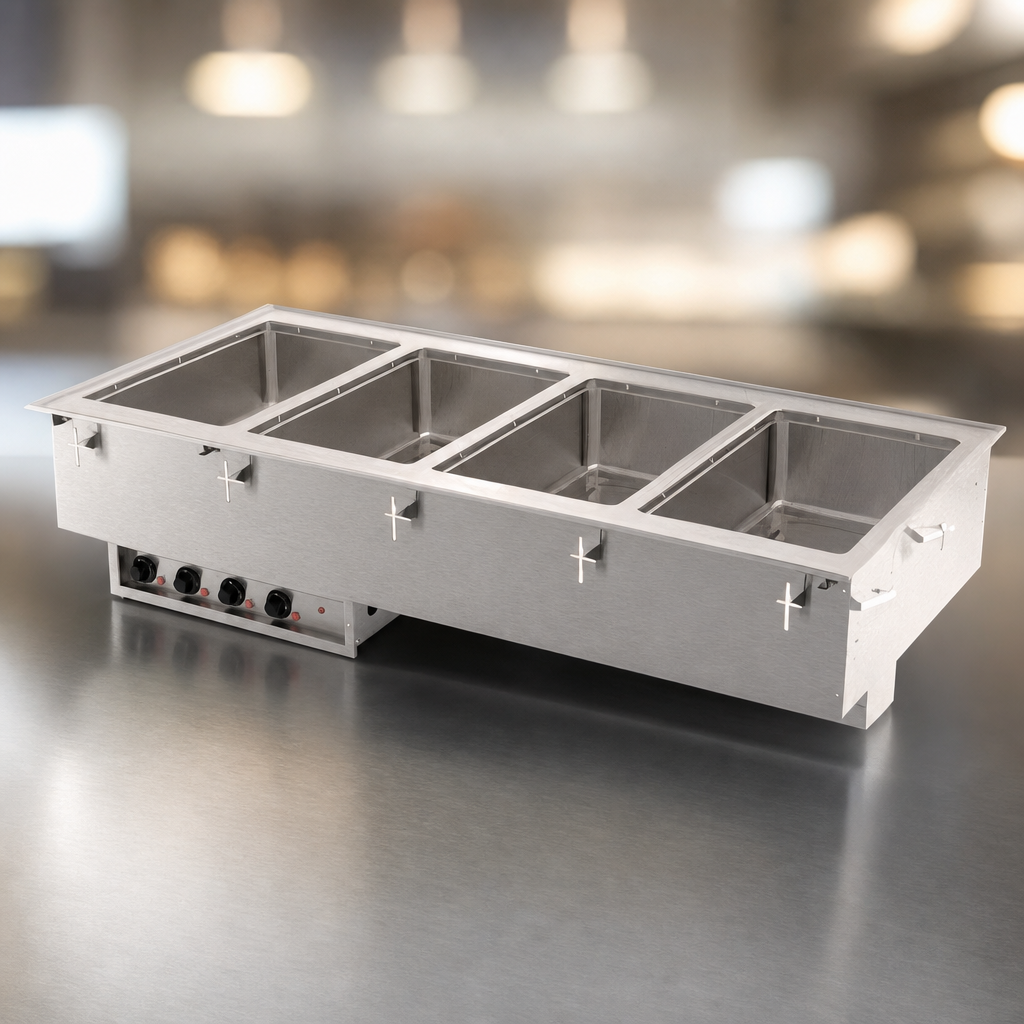

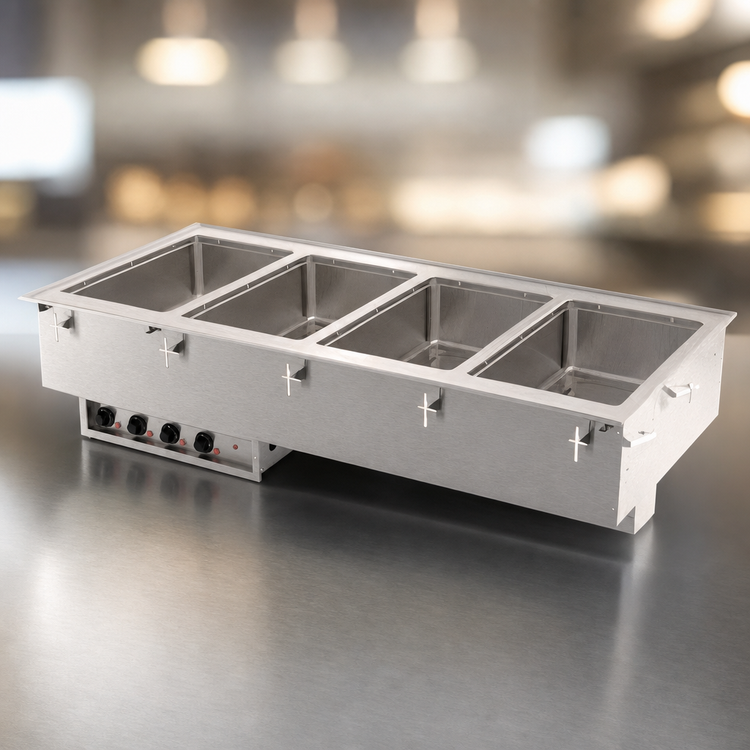

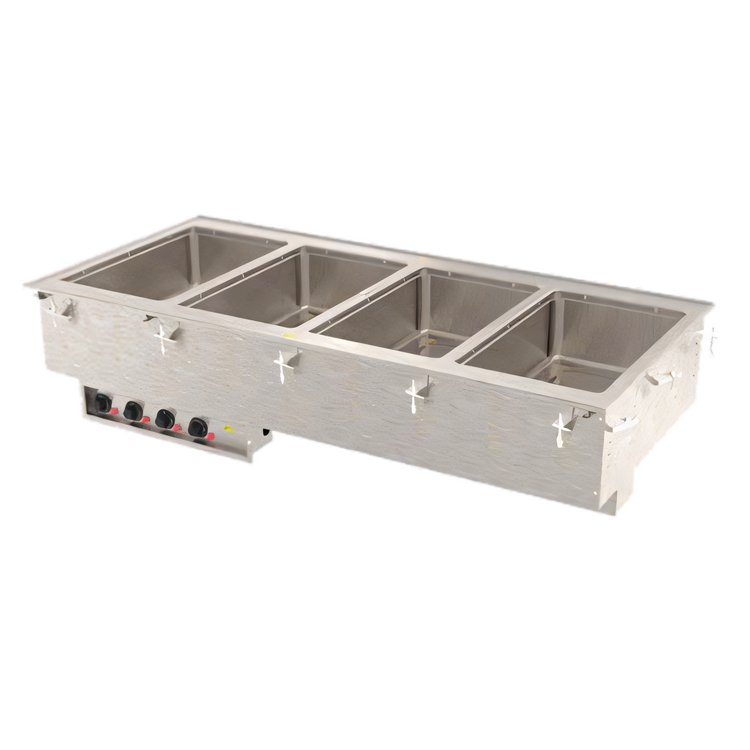

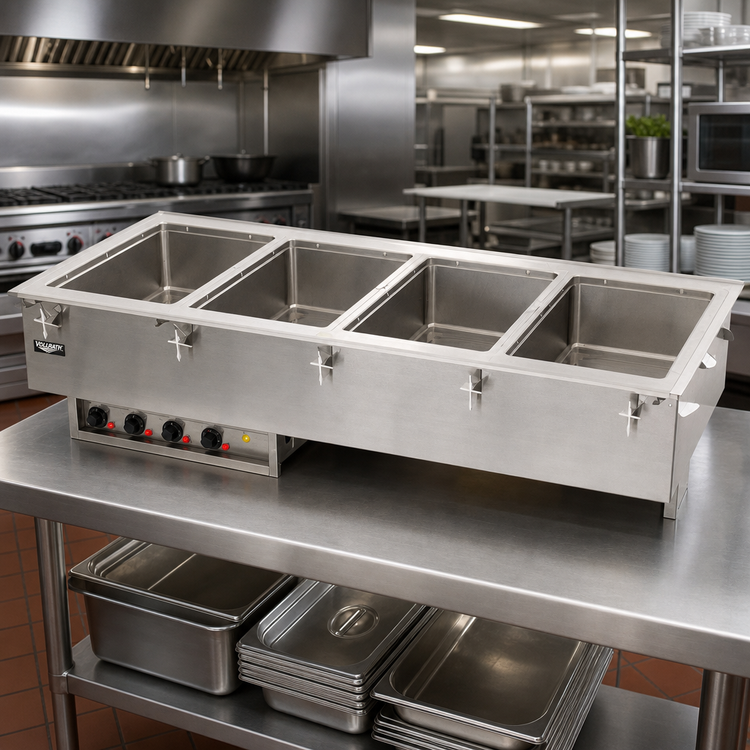

Vollrath 4-Well Hot Food Drop-In – Thermostatic, 208 V

Model 3640710 | 625 W per well | Wet-operation only

Keep entrées, sides and sauces at safe serving temperatures without hard-wiring. Vollrath’s four-well electric drop-in delivers precise, independent heat in a self-contained, plug-and-play package that fits seamlessly into new or existing counters.

Key features

  • Four individual 12" × 20" full-size wells formed from 20-gauge 300-series stainless steel
  • Dedicated thermostatic control & power indicator light for each well—dial in exact temperatures
  • Wet-only heating produces gentle, even heat that prevents product dehydration
  • 18-ga stainless drip-free top flange creates a clean, sanitary seal with the countertop
  • ½" drains with individual ball-valve shut-offs for quick water changes
  • 6 ft cord with NEMA 6-15P plug—no electrician or hard-wiring required
  • Fully insulated wells and housing for energy efficiency and cooler ambient temps
  • Mounting/positioning clips included; accommodates counters up to 3" thick
  • NSF 4 & cULus listed; proudly Made in the USA

Perfect for

  • Buffet lines & cafeterias
  • QSR and fast-casual service counters
  • Catering build-outs, kiosks and mobile kitchens
  • Any venue where a full steam table isn’t practical

Specifications

Number / size of wells 4 × 12" × 20" (accepts pans up to 6" deep)
Construction 20-ga stainless wells, 18-ga stainless top, 18-ga galvanized housing
Overall dimensions 54 ¾" W × 26" D × 15" H (139.1 × 66 × 38.1 cm)
Counter cut-out 54" W × 25 ¼" D (137.2 × 64.1 cm) – ⅞" corner radius
Operation Electric, wet heat only
Total power 2,500 W (625 W per well)
Electrical 208 V / 60 Hz / 1-ph, 12.0 A, NEMA 6-15P
Controls 4 independent thermostatic knobs on remote stainless panel (4 ft tether)
Drains Individual ½" MPT drains with ball valves
Included Mounting gasket & clips, 6 ft cord/plug
Certifications NSF 4, cULus
Country of origin USA
Important: Unit is designed for moist-heat service only. Fill each well with water before energizing to ensure proper operation and NSF compliance.

Using fractional pans? Add Vollrath adapter bars for a perfect fit (sold separately).

For complete warranty details visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

168.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2500 watts, 208v/60/1-ph, 12.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
