Vollrath  |  SKU: 3640701HD

Vollrath 3640701HD Steam Tables & Food Wells

$3,509.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

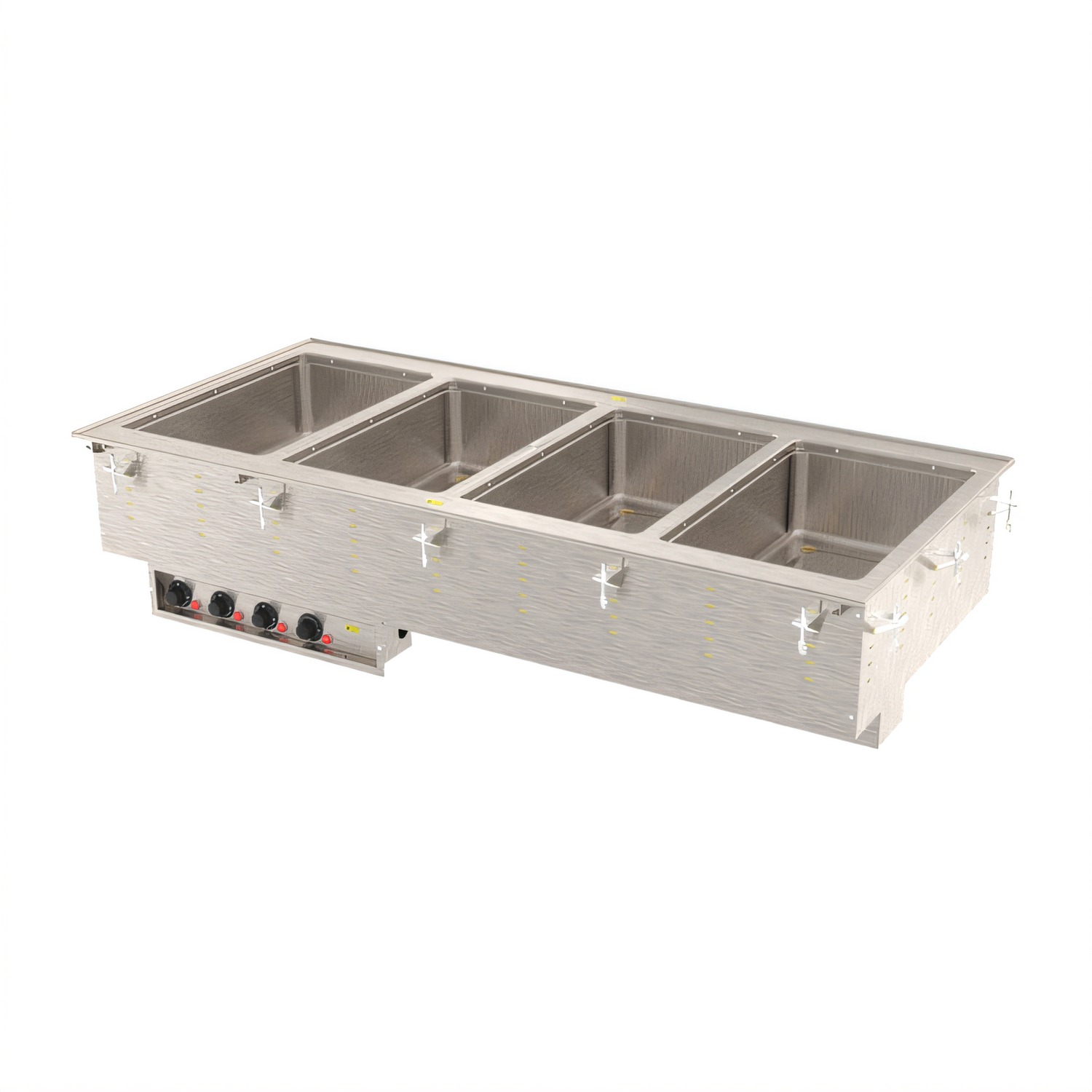

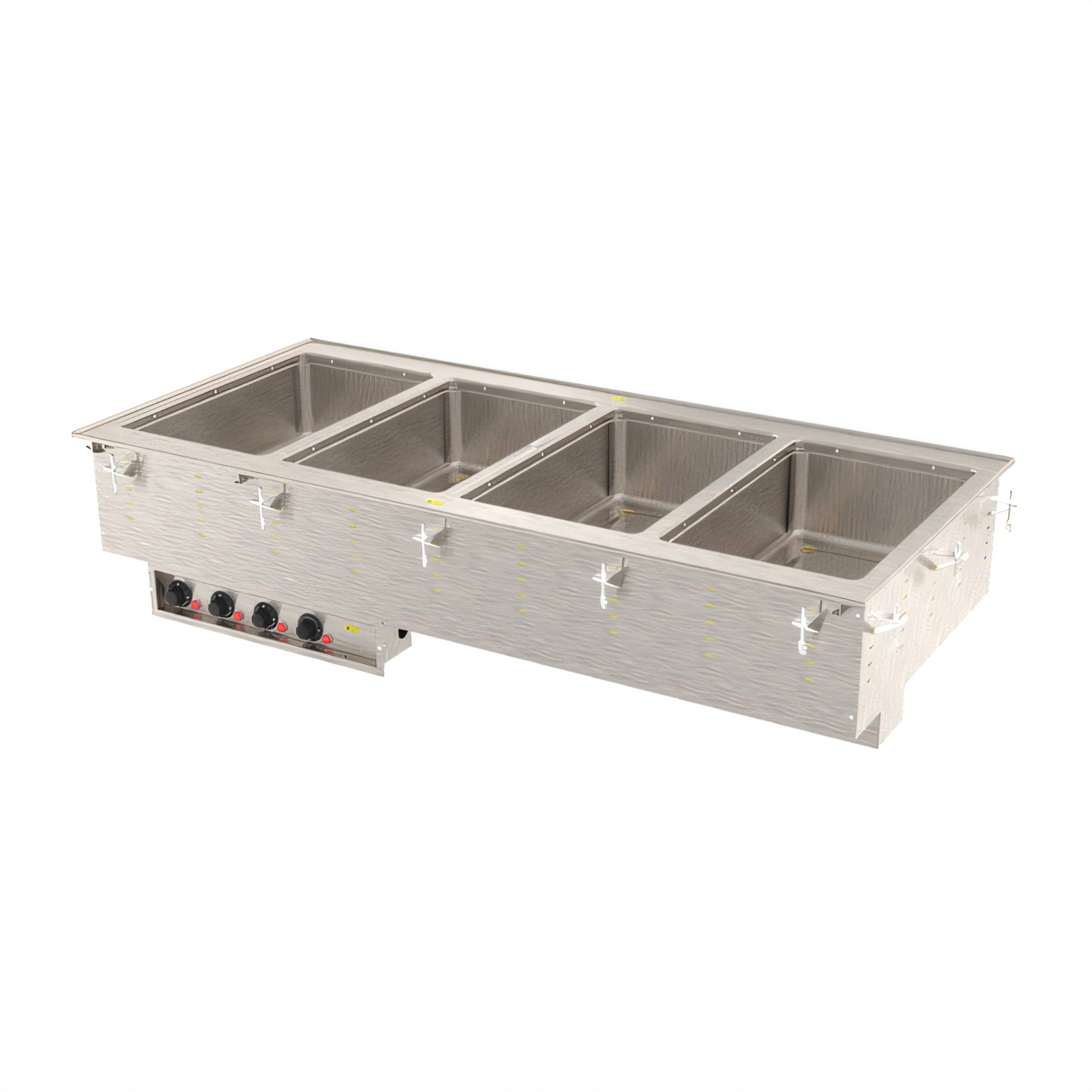

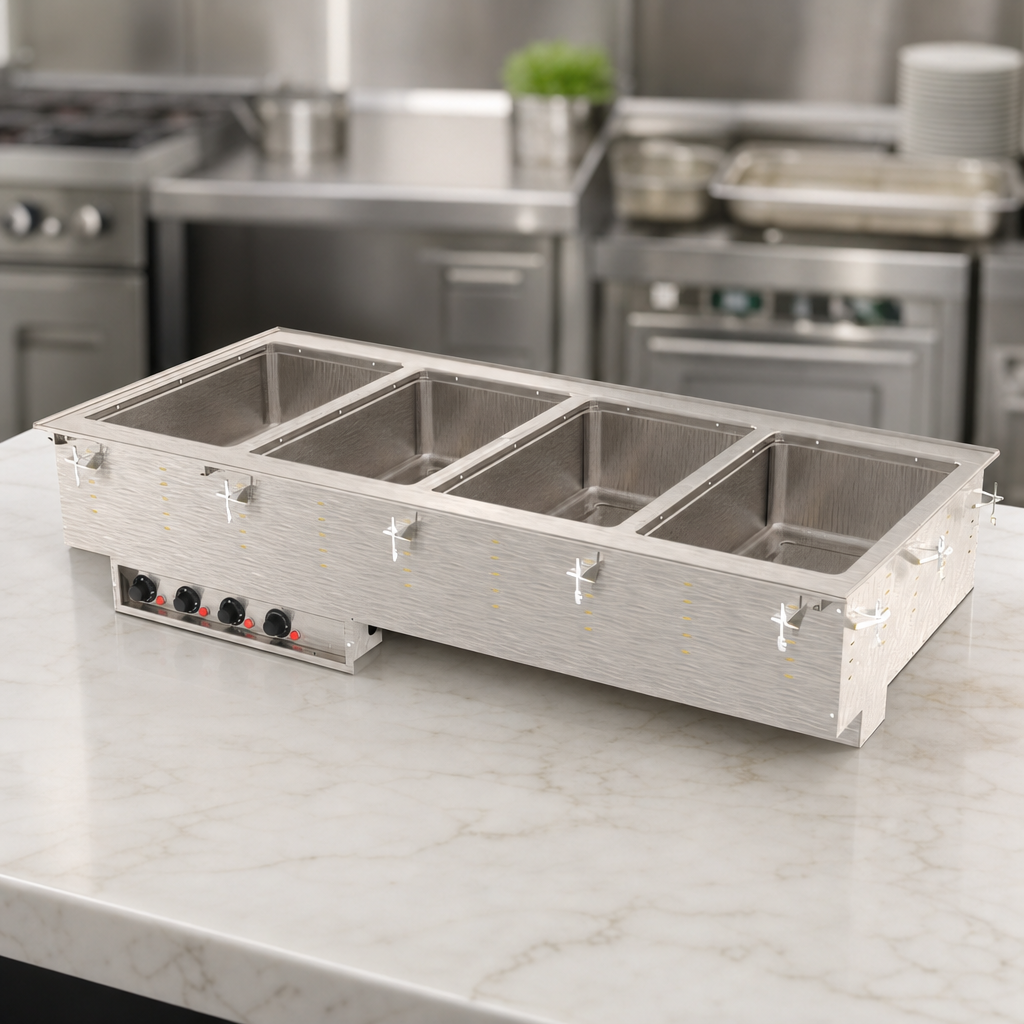

Vollrath 4-Well Modular Hot Drop-In – Marine-Grade 316 Stainless

Wet-operation food well | Individual infinite controls | 208-240 V plug-in

Keep entrées, sides, and sauces at safe serving temperatures with the durability of SAE Type-316 marine-grade stainless steel. This Vollrath drop-in features four fully insulated 12" x 20" wells, each with its own infinite control and drain shut-off, all in a plug-and-play package that installs flush in counters up to 3" thick.

Why you’ll love it

  • Four independent 20-gauge/316 stainless wells resist corrosion from salts and chlorides.
  • Wet operation only for gentle, even heat that meets NSF 4 performance standards.
  • Individual infinite controls with power lights let you fine-tune each menu item.
  • 6' (1.8 m) factory-installed cord with NEMA 6-30P – no hard-wiring required.
  • ½" ball-valve drain on every well plus drip-free mounting flange for a cleaner line.
  • 18-gauge stainless top and exterior housing stand up to high-volume service.
  • Ships with mounting/positioning clips for zero-clearance, drop-in installation.
  • Accepts full-size or fractional pans up to 6" (15.2 cm) deep – use adapter bars for mixed pan layouts.
  • Made in the USA and listed by NSF & cULus.

Technical specifications

Model 4-Well Modular Hot Drop-In – Standard Drain, Infinite Control (Marine Grade)
Wells (4) 12" × 20" full-size, 20-ga / Type-316 SST, individual insulation
Operation Wet heat only (water required)
Controls Individual infinite dials with power indicator lights; 4' (121.9 cm) tethered panel
Overall dimensions 54-3/4" W × 26" D × 15" H (139.1 × 66 × 38.1 cm)
Counter cutout 54" W × 25-1/4" D (137.2 × 64.1 cm) with 7/8" (2.2 cm) corner radius
Electrical 4000 W total (1000 W per well) • 208–240 V / 60 Hz / 1-ph • 14.4–16.7 A
Plug NEMA 6-30P, factory installed
Drain (4) ½" NPT ball-valve shut-offs
Construction 18-ga SST top & housing; marine-grade drawn wells
Certifications NSF 4 (wet operation), cULus, Made in USA
Warranty 2-year parts & labor (see VollrathFoodservice.com for full policy)

Installation & operation notes

  • Zero-clearance design installs flush in counters up to 3" (7.6 cm) thick.
  • Indoor use only; room temperature & HVAC may affect holding performance.
  • Fill wells with water before energizing unit to prevent element damage and ensure even heating.
  • Adapter bars (Vollrath #19186) recommended when using fractional pans.
Important: Modular drop-ins are built to order and cannot be canceled or returned once the order is placed.

For complete warranty terms, safety information, and replacement parts, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

170.0lbs

Controls

infinite controls

Construction

stainless steel construction

Style

individual pans

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
