Vollrath 3640701 Steam Tables & Food Wells
Description

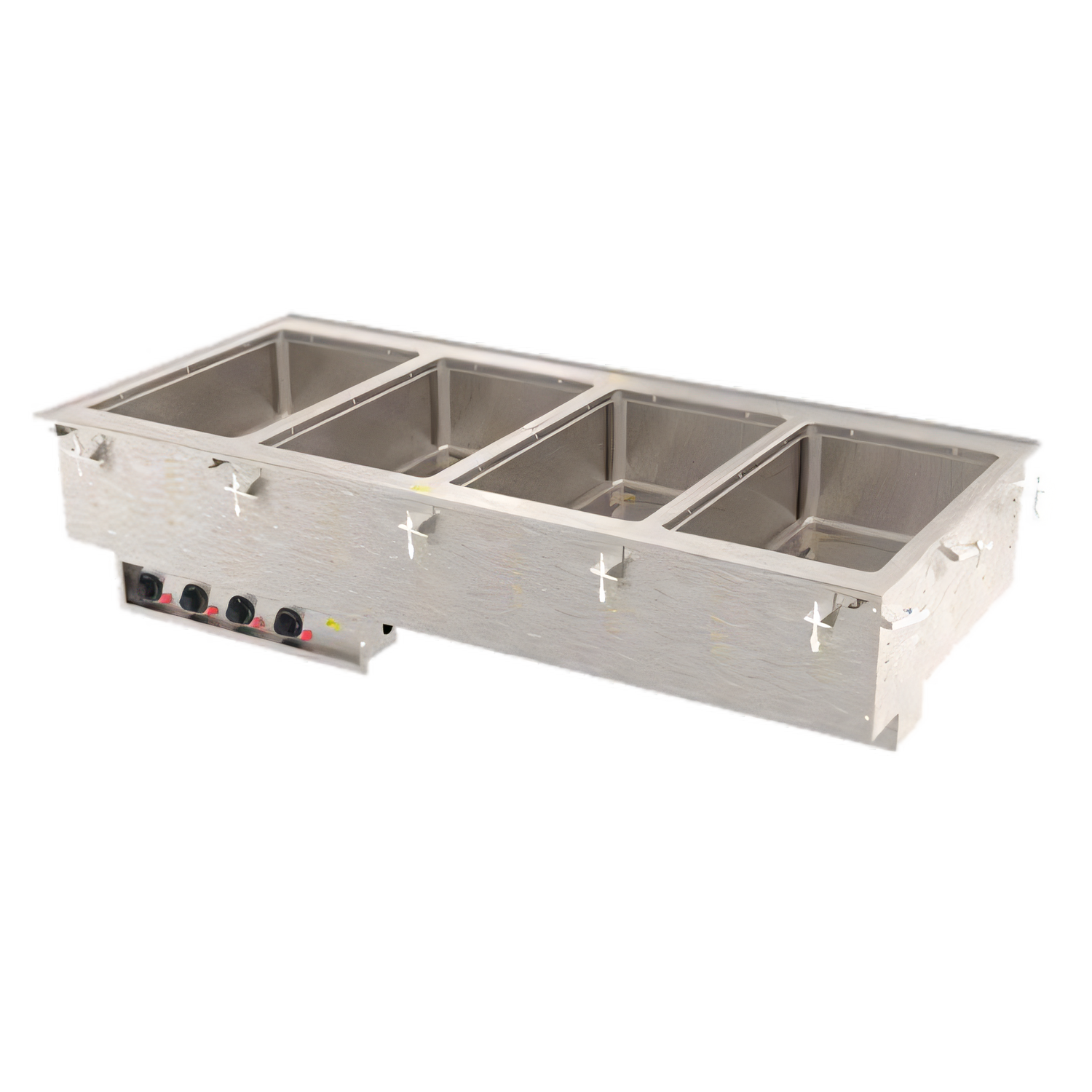

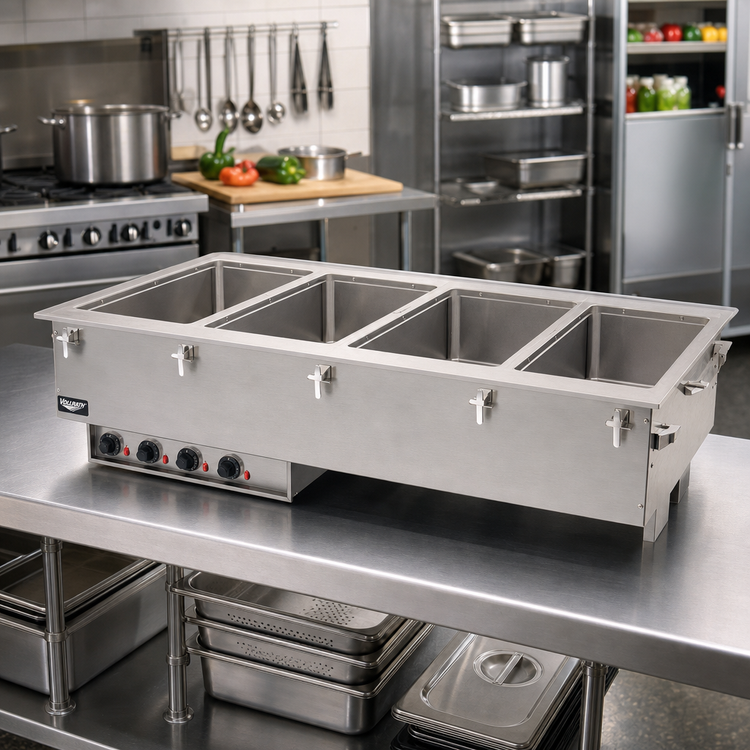

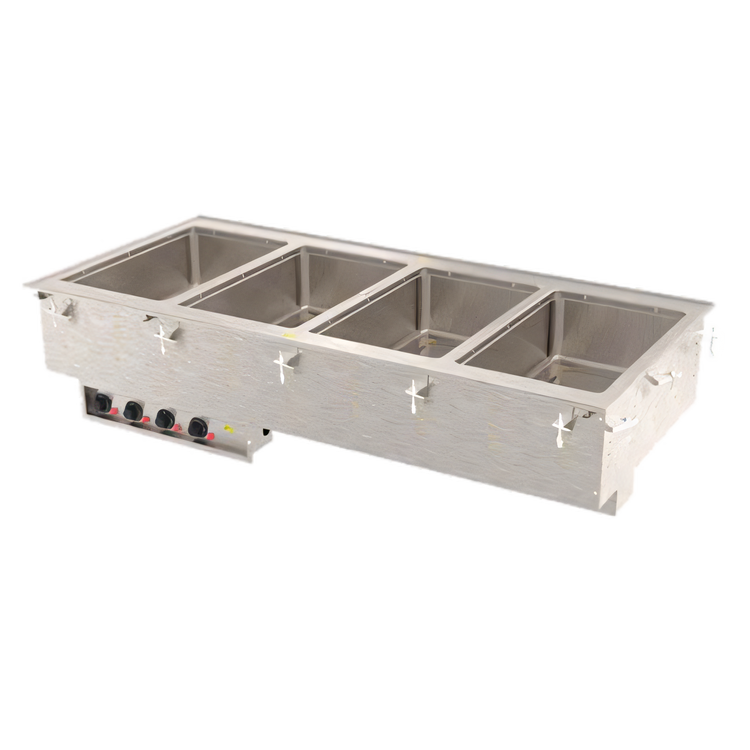

Vollrath 4-Well Electric Drop-In Hot Food Well
Model 3640701 · 208-240 V · 4,000 W Total · NEMA 6-30P PlugKeep entrées, sides, soups and sauces at safe serving temperatures with Vollrath’s commercial-grade four-well hot module. This self-contained drop-in installs flush, operates on wet heat only, and gives you independent control over every 12" × 20" well—no hard-wiring required.
Key features & benefits

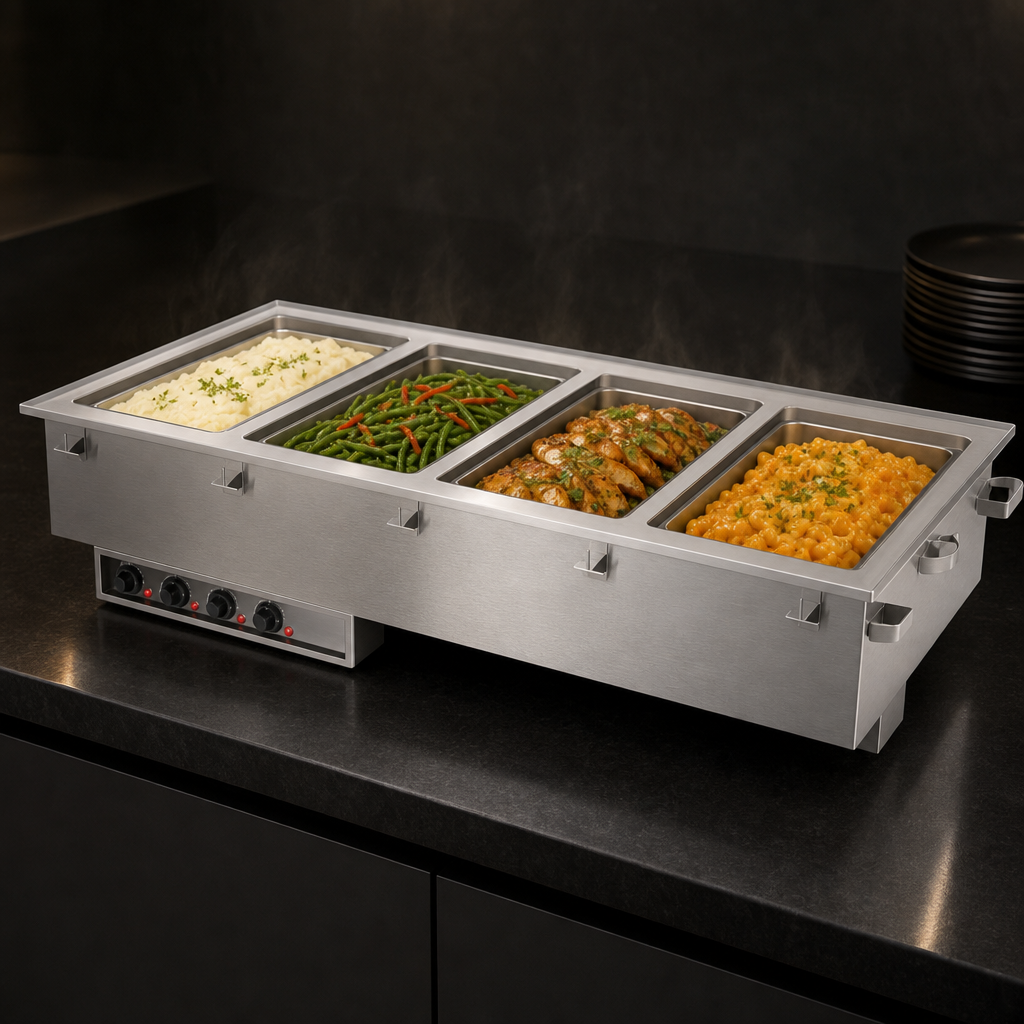

- Four individually insulated 12" × 20" wells formed from durable 20-gauge 300-series stainless steel.
- Wet-heat design ensures even warming that meets NSF 4 performance standards.
- Independent infinite dial and power-on light for each well on a stainless remote panel (4 ft tether).
- Drip-free stainless flange with gasket protects counters and simplifies cleanup.
- ½" NPT drains with dedicated ball valve on every well—change water fast, no manifold required.
- 6 ft factory-installed cord with NEMA 6-30P plug—just drop in, plug in and serve.
- Rugged 18-gauge stainless top and 18-gauge galvanized exterior housing stand up to daily abuse.
- Mounting clips included for counters up to 3" thick; zero-clearance body fits tight installs.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- NSF & cULus listed and proudly Made in the USA.
Specifications
| Number of wells | 4 (individually controlled) |
|---|---|
| Well size | 12" × 20" each |
| Total wattage | 4,000 W (1,000 W per well) |
| Voltage / phase | 208-240 V / 60 Hz / 1-phase |
| Amperage | 14.4 – 16.7 A |
| Electrical connection | 6 ft cord with NEMA 6-30P |
| Controls | Infinite manual dials with indicator lights |
| Operation | Wet heat only (water required) |
| Drain | ½" drains with individual shut-off valves |
| Exterior material | 18-ga galvanized steel |
| Top flange material | 18-ga 300-series stainless steel |
| Overall dimensions | 54 ¾" W × 26" D × 15" H |
| Counter cut-out | 54" W × 25 ¼" D with 7/8" corner radius |
| Certifications | NSF 4 (wet), cULus |
| Country of origin | USA |
What’s in the box
- Vollrath four-well drop-in hot module
- Stainless steel remote control panel
- Mounting/positioning clips & counter gasket
- Owner’s & installation manual
Accessory available: Sheet pan adapter bar (Vollrath #19186) for fractional pans – sold separately.
Covered by Vollrath’s standard one-year parts & labor warranty. See vollrathfoodservice.com for full policy details.
