Vollrath 36407 Steam Tables & Food Wells

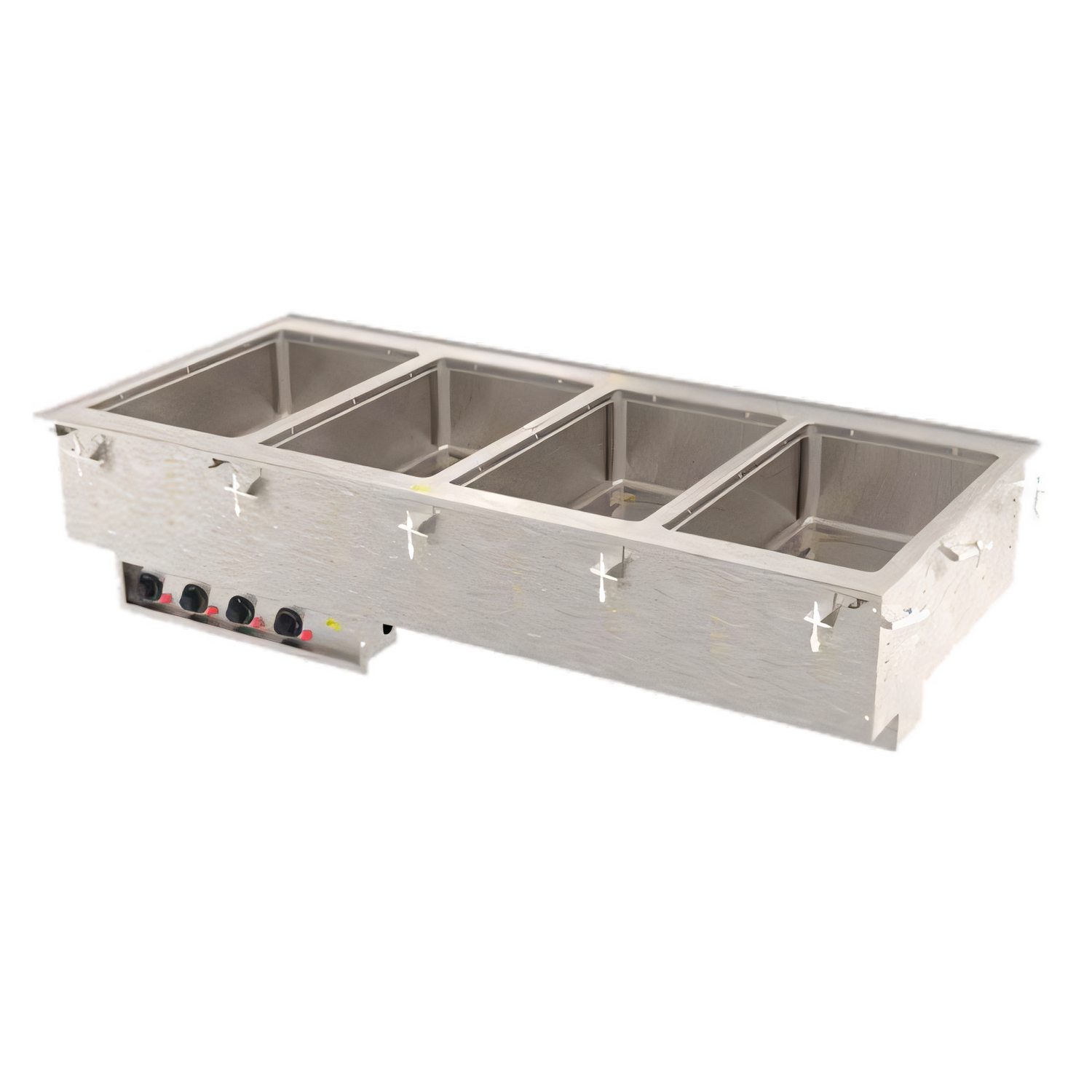

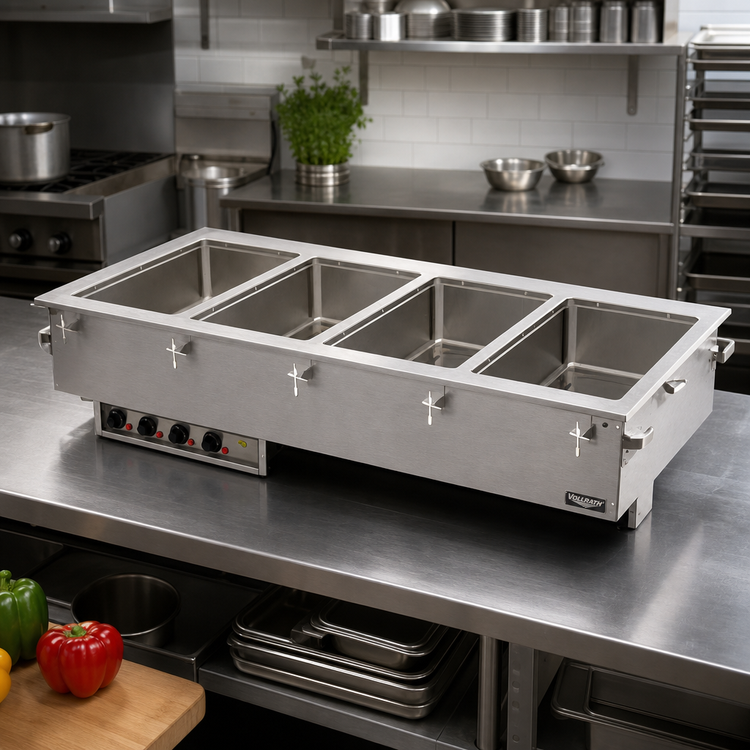

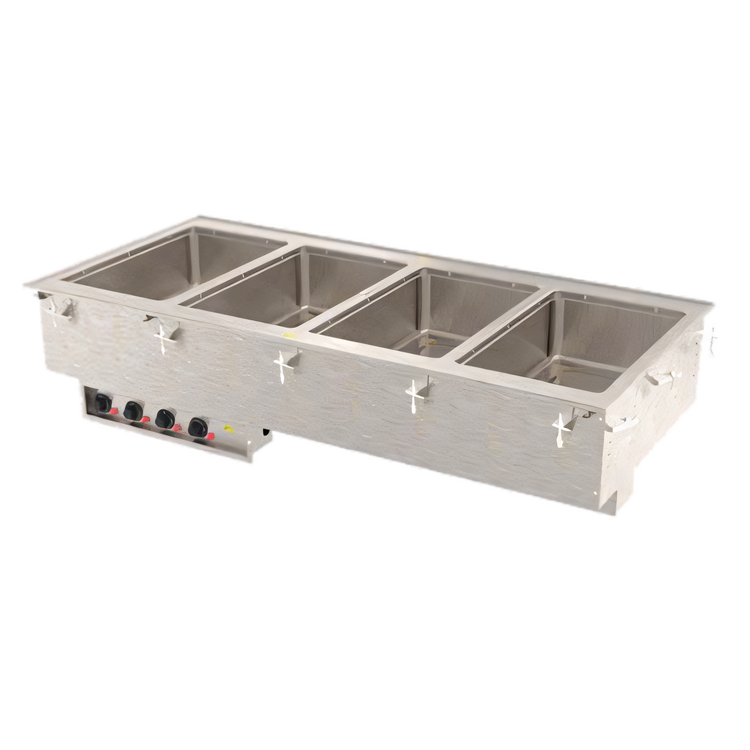

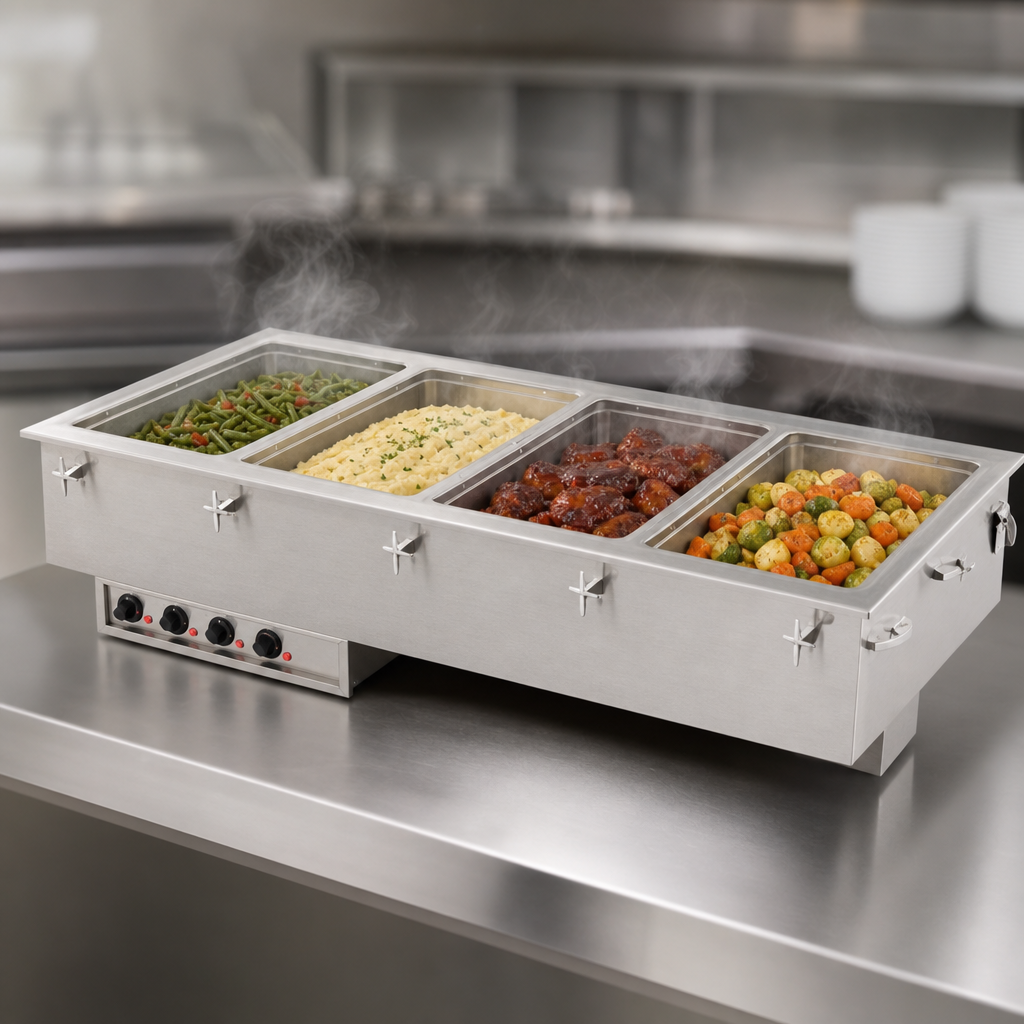

Vollrath 4-Well Drop-In Hot Food Well – 208 V

Keep entrées, sides and sauces at safe serving temperatures with this self-contained, four-well electric hot well from Vollrath. Built for wet operation only, the unit drops seamlessly into your counter and plugs into a standard 208 V receptacle—no hard-wiring or extra plumbing required.

Key features

• (4) individual 12 × 20 in. wells formed from 20 ga 300-series stainless steel
• 625 W per well with independent infinite controls & power indicator lights
• Fully insulated—sides, bottom and between wells—for energy efficiency
• 18 ga stainless drip-free top flange with included gasket for a clean install
• ½ in. drains with ball valves for each well—service one pan without emptying them all
• 18 ga galvanized exterior housing stands up to the heat beneath the counter
• 4 ft removable stainless control panel lets you mount the controls where you want them
• Mounting clips provided for counters up to 3 in. thick (zero-clearance design)
• Accepts full-size or fractional pans up to 6 in. deep (use adapter bars for fractional)
• NSF 4 & cULus listed; proudly Made in the USA

Cutout & installation

Counter cutout: 54 in. W × 25 ¼ in. D (137.2 × 64.1 cm) with 7⁄8 in. (2.2 cm) corner radius.

Technical specifications

Modular drop-in orders are custom-built and cannot be canceled or returned once placed.
