Vollrath 36406HD Steam Tables & Food Wells
Description

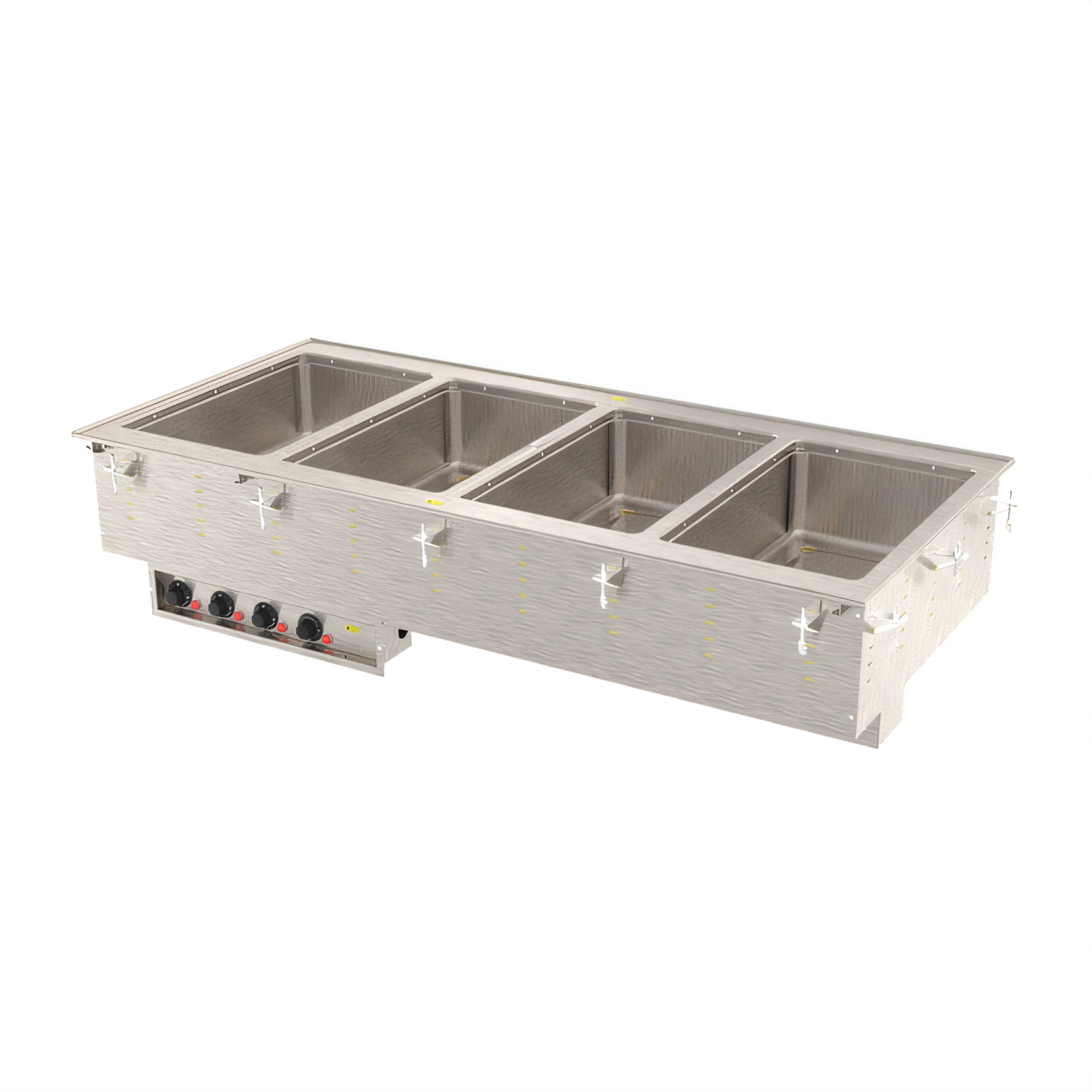

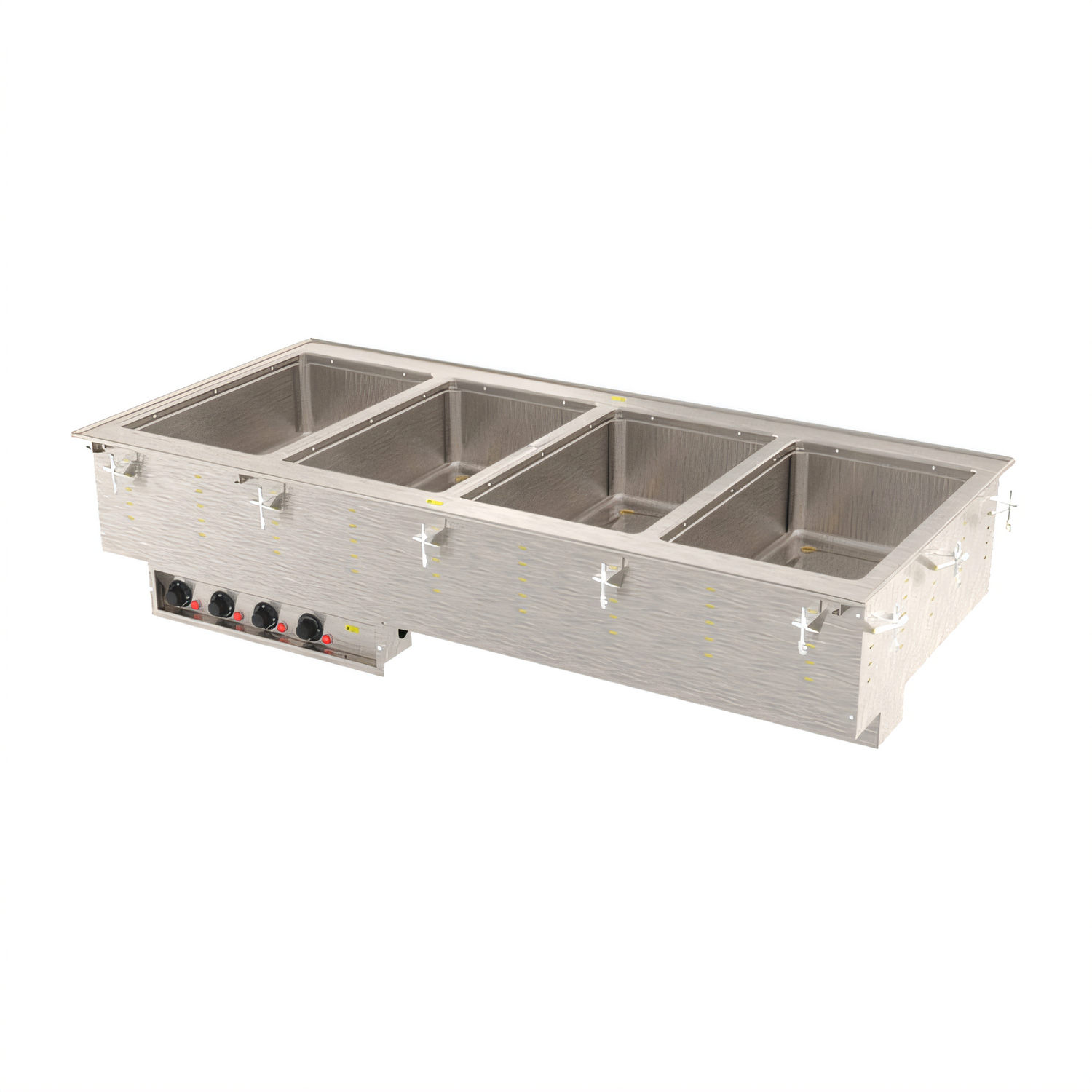

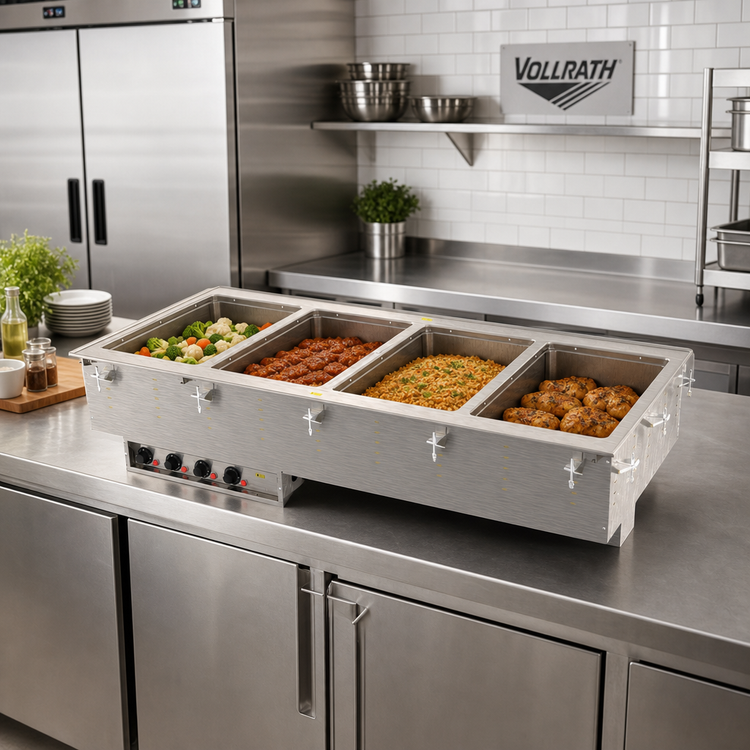

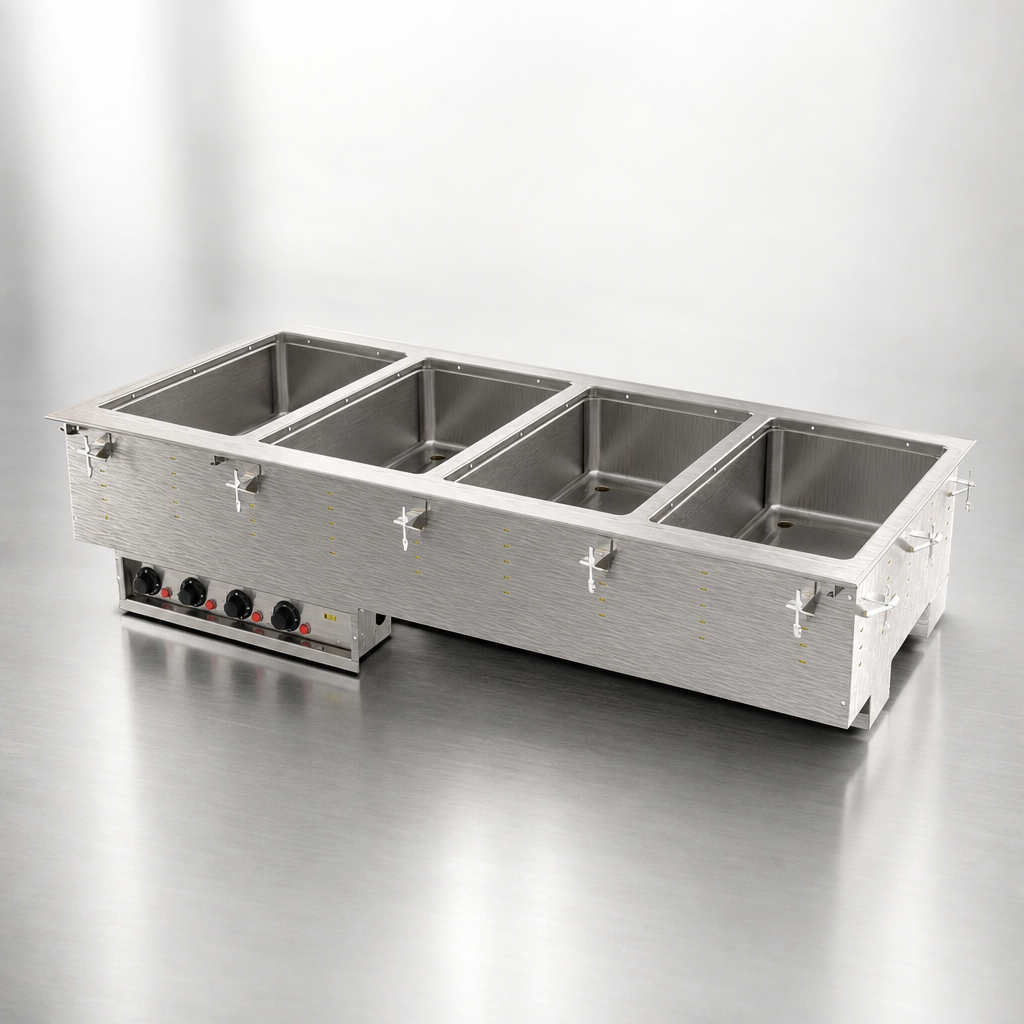

Vollrath 4-Well Modular Drop-In Hot Food Well – Marine-Grade
Model 36406HD | 120 V | 625 W per well (2,500 W total)Built for demanding commercial kitchens, this U.S.–made Vollrath drop-in keeps four full-size steam-table pans of food hot, fresh, and ready to serve. Each 12" × 20" well is formed from corrosion-proof 316 marine-grade stainless steel and individually insulated for maximum energy efficiency. Simply add water, set each infinite control, and enjoy precise wet-heat performance all day long.
Why You’ll Love It
- Four independent 12" × 20" wells – 20-gauge marine-grade 316 stainless steel resists salt & harsh chemicals.
- Wet-operation only design delivers gentle, even heat that protects food quality and meets NSF 4 performance standards.
- Individual infinite controls with power lights let you dial in exact holding temps for each menu item.
- Drip-free top flange and included gasket create a clean, snag-free counter installation.
- Separate ½" ball-valve drains for each well speed up end-of-service cleanup.
- 6 ft (1.8 m) cord with NEMA 5-30P plug – no hard-wiring required.
- Zero-clearance body plus included mounting clips fit counters up to 3" (7.6 cm) thick.
- NSF & cULus certified and backed by Vollrath’s two-year warranty.
Technical Specifications
| Wells | (4) full-size, 12" × 20", 6" max pan depth |
|---|---|
| Well Material / Gauge | 316 marine-grade stainless, 20 ga |
| Top & Housing | 18 ga stainless steel top with stainless exterior housing |
| Operation | Wet heat only (water required) |
| Controls | 4 independent infinite switches with power indicator lights (remote panel, 4 ft tether) |
| Total Power | 2,500 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph, 20.8 A, NEMA 5-30P |
| Overall Dimensions | 54-3/4" W × 26" D × 15" H (139.1 × 66 × 38.1 cm) |
| Counter Cut-Out | 54" W × 25-1/4" D (137.2 × 64.1 cm) with 7/8" corner radius |
| Drains | Individual ½" MPT drains with shut-off valves |
| Certifications | NSF 4 (wet operation), cULus, Made in USA |
| Warranty | 2 years parts & labor (see VollrathFoodservice.com for full policy) |
Best For
- Buffet lines & cafeterias
- Grab-and-go service counters
- Back-of-house holding prior to plating
- Catering stations requiring flush, professional presentation
Modular drop-ins are custom-built and cannot be canceled or returned once ordered.
