Vollrath 3640680HD Steam Tables & Food Wells
$5,081.75
Unit price
/
Unavailable
Description

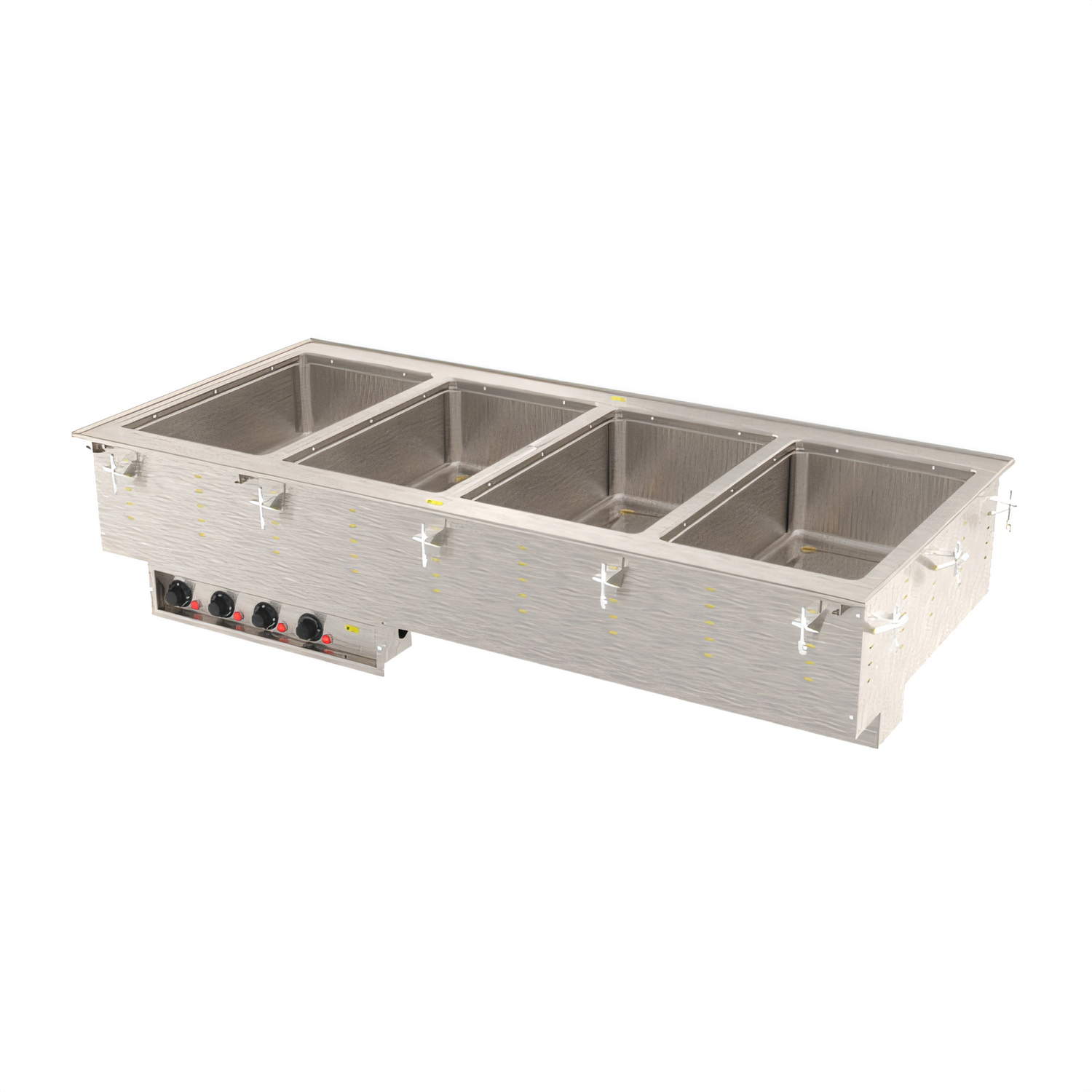

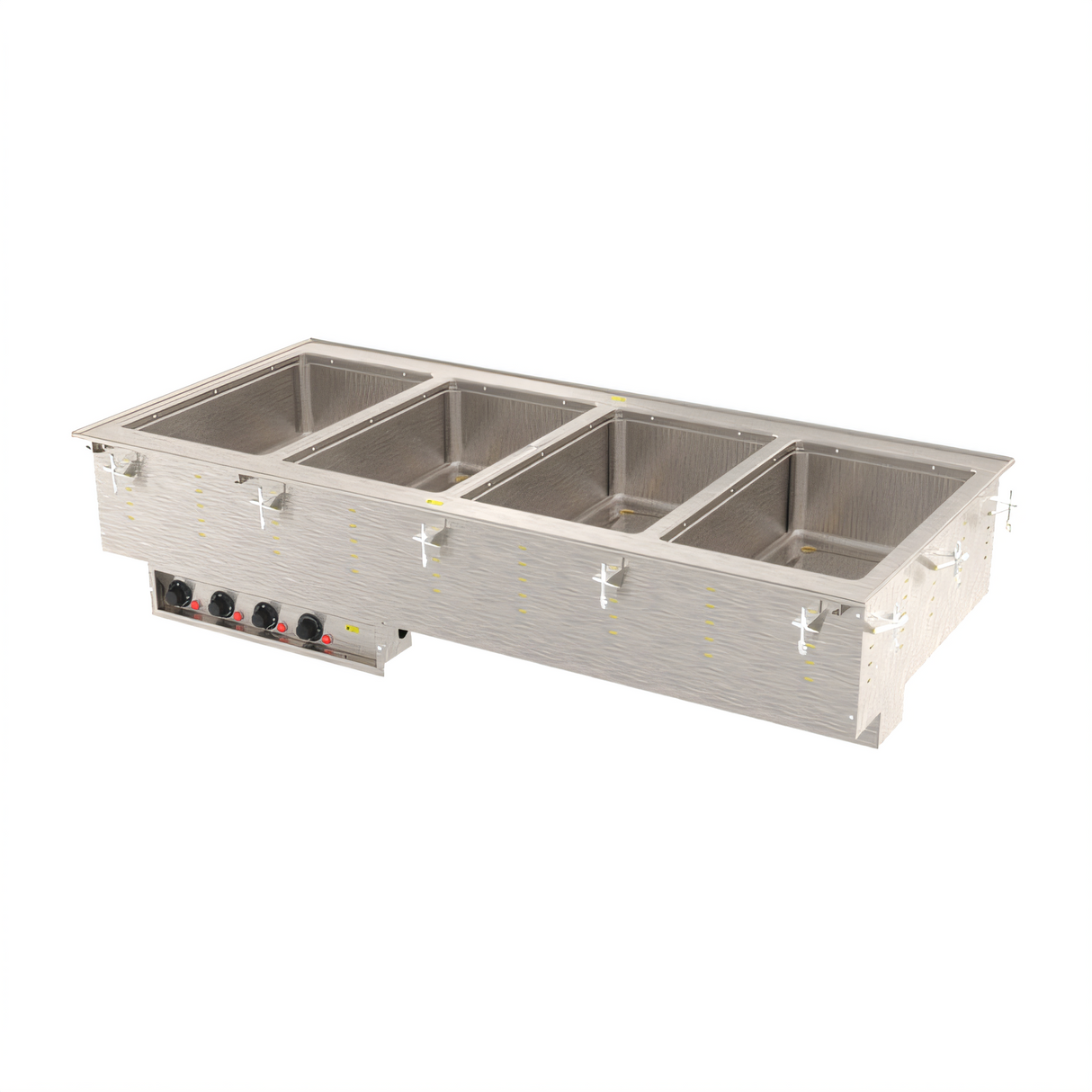

Vollrath 4-Well Auto-Fill Hot Food Drop-In – Marine-Grade
Model 3640680HD | Manifold Drain • Thermostatic Controls • 120 VGive every menu item the holding performance it deserves. This modular drop-in keeps four full-size pans at safe serving temperatures with the corrosion-proof durability of 316 marine-grade stainless steel and the convenience of an automatic water-fill system.
Why You’ll Love It

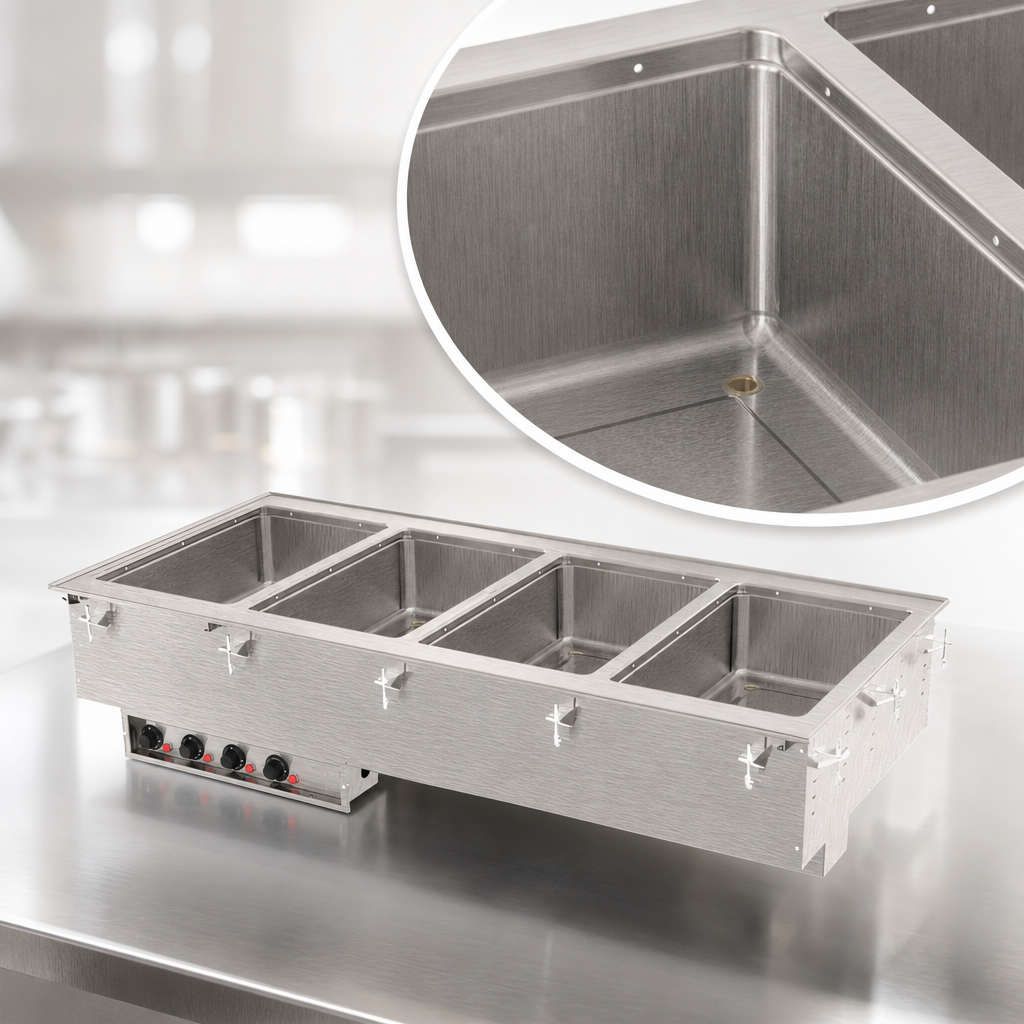

- Four independent 12" × 20" wells, each 20-gauge, SAE 316 marine-grade stainless steel for maximum corrosion resistance.
- Auto-fill maintains the ideal water level—no more dry-well damage or constant refilling.
- Precise, individual thermostatic controls with power-on indicator lights; remote stainless panel is tethered 4 ft (121.9 cm) for flexible mounting.
- 18-gauge stainless top with drip-free flange delivers a clean, finished counter presentation.
- 1" copper manifold drain with individual well shut-offs plus master shut-off for fast, mess-free draining.
- Fully insulated on all non-exposed sides—including between wells—for energy-efficient operation and a cooler work surface.
- Zero-clearance installation; mounting gasket and clips (for counters ≤ 3" thick) included.
- Accepts full-size or fractional pans up to 6" deep (use adapter bars for fractional pans).
- NSF 4 listed for wet operation, cULus certified, and proudly Made in the USA.
Technical Specifications
| Wells & Capacity | (4) 12" × 20" wells, 6" pan depth |
|---|---|
| Construction | 20-ga 316 SS wells, 18-ga SS top, stainless exterior housing |
| Operation | Wet operation only | Auto-fill system |
| Control Type | Individual thermostatic dials with indicator lights |
| Total Wattage | 2,500 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph, 20.8 A, 6 ft cord & NEMA 5-30P plug |
| Overall Dimensions | 54-3/4" W × 26" D × 21-1/2" H (139.1 × 66 × 54.6 cm) |
| Counter Cut-out | 54" W × 25-1/4" D, 7/8" corner radius |
| Drain | 1" copper manifold with individual & master shut-offs |
| Certifications | NSF 4 (moist heat), cULus |
| Warranty | 2-year limited warranty (see Vollrath for details) |
Optional Accessories
- Sheet-pan adapter bar – Item #19186 (recommended for fractional pans).
Important: Unit is designed for wet heat only. Operating dry will damage the elements and void the warranty. Modular drop-ins are built to order and cannot be canceled or returned.
Looking for installation or cut-out guidance? Download spec sheets and manuals anytime at vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
54.75in
Depth
26.0in
Shipping Weight
184.0lbs
Drain
with drain
Style
individual pans
Construction
stainless steel construction
Pan Capacity
(4) full size (12" x 20")
Controls
thermostatic controls
Insulated or Non-Insulated
insulated
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 120v/60/1-ph, 20.8 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
