Vollrath  |  SKU: 3640680

Vollrath 3640680 Steam Tables & Food Wells

$4,452.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

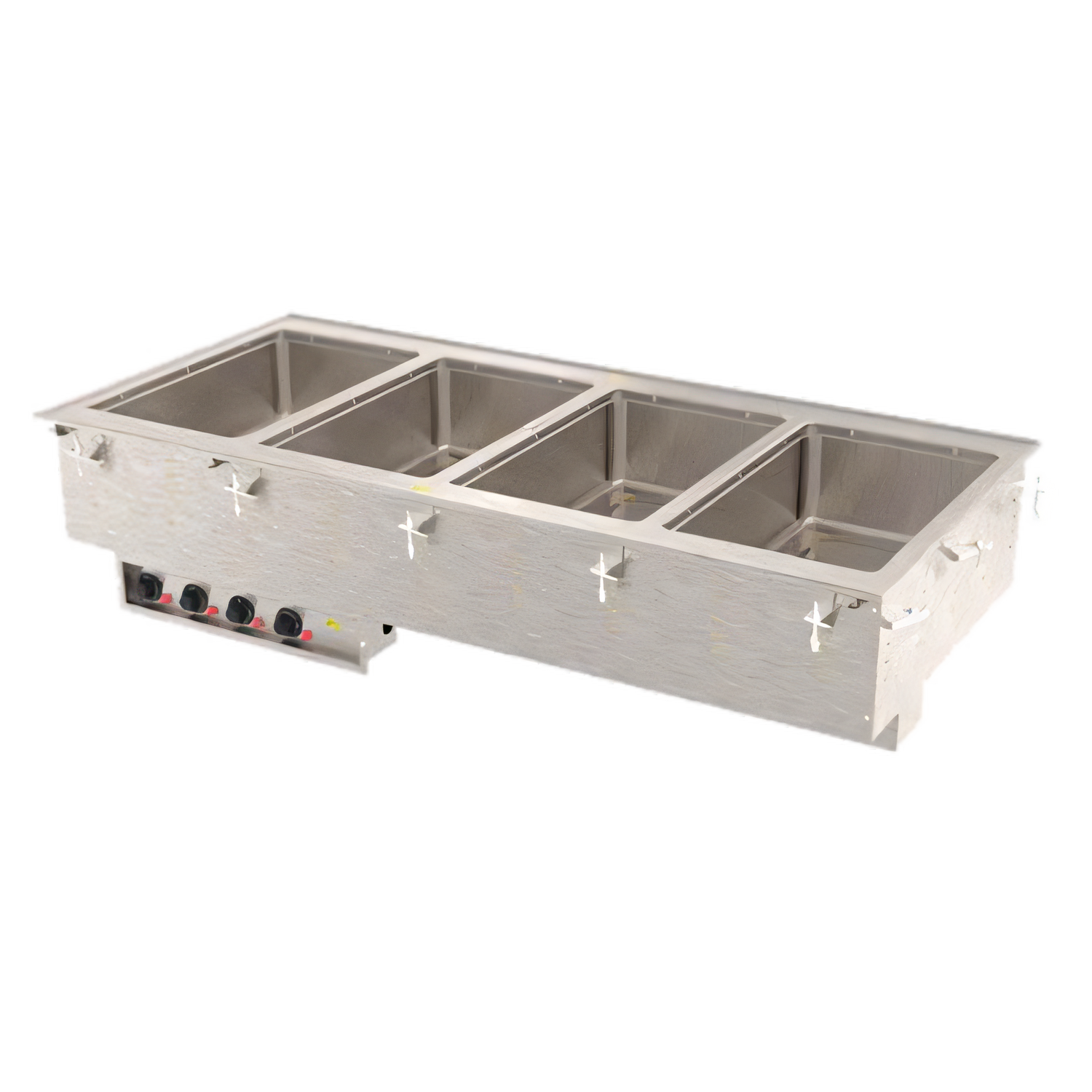

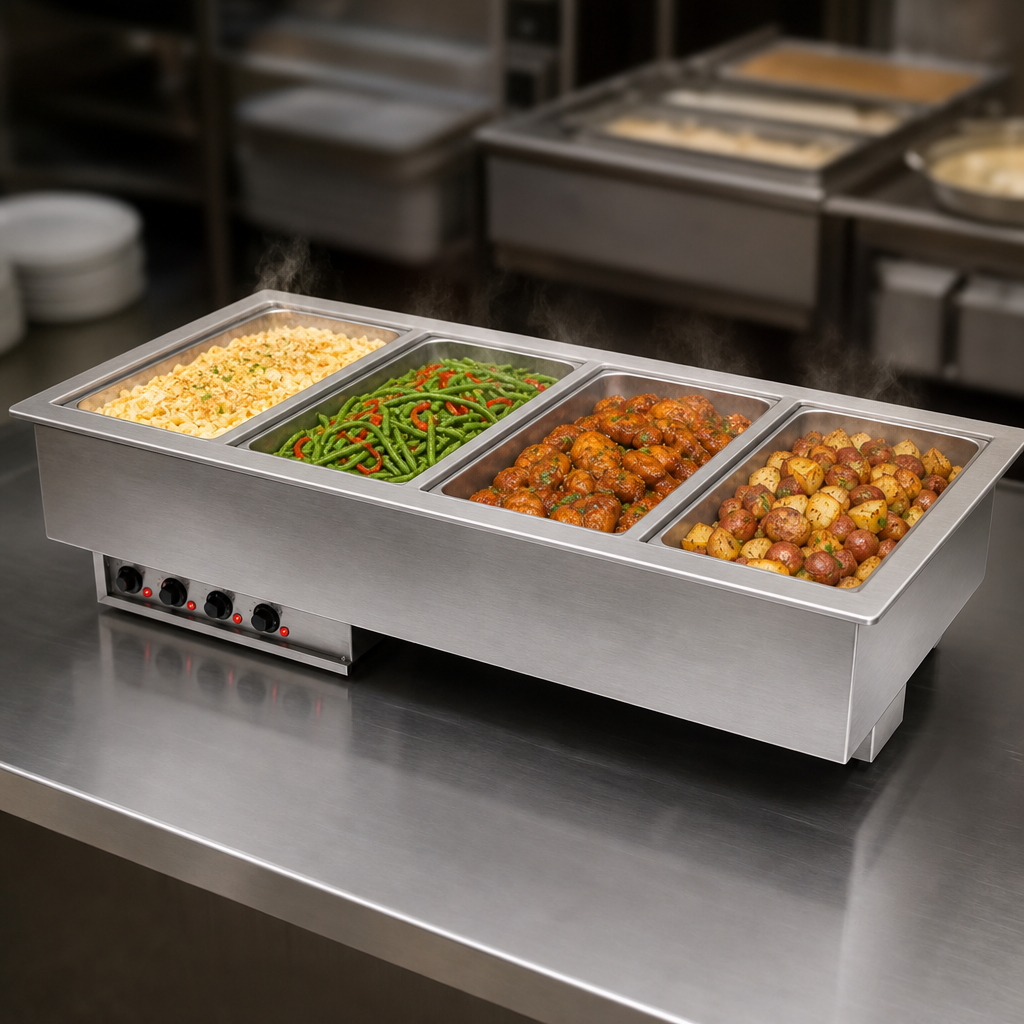

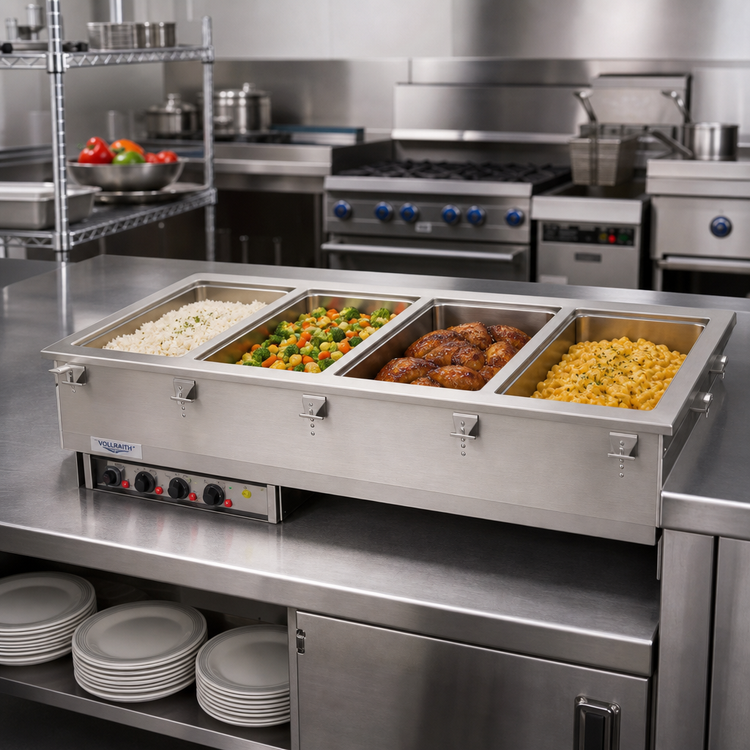

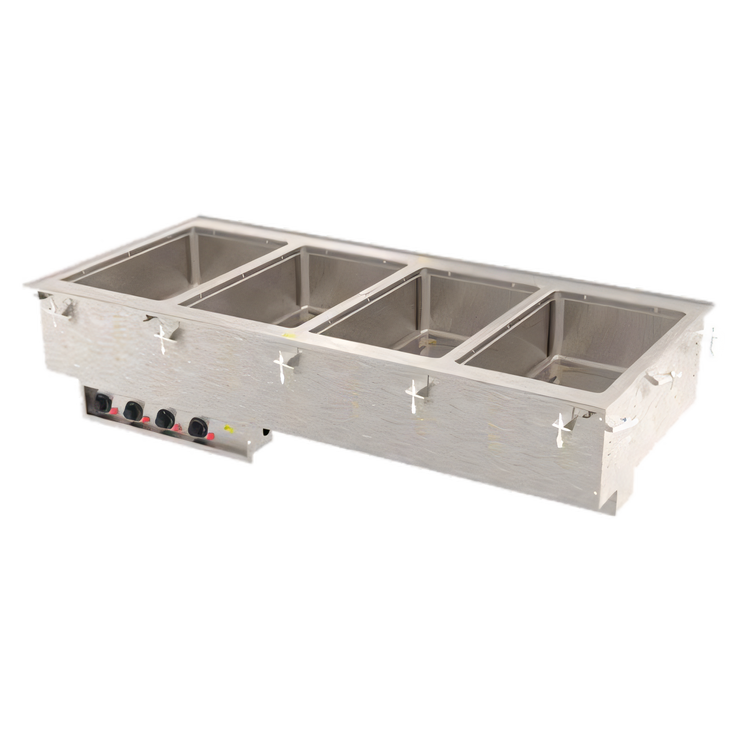

Vollrath 4-Well Drop-In Hot Food Well with Auto-Fill

Model 3640680 • Thermostatic • 120 V / 2500 W

Keep your best-selling entrées, sides and sauces at safe, appetizing serving temperatures without the hassle of hard-wiring or constant refills. This Made-in-USA Vollrath drop-in features four individually controlled, fully insulated wells, an automatic water-fill system, and a drip-free stainless flange that installs flush with virtually any counter.

Why You’ll Love It

  • Auto-fill system keeps every well at the ideal water level—no more dry-heating or manual topping-off.
  • Four separate 625 W wells (12" × 20") with individual thermostatic controls for precise holding of different menu items.
  • Drip-free 18 ga stainless steel top flange delivers a clean, professional counter presentation.
  • 1" copper manifold drain with individual ball valves plus a master shut-off empties the unit fast and mess-free.
  • Fully insulated 20 ga stainless wells (sides, bottom & between wells) maximize efficiency and protect surrounding cabinetry.
  • Remote stainless control panel (4 ft tether) offers flexible mounting and features bright power indicators.
  • Ships with 6 ft cord and NEMA 5-30P plug—no electrician required.
  • Zero-clearance, drop-in design with mounting clips and gasket included for counters up to 3" thick.
  • NSF 4 (wet operation), cULus listed and proudly Made in the USA.

Specifications

Wells / Pan Size 4 × Full Size (12" × 20"), up to 6" deep
Operation Wet only  • Auto-fill water connection required
Controls 4 × Thermostatic dials with power indicator lights
Heat Output 625 W per well  |  2500 W total
Electrical 120 V / 60 Hz / 1-ph  |  20.8 A  |  NEMA 5-30P
Overall Dimensions 54 3⁄4" W × 26" D × 21 1⁄2" H
Counter Cut-out 54" W × 25 1⁄4" D  (7⁄8" corner radius required)
Drain 1" copper manifold with individual well shut-offs + master valve
Construction • 18 ga stainless top flange
• 20 ga drawn stainless wells
• 18 ga galvanized exterior housing
Certifications NSF 4 (wet), cULus
Country of Origin United States

Important : Operate with water in each well at all times. Dry operation will damage the unit and void certification and warranty.

Drop-ins are built to order and cannot be canceled or returned. For full warranty terms please visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

184.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2500 watts, 120v/60/1-ph, 20.8 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
