Vollrath 3640670HD Steam Tables & Food Wells
Description

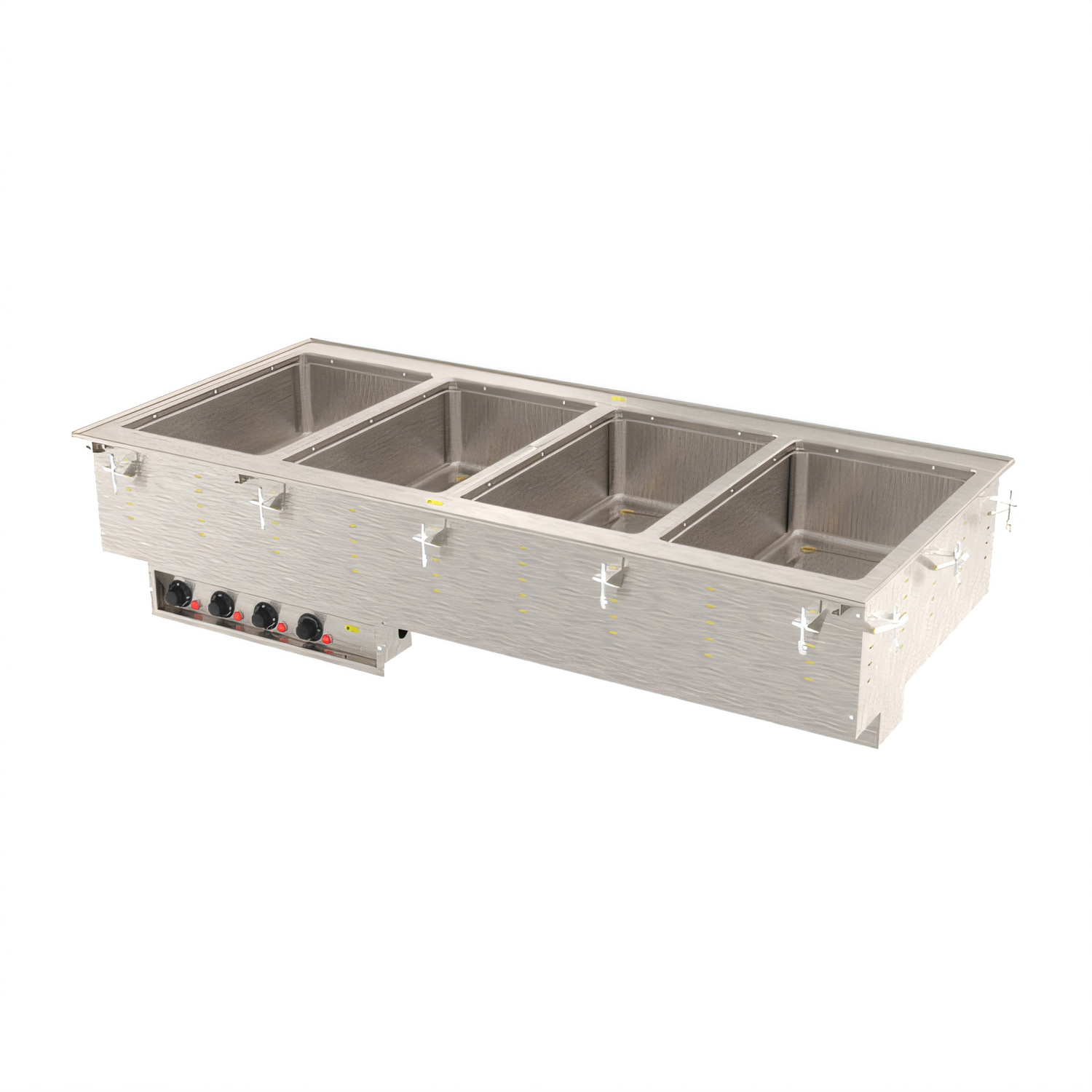

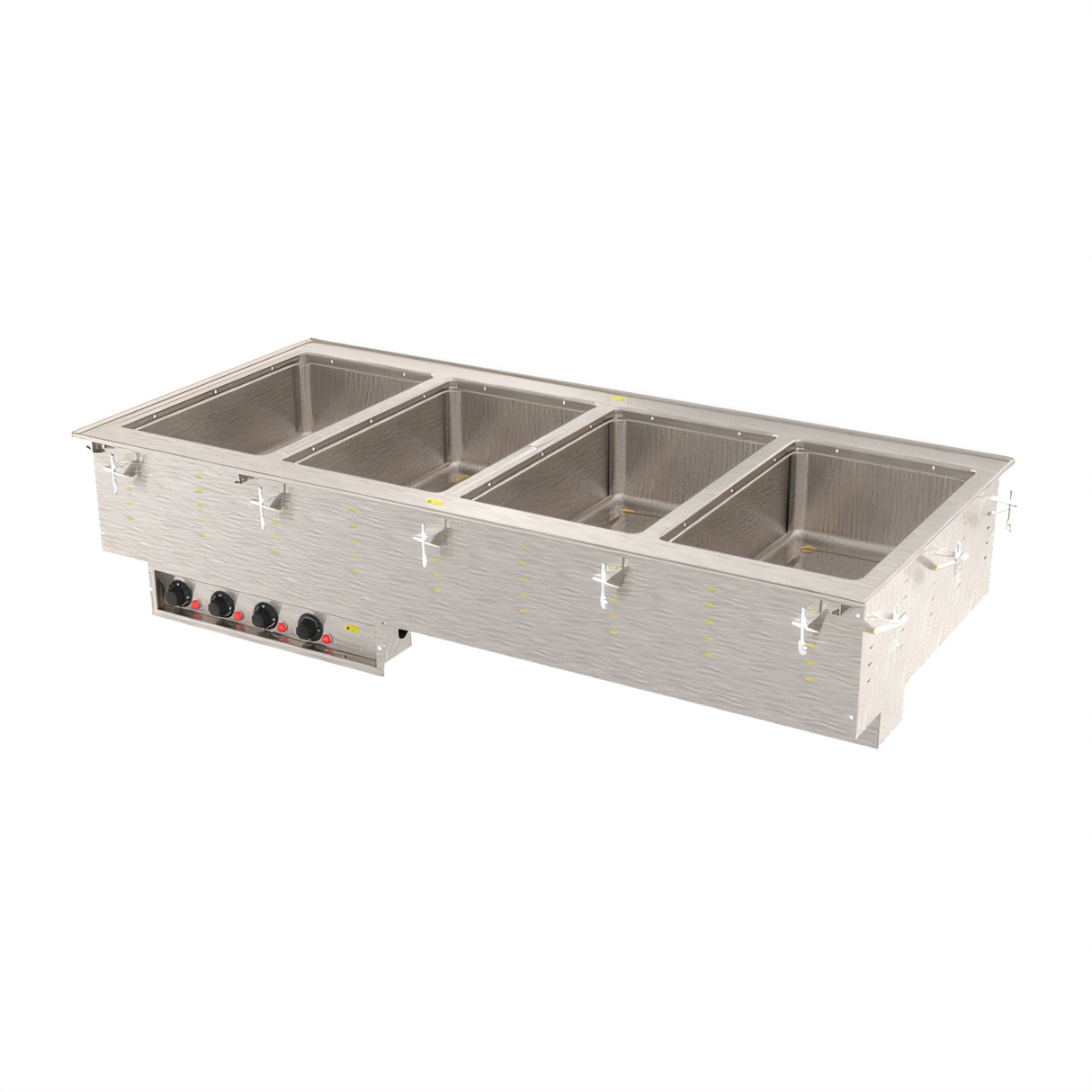

Vollrath 4-Well Marine-Grade Hot Drop-In
120 V • Thermostatic Controls • Manifold Drain • Made in USABuild a dependable, corrosion-proof steam table in minutes with this factory-wired, plug-and-play hot food well module. Four individually controlled marine-grade wells keep entrées, sides, and sauces at safe serving temperatures while the integrated 1" copper manifold drain streamlines cleanup between services.
Key features at a glance

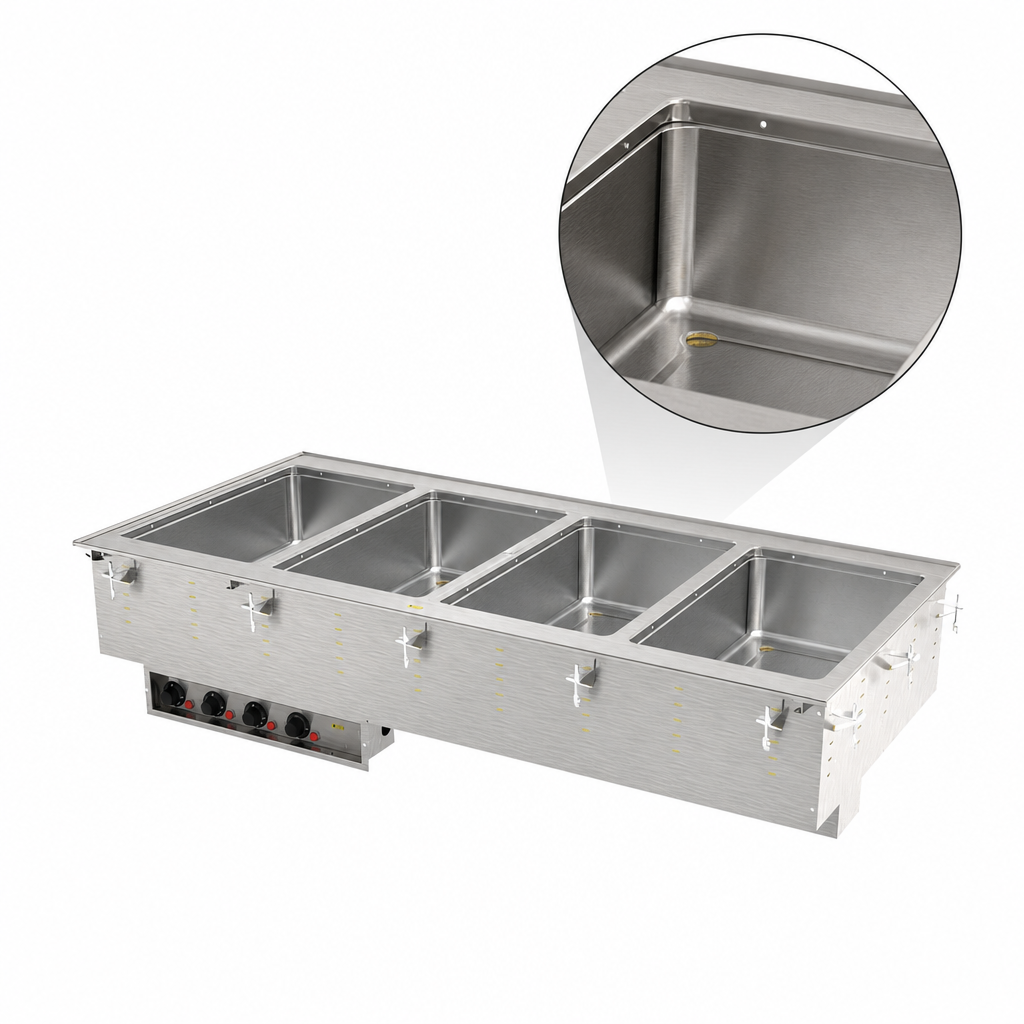

- Four 12" × 20" drawn wells fabricated from 316 marine-grade, 20 ga stainless steel for maximum corrosion resistance.
- Wet operation only – meets NSF 4 performance standards when used with water.
- Individual thermostatic controls with power indicator lights mounted on a stainless panel (4 ft tether for flexible placement).
- Fully insulated on all sides & between wells for energy-efficient holding.
- Drip-free top flange with included gasket creates a clean, finished counter surface.
- 1 in copper manifold drain with master shut-off plus ½ in ball valve on each well.
- Removable bottom panels provide easy service access to each well.
- Ships with mounting clips for counters up to 3 in (7.6 cm) thick — zero-clearance installation.
- 6 ft (1.8 m) cord & NEMA 5-30P plug; no hard-wiring required.
Technical specifications
| Model | 3640610HD (Thermostatic) |
|---|---|
| Overall dimensions | 54 ¾" W × 26" D × 21 ½" H (139.1 × 66 × 54.6 cm) |
| Counter cut-out | 54" W × 25 ¼" D (137.2 × 64.1 cm) with 7/8" (2.2 cm) corner radius |
| Well size (each) | 12" × 20" × 6" deep pan capacity |
| Output | 625 W per well | 2 500 W total |
| Electrical | 120 V / 60 Hz / 1-ph | 20.8 A | NEMA 5-30P |
| Top material | 18 ga stainless steel |
| Drain connection | 1" manifold (copper) with master shut-off, ½" well valves |
| Certifications | NSF 4 (wet), cULus Listed, Made in USA |
| Shipping weight | Approx. 110 lb (50 kg) |
Installation & operation
- Indoor use only; ambient room temperature and HVAC airflow may affect holding performance.
- Unit is designed for water-bath heating; add hot water to wells before energizing.
- Adapter bars (sold separately) are recommended when using fractional pans.
- Do not modify the factory cord or plug — doing so voids the warranty.
Accessories (optional)
- Sheet pan adapter bar – item #19186
Warranty & support
Covered by Vollrath’s two-year parts & labor warranty against defects in materials and workmanship. See vollrathfoodservice.com for full policy details and to register your unit.
