Description

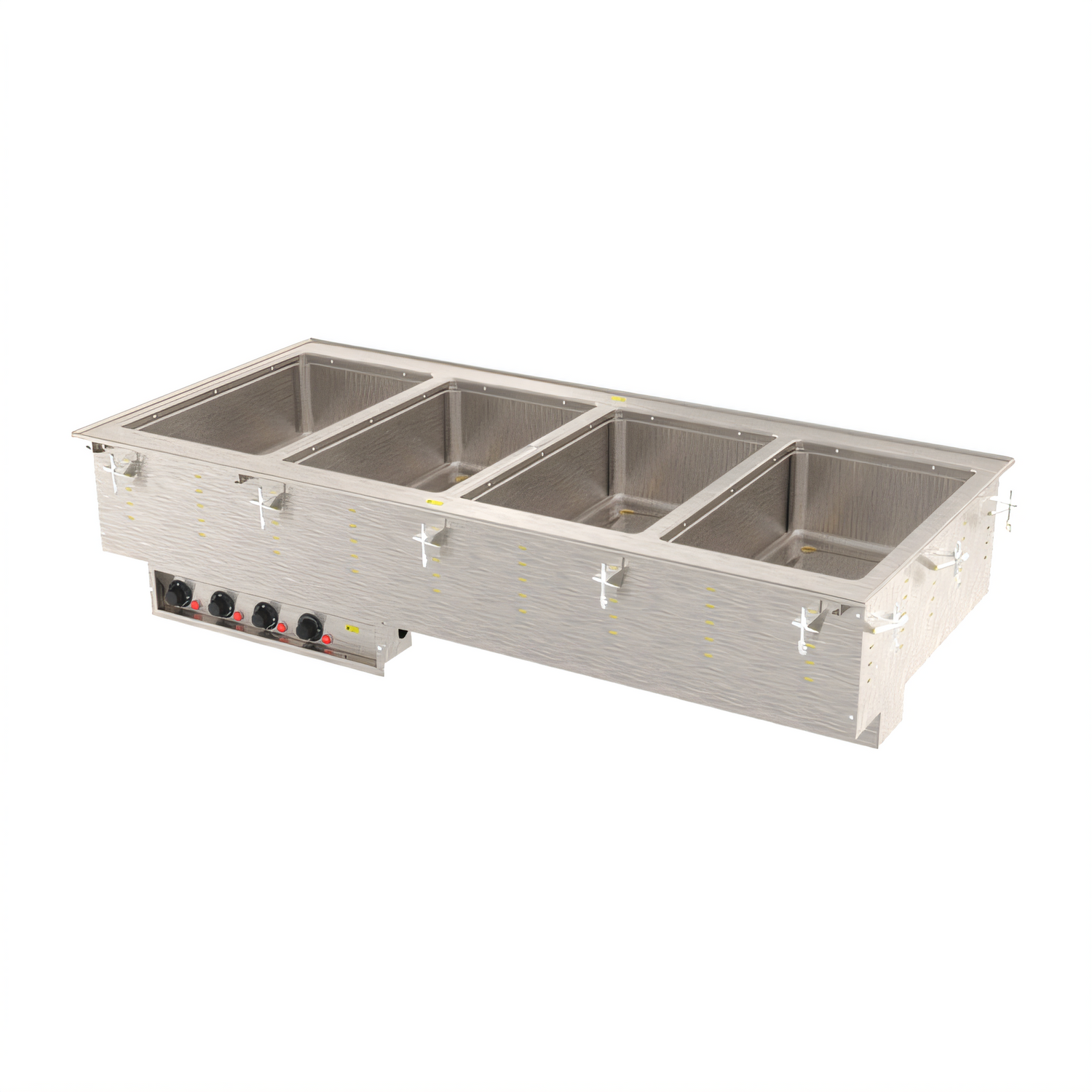

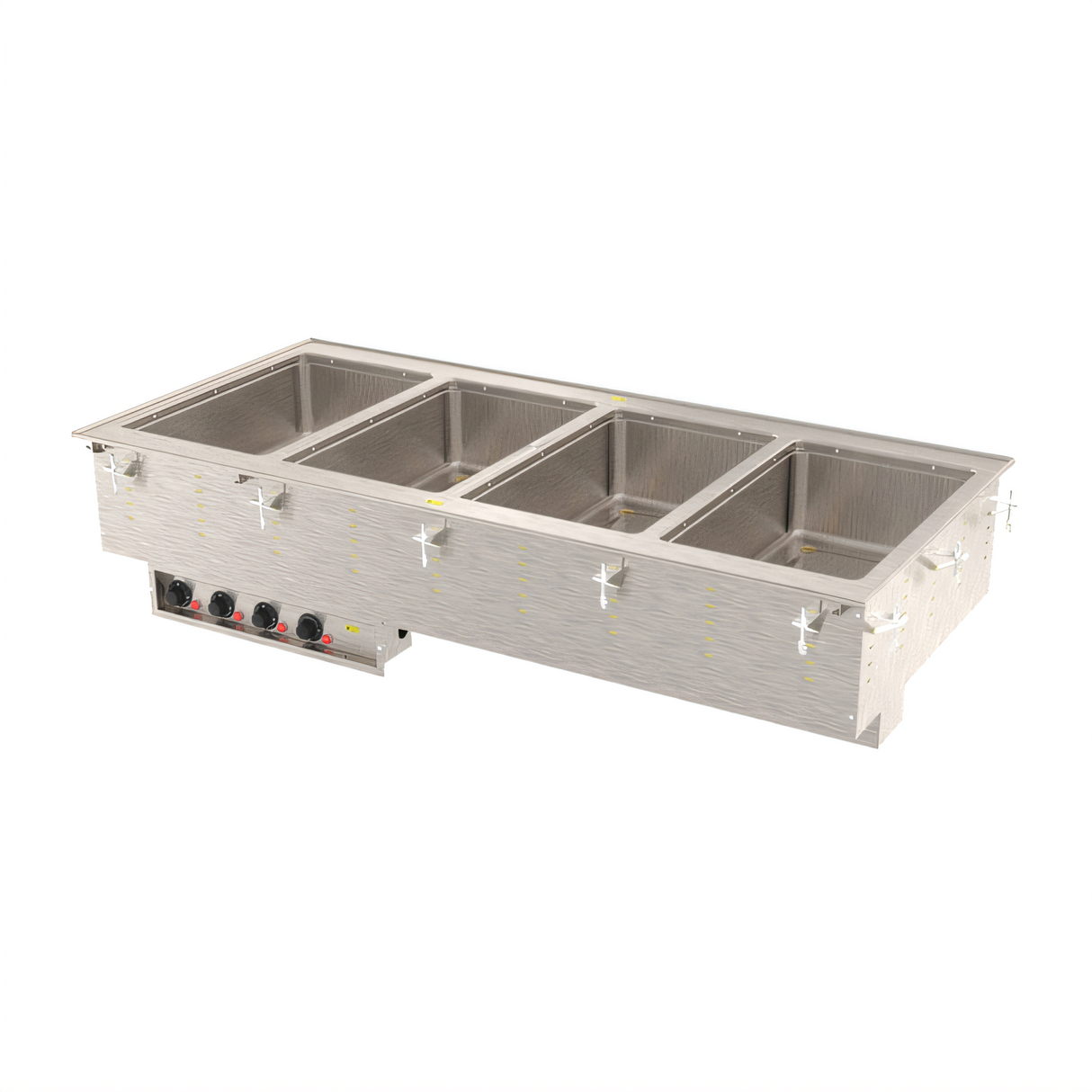

4-Well Modular Drop-In Hot Food Well – Marine-Grade, Auto-Fill, 120 V

Vollrath model 3640660HD | Made in USA

Built for high-volume buffet, cafeteria and catering lines, this Vollrath drop-in combines the corrosion-resistance of 316 marine-grade stainless steel with the labor-saving convenience of automatic water fill. Four individually controlled wells keep entrées and sides at safe, appetizing temperatures while saving energy and installation time—just drop it in, plug it in and start serving.

Why you’ll love it

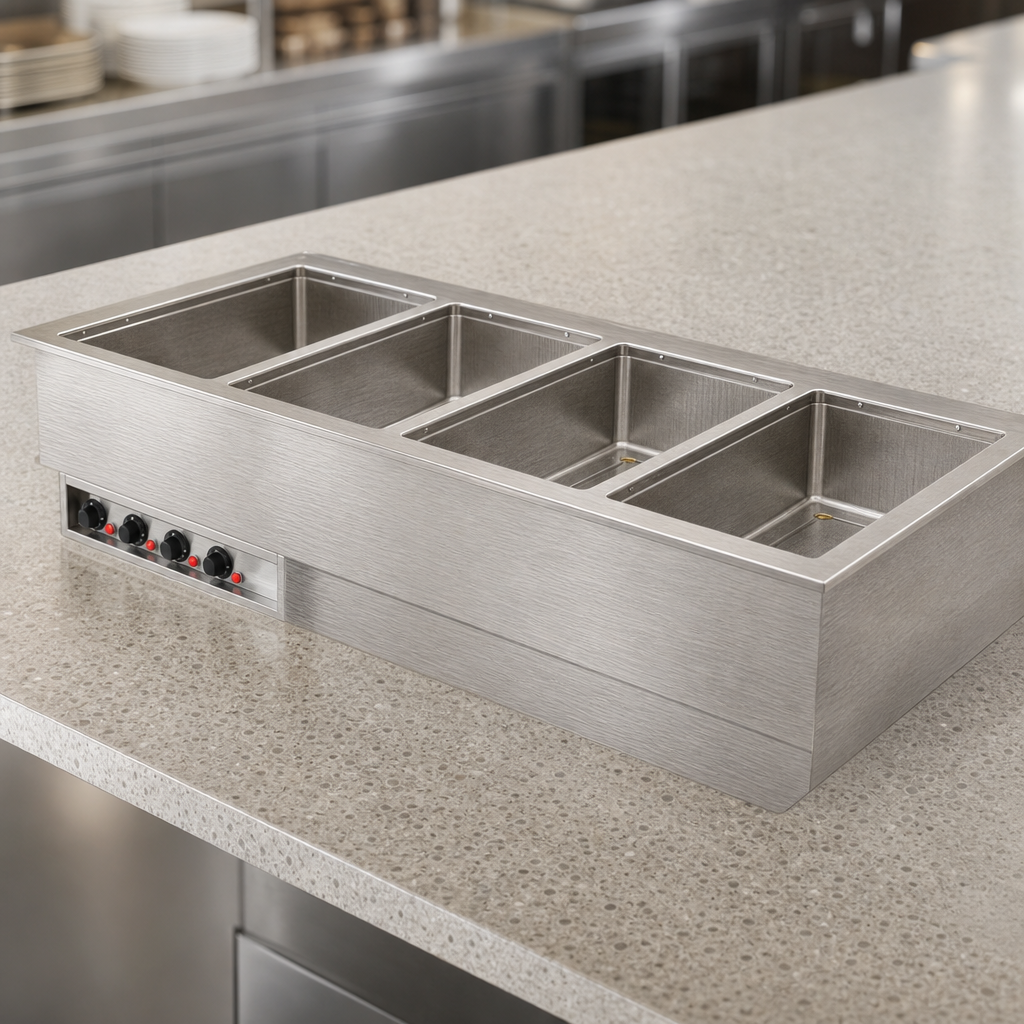

  • SAE 316 marine-grade drawn wells resist pitting & chloride corrosion.
  • Wet-operation only design ensures even heat distribution and NSF 4 compliance.
  • Auto-fill sensor maintains water level automatically—no more babysitting or burn-outs.
  • Individual infinite controls with power indicator lights let you fine-tune each well.
  • 1 in. copper manifold drain with individual ball valves plus master shut-off for fast, mess-free draining.
  • Fully insulated on all sides (including between wells) for efficiency and a cooler counter surface.
  • Drip-free flange & included gasket create a sanitary seal against the countertop.
  • Zero-clearance, top-mount installation—positioning clips fit counters up to 3 in. thick.
  • 6 ft cord with NEMA 5-30P plug; no hard-wiring required.

Technical specifications

Capacity (4) full-size 12 in. × 20 in. wells
Accepts pans up to 6 in. (15.2 cm) deep
Construction 20 ga. 316 stainless wells, 18 ga. stainless top & exterior housing
Overall dimensions 54 3⁄4 in. W × 26 in. D × 21 1⁄2 in. H (139.1 × 66 × 54.6 cm)
Counter cut-out 54 in. W × 25 1⁄4 in. D (137.2 × 64.1 cm) – 7⁄8 in. corner radius required
Controls Remote stainless panel, 4 ft (121.9 cm) tether; individual infinite dials & indicator lights
Electrical 120 V / 60 Hz / 1-ph, 625 W per well (2,500 W total), 20.8 A, NEMA 5-30P
Drain 1 in. copper manifold with individual 1⁄2 in. well valves & master shut-off
Certifications NSF 4 (wet operation), cULus Listed
Warranty 2-year parts & labor (see VollrathFoodservice.com for full policy)
Important: Unit is designed for wet use only. Add water before energizing to ensure even heating and to meet NSF performance requirements.

What’s in the box

  • 4-well drop-in with auto-fill & manifold drain
  • Remote control panel (pre-wired)
  • Mounting/positioning clips & gasket
  • 6 ft power cord with NEMA 5-30P plug
  • Owner’s & installation manual

Orders for drop-ins cannot be canceled or returned once placed.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

54.75in

Depth

26.0in

Shipping Weight

165.0lbs

Style

individual pans

Controls

infinite controls

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 4000 watts, 120v/60/1-ph, 20.8 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
