Vollrath 3640660 Steam Tables & Food Wells
Description

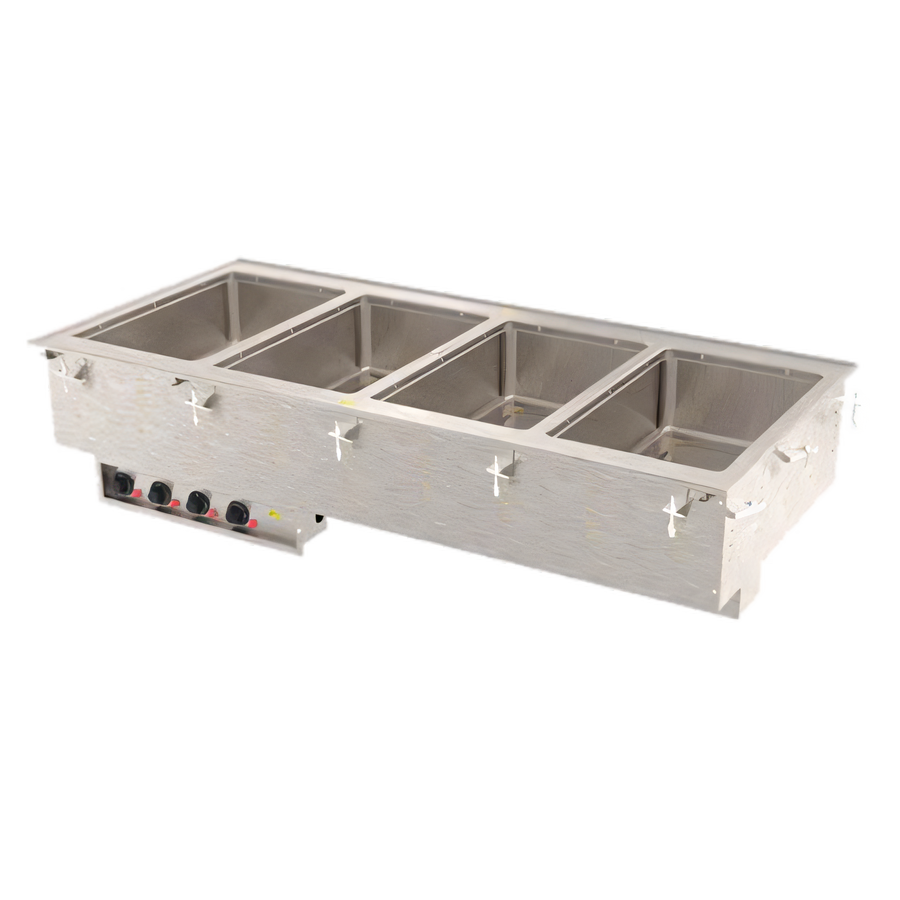

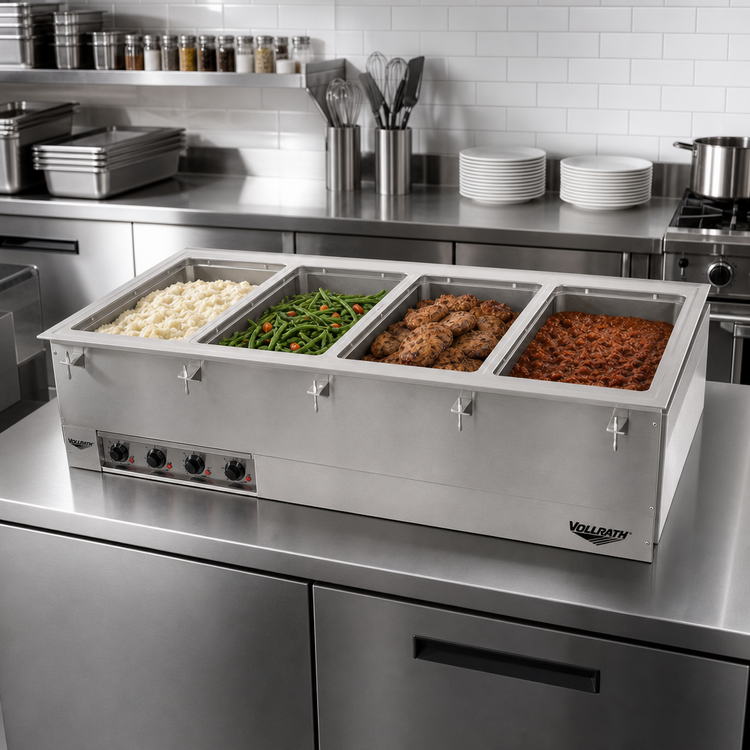

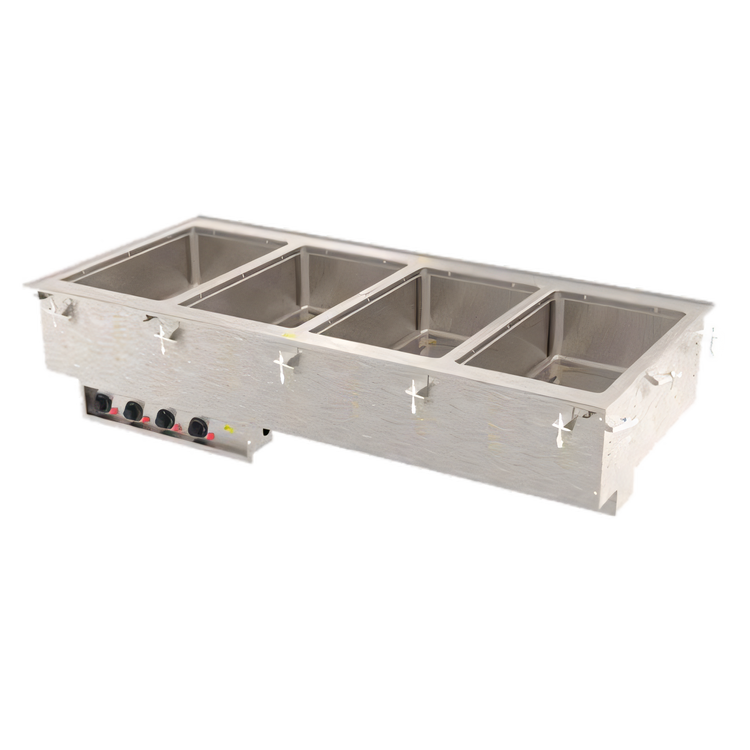

Vollrath 4-Well Drop-In Hot Food Well with Auto-Fill & Manifold Drain – 120 V
Item No. 3640660 • Made in USAKeep entrées, sides and sauces at safe serving temperatures without hard-wiring. Vollrath’s modular 4-well drop-in delivers reliable wet-bath heating, automatic water level control and individual infinite knobs, all in a zero-clearance package that installs in minutes.
Key Features
- Four independent 12" × 20" full-size wells — 20 ga 300-series stainless steel
- Wet operation only with integrated auto-fill to maintain proper water level
- Individual infinite controls and power indicator lights on a stainless panel (4 ft tether)
- 18 ga drip-free stainless top flange; 18 ga galvanized exterior housing
- 1" copper manifold drain with individual well ball valves + master shut-off

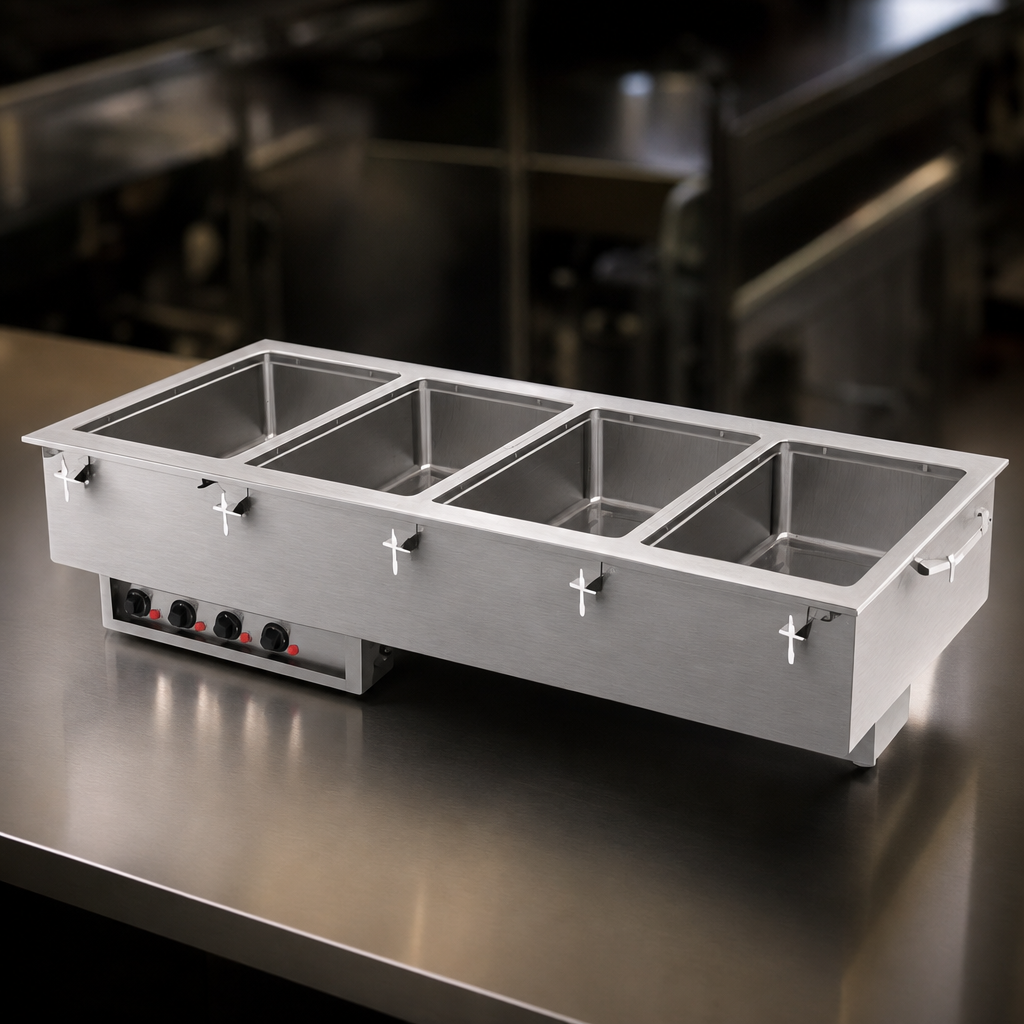

- Fully insulated on all sides, including between wells, for energy efficiency
- Includes mounting clips for counters up to 3" thick – no special tools required
- Accepts pans up to 6" deep; adapter bars recommended for fractional pans
- Cord & NEMA 5-30P plug — no field wiring
- NSF 4 & cULus listed
At-a-Glance Specifications
| Overall dimensions | 54 3⁄4" W × 26" D × 21 1⁄2" H (139.1 × 66 × 54.6 cm) |
|---|---|
| Cutout size | 54" W × 25 1⁄4" D (137.2 × 64.1 cm) – 7⁄8" corner radius required |
| Capacity | (4) full-size pans (12" × 20") up to 6" deep |
| Heating power | 625 W per well (≈ 2,500 W total) |
| Electrical | 120 V | 60 Hz | 1-phase | 20.8 A | NEMA 5-30P |
| Drain connection | 1" copper manifold, individual 1⁄2" MPT well drains, master shut-off |
| Construction | 18 ga stainless top, 20 ga stainless wells, 18 ga galvanized housing |
| Controls | (4) infinite knobs & indicator lights on remote stainless panel |
| Compliance | NSF 4, cULus |
Cutout & Installation Notes
- Zero-clearance design – can be mounted next to other equipment
- Indoor use only; ambient HVAC conditions will affect performance
- Do not modify the factory cord or plug – alteration voids warranty
Certifications & Warranty
Vollrath modular drop-ins include the manufacturer’s standard one-year parts & labor warranty. For complete terms, visit VollrathFoodservice.com.
Modular drop-ins are built to order and cannot be canceled or returned.
