Vollrath

Vollrath Four-Well Drop-In Hot Food Well with Marine-Grade 12 x 20 Inch Insulated Wells, Manifold Drain, Infinite Controls, 120V

SKU: 3640650HD
$3,872.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

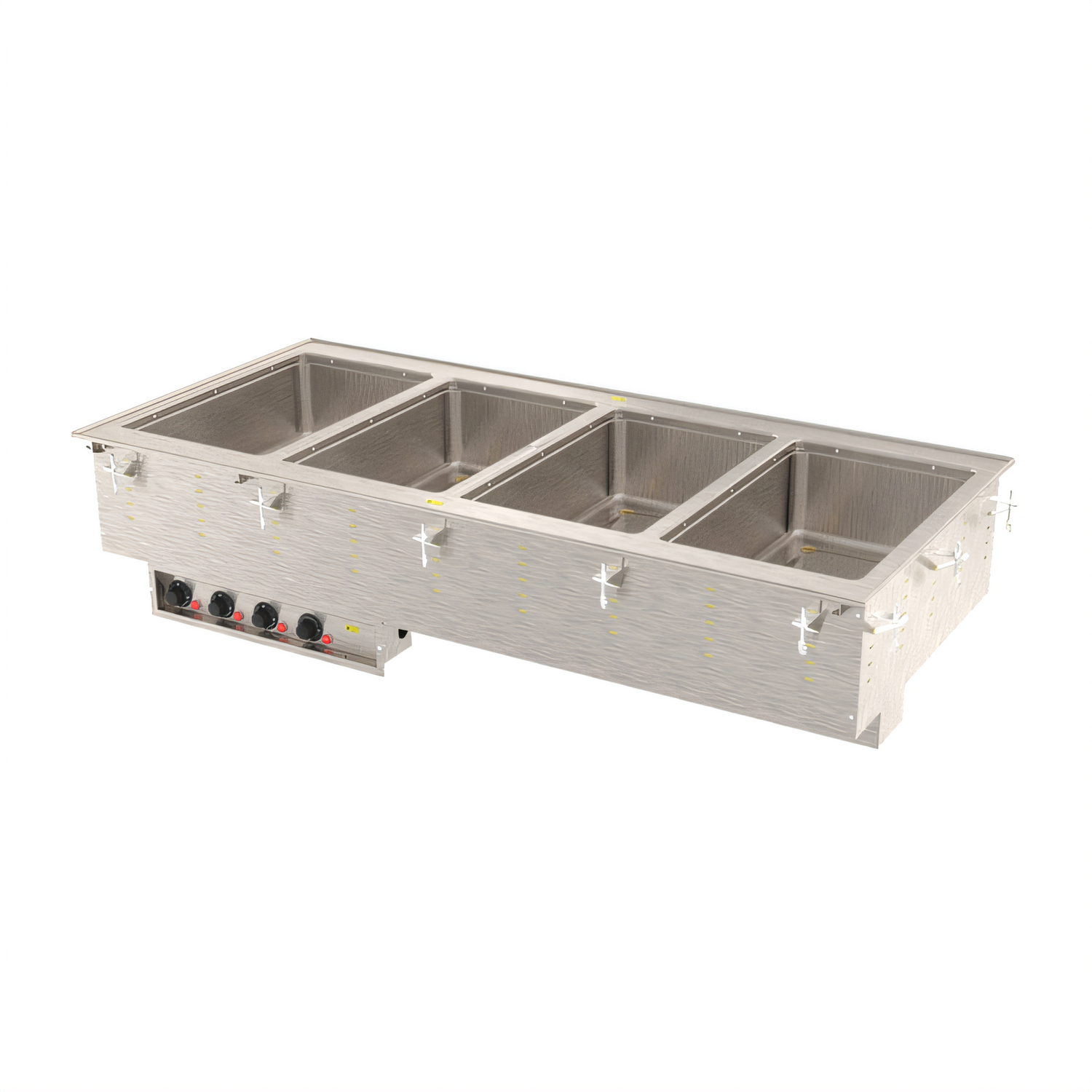

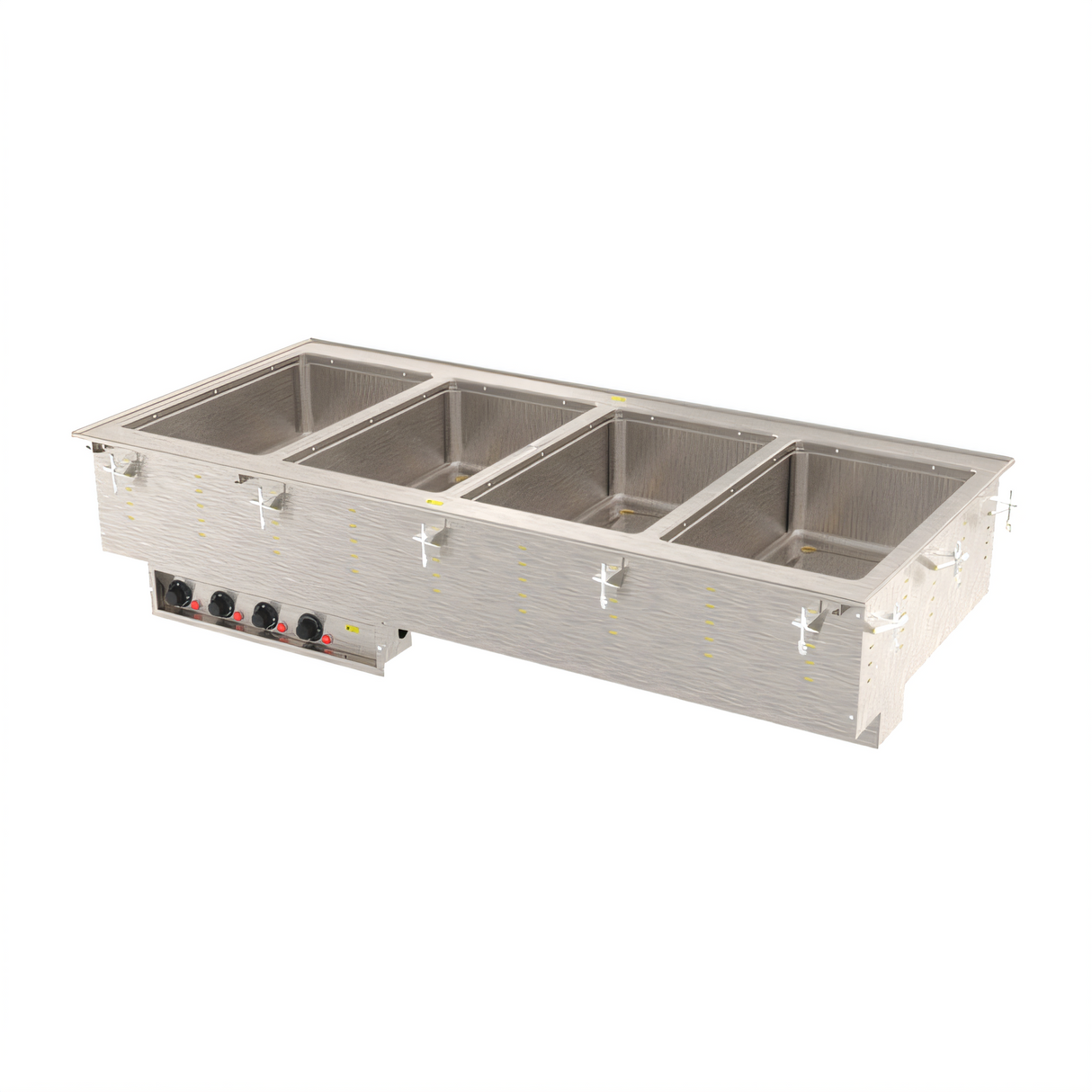

Vollrath Four-Well Drop-In Hot Food Well with Marine-Grade 12 x 20 Inch Insulated Wells, Manifold Drain, Infinite Controls, 120V

Wet Operation Only, Plug-In Design

Built for high-volume buffet service, this four-well drop-in keeps foods hot and ready with insulated marine-grade wells, independent infinite controls, and a convenient plug-in design.

  • Four-well modular hot drop-in designed for buffet and serving lines.
  • Marine-grade 316 stainless steel wells help resist corrosion and hold heat efficiently.
  • Wet operation only for even heating and dependable food temperature control.
  • Independent infinite controls let you manage each well separately.
  • Manifold drain design includes individual well shutoffs and a master shutoff.
  • Plug-in 120V design does not require hard-wiring.
  • Includes mounting clips for easier top-mount installation.

Overall Dimensions:

54.75"W x 26.0"D x 21.5"H

Product Weight:

160.0 lb

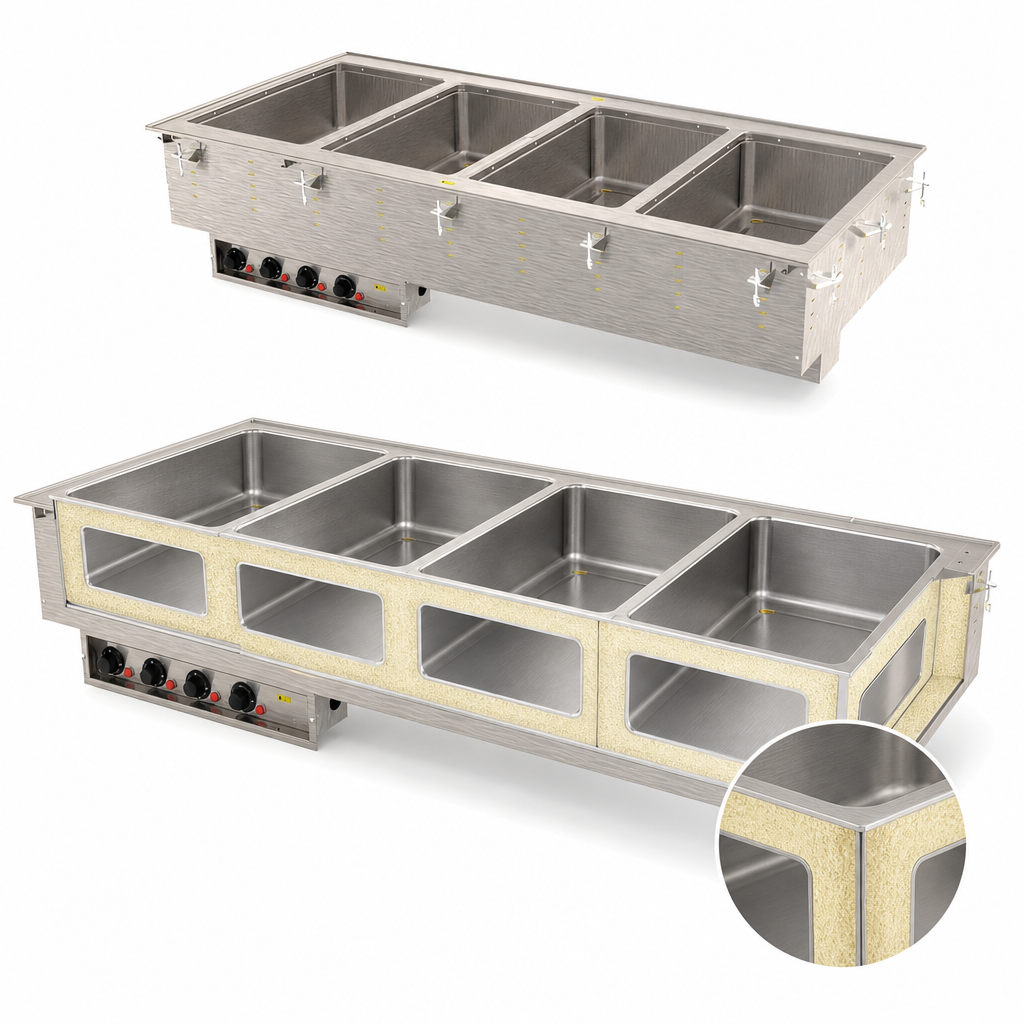

Marine-Grade Insulated Wells

Four drawn wells are made from 316 marine-grade stainless steel and insulated on all sides, including between wells, for efficient heat retention.

Independent Infinite Controls

Each well has its own infinite control and power indicator light for flexible temperature management.

Wet-Operation Design

Water is required for proper operation and even heating of the food product.

Manifold Drain System

Features a 1-inch copper manifold drain with individual well shutoffs and a master manifold shutoff for easier drainage.

Stainless Steel Construction

Includes an 18-gauge stainless steel top and stainless steel exterior housing for durability in commercial service.

Plug-In Electrical Connection

Supplied with a 6-foot cord and NEMA 5-30P plug for installation without hard-wiring.

Easy Top-Mount Installation

Includes positioning clips and a gasket for under the drip edge; control panel is tethered for flexible mounting.

Service-Friendly Access

Removable bottom panels provide access for service and maintenance.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 4 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Infinite
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 120 Volts
Amps 20.8 Amps
Watts 2.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 160 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is wet operation only, and water is required for even heating.
It operates on 120V, 60 Hz, single-phase power and draws 20.8 amps with a NEMA 5-30P plug.
The required cutout size is 54 x 25-1/4 inches with a 7/8-inch corner radius.
It is designed for four full-size 12 x 20 inch pans and can accept fractional pans up to 6 inches deep with adapter bars.
No. It includes a 6-foot cord and plug, so hard-wiring is not required.
The documentation states a two-year warranty against defects in materials and workmanship.
