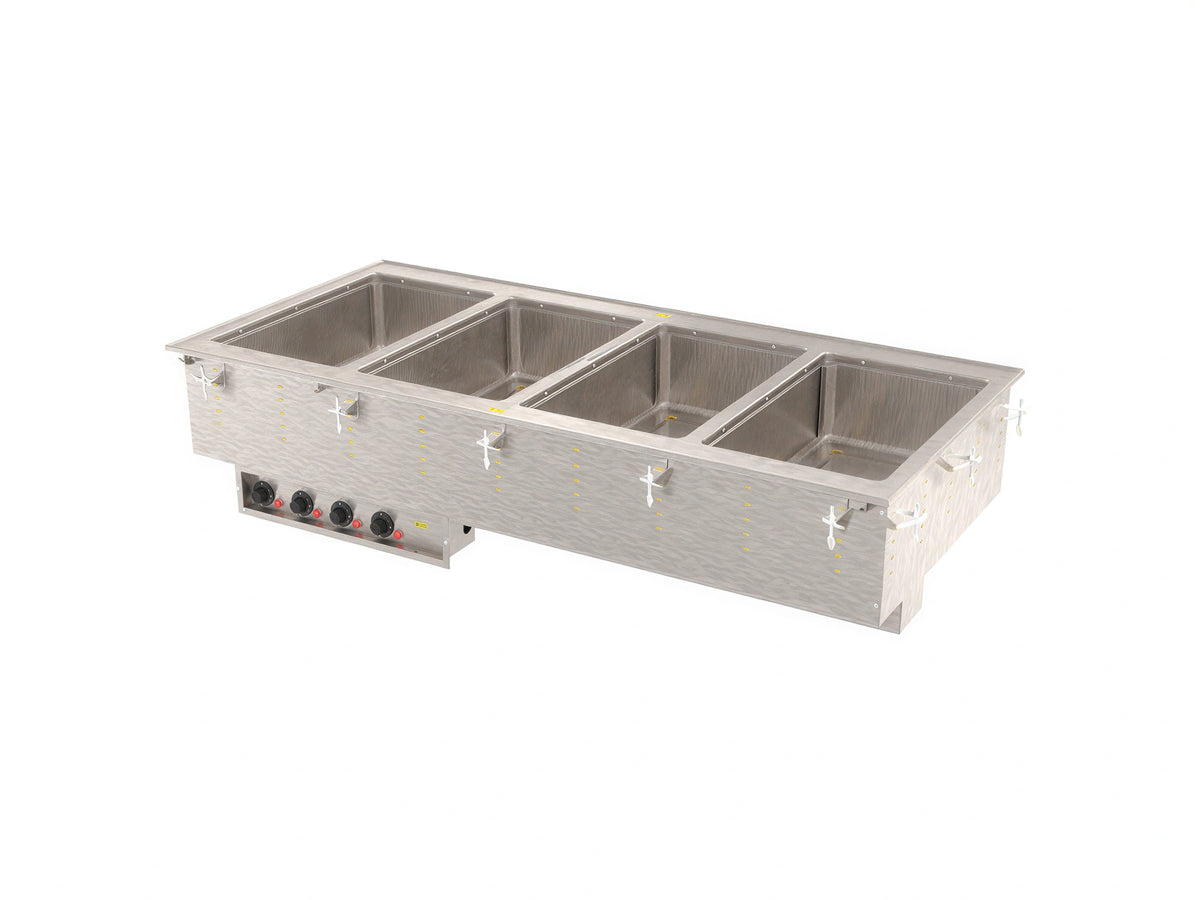

Vollrath 3640650 4-Well Drop-In Electric Hot Food Well, Wet Operation, Infinite Controls, Manifold Drain, 120V
- Phase
- Single phase
- Dimensions
- 54.75"W × 26.0"D × 21.5"H
- Product type
- Drop-in electric hot food well unit
- Well count
- 4
- Well dimensions
- 12 x 20 in. each
- Well construction
- 20-gauge stainless steel, insulated
Specifications
Description
Vollrath 3640650 is a four-well drop-in electric hot food well for wet operation. It has four individual 12 x 20 in. insulated, 20-gauge stainless steel wells with individual infinite controls.
- 18-gauge stainless steel top with a drip-free flange
- 18-gauge galvanized exterior housing
- 1 in. copper manifold drain with individual well shutoffs and a manifold shutoff
- 2500 W, 120 V, 60 Hz, single-phase electrical system with a NEMA 5-30P cord
- Includes positioning clips for top-mount installation
Overall dimensions are 54-3/4 W x 26 D x 21-1/2 H in. The required cutout is 54 x 25-1/4 in. with a 7/8 in. corner radius.
Overall Dimensions:
54.75"W x 26.0"D x 21.5"HProduct Weight:
160.0 lbFour individual wells
Includes four 12 x 20 in. individual wells constructed from 20-gauge stainless steel and insulated.
Wet operation
This unit is specified for wet operation only; operation with water is required for even heating.
Infinite controls
Individual infinite controls are mounted in the control panel, with a power indicator light for each well.
Manifold drainage
The 1 in. copper manifold drain has individual well shutoffs and a manifold shutoff.
Stainless steel top
The top is constructed from 18-gauge stainless steel and includes a drip-free flange.
Galvanized exterior housing
The exterior housing is 18-gauge galvanized steel.
Plug-in connection
Includes a cord with a NEMA 5-30P plug and does not require hard-wiring.
Drop-in installation
Designed for top-mount installation and includes positioning clips.
