Vollrath  |  SKU: 3640610HD

Vollrath 3640610HD Steam Tables & Food Wells

$3,751.35
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

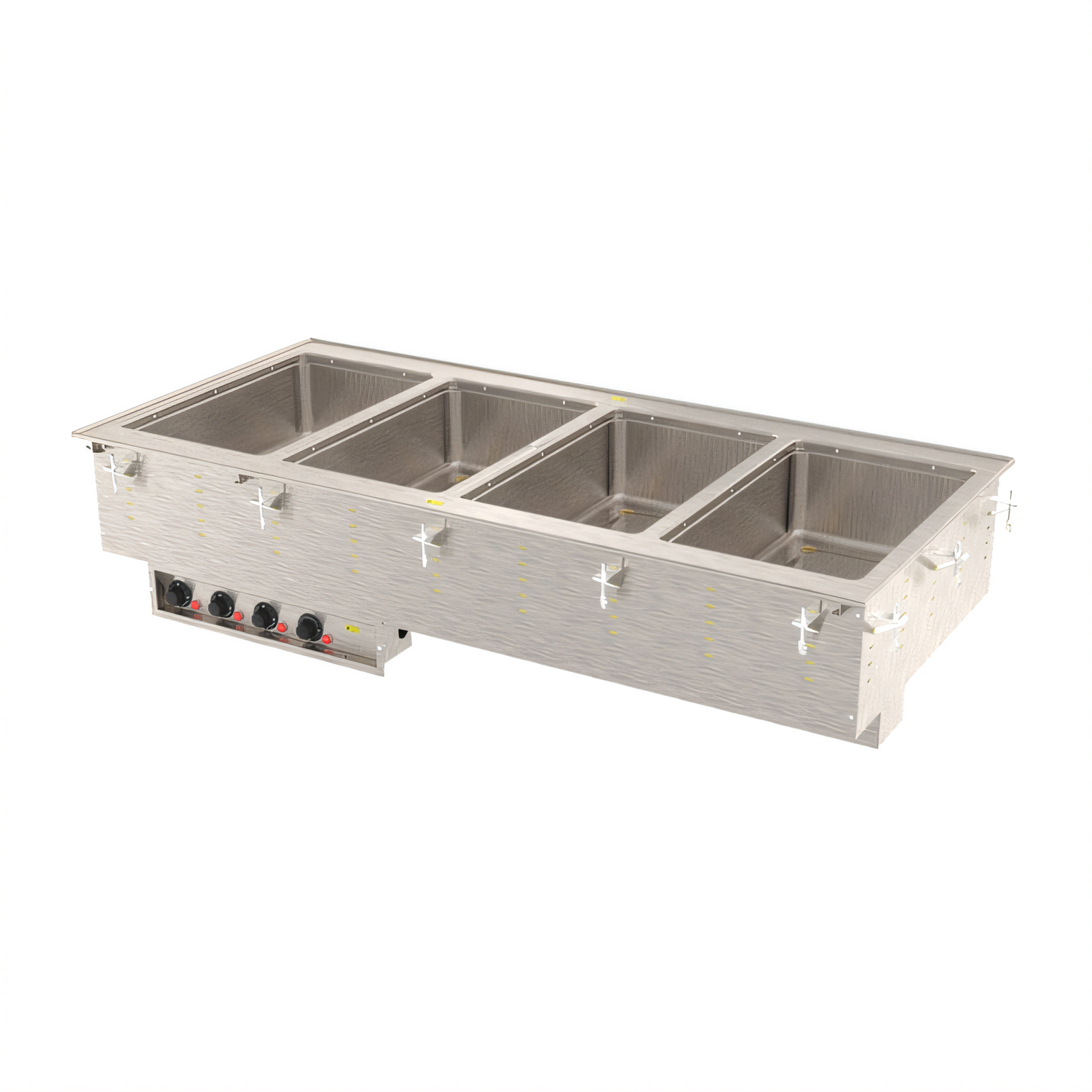

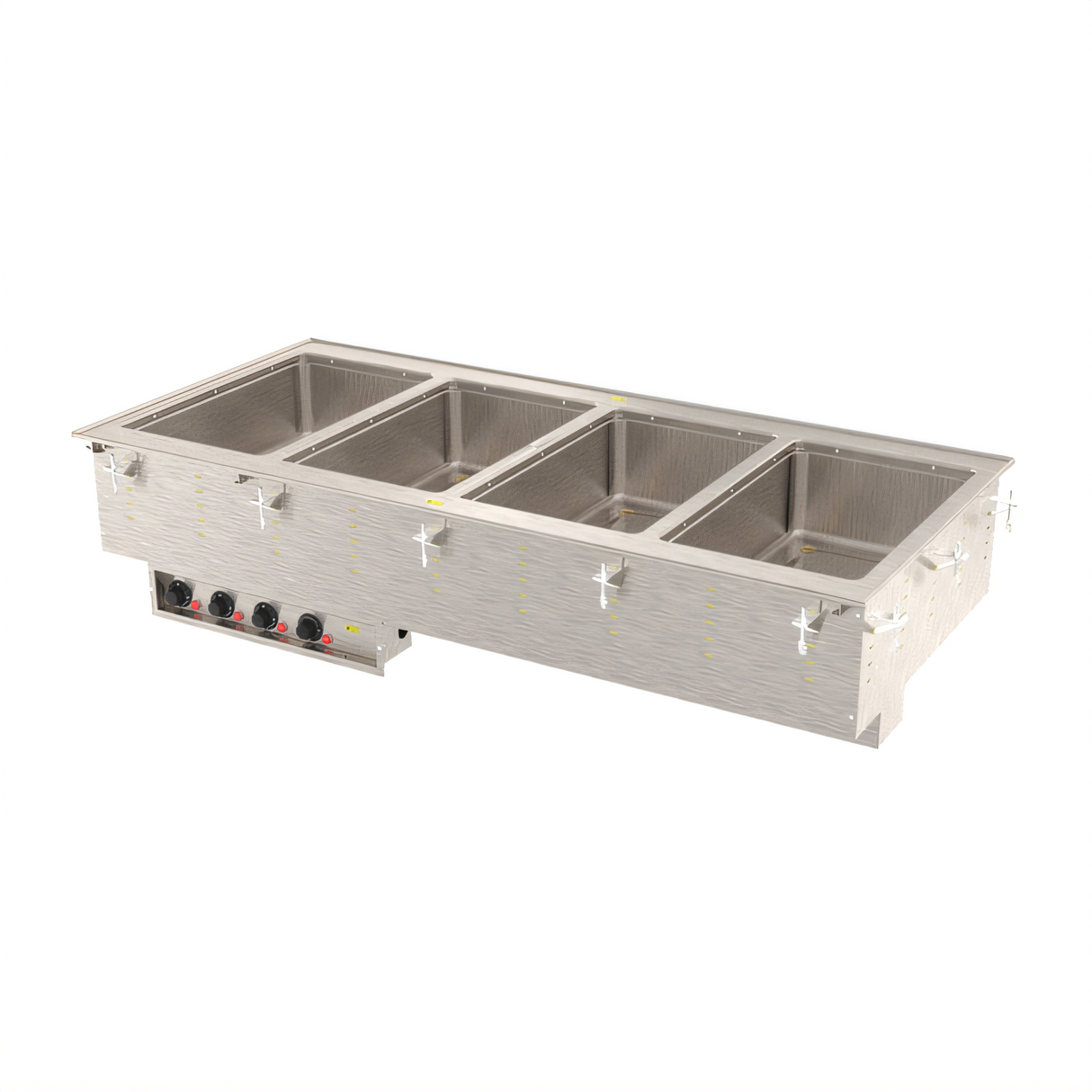

Vollrath 4-Well Marine-Grade Hot Food Well Drop-In

120 V | Individual Thermostatic Controls | Model 3640610HD

Built for the toughest commercial environments, this Vollrath modular drop-in keeps entrées, soups and sides at food-safe temperatures while resisting the corrosion caused by salty, acidic or chlorinated foods. Four independent 12" × 20" wells are formed from 316 marine-grade stainless steel and fully insulated for energy-efficient, wet-only holding.

Wet operation only – add water to each well for even heat distribution and to meet NSF 4 performance standards.
Key features

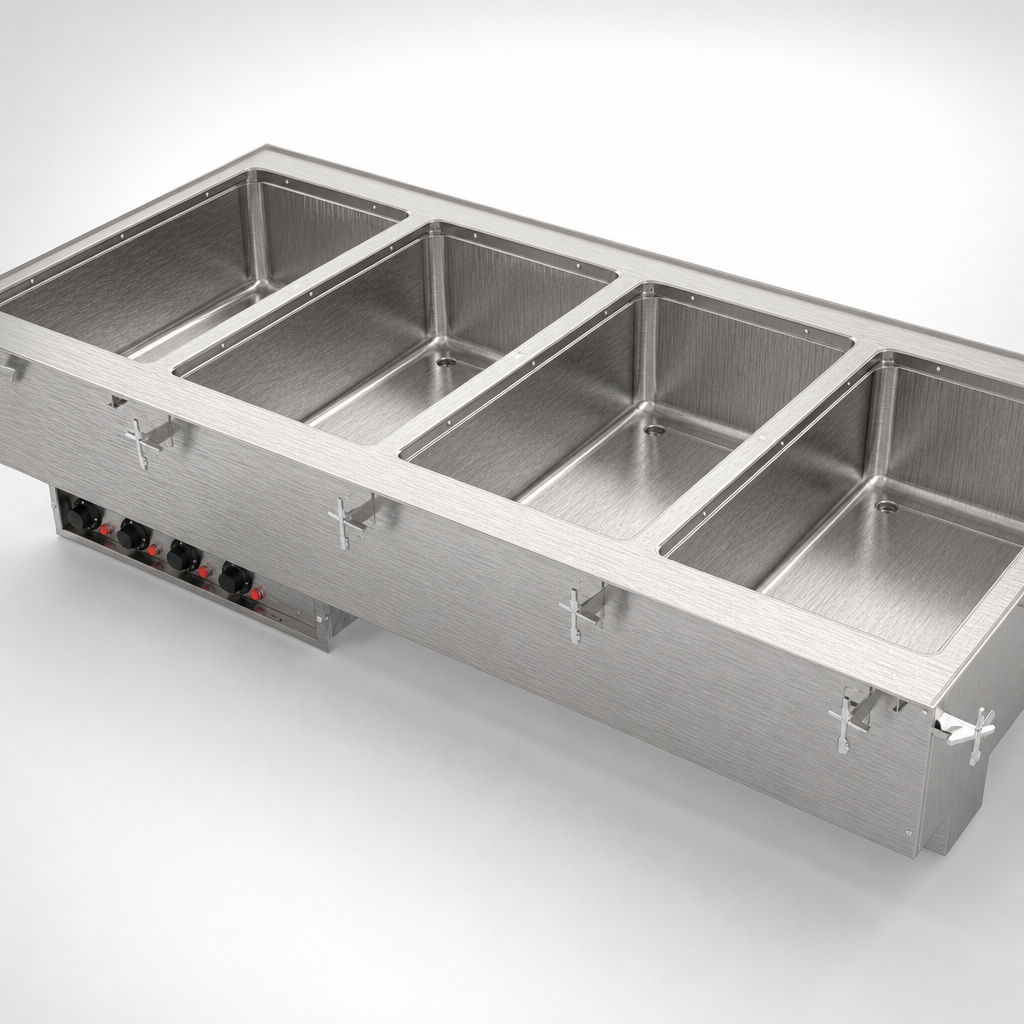

  • Four drawn 20-gauge 316 stainless wells deliver superior corrosion resistance.
  • 625 W per well (2,500 W total) runs on a standard 120 V / 20.8 A circuit.
  • Factory-installed 6 ft cord with NEMA 5-30P plug – no hard-wiring required.
  • Remote stainless control panel with 4 ft tether; each well has its own thermostatic knob and power indicator light.
  • Drip-free flange with included gasket creates a clean, flush counter installation.
  • ½" individual ball-valve drains for fast, mess-free well emptying.
  • Accepts full-size or fractional pans up to 6" deep (use adapter bars for fractional pans).
  • Includes mounting clips for counters up to 3" thick; zero-clearance required underneath.
  • 18-gauge stainless top and rugged exterior housing – NSF & cULus listed, Made in USA.
  • Two-year limited warranty on marine-grade wells for worry-free ownership.
Specifications
Number of wells 4 × full-size (12" × 20") – wet operation only
Construction 20 ga 316 stainless wells, 18 ga stainless top, stainless exterior
Controls 4 independent thermostatic knobs with indicator lights
Power 625 W per well / 2,500 W total
Electrical 120 V / 60 Hz / 1-ph, 20.8 A, NEMA 5-30P plug
Overall dimensions 54-3/4" W × 26" D × 15" H (139.1 × 66 × 38.1 cm)
Counter cut-out 54" W × 25-1/4" D (137.2 × 64.1 cm) with 7/8" corner radius
Drain ½" NPT ball valve per well
Cord length 6 ft (1.8 m)
Certifications NSF 4 (wet), cULus
Country of origin USA
Warranty 2-year limited (see VollrathFoodservice.com for full policy)
Optional accessories
  • Sheet-pan adapter bar (Item #19186)

Built-to-order drop-ins cannot be cancelled or returned once production has begun.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

165.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Pan Capacity

(4) full size (12" x 20")

Construction

stainless steel construction

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 2500 watts, 120v/60/1-ph, 20.8 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
