Vollrath  |  SKU: 3640610

Vollrath 3640610 Steam Tables & Food Wells

$3,163.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

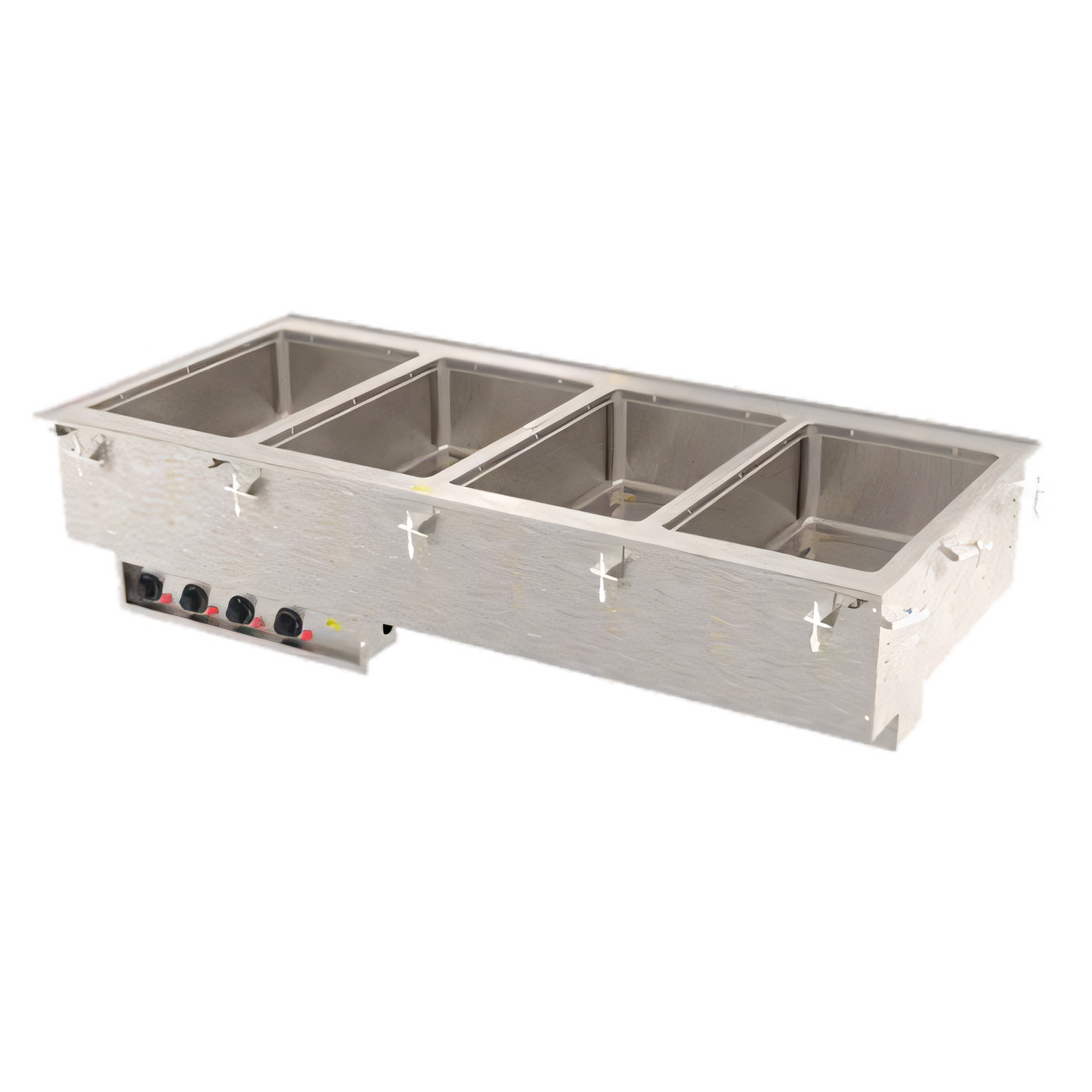

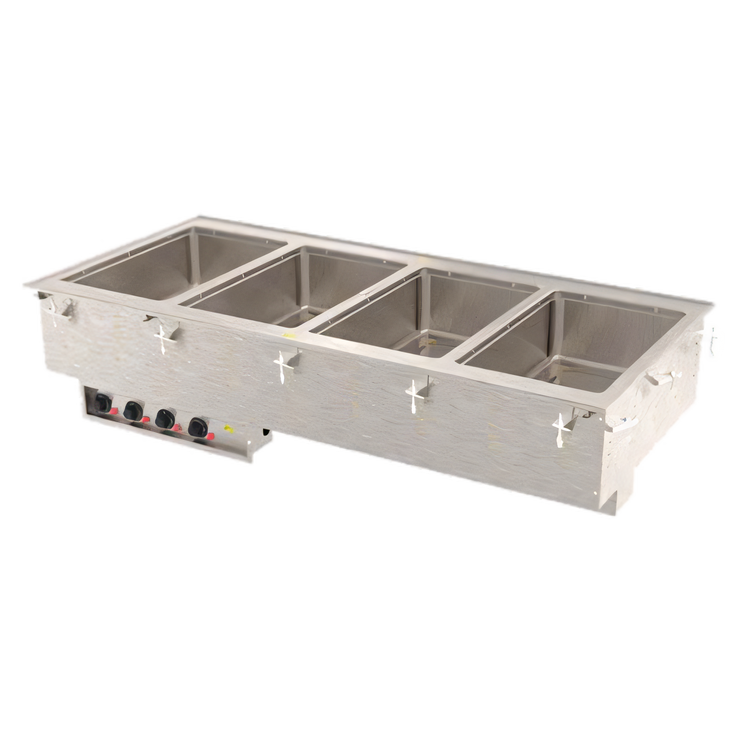

Vollrath Four-Well Drop-In Hot Food Well – 120 V Thermostatic

Model 3640610  |  625 W per well • 2,500 W total

Keep up to four full-size steam-table pans at safe, delicious holding temperatures without hard-wiring. Vollrath’s U.S-made drop-in module installs flush with your counter, delivers even wet-heat, and gives staff precise thermostatic control of each individual well.

Highlights

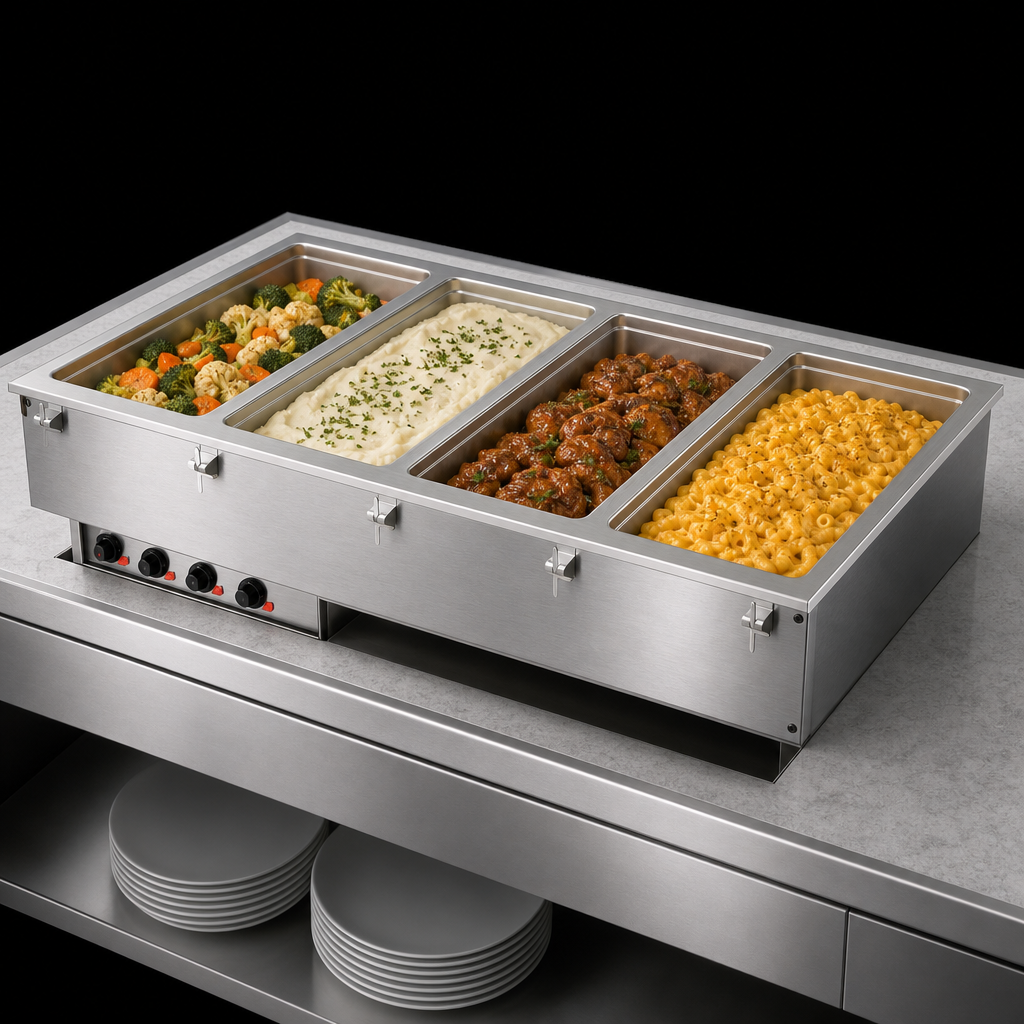

  • Four independent 12" × 20" wells formed from durable 20-gauge 300-series stainless steel
  • Wet-heat operation for superior, uniform warming (water required)
  • Individual thermostatic controls with power indicator lights on a stainless panel—4' tether for flexible mounting
  • Drip-free 18-gauge stainless steel top flange with factory-installed gasket
  • Each well has its own ½" NPT drain and ball-valve shut-off for quick, mess-free water changes
  • Fully insulated on all sides—including between wells—for energy efficiency and cooler exterior surfaces
  • 6' cord with NEMA 5-30P plug (120 V, 20.8 A) — no electrician required
  • Includes mounting clips for counters up to 3" thick; zero-clearance installation
  • Accepts pans up to 6" deep; adapter bars recommended for fractional pans
  • NSF/ANSI 4 listed (wet operation), cULus certified, and proudly Made in the USA
Technical Specifications
Number of wells 4 (individually insulated)
Well size 12" × 20" full-size steam-table pan footprint
Operation type Wet heat only (water required)
Control type Individual thermostatic knobs with power lights
Wattage / per well 2,500 W total / 625 W each
Electrical 120 V - 60 Hz - 1-phase, 20.8 A
Plug NEMA 5-30P, 6' (1.8 m) cord factory installed
Drain ½" NPT per well, individual ball valves
Construction – top 18-gauge stainless steel flange
Construction – wells 20-gauge 300-series stainless steel
Exterior housing 18-gauge galvanized steel
Overall dimensions 54-3/4" W × 26" D × 15" H (139.1 × 66 × 38.1 cm)
Counter cutout 54" W × 25-1/4" D (137.2 × 64.1 cm) with 7/8" (2.2 cm) corner radius
Certifications NSF/ANSI 4 (wet operation), cULus
Origin & warranty Made in USA  |  Vollrath standard limited warranty*
Important: Operate with water in each well at all times. Running the unit dry will void the warranty and can damage the heating elements.
Special-order item: Modular drop-ins cannot be canceled or returned once ordered.

*For complete warranty details, visit vollrathfoodservice.com. Do not modify the factory cord or plug.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

165.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Pan Capacity

(4) full size (12" x 20")

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 2500 watts, 120v/60/1-ph, 20.8 amps, cord with NEMA 5-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
