Vollrath

Vollrath Four-Well Drop-In Electric Hot Food Well Unit for Full-Size 12" x 20" Pans, 120V, Wet Operation, Infinite Controls

SKU: 36406
$3,016.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

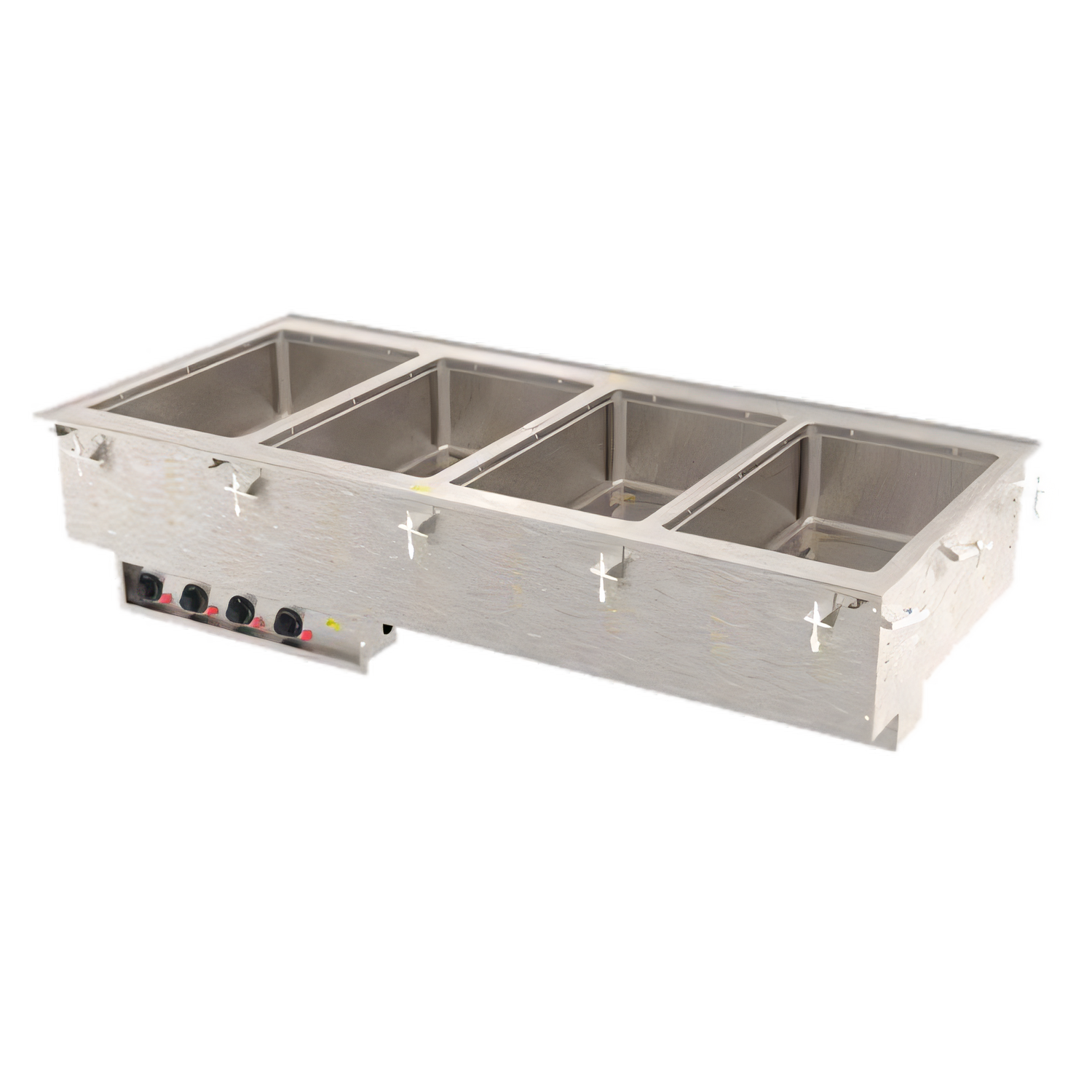

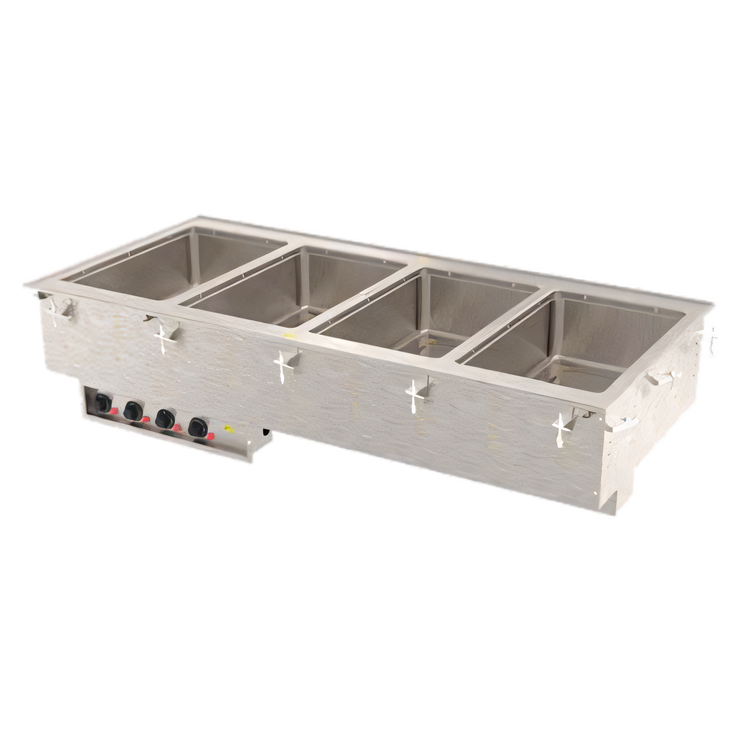

Vollrath Four-Well Drop-In Electric Hot Food Well Unit for Full-Size 12" x 20" Pans, 120V, Wet Operation, Infinite Controls

Insulated stainless steel wells with individual drain shutoffs and 6' cord

Keep four full-size pans of hot food ready to serve with insulated wet wells, independent infinite controls, and easy plug-in drop-in installation.

  • Four individual 12" x 20" wells provide flexible hot holding for buffet and serving lines.
  • Wet-operation design requires water for even heating and proper food holding temperatures.
  • Independent infinite controls and power indicator lights let you manage each well separately.
  • Stainless steel top and insulated wells help retain heat; galvanized exterior housing adds durability.
  • Includes mounting clips, gasket, drip-free flange, and a cord with NEMA 5-30P plug for easy installation.
  • Accepts full-size and fractional pans up to 6" deep; sheet pan adapter is available.

Overall Dimensions:

54.75"W x 26.0"D x 15.0"H

Product Weight:

165.0 lb

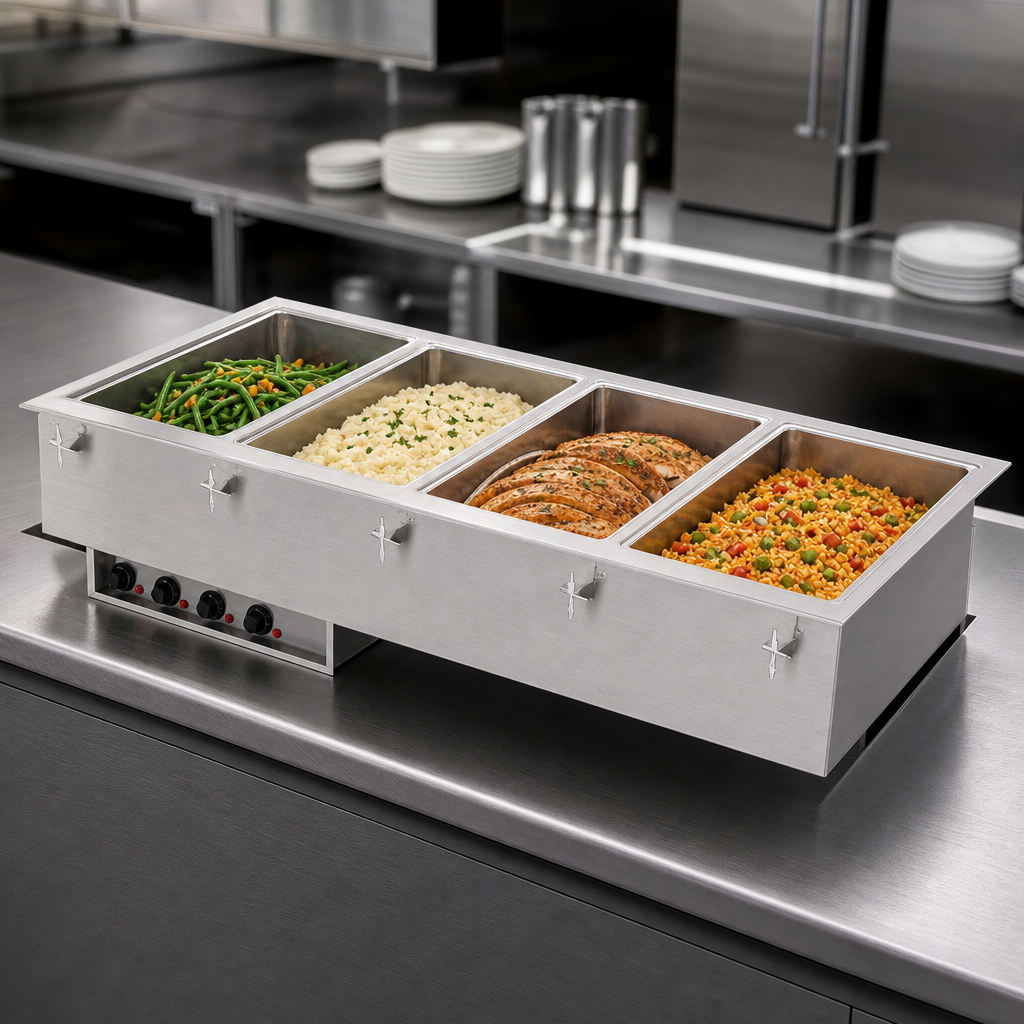

Four Individual Full-Size Wells

Holds four separate 12" x 20" pans, making it ideal for multi-item hot food service.

Wet Operation Only

Designed for moist heat; water is required for even heating and dependable serving temperatures.

Independent Infinite Controls

Each well has its own infinite control and power indicator light for precise, independent temperature management.

Durable Stainless Steel Construction

Built with an 18-gauge stainless steel top, 20-gauge stainless steel insulated wells, and an 18-gauge galvanized exterior housing.

Plug-In Drop-In Installation

Includes a 6' cord with NEMA 5-30P plug, plus mounting clips and a gasket for top-mount installation without hard-wiring.

Drain and Cleanup Features

Features a drip-free flange and individual drain shutoffs to help manage moisture and simplify maintenance.

Pan Compatibility

Accepts full-size and fractional pans up to 6" deep; adapter bars are recommended when using fractional pans.

Type Hot Food Well
Installation Type Drop-In
Style Individual Pans
Controls Infinite
Wet/Dry Operation Wet
Insulation Insulated
Drain Configuration With Drain
Pan Capacity 4
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Voltage 120 Volts
Amps 20.8 Amps
Watts 2.5 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 165 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a cord with plug and does not require hard-wiring.
No. It is designed for wet operation only, and water is required for even heating.
It accepts full-size and fractional pans up to 6" deep.
The cutout size is 54" x 25 1/4" and it must have a 7/8" corner radius.
Yes. A sheet pan adapter is available, item number 19186.
The unit comes with Vollrath's standard warranty against defects in materials and workmanship. Refer to Vollrath's warranty policy for full details.
