Vollrath 36405HD Steam Tables & Food Wells
Description

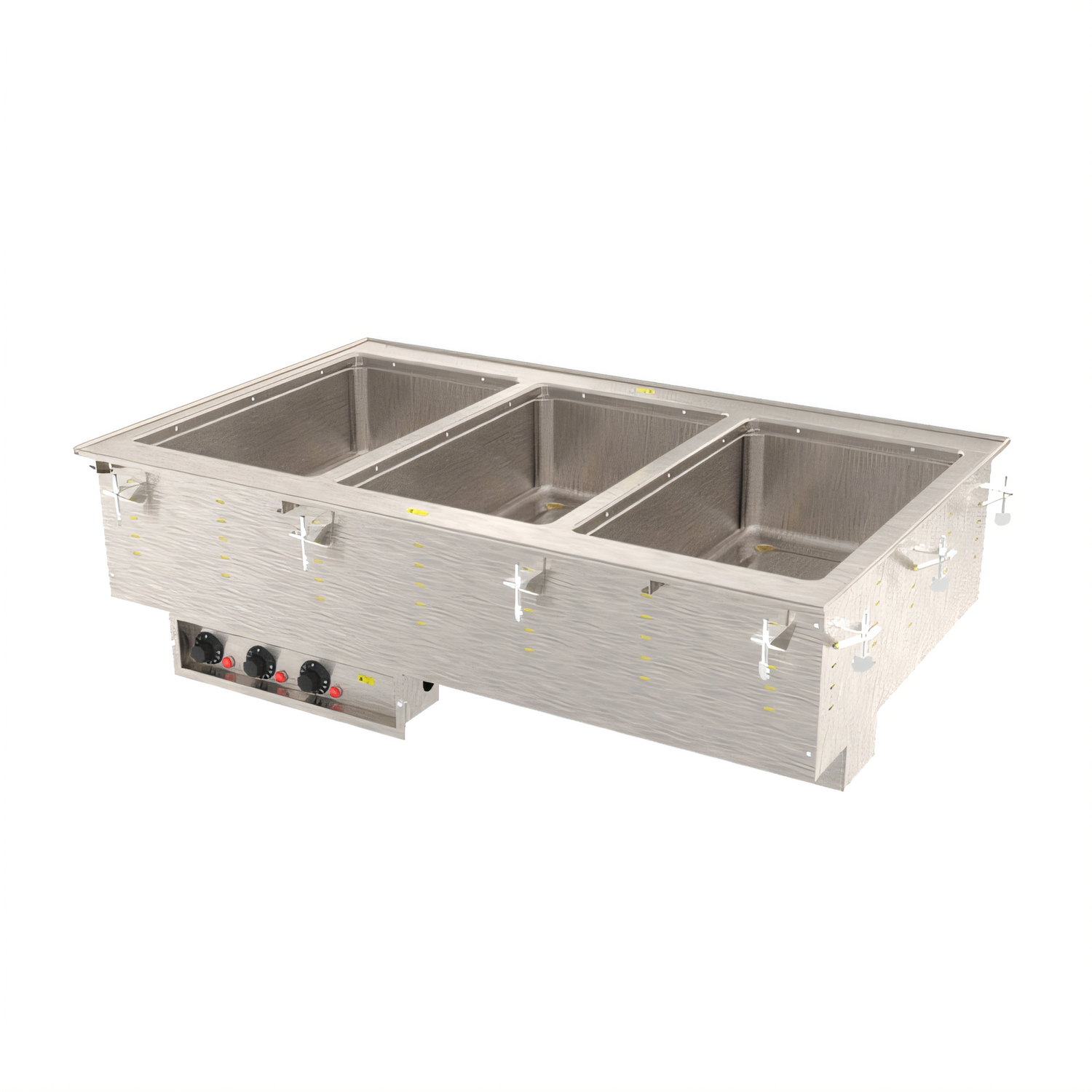

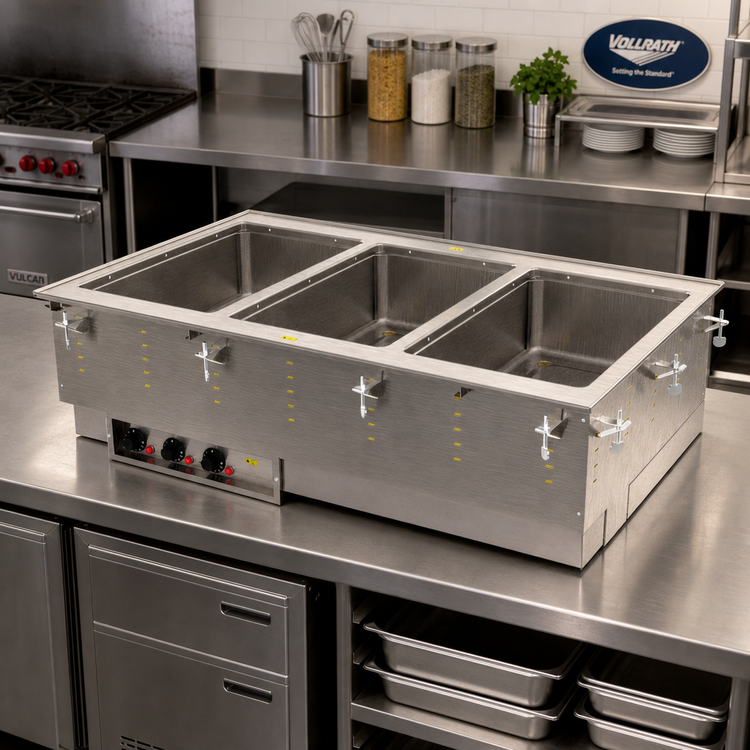

Vollrath 3-Well Marine-Grade Drop-In Hot Food Well – 208 V / 6-15P

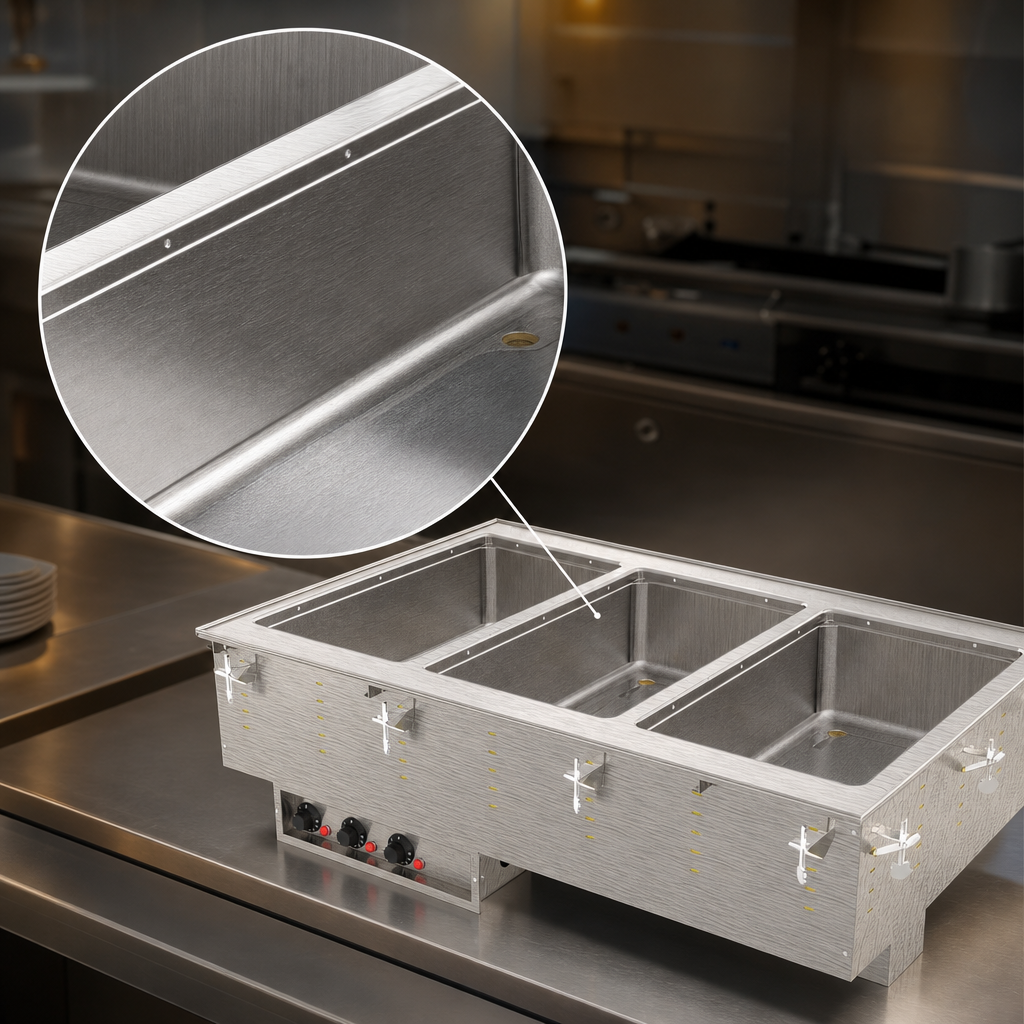

41 ½ in W × 26 in D • Wet-operation only • Made in USABuilt for the toughest commercial kitchens, this Vollrath three-well modular hot drop-in keeps entrées, sides and sauces at safe serving temperatures while standing up to corrosive environments. Each 12 × 20 in well is formed from 20-gauge, 316 marine-grade stainless steel, delivering superior resistance to salt, steam and acidic food.
Key benefits
- Three individually heated, fully insulated wells – 625 W each (1,875 W total).
- Wet operation ensures gentle, even heat distribution; drip-free top flange keeps counters dry.
- Independent infinite controls with power indicator lights for precise holding of each menu item.
- ½ in drains with dedicated ball-valve shut-offs speed change-outs and cleanup.
- 18-gauge stainless-steel top and rugged exterior housing for long-term durability.
- Ships ready to install: includes gasket, positioning clips for counters up to 3 in thick and 6 ft cord with NEMA 6-15P plug – no hard-wiring required.
- Zero-clearance design maximizes under-counter space and flexibility.
Technical specifications
| Wells | 3 full-size (12 × 20 in) |
|---|---|
| Well material | 20-ga / SAE Type 316 marine-grade stainless steel |
| Operation | Wet heat only (water required) |
| Heating controls | Individual infinite switches with indicator lights |
| Power per well | 625 W |
| Total power | 1,875 W |
| Electrical | 208 V, 60 Hz, 1-phase, 9.0 A, cord & NEMA 6-15P plug |
| Overall dimensions | 41 ½ in W × 26 in D × 15 in H |
| Counter cutout | 40 ¾ in W × 25 ¼ in D – 7⁄8 in corner radius required |
| Drain | Three ½ in MPT connections with individual valves |
| Included | Mounting clips, gasket, tethered control panel (4 ft lead) |
| Certifications | NSF 4, cULus |
| Country of origin | USA |
Installation & operation notes
- Suitable for indoor use only; room temperature & HVAC may affect holding performance.
- Cutout must include specified corner radii to maintain structural integrity of counter.
- Always keep water at recommended level to avoid element damage and ensure even heating.
Orders for drop-ins cannot be canceled or returned once placed.
Warranty
Covered by Vollrath’s two-year limited warranty against defects in materials and workmanship. Visit vollrathfoodservice.com for complete policy details.
