Description

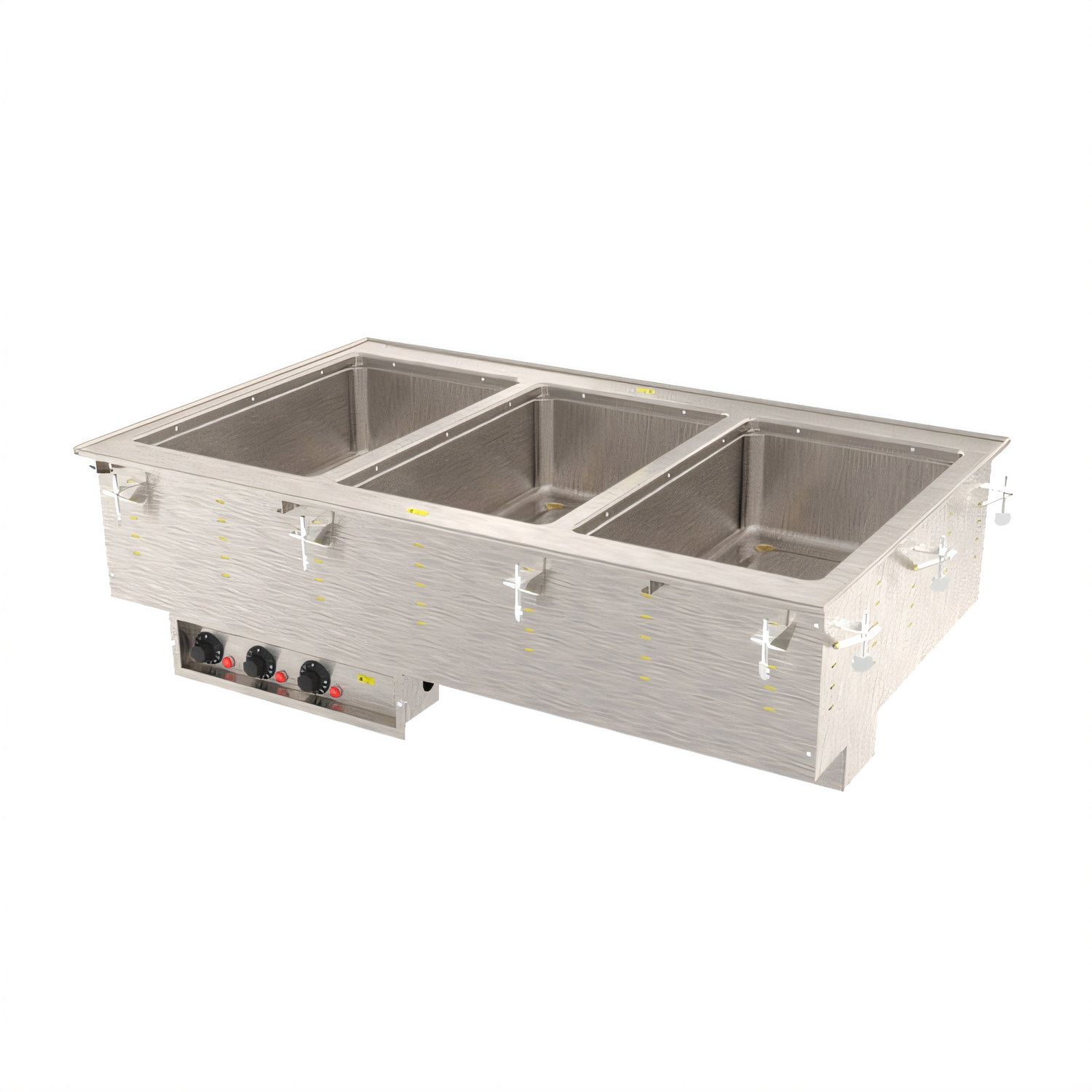

Vollrath 3-Well Modular Drop-In Hot Food Unit
with Marine-Grade Stainless Steel Wells & Auto-Fill
Model 3640581HD · 1000 W per well · Thermostatic · 208-240 V
Keep entrées, sides, soups, and sauces at perfect serving temperature with the durability food-service professionals expect from Vollrath. This drop-in hot well is factory-built for wet operation only, delivering gentle, even heat through three individually controlled, fully insulated, 316 marine-grade stainless steel wells.
Why You’ll Love It
- Three full-size 12" × 20" wells formed from 20 ga 316 marine-grade stainless steel for superior corrosion resistance.

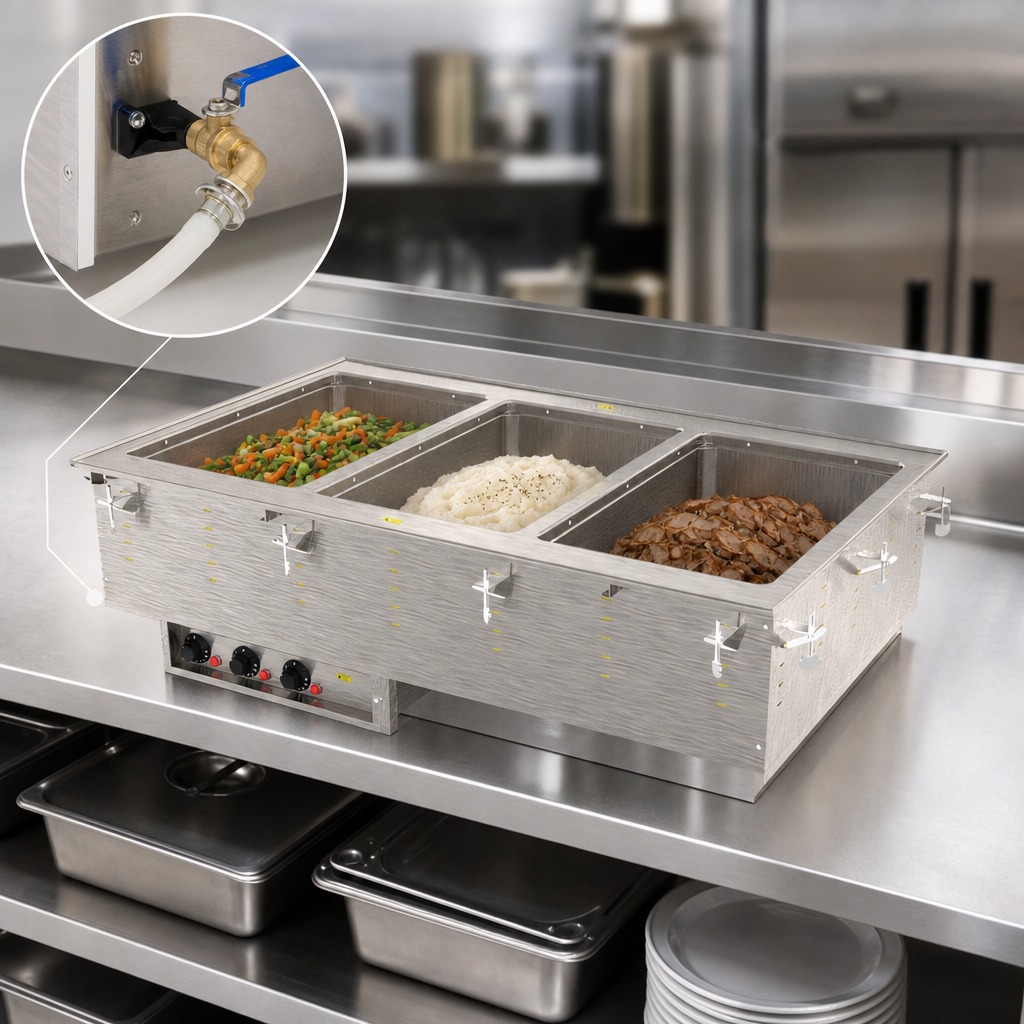

- Wet-operation auto-fill maintains correct water level all day—no manual top-offs.
- Individual thermostatic controls (0-212 °F) with power indicator lights let you hold different foods at their ideal temperature.
- 1" copper manifold drain with ball valve shut-off for each well plus a master drain shut-off simplifies end-of-day cleanup.
- Drip-free top flange and full fiberglass insulation on every side (and between wells) reduce counter heat loss and protect surrounding cabinetry.
- 18 ga stainless steel top and stainless exterior housing stand up to daily commercial abuse.
- Plug-and-play—factory-wired 6 ft cord with NEMA 6-20P means no hard-wiring is required.
- Includes mounting clips for counters up to 3" thick; zero-clearance installation.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- NSF 4, cULus listed and proudly Made in the USA.
Technical Specifications
| Wells / Capacity | (3) 12" × 20" full-size pans, up to 6" deep |
|---|---|
| Construction | 20 ga 316 SS wells, 18 ga SS top, stainless exterior |
| Operation | Wet heat only, automatic water fill ½" MPT water inlet (field-supplied) |
| Controls | Remote stainless panel, 4 ft tether; individual thermostatic knobs & power lights |
| Drain System | 1" copper manifold drain with individual well valves & master shut-off |
| Overall Dimensions | 41 ½" W × 26" D × 21 ½" H |
| Counter Cutout | 40 ¾" W × 25 ¼" D (7/8" corner radius) |
| Electrical | 3000 W (1000 W / well) • 208-240 V • 60 Hz • 1-phase • 10.8-12.5 A |
| Cord & Plug | 6 ft cord with NEMA 6-20P |
| Certifications | NSF 4, cULus |
| Warranty | 2 years parts & labor (full policy) |
Adapter bars, sheet-pan adapter (Item 19186), and other accessories sold separately.
Important Installation & Use Information
• Unit complies with NSF 4 only when operated with water.
• Indoor use only; ambient temperature & HVAC can affect holding performance.
• Factory cord & plug must not be modified—doing so voids warranty.
• Modular drop-ins are built to order and cannot be cancelled or returned.
• Unit complies with NSF 4 only when operated with water.
• Indoor use only; ambient temperature & HVAC can affect holding performance.
• Factory cord & plug must not be modified—doing so voids warranty.
• Modular drop-ins are built to order and cannot be cancelled or returned.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
41.5in
Depth
26.0in
Shipping Weight
146.0lbs
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Insulated or Non-Insulated
insulated
Controls
thermostatic controls
Drain
with drain
Construction
stainless steel construction
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
