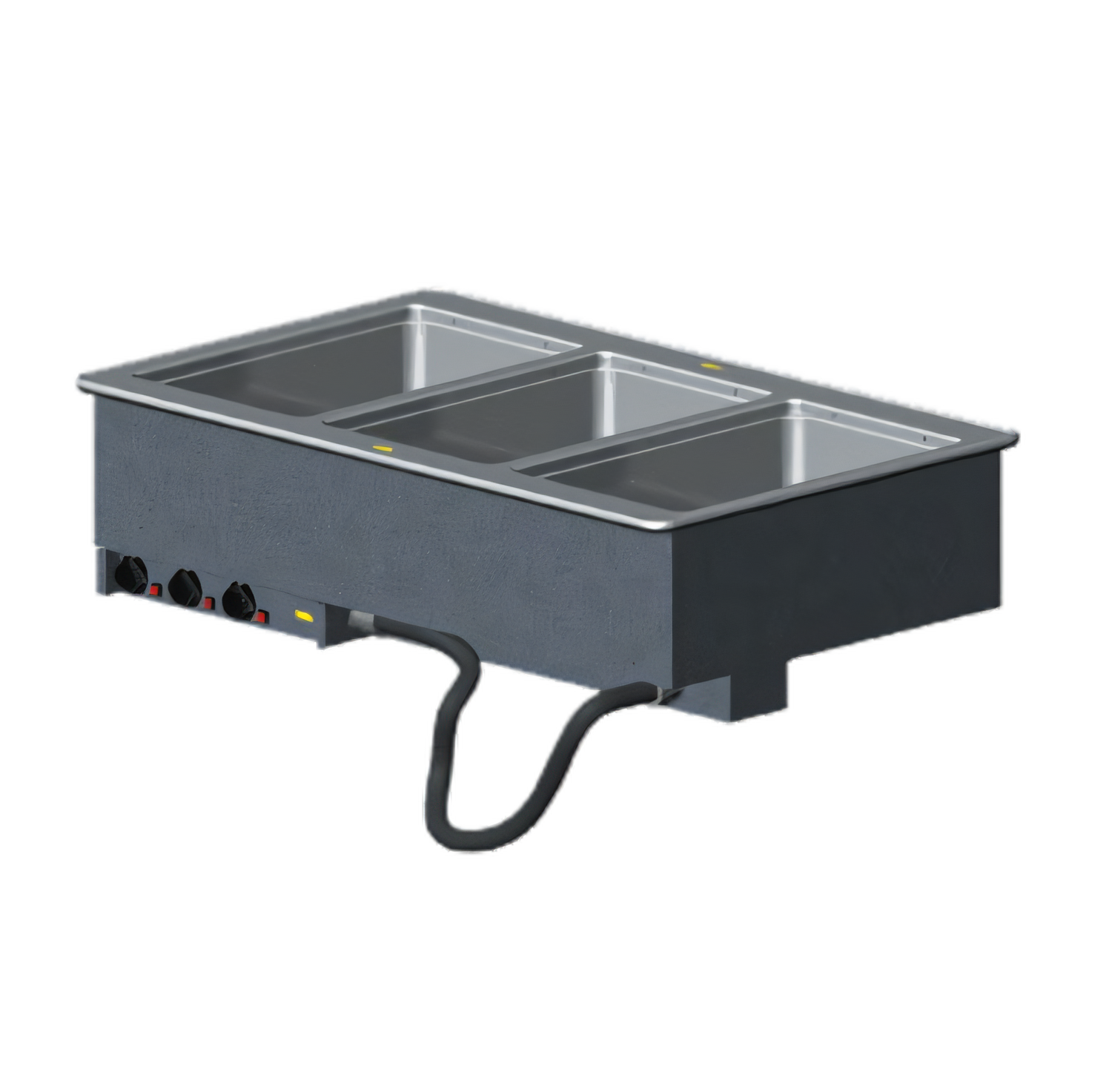

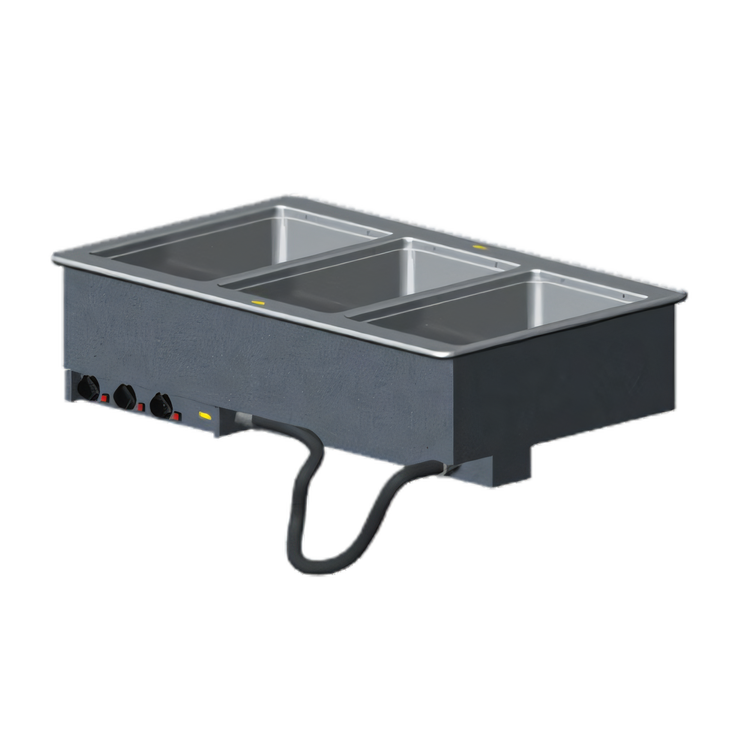

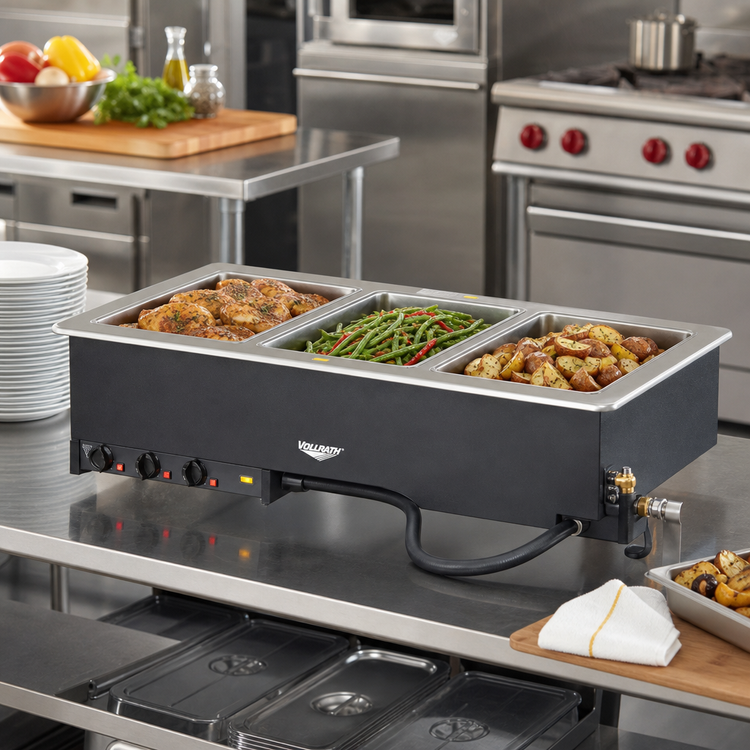

Vollrath 3-Well Drop-In Electric Hot Food Well with Auto-Fill and Thermostatic Controls

Wet Operation Only, Manifold Drain, 208-240V, 3 Full-Size 12 x 20 Wells

Designed for busy serving lines, this 3-well drop-in hot well keeps full-size pans evenly heated with auto-fill convenience and independent thermostatic control.

  • Three insulated wells hold full-size 12" x 20" pans for high-volume serving.
  • Wet-operation design with auto-fill helps maintain consistent water levels for even heating.
  • Individual thermostatic controls and power indicator lights let staff manage each well separately.
  • 1" copper manifold drain with individual shutoffs and a master shutoff simplifies draining and cleanup.
  • Drop-in installation includes positioning clips and a cord with NEMA 6-20P plug; no hard-wiring required.
  • 208-240V, 60 Hz, single-phase power with 3 kW total output.
  • Stainless steel top, insulated wells, and galvanized exterior housing provide durable commercial construction.

Overall Dimensions:

41.5"W x 26.0"D x 21.5"H

Product Weight:

146.0 lb

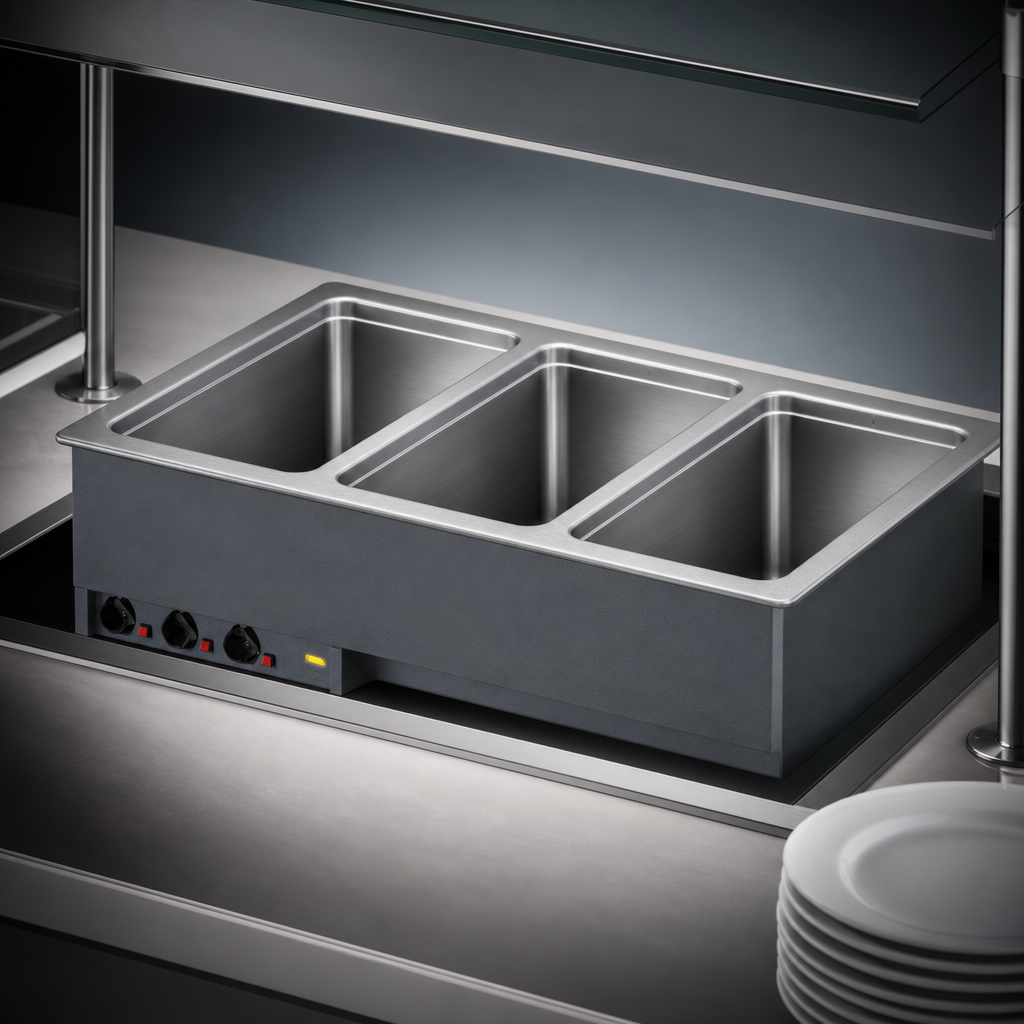

Three Insulated Wells

Holds three full-size 12" x 20" pans in 20-gauge stainless steel insulated wells.

Wet-Operation Auto-Fill

Wet-only operation with auto-fill helps maintain consistent water levels for even heating.

Individual Thermostatic Controls

Each well has its own thermostatic control and power indicator light on the remote panel.

Manifold Drain System

1" copper manifold drain includes individual well shutoffs and a master manifold shutoff.

Durable Construction

18-gauge stainless steel top and galvanized exterior housing support long-term foodservice use.

Drop-In Installation

Drip-free flange, included positioning clips, and a 6' cord with NEMA 6-20P plug simplify installation without hard-wiring.

Pan Flexibility

Accepts full-size and fractional pans up to 6" deep; adapter bars are recommended for fractional pans.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Capacity 3 Wells
Pan Capacity 3 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Thermostatic
Voltage 208-240 Volts
Watts 3 kW
Amps 10.8-12.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Cord Length 6 Feet
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 146 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year standard warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires a 40-3/4" W x 25-1/4" D cutout with a 7/8" corner radius.
No. It is wet-operation only, and water is required for even heating and NSF4 performance.
It accepts three full-size 12" x 20" pans, and fractional pans up to 6" deep when used with adapter bars.
No. It includes a cord and plug and does not require hard-wiring.
The unit uses 208-240V, 60 Hz, single-phase power, draws 10.8-12.5 amps, and comes with a NEMA 6-20P plug.
Yes. A sheet pan adapter is available, item number 19186.
