Vollrath 3640580HD Steam Tables & Food Wells
$4,113.70
Unit price
/
Unavailable
Description

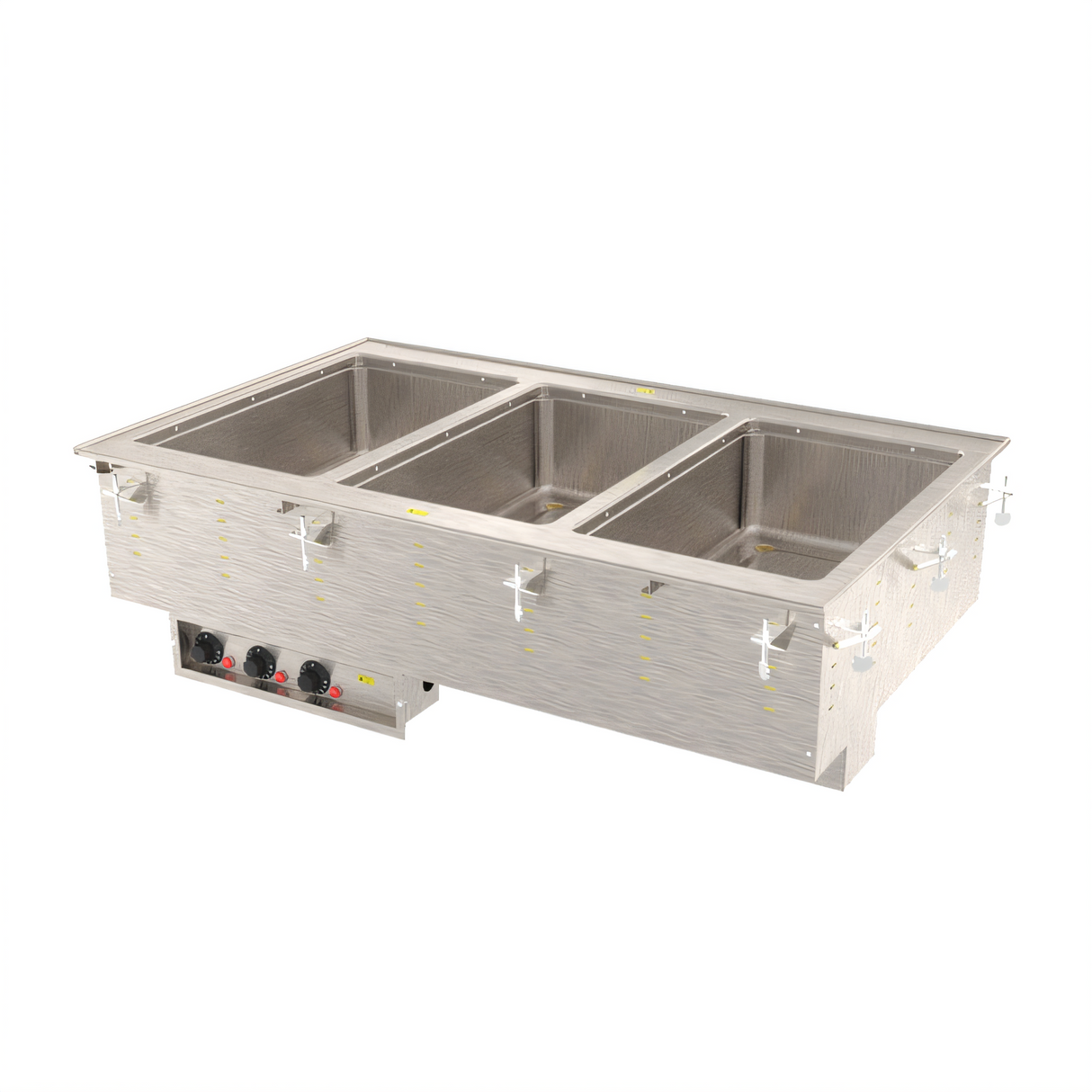

Vollrath 3-Well Modular Drop-In Hot Food Well – Auto-Fill, Manifold Drain, 208 V
Marine-grade 316 stainless wells • 625 W per well • NEMA 6-15P plugKeep every entrée at safe serving temperature with this NSF-listed, Made-in-USA drop-in from Vollrath. Three individually controlled, water-bath wells deliver reliable holding power in the tightest footprint—perfect for buffets, cafeterias, and concession lines.
Key Features & Benefits
- Three 12" × 20" wells, drawn from 20-gauge/316 marine-grade stainless steel for superior corrosion resistance.
- Auto-fill system maintains optimal water level automatically—no hand refilling or “dry-well” worries.
- Individual thermostatic controls (panel mounted, 4 ft tether) with power lights for precise, independent heat management.
- Wet-heat design meets NSF 4 performance standards when operated with water; delivers gentle, uniform heat up to 212 °F (100 °C).
- 1" copper manifold drain with a master shut-off plus individual ball valves for fast, mess-free cleanup.
- Drip-free flange protects counters and simplifies top-mount installation; includes positioning clips for surfaces up to 3" thick.

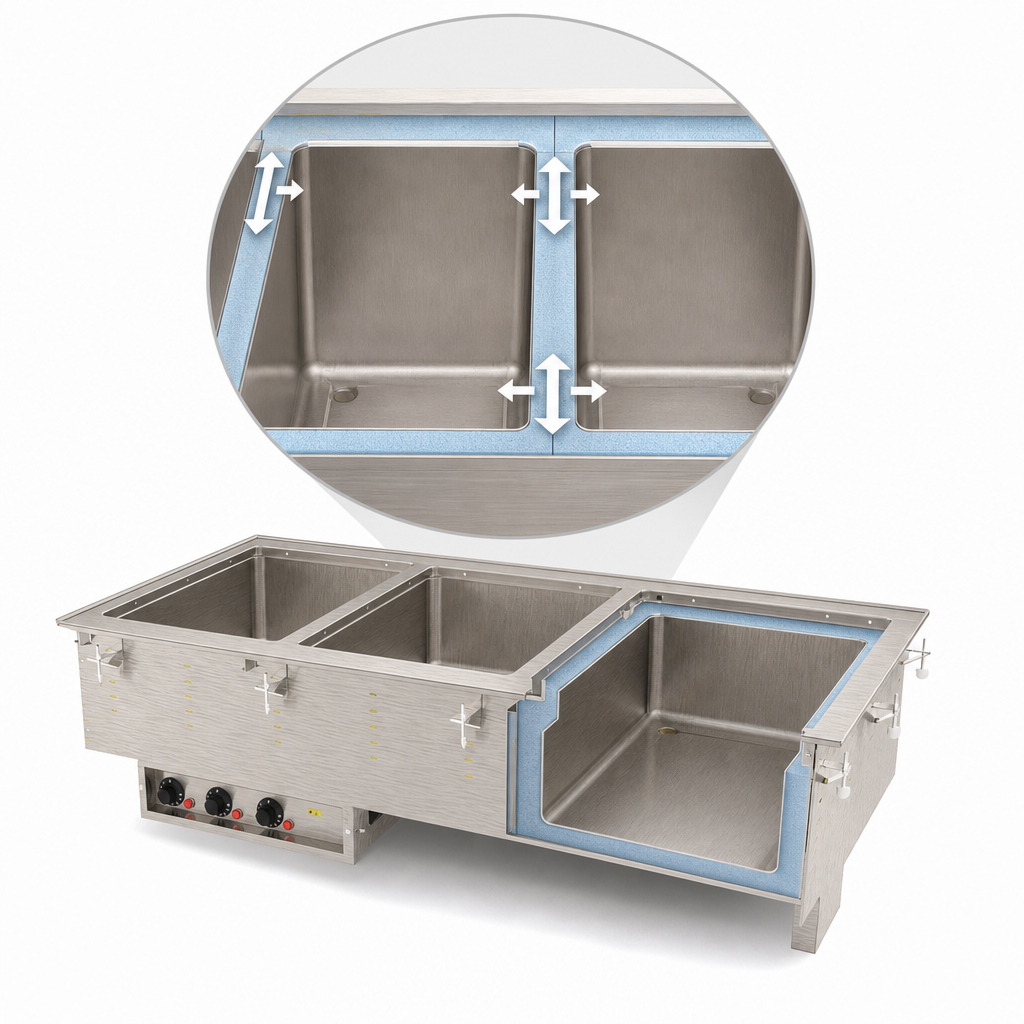

- Fully insulated on all non-exposed sides—including between wells—for energy efficiency and cooler counter surfaces.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional pans).
- Zero-clearance design; removable bottom service panels speed maintenance.
Technical Specifications
| Overall dimensions | 41 ½" W × 26" D × 21 ½" H (105.4 × 66 × 54.6 cm) |
|---|---|
| Cut-out size | 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) – 7/8" corner radius required |
| Well size / qty. | (3) full-size 12" × 20" wells, 6" max pan depth |
| Wattage / amps | 1,875 W total (625 W per well) • 9.0 A |
| Electrical | 208 V, 60 Hz, single-phase • 6 ft cord with NEMA 6-15P plug |
| Operation | Wet heat only (water required) |
| Construction | 18-gauge stainless top • stainless exterior housing |
| Certifications | NSF 4, cULus |
| Origin & warranty | Made in USA • 2-year parts & labor warranty on marine-grade wells Full policy |
Important: This unit is designed for wet operation only.
Always keep wells filled to the designated water level to ensure even heating and to prevent damage.
Looking for adapter bars, sheet-pan inserts, or replacement components? Contact our sales team for compatible Vollrath accessories.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
41.5in
Depth
26.0in
Shipping Weight
127.0lbs
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Insulated or Non-Insulated
insulated
Controls
thermostatic controls
Drain
with drain
Construction
stainless steel construction
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 208v/60/1-ph, 9.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
