Vollrath

Vollrath 3-Well Electric Drop-In Hot Food Well with Auto-Fill and Thermostatic Controls, 208V

SKU: 3640580
$3,814.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath 3-Well Electric Drop-In Hot Food Well with Auto-Fill and Thermostatic Controls, 208V

Wet Operation Only, Manifold Drain, Full-Size 12" x 20" Wells

A plug-in wet-operation hot well that keeps three full-size pans hot with individual thermostatic control and auto-fill convenience.

  • Holds three full-size 12" x 20" pans in insulated individual wells.
  • Wet-operation design uses water for even heating and serving performance.
  • Auto-fill manifold drain includes individual well shutoffs and a master shutoff.
  • Individual thermostatic controls and a power indicator light let staff manage each well separately.
  • Stainless steel top and insulated stainless wells are paired with a galvanized exterior housing for durability.
  • Includes a 6-foot cord with NEMA 6-15P plug and mounting clips for easier drop-in installation.

Overall Dimensions:

41.5"W x 26.0"D x 21.5"H

Product Weight:

127.0 lb

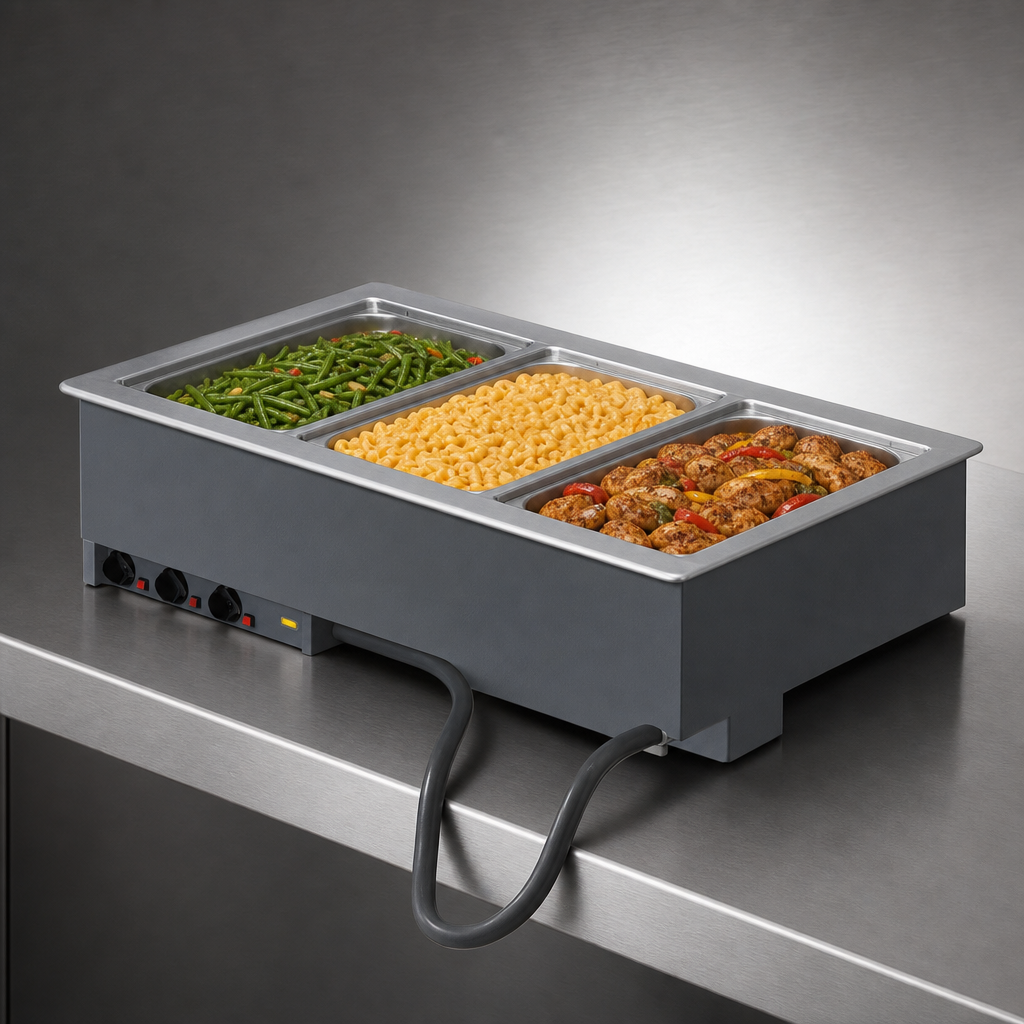

Three Full-Size Wells

Accommodates three individual 12" x 20" pans for buffet and serving-line use.

Wet Operation Only

Designed for moist-heat operation; water is required for even heating.

Auto-Fill Manifold Drain

Includes a 1" copper manifold drain with individual well shutoffs and a master manifold shutoff.

Individual Thermostatic Controls

Each well is controlled separately from the mounted control panel for precise temperature management.

Power Indicator Light

The control panel includes a power indicator light for each well.

Insulated Stainless Steel Wells

20-gauge stainless steel wells are insulated on all sides, including between wells, to help retain heat.

Stainless Top, Drip-Free Flange, and Galvanized Housing

Features an 18-gauge stainless steel top, drip-free flange, and 18-gauge galvanized exterior housing.

Plug-In Cord and Mounting Clips

Includes a 6-foot cord with NEMA 6-15P plug and positioning/mounting clips; hard-wiring is not required.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Thermostatic
Material Stainless Steel
Interior Finish Stainless Steel
Finish Galvanized
Voltage 208 Volts
Amps 9.0 Amps
Watts 1.875 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 127 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year warranty

Frequently Asked Questions

Yes. It is a wet-operation unit, and the documentation notes that water is required for even heating.
No. It includes a cord and plug and does not require hard-wiring.
It accepts three full-size 12" x 20" pans and can accept fractional pans up to 6 inches deep.
208 Volts, 60 Hz, single-phase, 9.0 amps, and a NEMA 6-15P plug.
The cutout is 40-3/4 inches wide by 25-1/4 inches deep with a 7/8-inch corner radius.
Yes. A sheet pan adapter is available, item 19186.
