Vollrath  |  SKU: 3640571

Vollrath 3640571 Steam Tables & Food Wells

$2,755.45
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

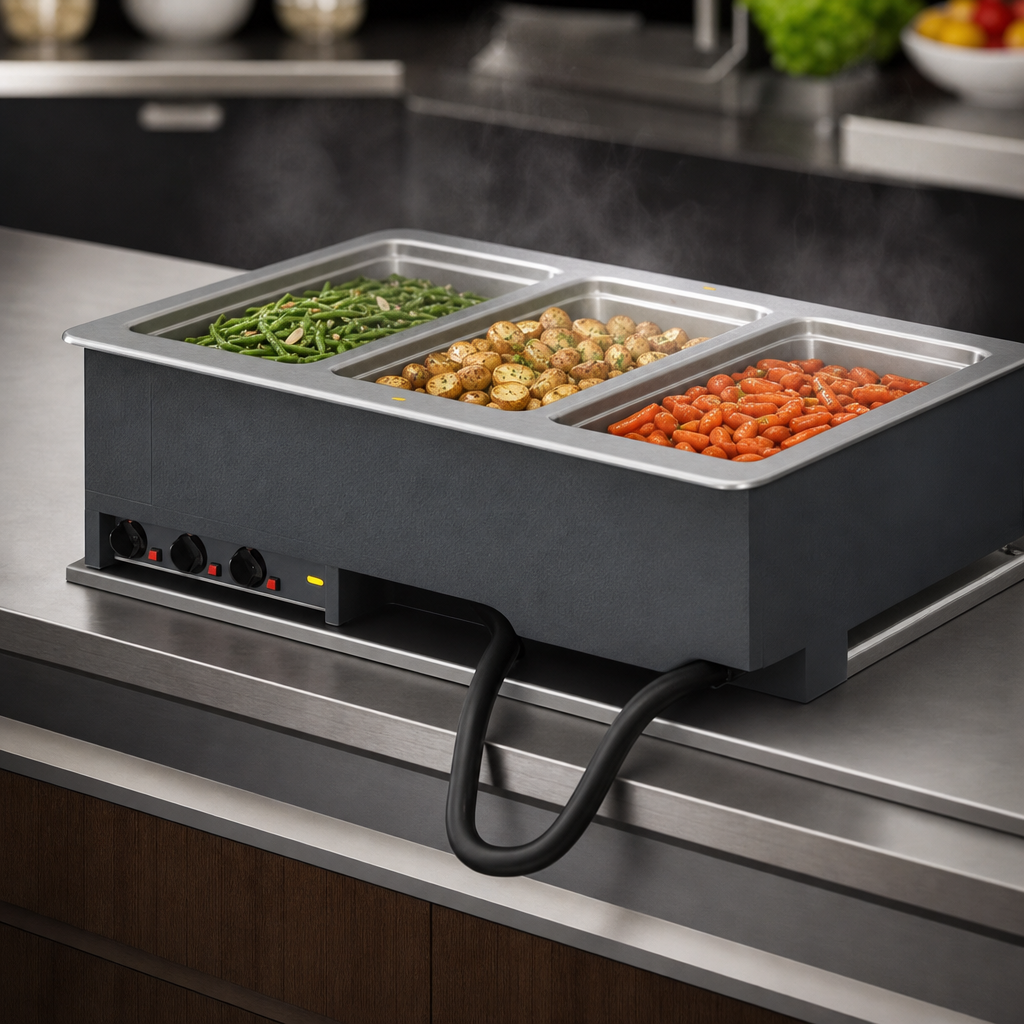

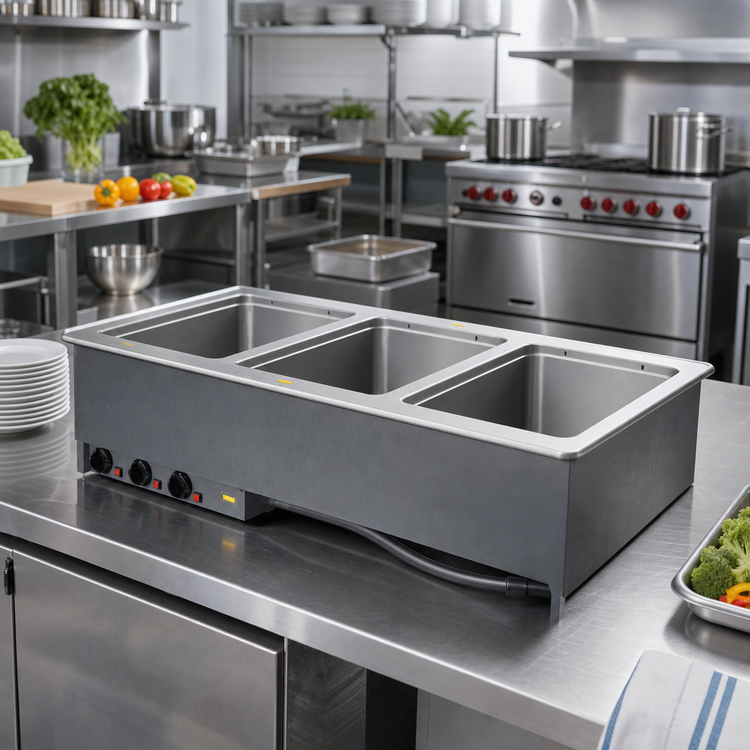

Vollrath 3-Well Drop-In Hot Food Well

Model 3640511 | 208-240 V Thermostatic Control with Manifold Drain

Keep entrées, sides and sauces at food-safe serving temperatures with the durability you expect from Vollrath. This USA-made, fully insulated drop-in features three individually controlled 12 × 20 inch wells, a convenient 1 inch copper manifold drain system, and a plug-in design that eliminates the need for hard-wiring.

Why You’ll Love It

  • Precise holding – independent thermostatic controls and power lights for each well.
  • Wet-operation design promotes even heat and meets NSF 4 performance standards.
  • Rugged construction – 20 ga. stainless wells, 18 ga. stainless top and galvanized exterior housing.
  • Drip-free stainless flange creates a clean, flush counter installation.
  • 1 in. copper manifold drain with individual well shut-offs and master shut-off simplifies cleanup.
  • Ships with 6 ft. cord & NEMA 6-20P plug – ready to drop in and power up.
  • Zero-clearance installation and included mounting clips for counters up to 3 in. thick.
  • Accepts full-size or fractional pans up to 6 in. deep (adapter bars recommended for fractional pans).

Specifications

Wells (3) Individual 12 × 20 in. wells, 20 ga. stainless, fully insulated
Operation Wet heat only (water required)
Controls 3 × thermostatic dial controls, remote stainless panel with power indicators
Total Wattage 3000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph  |  10.8-12.5 A  |  NEMA 6-20P cordset
Overall Dimensions 41 ½ W × 26 D × 21 ½ H in. (105.4 × 66 × 54.6 cm)
Counter Cutout 40 ¾ W × 25 ¼ D in. (103.5 × 64.1 cm) – ⅞ in. corner radius required
Drain 1 in. copper manifold with individual ball valves + manifold shut-off
Certifications NSF 4, cULus
Country of Origin Made in the USA

What’s in the Box

  • Three-well drop-in hot module
  • Remote stainless control panel with 4 ft. tether
  • Mounting / positioning clips
  • Factory-installed 6 ft. cord & plug
  • Gasket for under-counter drip edge
  • Owner’s / installation manual
Important: This unit is designed for wet operation only. Always add water before powering on to ensure even heating and to maintain NSF compliance.

Drop-in modules are built to order and cannot be canceled or returned. Refer to VollrathFoodservice.com for complete warranty terms.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

124.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(3) full size (12" x 20")

Wet or Dry operation

wet

Insulated or Non-Insulated

insulated

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
