Vollrath 3640570HD Steam Tables & Food Wells
Description

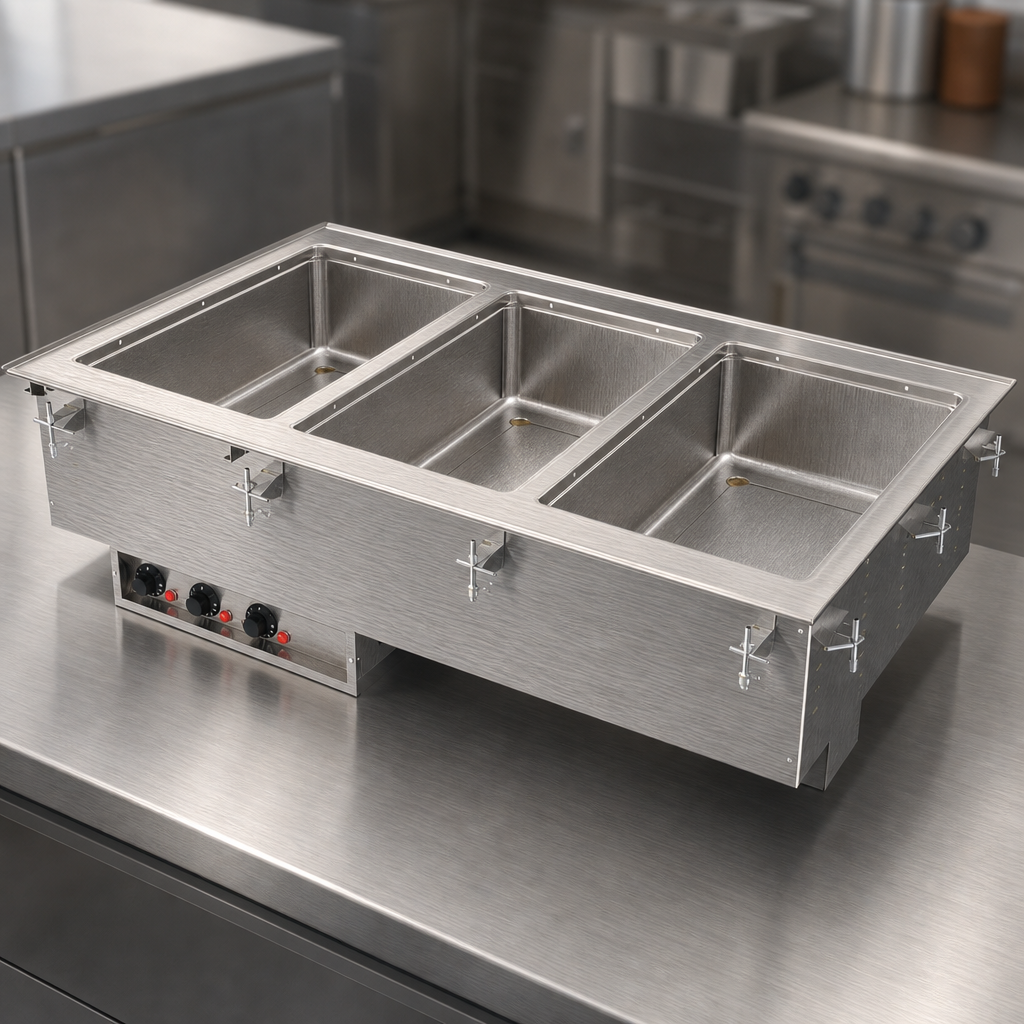

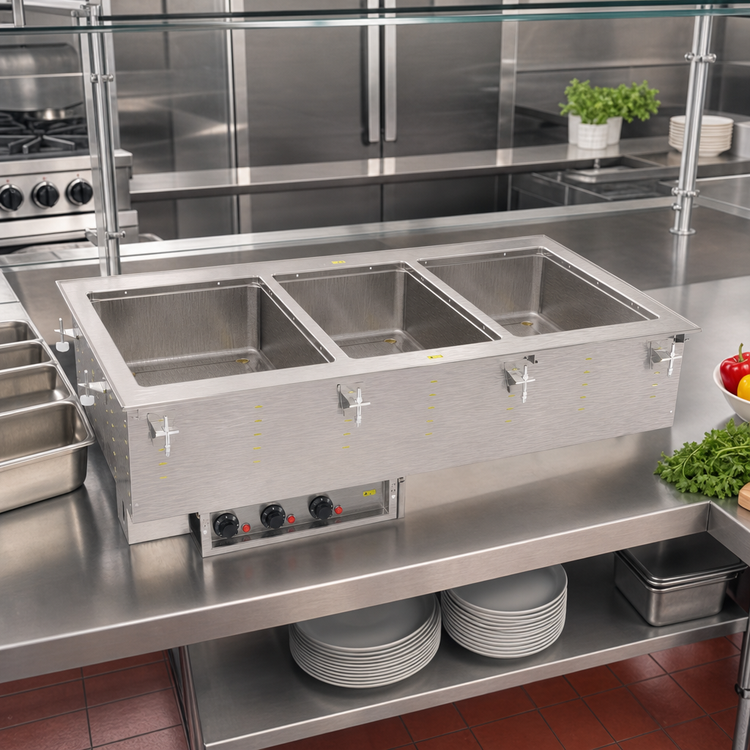

Vollrath 3-Well Marine-Grade Drop-In Hot Food Well
Model 3640510HD · 208 V · Thermostatic Controls · Manifold DrainBuilt for demanding commercial and marine settings, this Vollrath modular hot well keeps three full-size 12" × 20" pans of food hot, safe and ready to serve—all while resisting the punishing effects of salt, steam and daily use. Simply drop it into a 40-3/4" × 25-1/4" counter cut-out, plug it in and start serving.
Why you’ll love it
- 316 marine-grade, 20-gauge drawn wells deliver outstanding corrosion resistance.
- Individual wet-heat operation ensures even, gentle heat across the entire pan.
- Independent thermostatic controls and power-on indicator lights for each well.
- 1" copper manifold drain with individual ball-valve shut-offs & master shut-off for quick, mess-free clean-up.
- Drip-free flange, pre-installed gasket and included mounting clips for counters up to 3" thick mean a tight, worry-free fit.
- Accepts standard or fractional pans up to 6" deep—use adapter bars for perfect pan combinations.
- Zero-clearance installation, 6 ft factory-wired cord with NEMA 6-15P plug—no hard-wiring required.
- NSF & cULus listed and proudly Made in the USA with a 2-year manufacturer’s warranty.
Technical specifications
| Number of wells | 3 (individually insulated) |
|---|---|
| Well size | Full-size 12" × 20" |
| Construction | 20 ga 316 stainless wells 18 ga stainless top & exterior housing |
| Operation | Wet heat only |
| Controls | 3 thermostatic knobs, remote panel with 4' tether & indicator lights |
| Total wattage | 1 875 W (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-phase · 9 A · NEMA 6-15P |
| Overall dimensions | 41-1/2" W × 26" D × 21-1/2" H |
| Counter cut-out | 40-3/4" W × 25-1/4" D · 7/8" corner radius |
| Drain | 1" copper manifold with individual & master shut-offs |
| Certifications | NSF, cULus |
| Origin | Made in USA |
| Warranty | 2 years (see Vollrath for full details) |
Installation & operation tips
- For optimal performance, always keep at least 1" of water in each well.
- Do not modify the supplied cord or plug; doing so voids the warranty.
- Indoor use only; ambient HVAC conditions may affect holding temperature.
Full warranty policy available at vollrathfoodservice.com. Drop-in units are made to order and cannot be canceled or returned.
