Vollrath 3640570 Steam Tables & Food Wells
Description

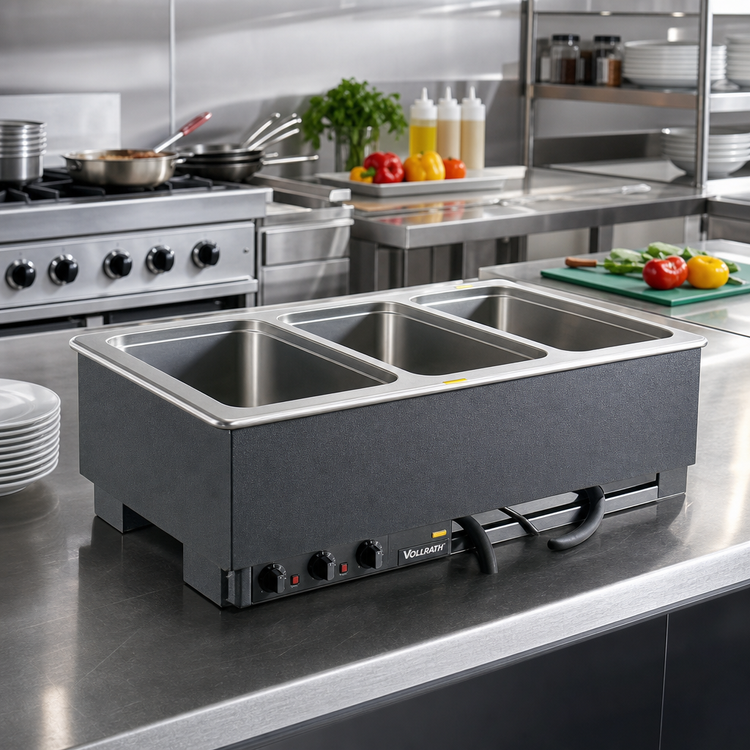

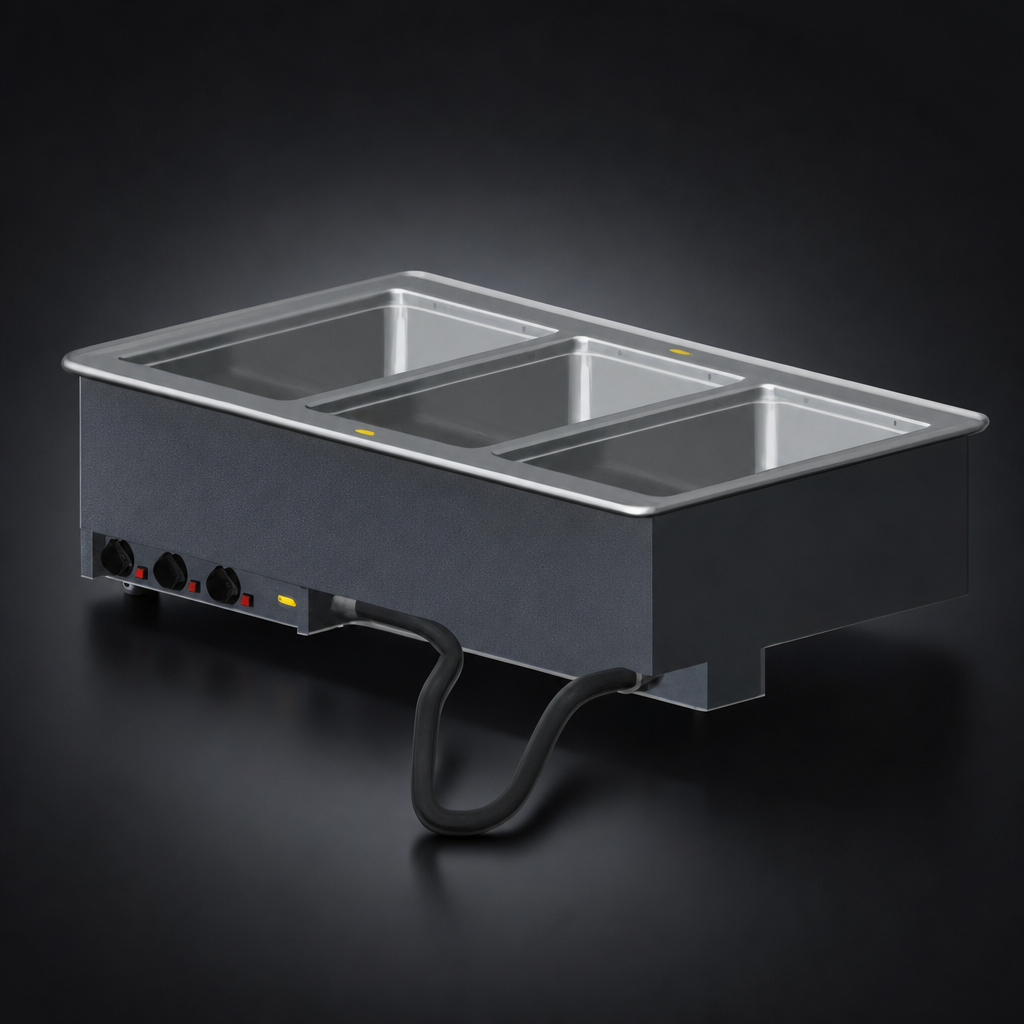

Vollrath Three-Well Hot Drop-In – Thermostatic, 208 V, Manifold Drain
Model 3640570 | 3 x 12″ × 20″ full-size wells | 625 W per well (1,875 W total)Built for busy serving lines, this NSF-listed drop-in keeps entrées, sides and sauces at the perfect holding temperature without the need for hard-wiring. Three individually thermostated, fully insulated wells deliver even, wet-heat performance, while a 1″ copper manifold drain streamlines cleanup between service periods. Made in the USA and supplied with a factory-installed cord and plug, the unit drops into a single countertop cutout and is ready to go.
Why You’ll Love It
- Three independent 12″ × 20″ wells—20 ga 300-series stainless steel for superior durability and heat transfer.
- Wet operation only for consistent, gentle heating that preserves food quality (meets NSF 4 when used with water).
- Individual thermostatic controls in a remote stainless-steel panel with power indicator lights and a 4 ft (1.2 m) tether for flexible mounting.
- Drip-free top flange with factory-installed gasket delivers a clean, sanitary installation.
- 1″ copper manifold drain with individual well shut-off valves plus a master manifold valve for fast, no-mess draining.
- Fully insulated on every side (and between wells) to reduce energy loss and keep the ambient area cooler.
- 18 ga stainless-steel top and 18 ga galvanized exterior housing stand up to constant commercial use.
- Ships with positioning/mounting clips for counters up to 3″ (7.6 cm) thick—zero-clearance installation.
- No hard-wiring: 6 ft (1.8 m) cord with NEMA 6-15P fits any compatible 208 V outlet.
- Accepts full-size or fractional steam-table pans up to 6″ (15.2 cm) deep; adapter bars recommended for fractional layouts.
Technical Specifications
| Wells | 3 × 12″ × 20″ (full-size); 20 ga 300-series stainless steel; insulated |
|---|---|
| Operation | Wet heat only (water required) |
| Controls | Three independent thermostatic knobs with power lights; remote panel (4 ft tether) |
| Total Wattage | 1,875 W (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-phase, 9.0 A, 6 ft cord with NEMA 6-15P; no hard-wiring required |
| Drain | 1″ copper manifold with individual well ball valves & master shut-off |
| Overall Dimensions | 41 ½″ W × 26″ D × 21 ½″ H (105.4 × 66 × 54.6 cm) |
| Countertop Cutout | 40 ¾″ W × 25 ¼″ D (103.5 × 64.1 cm) – ⅞″ (2.2 cm) corner radius required |
| Construction | 18 ga stainless top, 18 ga galvanized exterior, stainless remote panel |
| Certifications | NSF 4, cULus listed, Made in USA |
| Included | Mounting/positioning clips, factory-installed gasket & cord |
| Warranty | 1-year limited warranty (see vollrathfoodservice.com for full policy) |
Indoor use only. Ambient room temperature & HVAC conditions will affect holding performance.
