Vollrath  |  SKU: 3640561HD

Vollrath 3640561HD Steam Tables & Food Wells

$3,871.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

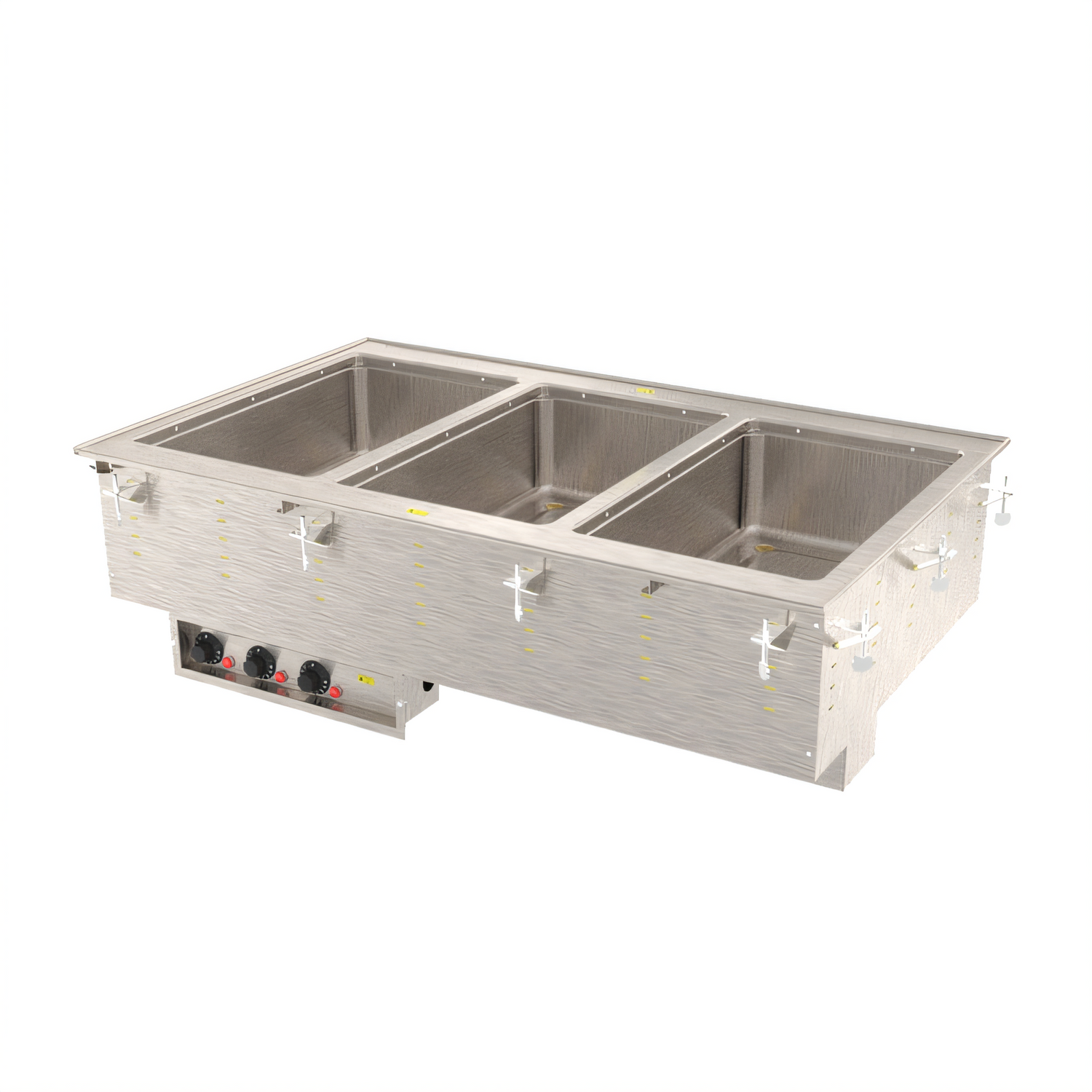

Vollrath 3-Well Modular Drop-In Hot Food Well – Marine-Grade, Auto-Fill

Model 3640561HD • 1000 W per well • 208-240 V, NEMA 6-20P

Built for demanding commercial and coastal environments, this Vollrath marine-grade drop-in keeps three full-size pans perfectly hot—all day, every day. The auto-fill system, individual infinite controls, and plug-and-play design make it the easiest way to upgrade your buffet line or serving station.

Key benefits

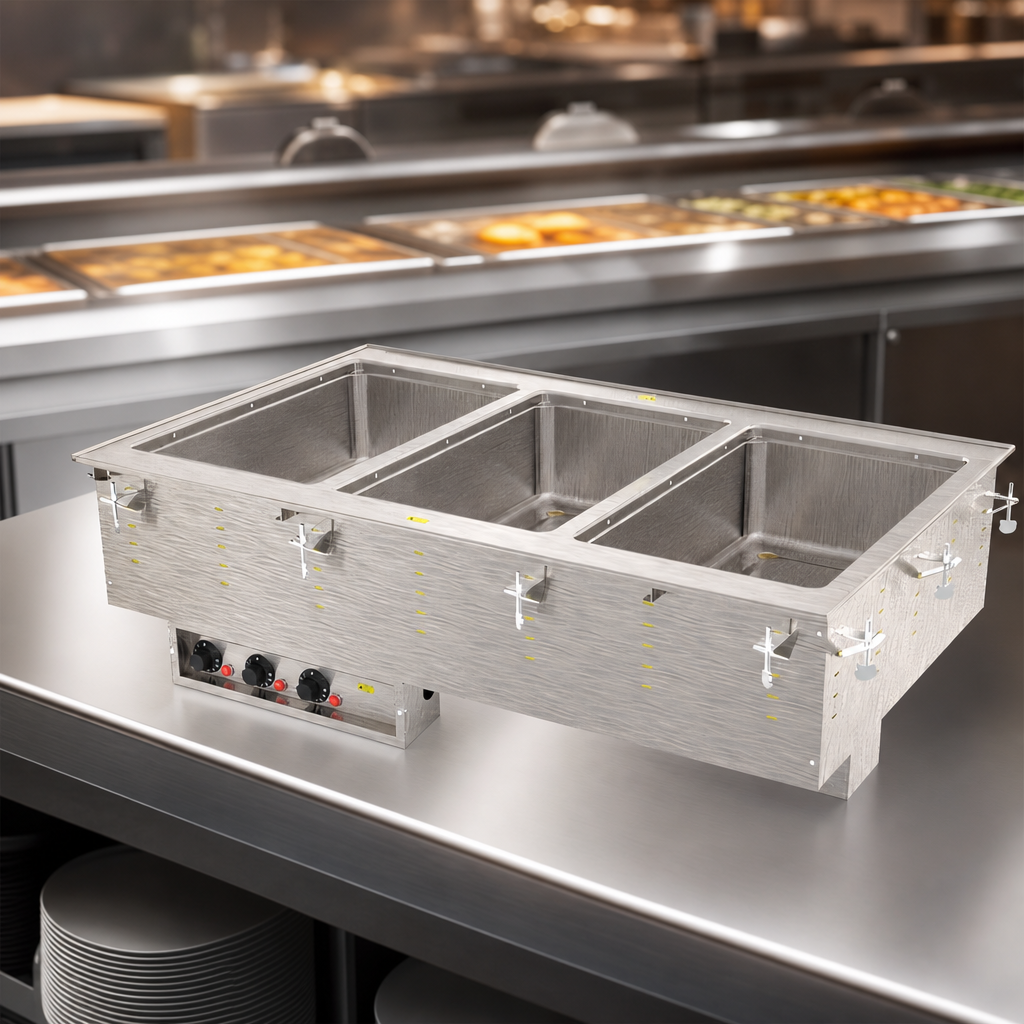

  • 20 ga 316 marine-grade stainless steel wells offer superior corrosion resistance to salt, chlorine and acidic foods.
  • Auto-fill maintains the correct water level automatically—no more constant refills.
  • Three independent 1000 W wells with infinite controls and power lights for precise holding of multiple menu items.
  • Energy-efficient insulation on every side (and between wells) reduces heat loss and operating costs.
  • Drip-free 18 ga stainless top with factory-installed gasket delivers a clean, finished look.
  • 1" copper manifold drain with master shut-off plus individual ball valves for fast, controlled draining.
  • Ships with a 6 ft cord and NEMA 6-20P plug—no hard-wiring required.
  • NSF & cULus listed; proudly made in the USA and backed by a 2-year limited warranty.

At-a-glance specifications

Overall dimensions (W × D × H) 41 ½" × 26" × 21 ½" (105.4 × 66 × 54.6 cm)
Counter cut-out 40 ¾" × 25 ¼" (103.5 × 64.1 cm)  •  ⅞" corner radius
Well size (3) 12" × 20" full-size pans  •  up to 6" deep  •  wet operation only
Construction 20 ga 316 SS wells  •  18 ga SS top  •  SS exterior housing
Heat output 1000 W per well  •  3000 W total
Controls Remote stainless panel (4' tether) with individual infinite knobs & indicator lights
Electrical 208-240 V / 60 Hz / 1-ph  •  10.8-12.5 A  •  NEMA 6-20P plug
Drain 1" copper manifold, master shut-off + individual well shut-offs  •  ½" MPT outlet
Water supply Auto-fill requires ⅜" NPT cold-water line (15-80 psi)
Certifications NSF/ANSI 4, cULus
Origin / Warranty Made in Sheboygan, WI  •  2-year limited parts & labor

Perfect for

  • Buffets, cafeterias and self-serve lines
  • Resorts, cruise ships and coastal operations
  • Commissaries and catering kitchens needing a low-maintenance hot holding solution

What’s included

  • Vollrath 3-well marine-grade drop-in hot well unit
  • Remote control panel with 4' cord
  • Factory-installed 6 ft power cord & NEMA 6-20P plug
  • Mounting gasket & positioning clips (for counters up to 3" thick)
  • 1" copper drain manifold assembly
  • Installation & operation manual

Installation notes

  • Cut-out must have a ⅞" (2.2 cm) corner radius and zero side clearance.
  • Wet operation only—keep water in each well during use.
  • Ensure clearance (6 ½" below counter) for drain manifold and plumbing connections.
  • Connect to a 208-240 V, 1-phase receptacle (NEMA 6-20R) and a cold-water supply.
Important: Modular drop-ins are built to order and cannot be canceled or returned. Confirm cut-out size, electrical, and plumbing requirements before ordering.

For complete warranty terms, visit VollrathFoodservice.com .

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

143.0lbs

Controls

infinite controls

Wet or Dry operation

wet

Style

individual pans

Construction

stainless steel construction

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
