Vollrath  |  SKU: 3640561

Vollrath 3640561 Steam Tables & Food Wells

$3,398.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

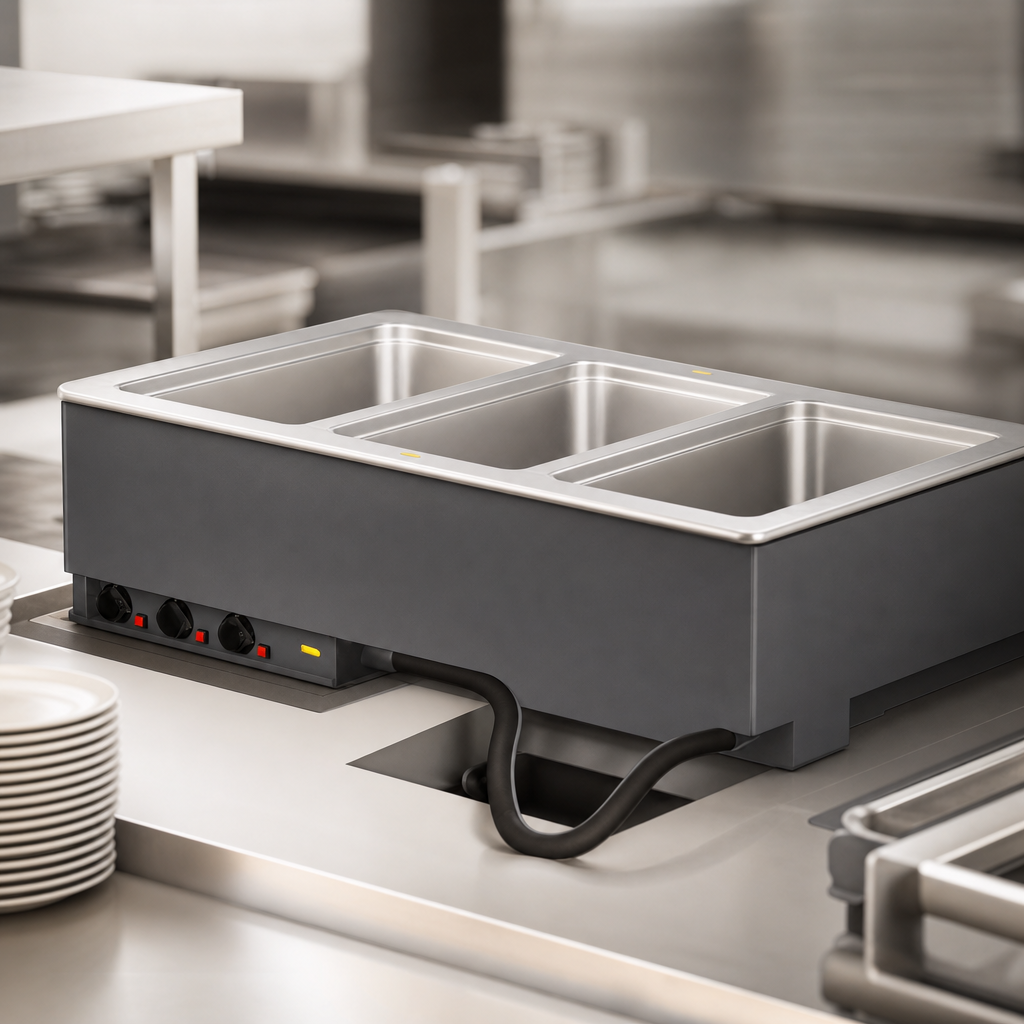

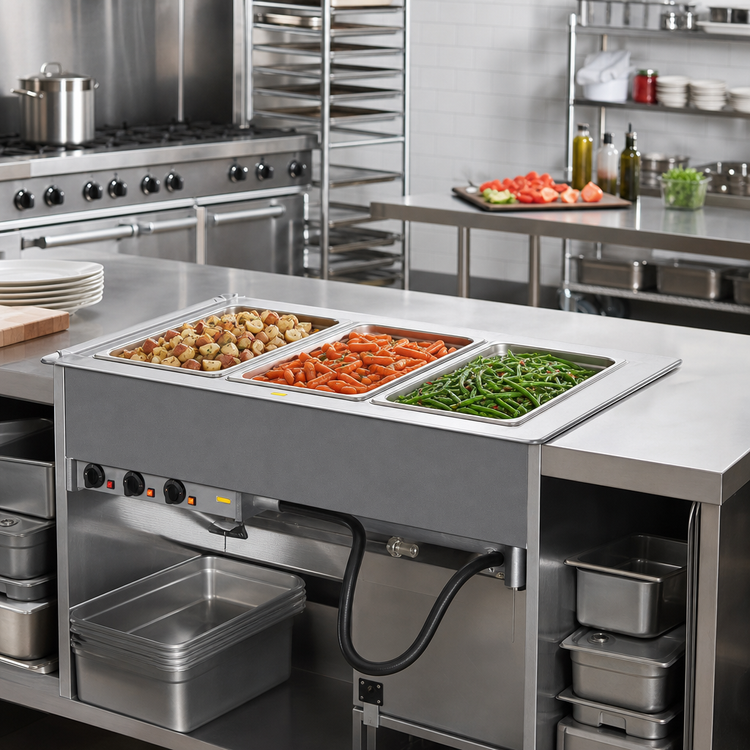

Vollrath 3-Well Hot Drop-In with Auto-Fill & Manifold Drain

Model 3640561 — 1000 W per well • Infinite controls • 208-240 V

Keep entrées, sides and sauces at safe serving temperatures with this fully-insulated, three-well hot module from Vollrath. The factory-installed auto-fill system, independent controls and plug-and-play design let you drop it in, plug it in and start serving—no hard-wiring required.

Key Features & Benefits

  • (3) 12" × 20" 20-ga stainless steel wells — each individually heated & insulated.
  • Wet-heat operation with automatic water fill for consistent, hands-free moisture control.
  • 1" copper manifold drain with individual well shut-offs plus master valve for fast, mess-free draining.
  • 18-ga stainless drip-free flange creates a flush, sanitary counter surface.
  • Remote stainless control panel (4' tether) with:
    • Infinite temperature dial per well
    • Power indicator light per well
  • 6' (1.8 m) cord with NEMA 6-20P plug — no electrician needed.
  • Zero-clearance drop-in design; mounting clips included for counters up to 3" (7.6 cm) thick.
  • Accepts full-size or fractional pans up to 6" (15.2 cm) deep (adapter bars recommended for fractional pans).
  • NSF 4 & cULus listed • Made in the USA.

Technical Specifications

Overall dimensions 41 1/2" W × 26" D × 21 1/2" H (105.4 × 66 × 54.6 cm)
Counter cut-out 40 3/4" W × 25 1/4" D (103.5 × 64.1 cm) — 7/8" corner radius
Well capacity (3) full-size pans, up to 6" deep
Operation Wet heat only • Auto-fill
Total power 3000 W (1000 W per well)
Electrical 208-240 V / 60 Hz / 1-ph • 10.8-12.5 A
Plug NEMA 6-20P (factory-installed on 6' cord)
Drain 1" copper manifold with individual & master shut-off valves
Construction 18-ga stainless top, 20-ga stainless wells, 18-ga galvanized exterior, foamed-in-place insulation
Certifications NSF 4, cULus
Origin USA

Unit must be operated with water in each well at all times to maintain NSF compliance and ensure even heating.

Important: Modular drop-ins are built to order and cannot be cancelled or returned. Verify cut-out dimensions and electrical requirements before purchasing.

For complete warranty details, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

143.0lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
