Description

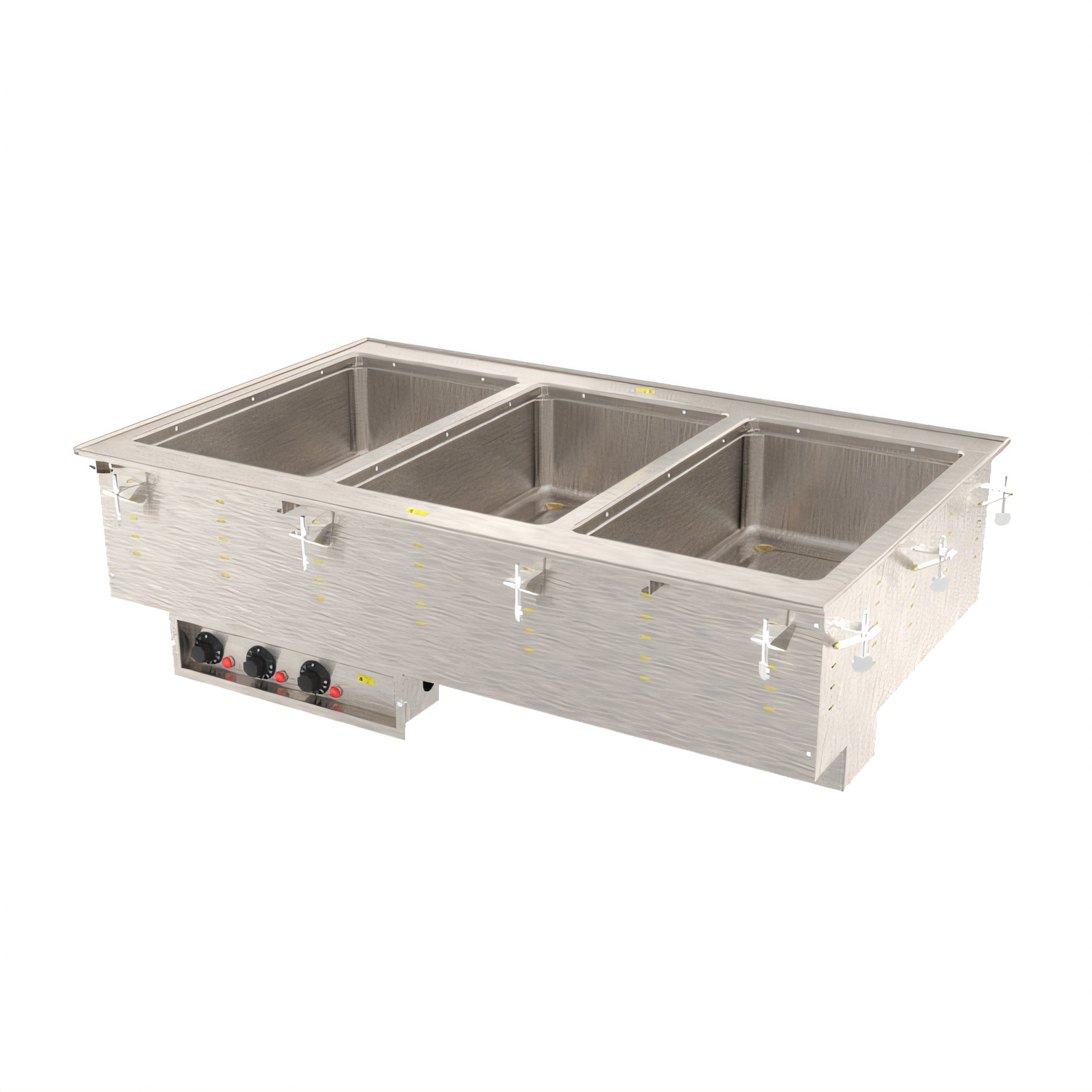

Vollrath 3-Well Marine-Grade Hot Drop-In with Auto-Fill, 208 V

Model 3640560HD | 625 W per well (1,875 W total)

Keep entrées, sides and sauces at safe, appetizing temperatures with Vollrath’s premium 3-well modular drop-in. Built for demanding commercial kitchens, this all-stainless unit features Type 316 marine-grade wells for unmatched corrosion resistance, automatic water-level control and a convenient 1" manifold drain that makes cleanup fast and effortless.

Key Features

  • Three individually controlled 12" × 20" wells—accepts full-size or fractional pans up to 6" deep
  • 20-gauge Type 316 marine-grade stainless wells resist pitting & chemicals
  • Auto-fill system maintains proper water level for consistent, even heating
  • Infinite controls & power indicator lights for each well on a remote-mount stainless panel (4 ft tether)
  • Drip-free 18-gauge stainless top flange protects your counter
  • 1" copper manifold drain with individual ball-valve shutoffs and master shutoff
  • Fully insulated on all sides—including between wells—for energy efficiency
  • Ships with 6' cord & NEMA 6-15P plug; no hard-wiring required
  • Zero-clearance, drop-in design with mounting clips for counters up to 3" thick
  • NSF 4 & cULus listed; proudly Made in the USA

Specifications

Number of wells 3 (full-size)
Operation Wet only – automatic water fill
Total wattage 1,875 W (625 W / well)
Electrical 208 V, 60 Hz, 1-phase, 9.0 A
Plug type NEMA 6-15P (6' factory-installed cord)
Overall dimensions 41 ½" W × 26" D × 21 ½" H
Counter cut-out 40 ¾" W × 25 ¼" D, ⅞" corner radius
Well material 20-ga 316 stainless, fully insulated
Top flange 18-ga stainless, drip-free edge
Drain 1" copper manifold w/ individual & master shutoffs
Certifications NSF 4 (wet), cULus
Warranty 2-year parts & labor (see vollrathfoodservice.com)

Perfect For

  • Buffet lines & cafeterias
  • Hotels, resorts & cruise ships
  • C-stores & grab-and-go stations
  • Any application that demands reliable, corrosion-resistant hot holding

Optional sheet-pan adapter (Vollrath 19186) sold separately.

Important: Unit is designed for moist heat only—always operate with water in the wells. Orders for drop-ins cannot be canceled or returned once processed.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

65.0lbs

Controls

infinite controls

Insulated or Non-Insulated

insulated

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 208v/60/1-ph, 9.0 amps, cord with NEMA 6-15P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
