Vollrath

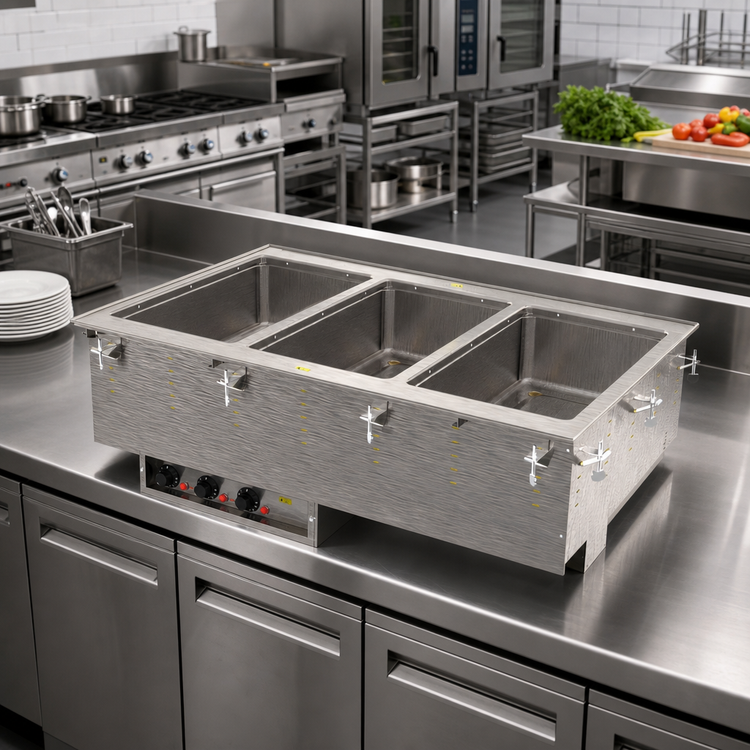

Vollrath 3-Well Drop-In Electric Hot Food Well, Insulated Marine-Grade Stainless Steel Wells, Manifold Drain

SKU: 3640551HD
$3,097.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath 3-Well Drop-In Electric Hot Food Well, Insulated Marine-Grade Stainless Steel Wells, Manifold Drain

208-240V, Infinite Controls, Wet Operation Only

Hold foods safely and evenly with three insulated marine-grade wells, independent infinite controls, and a convenient cord-and-plug drop-in design.

  • Three 12" x 20" full-size wells provide flexible hot holding for buffet and serving line applications.
  • Marine-grade 316 stainless steel wells and stainless steel housing help resist corrosion and stand up to daily use.
  • Individual infinite controls let you adjust each well independently for better temperature management.
  • Wet operation only design requires water for even heating and consistent food holding performance.
  • Drop-in installation includes mounting clips and a cord with plug, so hard-wiring is not required.

Overall Dimensions:

41.5"W x 26.0"D x 21.5"H

Product Weight:

138.0 lb

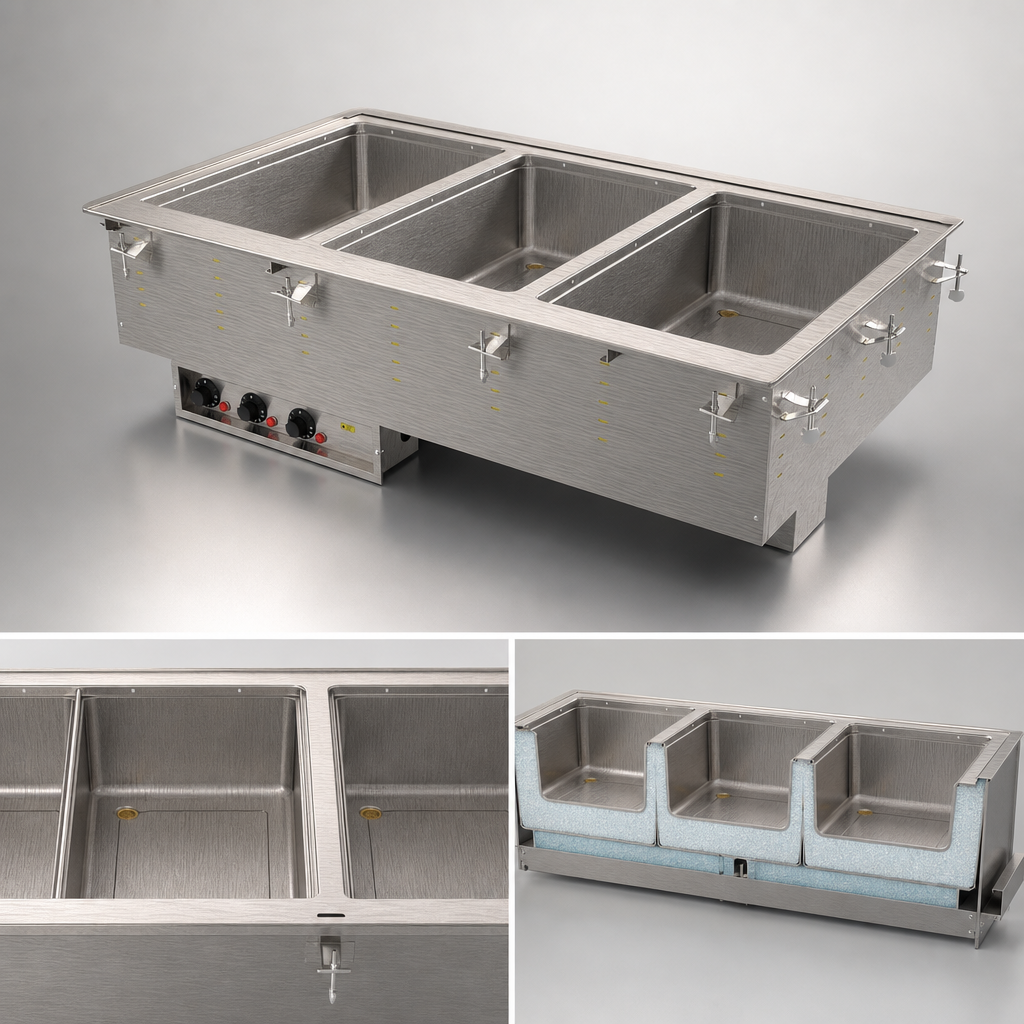

Three Insulated Marine-Grade Wells

Three 316 stainless steel wells are insulated on all sides, including between wells, to improve heat retention and durability.

1000 Watts Per Well

Each well delivers 1 kW of heating power for dependable hot holding on buffet and serving lines.

Individual Infinite Controls

Separate infinite controls mounted in the panel allow independent heat adjustment for each well.

Wet Operation Only

Designed for moist heat operation; water is required for even heating of food products.

Manifold Drain With Shutoffs

Features a 1-inch copper manifold drain with individual well shutoffs and a master manifold shutoff.

Cord-and-Plug Drop-In Design

Includes a 6-foot cord with NEMA 6-20P plug and does not require hard-wiring.

Installation-Ready Hardware

Includes positioning clips, a drip-free flange, and a gasket for easier mounting in the counter opening.

Service-Friendly Construction

Removable bottom panels provide service access for easier maintenance.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Pan Size 12 x 20 Inches
Controls Infinite
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208-240 Volts
Watts 3 kW
Amps 10.8-12.5 Amps
Phase 1-Phase
Hertz 60 Hz
Plug Type NEMA 6-20P
Cord Length 6 Feet
Drain Connection Size 1 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 138 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Two-year warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a cord and NEMA 6-20P plug, so hard-wiring is not required.
Wet operation only. Water is required for even heating and proper food holding.
It accepts full-size and fractional pans up to 6 inches deep. Adapter bars are recommended when using fractional pans.
The cutout size is 40-3/4 x 25-1/4 inches with a 7/8-inch corner radius.
HD wells have a two-year warranty against defects in materials and workmanship. Refer to Vollrath's website for the full warranty policy.
