Vollrath 3640550HD Steam Tables & Food Wells
Description
Vollrath 3-Well Modular Hot Drop-In with Marine-Grade Wells – 208 V
Model 3640550HD | Manifold Drain | Made in USAEngineered for demanding commercial kitchens, this Vollrath three-well drop-in keeps entrées and sides at precise serving temperatures while standing up to the harshest environments. Each full-size well is crafted from 316 marine-grade stainless steel—perfect for salty, acidic or high-humidity applications—so you enjoy reliable performance shift after shift.
Key Features

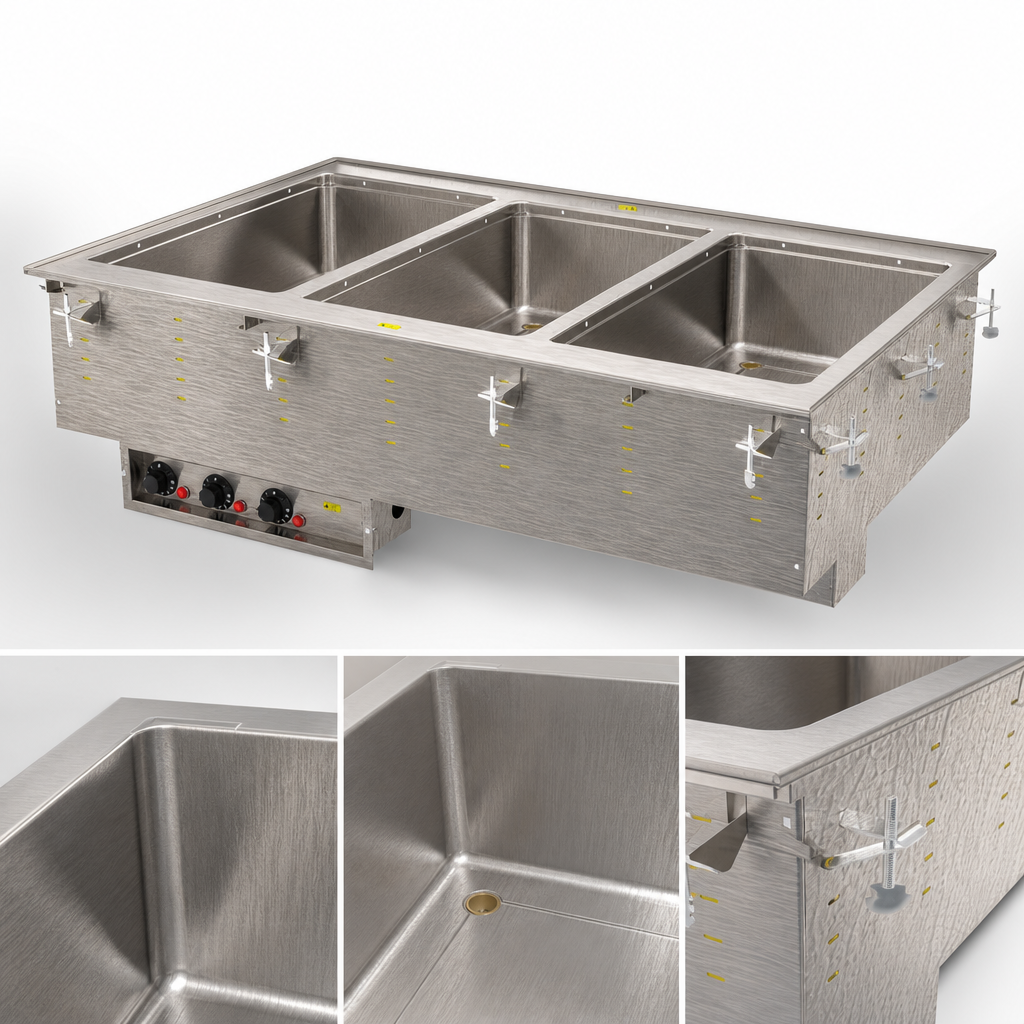

- Three independent 12 in × 20 in wells (20-gauge 316 stainless steel) provide superior corrosion resistance.
- Wet-heat operation delivers gentle, even warming; accommodates pans up to 6 in deep.
- Energy-saving insulation on all sides and between wells for reduced heat loss.
- 1 in copper manifold drain with individual well shut-offs and master valve simplifies cleanup.
- Drip-free top flange with included gasket ensures a sanitary, flush installation.
- Separate infinite controls with power-on lights let you tailor holding temps for each menu item.
- 4 ft tethered stainless control panel mounts where you need it most.
- Ships with mounting clips for counters up to 3 in thick; zero-clearance design fits tight spaces.
- Removable bottom service panels speed routine maintenance.
- 6 ft cord with NEMA 6-15P plug—no hard-wiring required.
- NSF & cULus listed for commercial use.
Specifications
| Item number | 3640550HD |
|---|---|
| Number of wells / size | 3 × full-size (12 in × 20 in) |
| Operation | Wet heat only |
| Control type | Individual infinite switches with indicator lights |
| Total wattage | 1,875 W (625 W per well) |
| Electrical | 208 V / 60 Hz / 1-ph, 9.0 A, NEMA 6-15P |
| Overall dimensions | 41 1⁄2 in W × 26 in D × 21 1⁄2 in H |
| Cut-out dimensions | 40 3⁄4 in W × 25 1⁄4 in D, 7⁄8 in corner radius |
| Top & housing | 18-gauge stainless steel top, stainless exterior housing |
| Drain | 1 in copper manifold with individual & master shut-off valves |
| Certifications | NSF, cULus |
| Warranty | 2-year limited parts & labor (see policy) |
| Country of origin | USA |
Ideal For
- Buffets and cafeteria serving lines
- Hotel, resort or cruise-ship galleys
- C-stores, delis and commissaries
- Any operation requiring reliable, corrosion-resistant hot holding
Optional Accessories
- Sheet pan adapter bar (Vollrath 19186) – convert a well for an 18 in × 26 in sheet pan.
Looking for auto-fill, thermostatic controls or a different voltage? Explore the complete Vollrath drop-in lineup on our main site.
