Vollrath  |  SKU: 3640511HD

Vollrath 3640511HD Steam Tables & Food Wells

$3,049.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

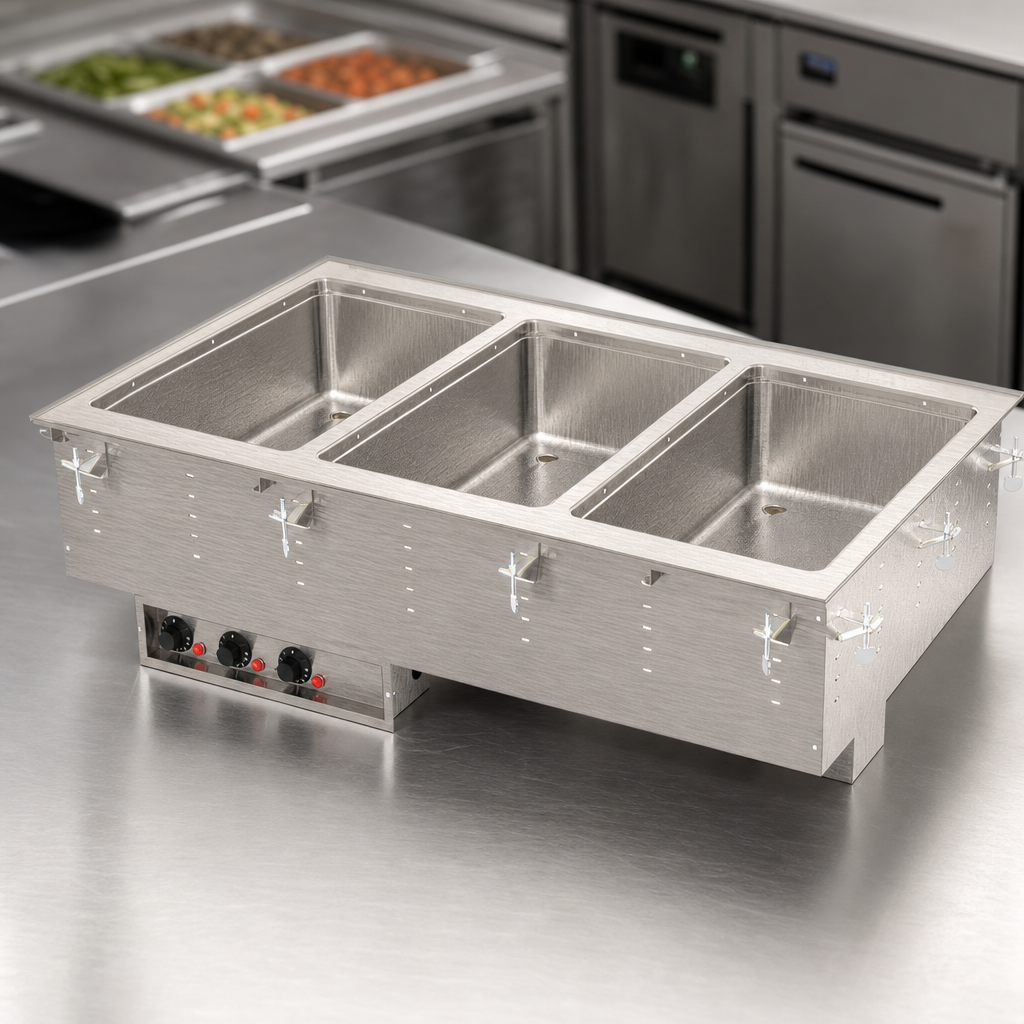

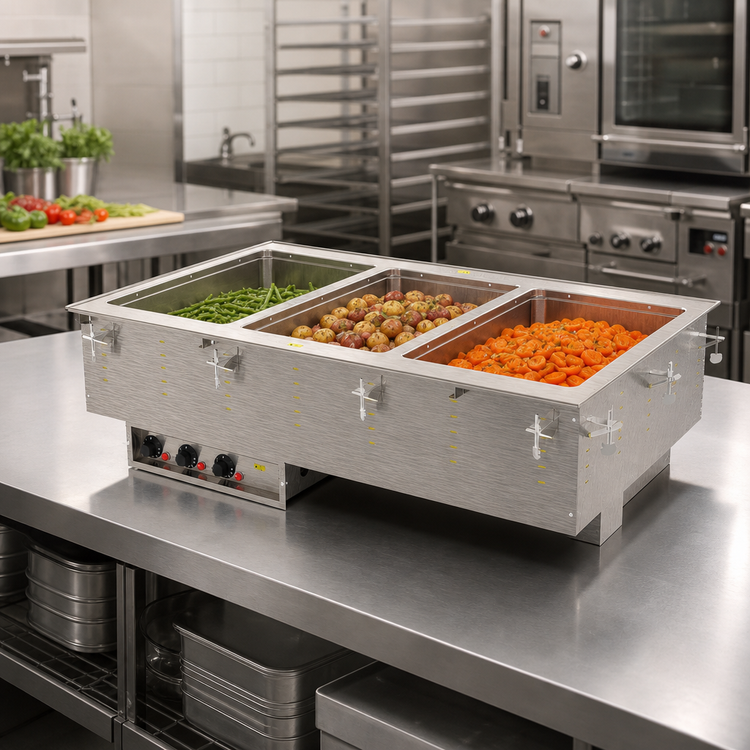

Vollrath 3-Well Marine-Grade Drop-In Hot Food Well – 208-240 V / 3000 W

Model 3640511HD • Standard Drain • Thermostatic Controls

Built for the most demanding food-service environments, this Vollrath drop-in hot well keeps entrées, sides and sauces at safe serving temperatures while standing up to corrosive, high-salinity settings thanks to its Type-316 marine-grade stainless steel construction.

Why You’ll Love It
  • Three independent 12 × 20 in. wells – 1000 W each (3000 W total)
  • 20 ga drawn wells with drip-free flange & included mounting gasket
  • Wet operation only for even, NSF-compliant heat distribution
  • Individual thermostatic controls with power indicator lights on a 4 ft tethered panel
  • ½ in. drains with dedicated ball valves for fast cleanup
  • Fully insulated sides, bottom and inter-well walls to reduce heat loss
  • 18 ga stainless steel top and rugged exterior housing for a seamless countertop look
  • Zero-clearance installation; includes positioning clips for counters up to 3 in. thick
  • Plug-and-play 6 ft cord with NEMA 6-20P – no hard-wiring required
  • NSF & cULus listed, Made in the USA
Technical Specs
Wells 3 × full-size (12 × 20 in.) – accepts pans up to 6 in. deep
Construction 20 ga 316 stainless wells, 18 ga stainless top, stainless exterior
Operation Wet heat only
Controls Individual thermostats with indicator lights
Drain ½ in. MPT per well, individual shut-offs
Overall Size 41 ½ W × 26 D × 15 H in. (105.4 × 66 × 38.1 cm)
Counter Cut-out 40 ¾ W × 25 ¼ D in. (103.5 × 64.1 cm) – 7⁄8 in. corner radius
Electrical 3000 W, 208–240 V, 60 Hz, 1-ph, 10.8–12.5 A, NEMA 6-20P
Agency Approvals NSF 4 (wet), cULus
Warranty 2-year limited (see VollrathFoodservice.com for details)
Perfect For
  • Buffets, cafeterias & institutional serving lines
  • Cruise ships, coastal resorts & other salt-air locations
  • Scratch kitchens needing flexible, plug-in hot holding
Important: This unit must be operated with water in each well. Running dry can damage the heating elements and will void the warranty.

Adapter bars for fractional pans sold separately (Vollrath #19186).

Modular drop-ins cannot be cancelled or returned once ordered.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

134.0lbs

Style

individual pans

Drain

with drain

Controls

thermostatic controls

Wet or Dry operation

wet

Pan Capacity

(3) full size (12" x 20")

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
