Description

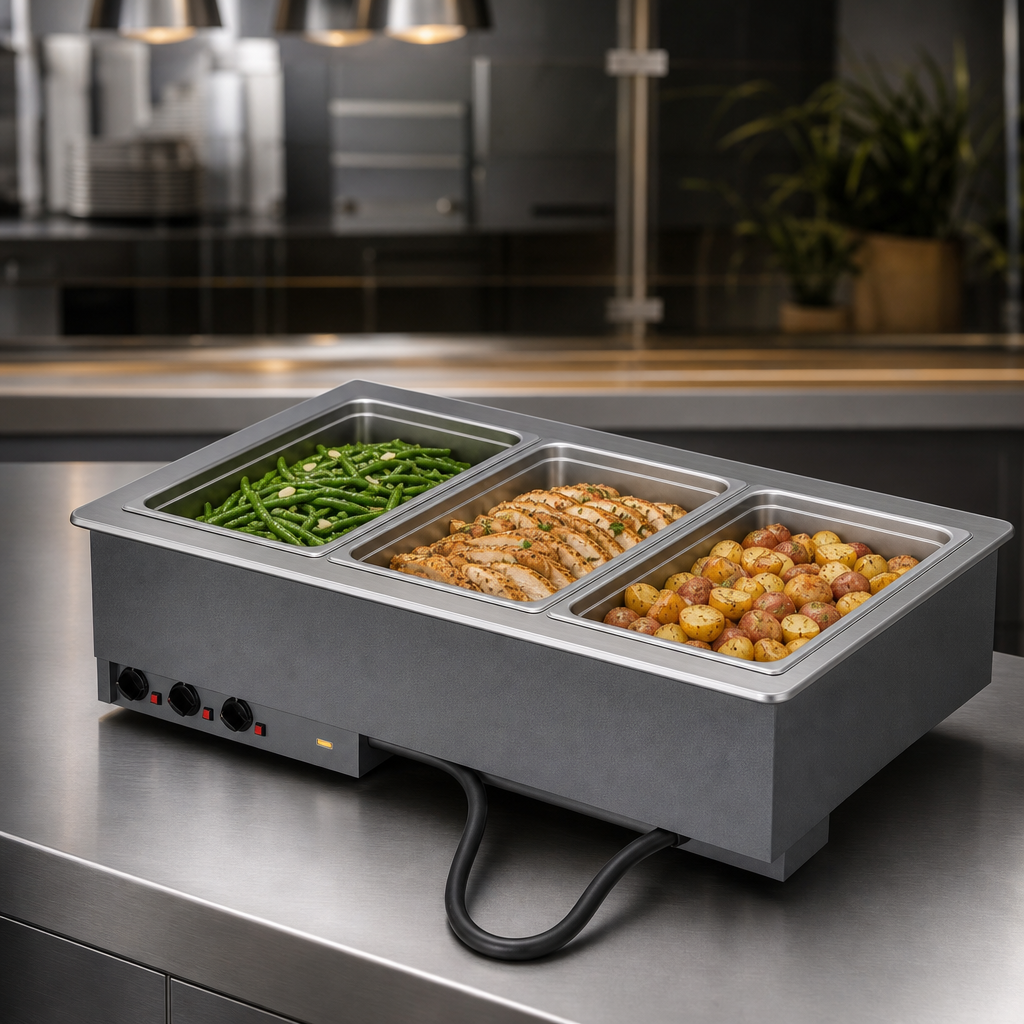

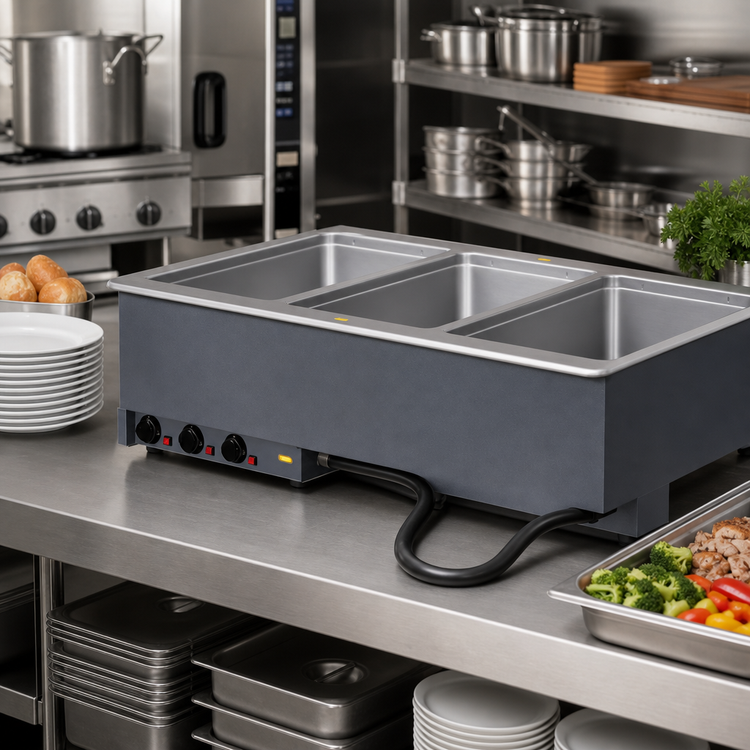

Vollrath 3-Well Drop-In Hot Food Well – Thermostatic, 208-240 V

Model 3640511  |  NSF & cULus Listed  |  Made in USA

Perfect for buffets, cafeterias, and make-to-order stations, this Vollrath three-well hot module delivers reliable holding power in a simple, plug-and-play package. Independent thermostatic controls, durable 300-series stainless steel construction, and a fully insulated design keep your menu items at safe serving temperatures while conserving energy.

Key features

  • Three individual 12" × 20" full-size wells (6" max pan depth)
  • 1000 W heating element per well – 3000 W total
  • Separate thermostatic dial and power indicator light for each well
  • Wet operation for even heat distribution and NSF 4 compliance
  • Drip-free 18 ga stainless steel top flange with included gasket
  • ½" NPT drains with ball-valve shutoffs – empty wells quickly and cleanly
  • Fully insulated on all sides, including between wells, for maximum efficiency
  • Remote stainless steel control panel with 4 ft (121.9 cm) tether
  • 6 ft (1.8 m) cord and NEMA 6-20P plug – no hard-wiring required
  • Includes mounting clips for counters up to 3" (7.6 cm) thick – zero-clearance installation
Wet operation only: Always operate the unit with water in each well to ensure even heating and to maintain NSF compliance.

Specifications

Model 3640511 (standard drain)
Number of wells 3 full-size (12" × 20")
Overall dimensions 41 1/2" W × 26" D × 15" H (105.4 × 66 × 38.1 cm)
Counter cut-out 40 3/4" W × 25 1/4" D (103.5 × 64.1 cm) – 7/8" corner radius
Construction Wells: 20 ga 300-series stainless steel
Top flange: 18 ga stainless
Exterior housing: 18 ga galvanized steel
Heating style Wet bath, thermostatic control
Electrical 208-240 V / 60 Hz / 1-ph, 3000 W, 10.8-12.5 A
Plug NEMA 6-20P (factory-installed 6 ft cord)
Drain ½" NPT per well, individual ball valves
Certifications NSF, cULus
Country of origin USA
Warranty 1-year limited (see vollrathfoodservice.com for details)

Recommended accessories

  • Sheet pan adapter bar (Vollrath 19186) – ideal when using fractional pans
  • Auto-fill manifold kit for continuous water supply (sold separately)

Modular drop-ins cannot be canceled or returned once ordered. Indoor use only – ambient room temperature and HVAC conditions may affect holding performance.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

134.0lbs

Style

individual pans

Controls

thermostatic controls

Construction

stainless steel top, corrosion resistant steel exterior

Drain

with drain

Pan Capacity

(3) full size (12" x 20")

Wet or Dry operation

wet

Insulated or Non-Insulated

insulated

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
