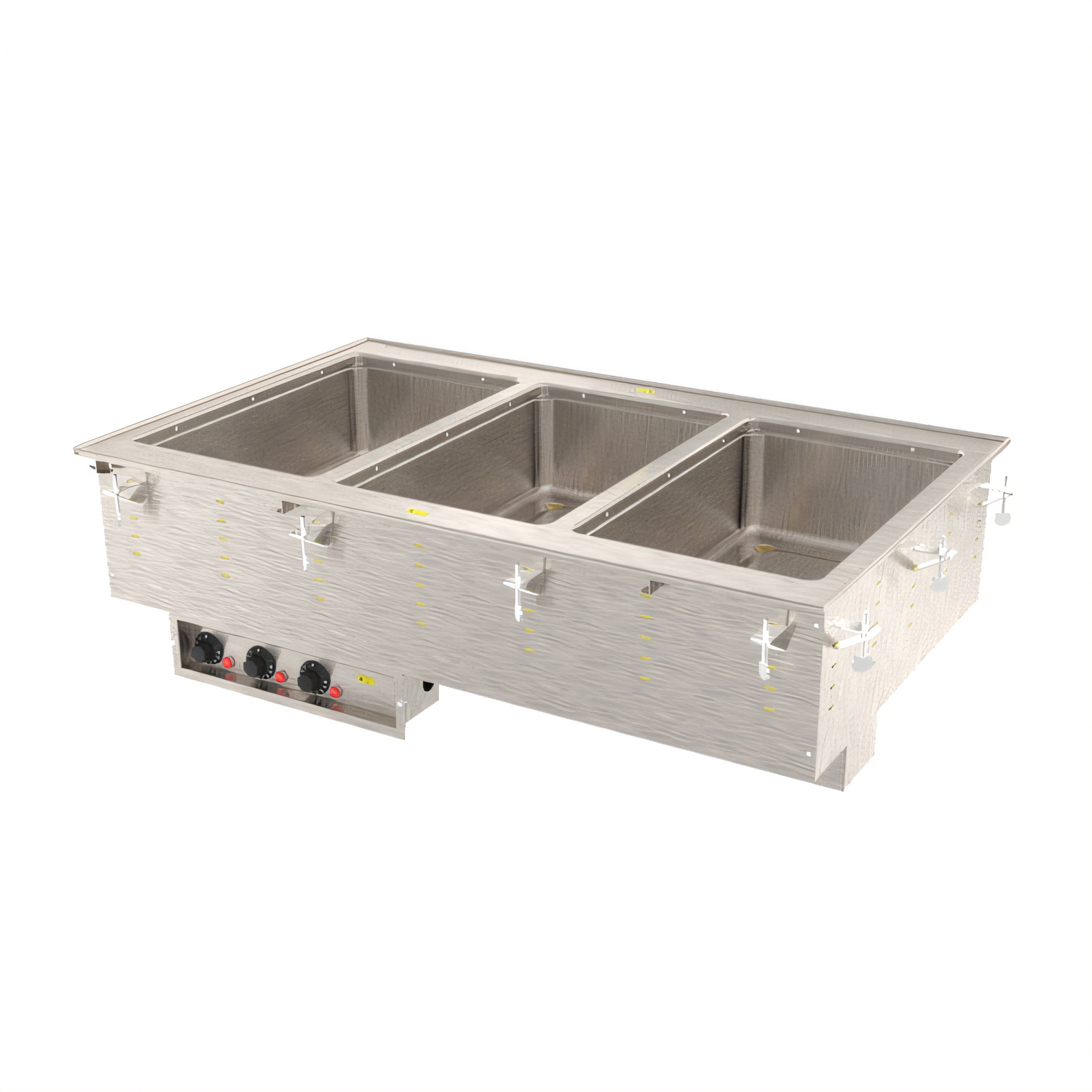

Vollrath Three-Well Drop-In Hot Food Well Unit with Marine-Grade Stainless Steel Wells, 208V, Thermostatic, Wet Operation

Three 12" x 20" full-size insulated wells with cord-and-plug connection

Keep three full-size pans hot and ready with a wet-operation drop-in built from marine-grade stainless steel and powered by a simple cord-and-plug connection.

  • Three 12" x 20" insulated wells made from SAE Type-316 marine-grade stainless steel
  • Wet operation only; water is required for even heating and proper food holding
  • Individual thermostatic controls with a remote stainless steel control panel and power indicator light
  • 18-gauge stainless steel top and stainless steel exterior housing for durability
  • Includes a cord with NEMA 6-15P plug, mounting clips, gasket, and individual drain shutoffs
  • Accepts full-size and fractional pans up to 6" deep; adapter bars are recommended for fractional pans

Overall Dimensions:

41.5"W x 26.0"D x 15.0"H

Product Weight:

127.0 lb

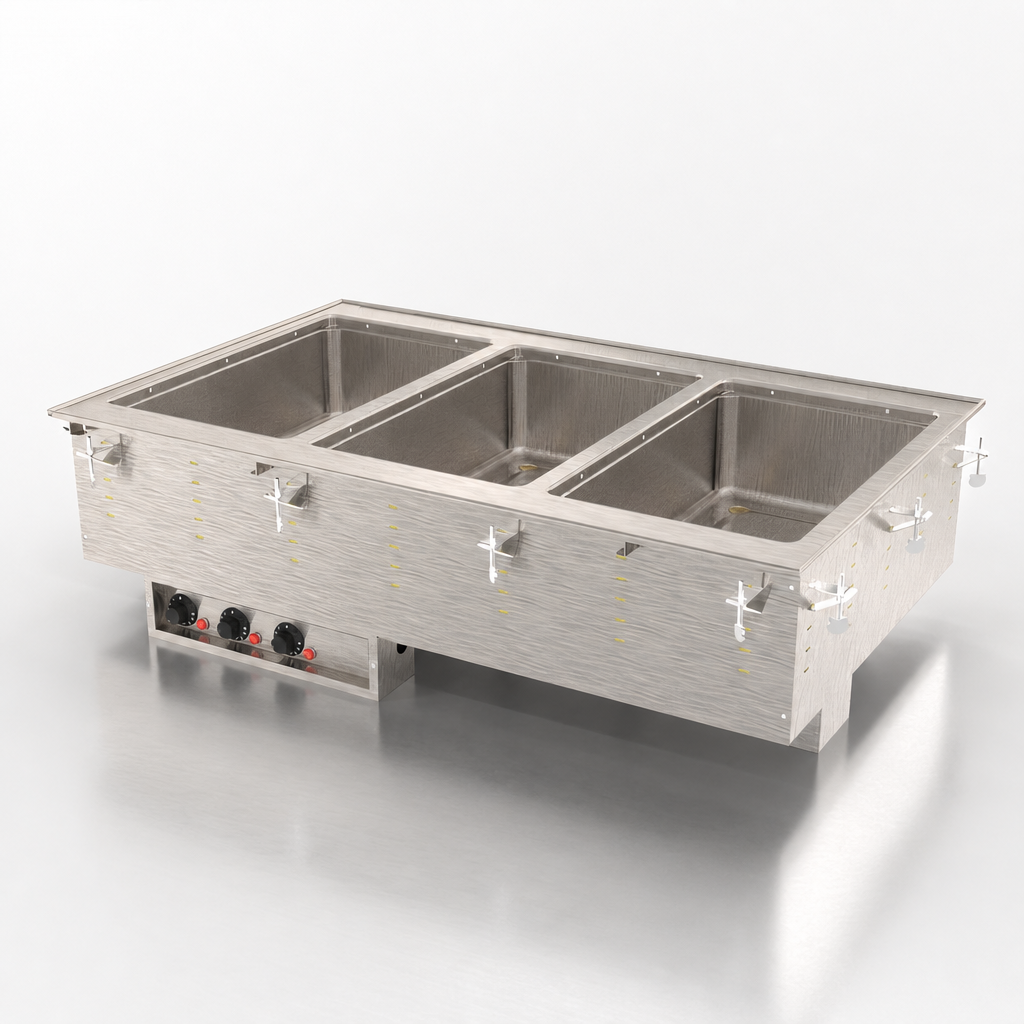

Three Marine-Grade Wells

Includes three insulated 12" x 20" wells made from SAE Type-316 stainless steel for corrosion resistance.

Wet Operation Only

Designed for moist-heat holding; water is required for even heating of the food product.

Individual Thermostatic Controls

Each well has its own thermostatic control and power indicator light on a remote stainless steel panel.

Insulated Construction

Insulated on all sides, including between wells, to help retain heat and improve holding performance.

Cord-and-Plug Connection

Ships with a 6-foot cord and NEMA 6-15P plug, so it does not require hard-wiring.

Service-Friendly Design

Features a removable bottom panel for service access and individual well drain shutoffs.

Installation Hardware Included

Includes a gasket and standard mounting clips for counters up to 3 inches thick.

Pan Flexibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended when using fractional pans.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Capacity 3 Wells
Pan Capacity 3 Full-Size Pans
Pan Size 12 x 20 Inches
Compartments 3
Controls Thermostatic
Material Stainless Steel
Interior Finish 316 Stainless Steel
Voltage 208 Volts
Amps 9.0 Amps
Watts 1.875 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Drain Connection Size 1 1/2 Inches MPT
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 127 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes a 6-foot cord with a NEMA 6-15P plug and does not require hard-wiring.
It is wet-operation only. Water is required for even heating and proper food holding.
It has three 12" x 20" full-size wells and accepts full-size or fractional pans up to 6" deep. Adapter bars are recommended for fractional pans.
The cutout size is 40 3/4" x 25 1/4", and the cutout must have a 7/8" corner radius.
The HD model carries a two-year warranty against defects in materials and workmanship.
The standard drain uses a 1 1/2" MPT connection with individual well ball valves.
