Vollrath  |  SKU: 3640501HD

Vollrath 3640501HD Steam Tables & Food Wells

$2,758.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

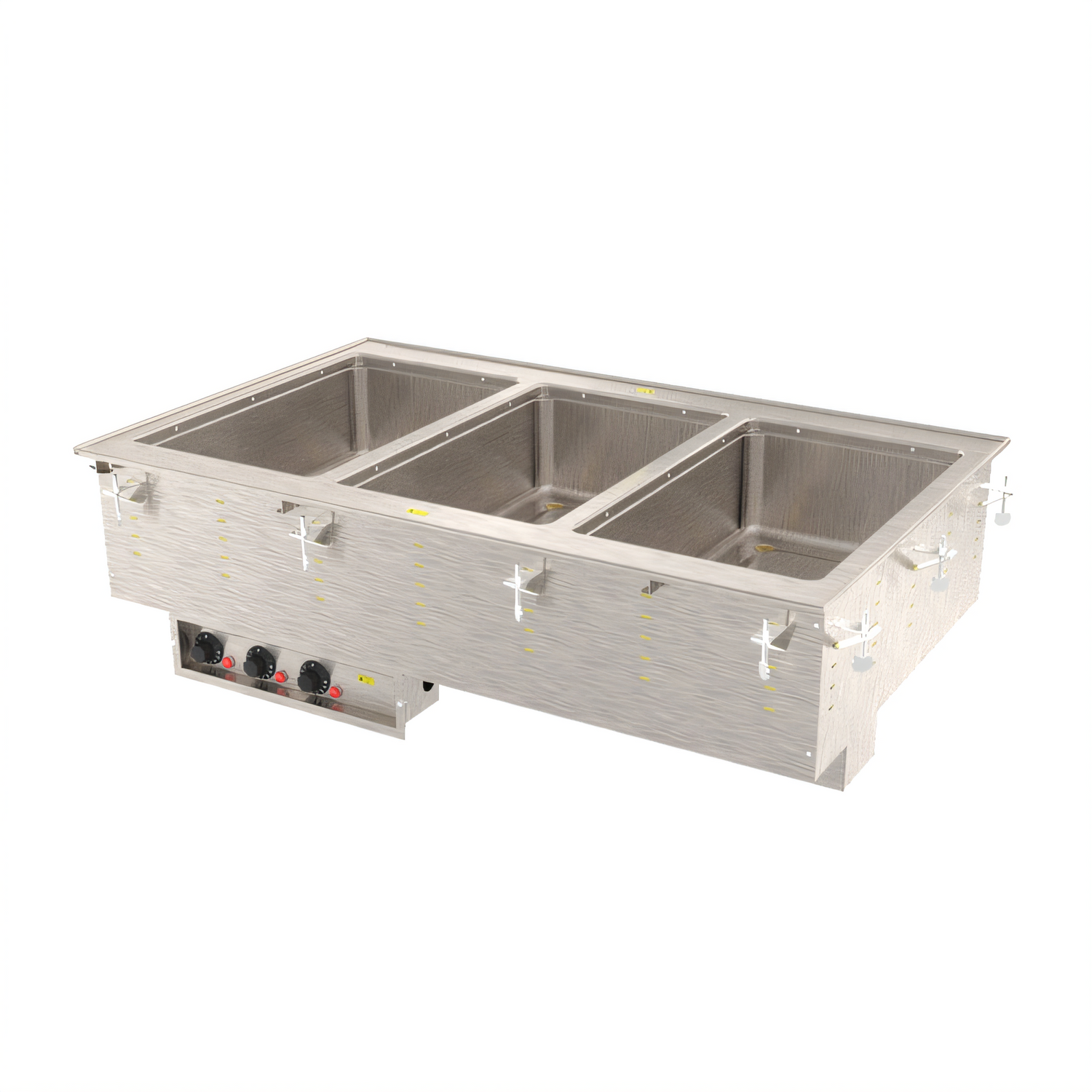

Vollrath 3-Well Modular Drop-In Hot Food Well – Marine-Grade, 208-240 V

Model 3640501HD | 1000 W per well | Infinite controls

Keep entrées, sides and sauces at safe serving temperatures with Vollrath’s marine-grade three-well hot drop-in. Built for exceptional corrosion resistance and everyday commercial abuse, this self-contained unit installs quickly, operates wet only for superior heat transfer, and gives you independent control of each full-size well.

Key features

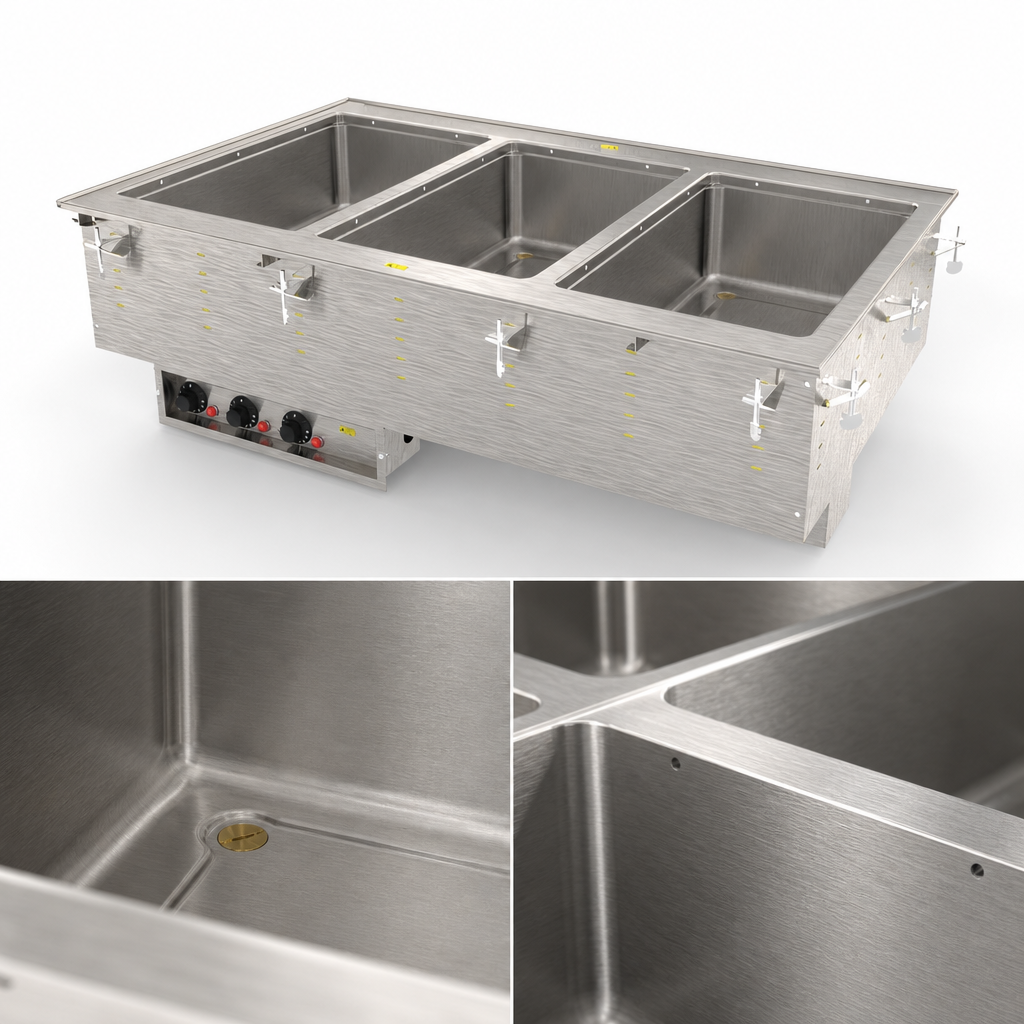

  • (3) individual 12 × 20 in wells formed from 20-gauge, 316 marine-grade stainless steel
  • Wet operation only for uniform, energy-efficient heating (water required during use)
  • 1000 W element per well (3000 W total) powered through a single NEMA 6-20P cord set—no hard-wiring needed
  • Independent infinite controls with power-on indicator lights on a stainless panel (4 ft tether for flexible mounting)
  • ½-in individual drains with ball-valve shut-offs for fast, mess-free water changes
  • Drip-free top flange and high-temperature insulation on all sides, including between wells
  • 18-gauge stainless steel top and full stainless exterior housing ensure long service life
  • Includes mounting/positioning clips for counters up to 3 in thick—zero-clearance installation
  • Accepts full-size and fractional pans up to 6 in deep (adapter bars recommended for fractional pans)
  • NSF 4 (wet heat), cULus listed; proudly Made in the USA

Specifications

Manufacturer / Model Vollrath 3640501HD
Operation Wet heat only (water required)
Well quantity & size (3) 12 × 20 in full-size wells, up to 6 in deep
Well material Type 316 marine-grade stainless steel, 20 ga
Overall dimensions 41 1⁄2 in W × 26 in D × 15 in H
Counter cut-out 40 3⁄4 in W × 25 1⁄4 in D with 7⁄8 in corner radius
Controls 3 independent infinite knobs with indicator lights
Electrical 208-240 V / 60 Hz / 1 ph, 10.8–12.5 A, 3000 W total, NEMA 6-20P
Drains (3) ½ in MPT drains, individual ball valves
Construction 18-ga stainless top; stainless exterior housing; high-temp insulation
Certifications NSF 4 (wet), cULus
Origin & Warranty Made in USA; 2-year parts & labor warranty (view policy)

Popular accessory (sold separately)

  • Sheet Pan Adapter – Item 19186 (fits a full 18 × 26 in sheet pan inside one well)
Important: This drop-in hot well is engineered for wet operation only. Running the unit dry will damage the heating elements and void the warranty.

Modular drop-ins are built to order and are not returnable once ordered.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

41.5in

Depth

26.0in

Shipping Weight

135.0lbs

Controls

infinite controls

Insulated or Non-Insulated

insulated

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
