Vollrath 3640501 Steam Tables & Food Wells
$2,318.95
Unit price
/
Unavailable
Description

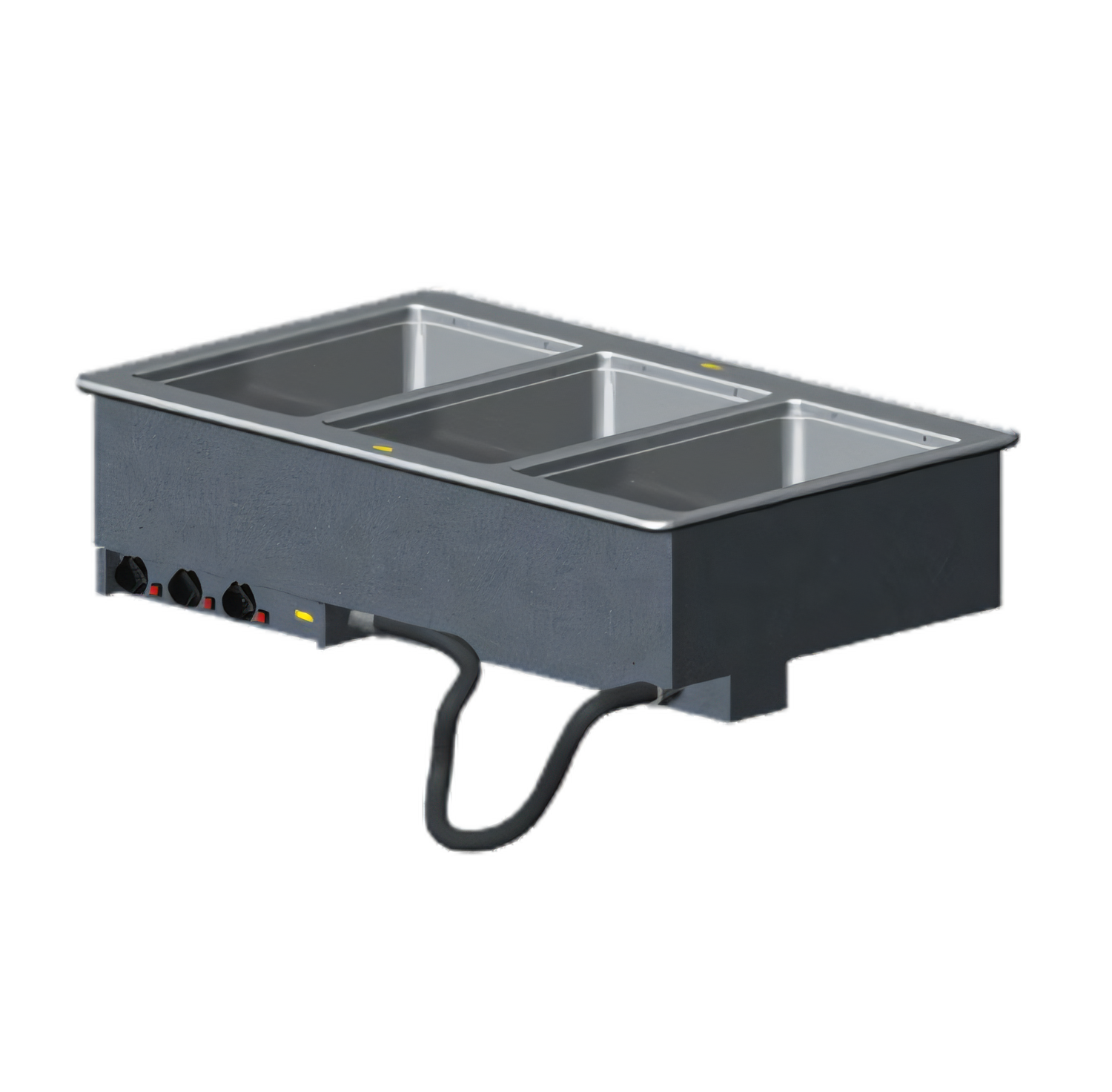

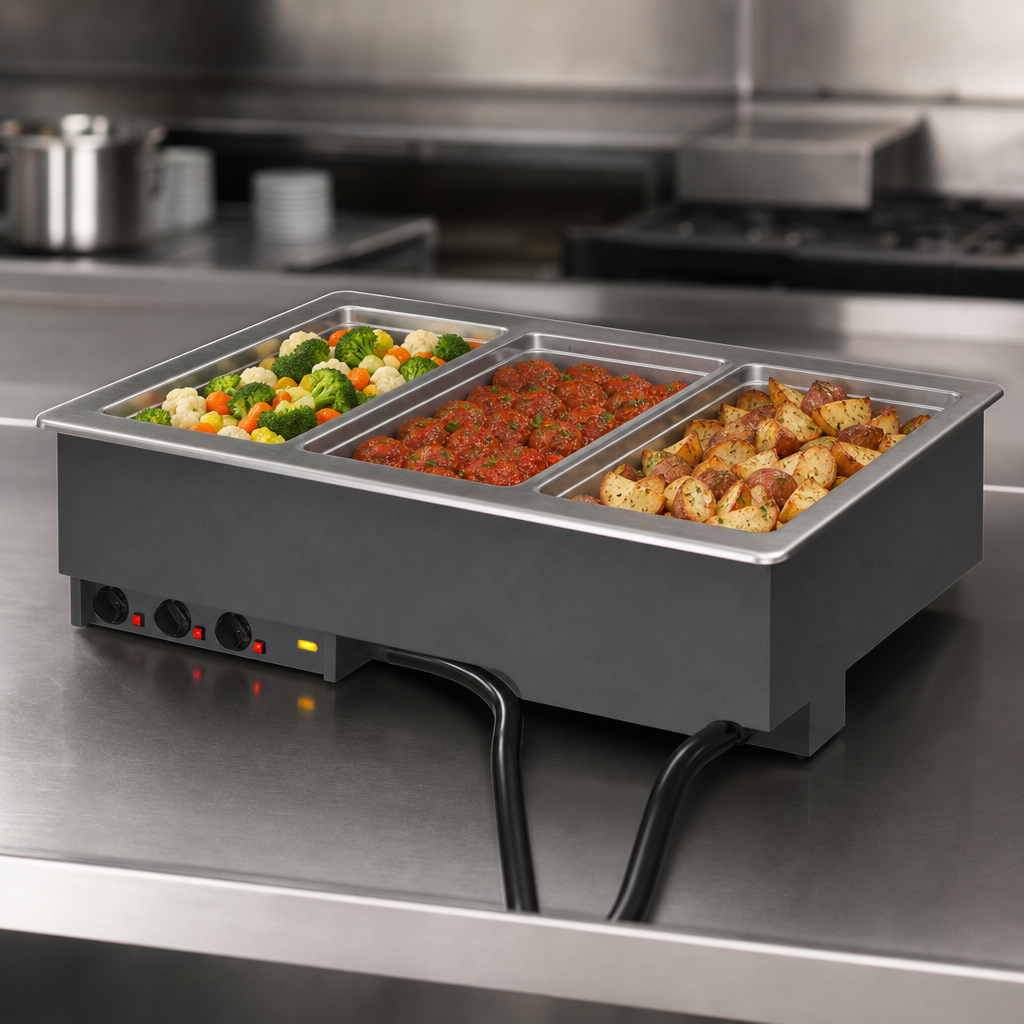

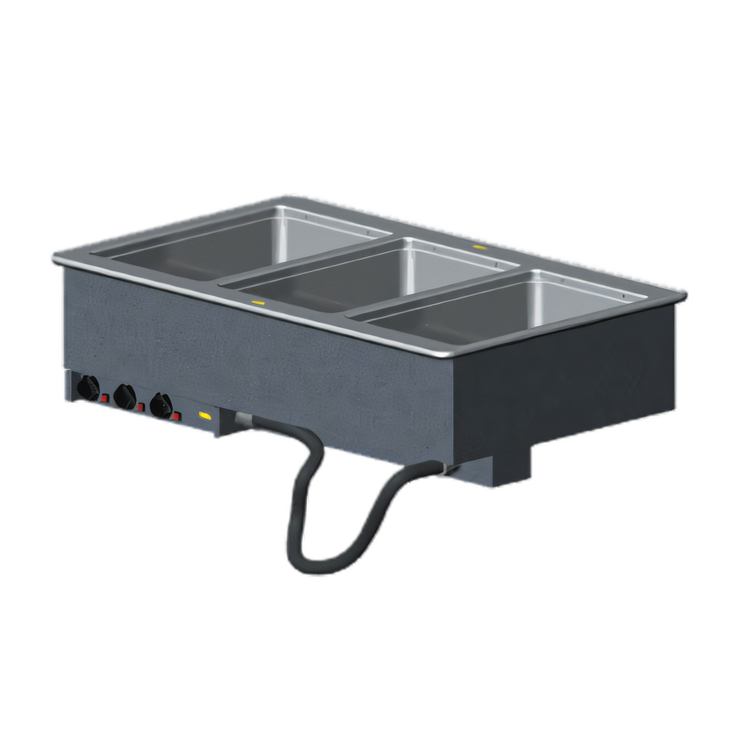

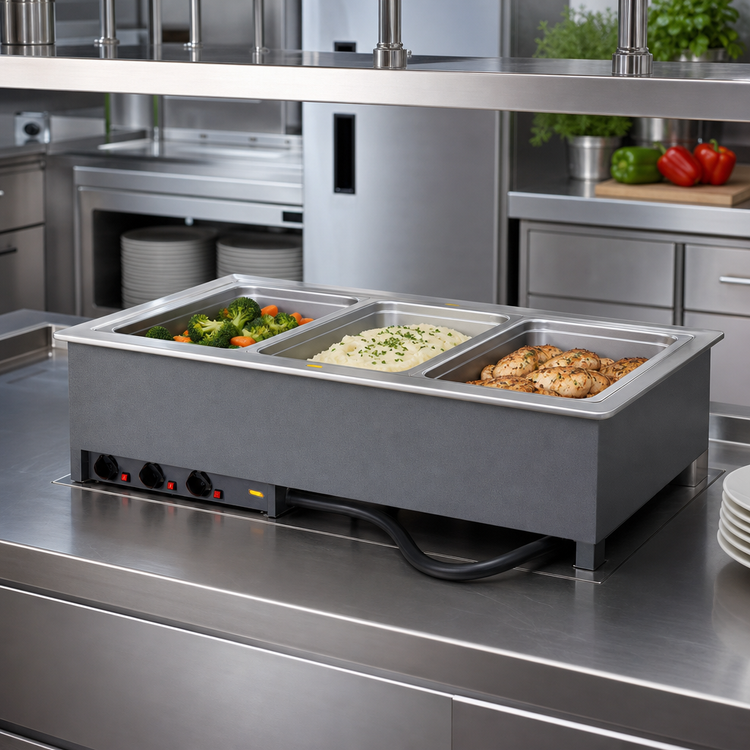

Vollrath 3-Well Drop-In Hot Food Well Unit
208-240 V • Infinite Controls • Made in USAGive every entrée, side and sauce the perfect serving temperature with this NSF-listed, three-well electric food well from Vollrath. Engineered for top-mount installation, it drops seamlessly into a 40 ¾" × 25 ¼" countertop opening and is ready to plug-in—no hard-wiring required.
Key Benefits
- Wet-heat design delivers even, consistent holding temperatures.
- (3) individually insulated 12" × 20" wells—20 ga 300-series stainless steel.
- 18 ga stainless steel drip-free top flange keeps counters clean.
- Separate infinite control and power-indicator light for each well on a tethered stainless panel (4 ft reach).
- Independent ½" NPT drain with ball-valve shut-off on every well.
- 6 ft cord with factory-installed NEMA 6-20P plug—just plug and play.
- Zero-clearance installation; positioning clips included for counters up to 3" thick.
- Accepts full-size or fractional pans up to 6" deep (adapter bars recommended for fractional).
- NSF 4 & cULus listed; built in Wisconsin, USA.
Wet operation only: Always maintain water in each well before energizing the unit to meet NSF
performance standards and prevent damage.
Technical Specifications
| Overall dimensions | 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm) |
|---|---|
| Countertop cut-out | 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) – 7/8" corner radius |
| Well size (each) | 12" × 20" full-size steam-table pan |
| Construction | 20 ga stainless wells, 18 ga stainless top, 18 ga galvanized exterior housing; fully insulated |
| Controls | 3 independent infinite-heat dials with power lights |
| Total power | 3000 W (1000 W per well) |
| Electrical | 208-240 V / 60 Hz / 1-ph, 10.8–12.5 A, 6 ft cord, NEMA 6-20P |
| Drainage | 3 separate ½" NPT drains with individual ball valves |
| Certifications | NSF 4, cULus |
| Warranty | 1-year limited (see vollrathfoodservice.com for full policy) |
NOTE: Modular drop-ins are built to order and cannot be canceled or returned.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
15.0in
Width
41.5in
Depth
26.0in
Shipping Weight
135.0lbs
Controls
infinite controls
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 15"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, individual drain shutoffs, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 208-240v/60/1-ph, 10.8-12.5 amps, cord with NEMA 6-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
