Vollrath 36405 Steam Tables & Food Wells
Description

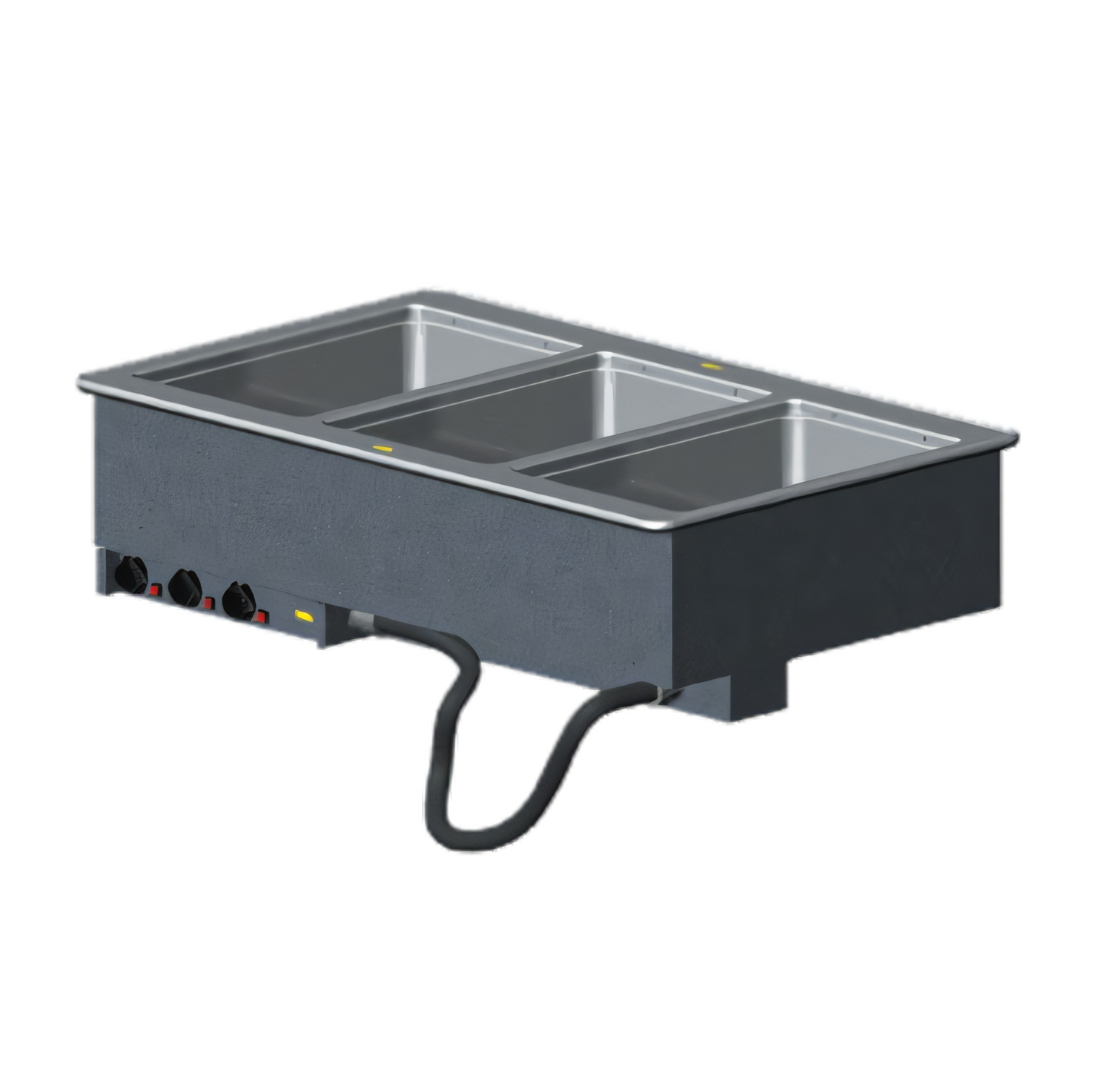

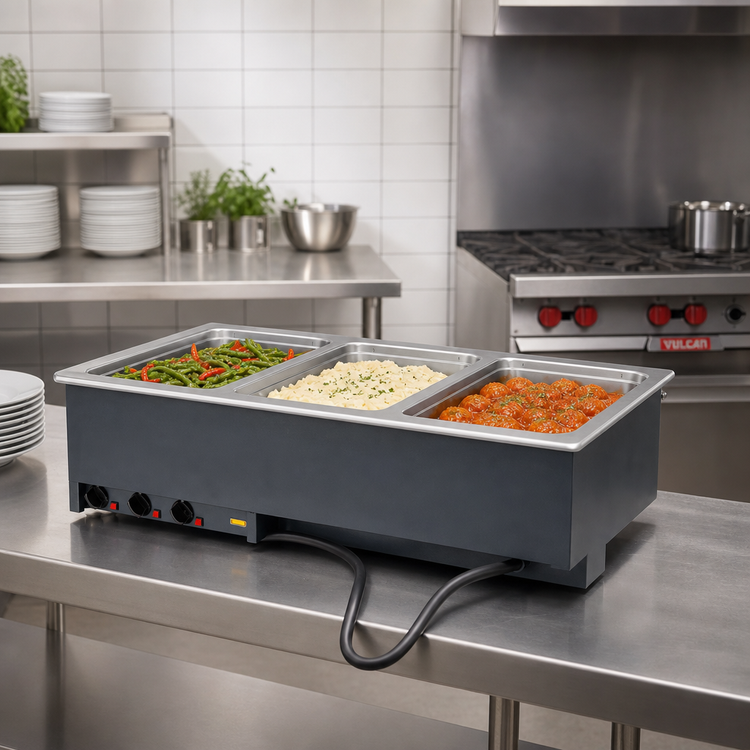

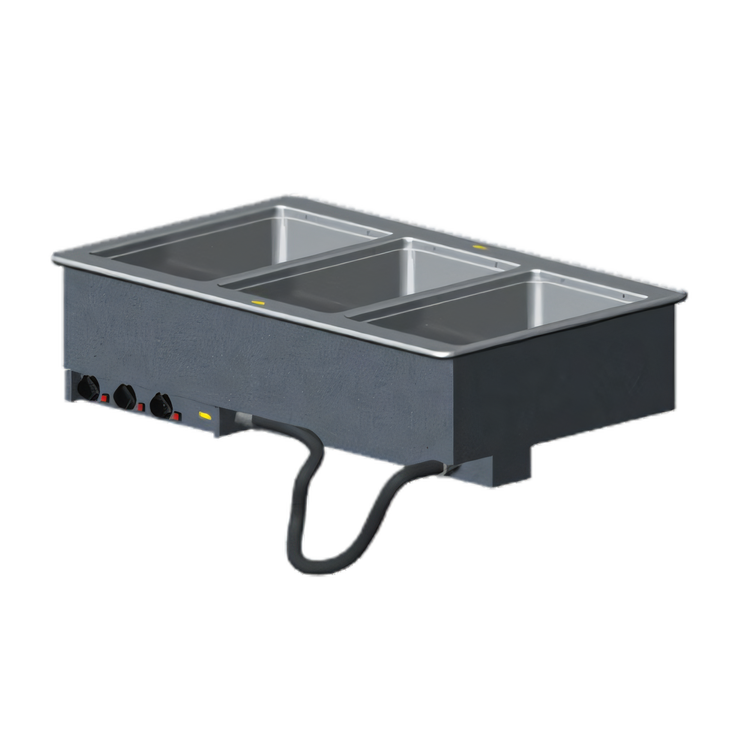

Vollrath 3-Well Drop-In Hot Food Well – 208 V, Infinite Control
Model 36405 • 625 W per well • Wet-operation onlyKeep entrées and sides at safe, appetizing serving temperatures with this Made-in-USA Vollrath drop-in hot well module. Three individually controlled wells accept full-size 12" × 20" pans and are fully insulated for superior efficiency and even heat distribution.
Why You’ll Love It

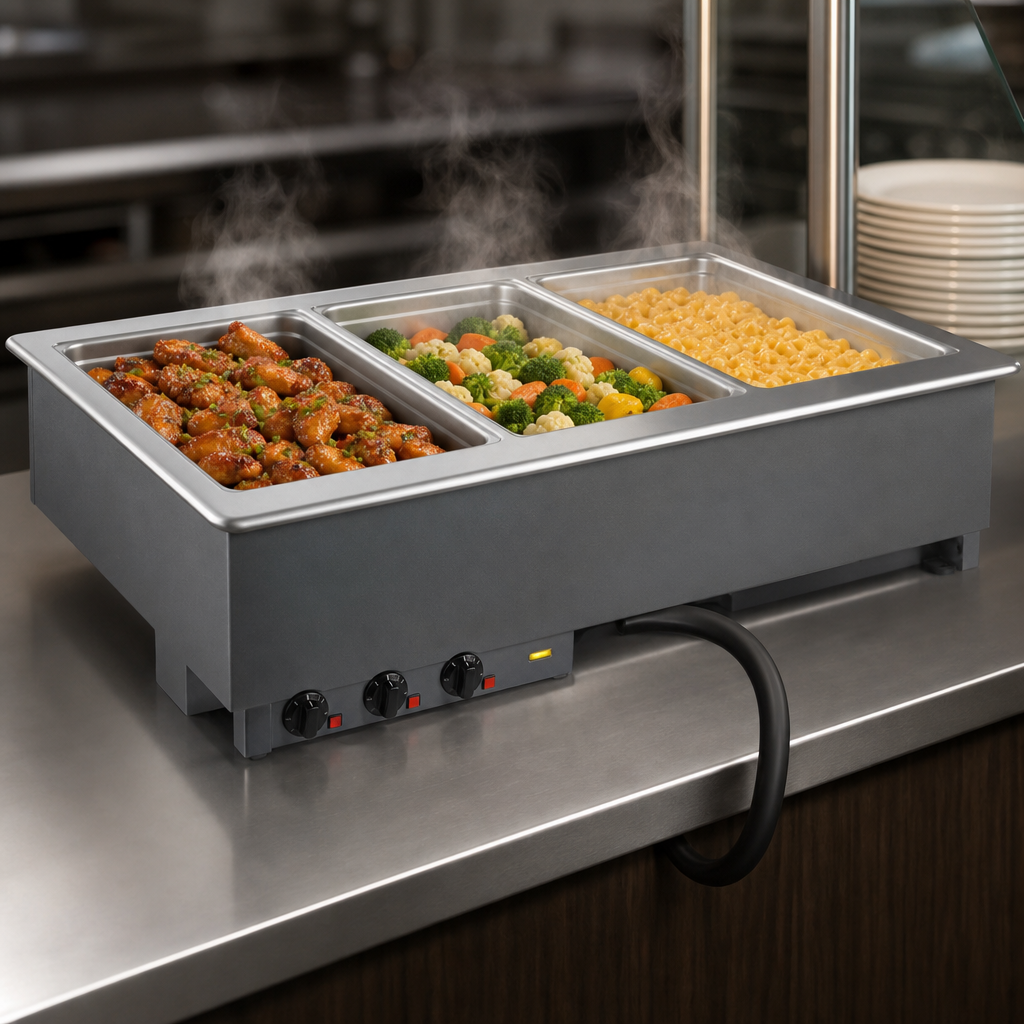

- Three independent 12" × 20" wells deliver flexible holding for multiple menu items.
- Infinite manual controls with dedicated power indicator lights for precise temperature management.
- Wet-bath design meets NSF 4 performance standards for safe hot-food holding.
- 20 ga stainless-steel wells surrounded by high-performance insulation on all sides.
- 18 ga stainless top with drip-free flange helps maintain a clean counter surface.
- Individual ½" ball-valve drains + positioning clips for fast, tool-free installation.
- 6 ft power cord with NEMA 6-15P plug—no hard-wiring required.
- Zero-clearance sides allow you to maximize crowded serving lines.
- NSF & cULus listed; backed by Vollrath’s standard commercial warranty.
Technical Specifications
| Overall dimensions | 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm) |
|---|---|
| Cut-out required | 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) 7⁄8" (2.2 cm) corner radius |
| Number / size of wells | 3 × full-size (12" × 20") pans, up to 6" deep |
| Construction | 20 ga 300-series stainless wells, 18 ga stainless top, 18 ga galvanized exterior housing |
| Drainage | Individual ½" MPT drains with shut-off valves |
| Operation | Wet heat only (water required for proper performance) |
| Controls | 3 separate infinite manual controls mounted on remote stainless panel (4' tether) |
| Electrical | 208 V / 60 Hz / 1-Phase, 1 875 W total, 9 A, cord & NEMA 6-15P plug included |
| Certifications | NSF, cULus |
| Country of origin | USA |
Standard mounting clips supplied for counters up to 3" (7.6 cm) thick. Adapter bars are recommended when using fractional pans.
Warranty & Returns
Covered by Vollrath’s standard one-year limited warranty against defects in materials and workmanship. For full details visit vollrathfoodservice.com. Please note that modular drop-ins are non-cancelable and non-returnable.
