Vollrath 36404HD Steam Tables & Food Wells
Description

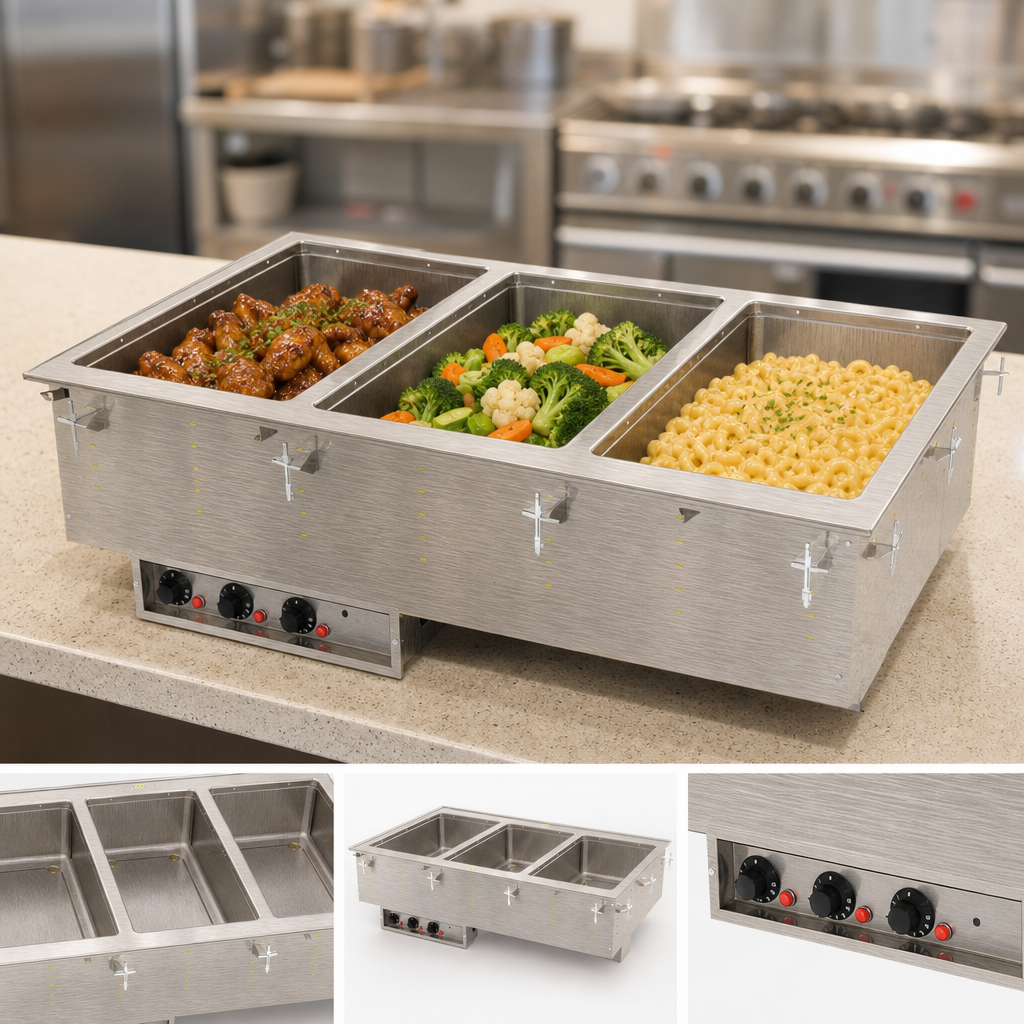

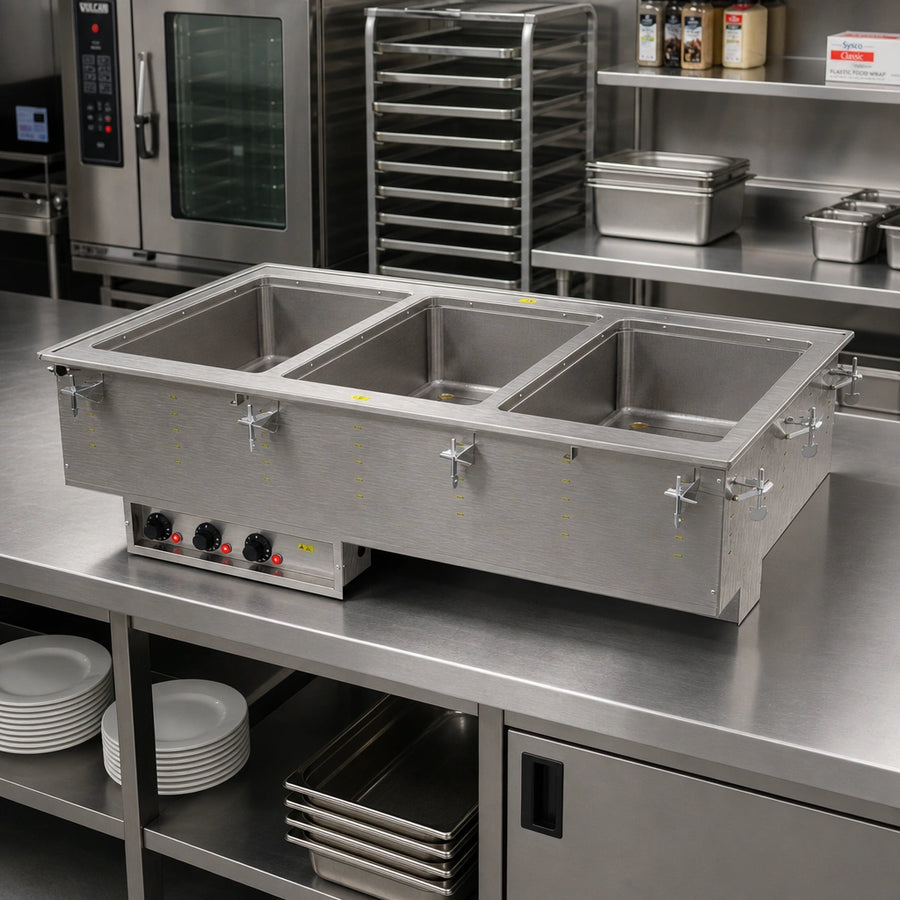

Vollrath 3-Well Marine-Grade Drop-In Hot Food Well – 120 V, 1,875 W
Model 36404HD | Wet Operation | NSF & cULus Listed | Made in USAKeep entrées and sides at safe, appetizing temperatures with the durability only marine-grade stainless steel can deliver. Designed for top-mount installation, this Vollrath drop-in features three individually controlled wells that accept full-size 12" × 20" pans (or fractional equivalents) up to 6" deep, making it the perfect upgrade for buffets, cafeterias, and serving lines—especially in coastal or high-humidity environments.
Key Benefits
- SAE Type 316 marine-grade, 20 ga. drawn wells provide exceptional corrosion resistance.
- Wet-heat design promotes even temperature distribution and product moisture.
- Individual infinite controls with power indicator lights for precise well-by-well adjustment.
- ½" ball-valve drain on each well speeds cleaning and water changes.
- 18 ga. stainless top with drip-free flange ensures a clean, professional counter cut-in.
- Fully insulated housing—sides, bottom, and between wells—reduces energy loss.
- 6 ft (1.8 m) cord and factory-installed NEMA 5-20P plug eliminate hard-wiring.
- Zero-clearance design and included mounting clips simplify drop-in installation on counters up to 3" thick.
- Two-year parts & labor warranty on HD (marine-grade) wells.
Specifications
| Number of Wells | 3 (individual) |
|---|---|
| Pan Capacity | 12" × 20" full-size pans or fractional pans up to 6" deep |
| Operation | Wet heat only (water required) |
| Well Material | 20 ga. Type 316 marine-grade stainless steel |
| Top / Flange | 18 ga. stainless steel with drip-free edge |
| Exterior Housing | Stainless steel, fully insulated |
| Controls | 3 × individual infinite rotary controls, remote 4 ft tethered panel |
| Heating Power | 625 W per well • 1,875 W total |
| Electrical | 120 V / 60 Hz / 1-phase, 15.6 A, NEMA 5-20P cord & plug (6 ft) |
| Overall Dimensions | 41 ½" W × 26" D × 15" H (105.4 × 66 × 38.1 cm) |
| Counter Cut-Out | 40 ¾" W × 25 ¼" D (requires 7/8" corner radius) |
| Drain Size | ½" MPT ball valve on each well |
| Certifications | NSF 4, cULus |
| Country of Origin | United States |
For complete warranty details, installation requirements, and optional accessories such as sheet-pan adapters, please visit vollrathfoodservice.com. Modular drop-ins are built to order and are not returnable.
