Vollrath 3640481HD Steam Tables & Food Wells
Description

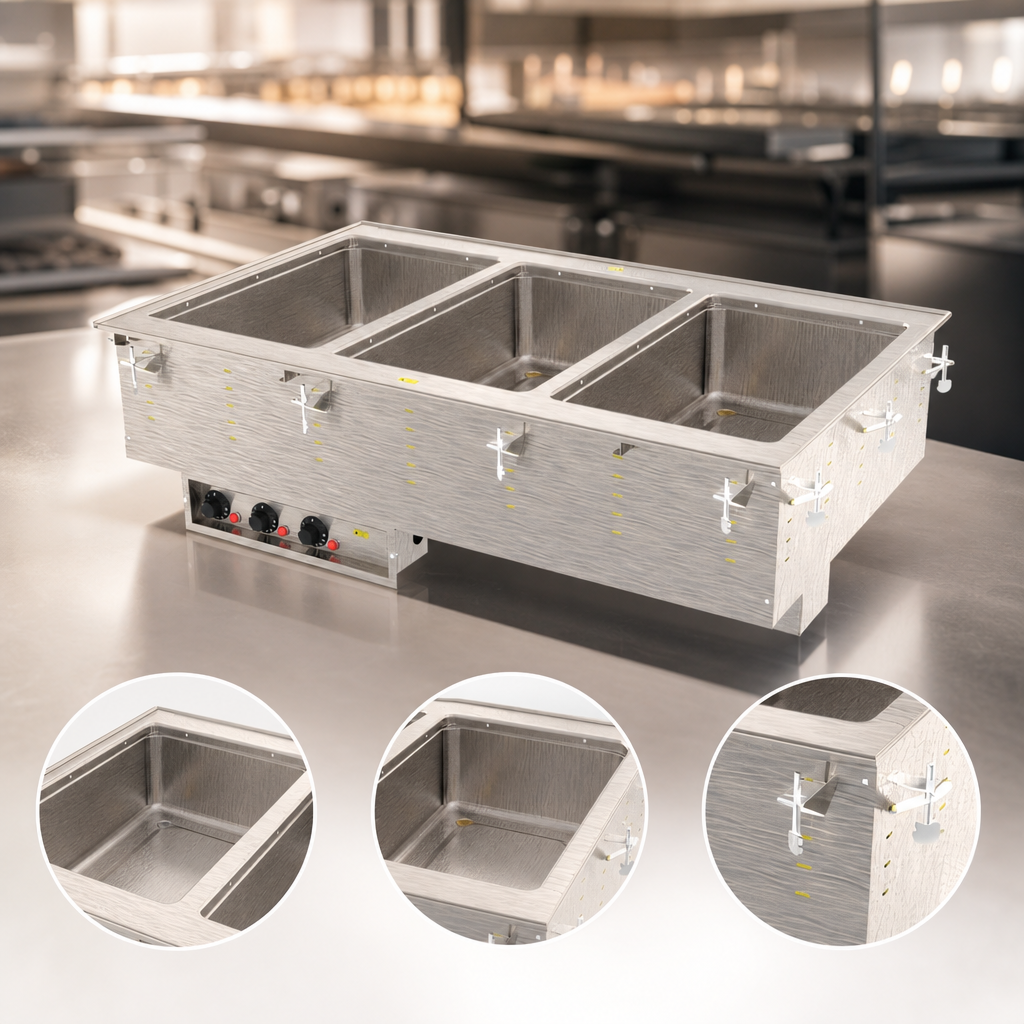

Vollrath 3-Well Modular Hot Drop-In with Marine-Grade Wells
Auto-Fill • Thermostatic • 120 V • Manifold DrainServe hot entrées, sides and sauces with confidence in even the harshest kitchen or coastal environments. This Vollrath drop-in features three independent 12" × 20" wells formed from 20-gauge 316 marine-grade stainless steel for unmatched corrosion resistance, plus an automatic water-fill system that keeps temperatures steady all day long.
Key Benefits
- Three fully insulated wells – each holds a full-size pan up to 6" (15.2 cm) deep.
- 316 marine-grade stainless steel prevents pitting from chlorides and cleaning chemicals.
- Individual thermostatic controls and power lights for precise holding.
- Wet operation only with built-in auto-fill to maintain correct water level.
- 1" copper manifold drain with master shut-off plus individual ball valves for each well – fast, mess-free cleanup.
- Drip-free flange and supplied mounting clips for a clean, simple installation in counters up to 3" (7.6 cm) thick.
- Ships with 6' (1.8 m) cord and NEMA 5-50P plug – no hard-wiring required.
- Zero-clearance design maximizes under-counter space.
- NSF & cULus listed; proudly made in the USA.
Technical Specs
| Wells / Size | 3 × 12" × 20" (full-size) |
|---|---|
| Well Construction | 20-ga 316 marine-grade stainless, fully insulated |
| Top / Exterior | 18-ga stainless steel top, stainless steel housing |
| Operation | Wet only – automatic water fill |
| Controls | Individual thermostatic knobs with power indicator lights Remote panel on 4' (121.9 cm) tether |
| Overall Dimensions | 41½" W × 26" D × 21½" H (105.4 × 66 × 54.6 cm) |
| Counter Cut-Out | 40¾" W × 25¼" D (103.5 × 64.1 cm) — ⅞" (2.2 cm) corner radius required |
| Electrical | 3000 W (1000 W per well) • 120 V, 60 Hz, 1-ph • 25 A • NEMA 5-50P cord set included |
| Drain | 1" copper manifold with master shut-off + individual well shut-offs |
| Certifications | NSF 4 • cULus |
| Warranty | 2-year limited parts & labor (see Vollrath warranty for details) |
Ideal For
- Buffet lines & cafeterias
- Hotels and cruise ships (marine-grade corrosion resistance!)
- Convenience stores & concession stands
- Any operation needing reliable, plug-and-play hot holding
Drop-in warmers are built to order and cannot be canceled or returned.
Refer to vollrathfoodservice.com for complete warranty policy and installation instructions.
