Vollrath 3640481 Steam Tables & Food Wells
Description

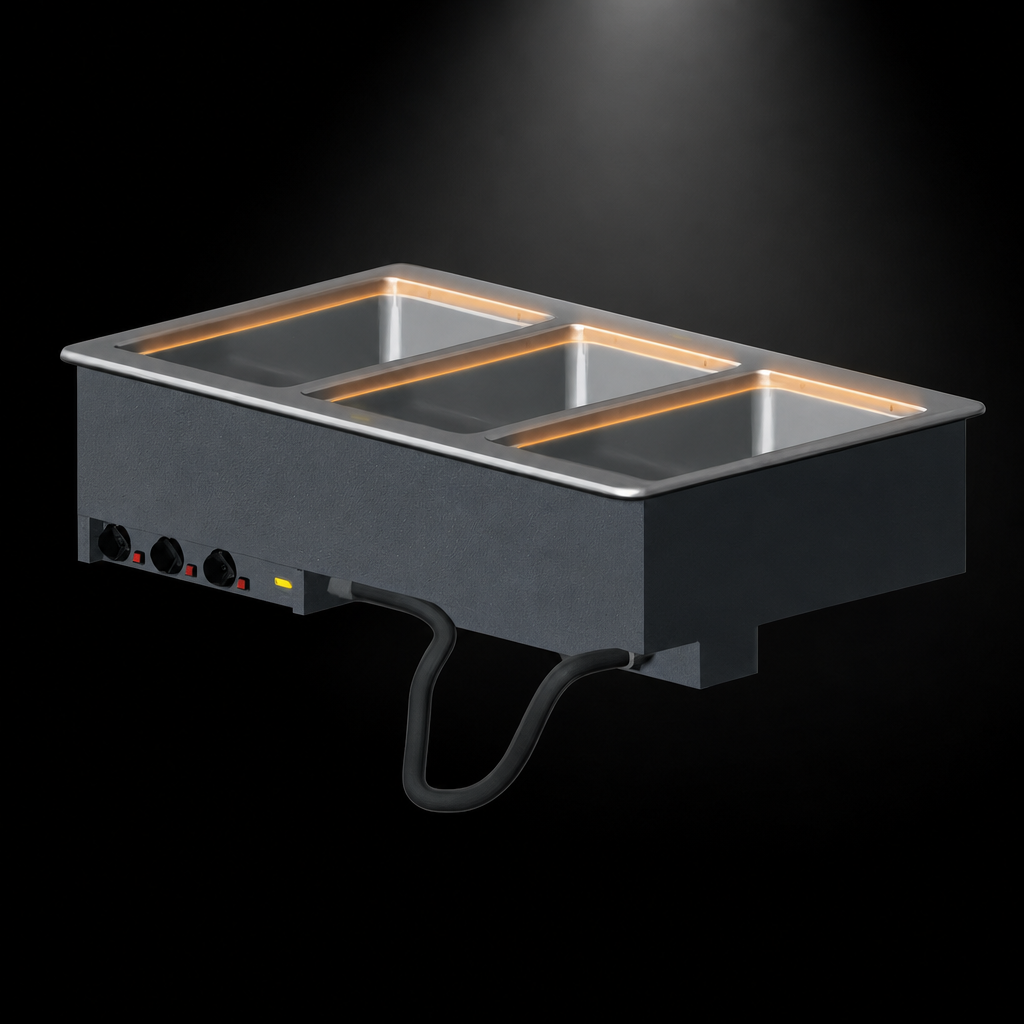

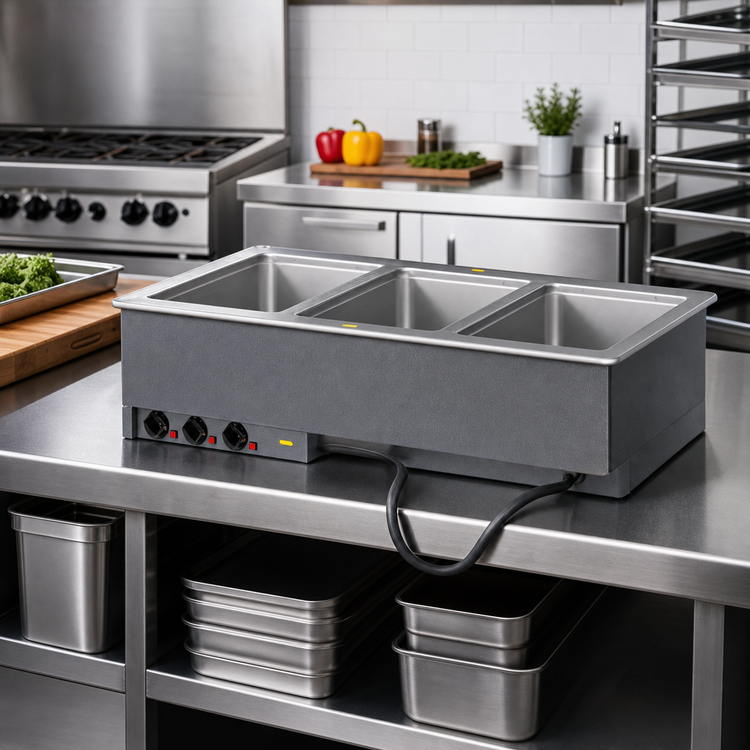

Vollrath 3-Well Drop-In Hot Food Well – Auto-Fill, Thermostatic, 120 V
Model 3640481 | NEMA 5-50P | Made in USAKeep entrées, sides, and sauces at safe serving temperatures with the reliability that professional kitchens trust. This Vollrath three-well drop-in delivers 1,000 watts of wet-heat performance per well, automatic water replenishment, and independent thermostatic control — all in a zero-clearance design that installs quickly into a 40 ¾ × 25 ¼ in. cut-out.
Key Features
- Three individual 12 × 20 in. wells, 20 ga stainless steel, fully insulated on all sides and between wells.
- Auto-fill kit maintains proper water level for consistent wet-operation-only heating.
- Independent thermostatic controls with power indicator lights on a 4 ft tethered stainless-steel panel.
- Drip-free top flange with factory-installed gasket for a clean, sealed fit to the countertop.
- 1 in. copper manifold drain with shut-off for each well plus master manifold shut-off.
- 18 ga stainless-steel top and 18 ga galvanized exterior housing for long-term durability.
- Ships with mounting/positioning clips — installs in counters up to 3 in. thick; zero side-clearance required.
- Accepts full-size or fractional pans up to 6 in. deep (adapter bars recommended for fractional pans).
- 6 ft cord and plug — no hard-wiring needed.
- NSF 4 & cULus listed.
Specifications
| Overall dimensions | 41 ½ W × 26 D × 21 ½ H in. (105.4 × 66 × 54.6 cm) |
|---|---|
| Counter cut-out | 40 ¾ W × 25 ¼ D in. (103.5 × 64.1 cm) 7/8 in. corner radius required |
| Number / size of wells | 3 × full-size (12 × 20 in.) |
| Capacity | 6 in. pan depth maximum |
| Heat type | Wet only • Auto-fill water connection (⅜ in. line recommended) |
| Controls | 3 × thermostatic, individual temperature dials & indicator lights |
| Drain | 1 in. copper manifold drain with individual ball valves & master shut-off |
| Electrical | 120 V / 60 Hz / 1-ph • 3,000 W total (1,000 W / well) • 25 A |
| Plug | NEMA 5-50P, 6 ft cord included |
| Certifications | NSF 4, cULus |
| Construction | 18 ga stainless top, 20 ga stainless wells, 18 ga galvanized exterior |
| Country of origin | USA |
Covered by Vollrath’s standard warranty against defects in materials and workmanship. See complete policy at vollrathfoodservice.com.
