Vollrath 3640480HD Steam Tables & Food Wells

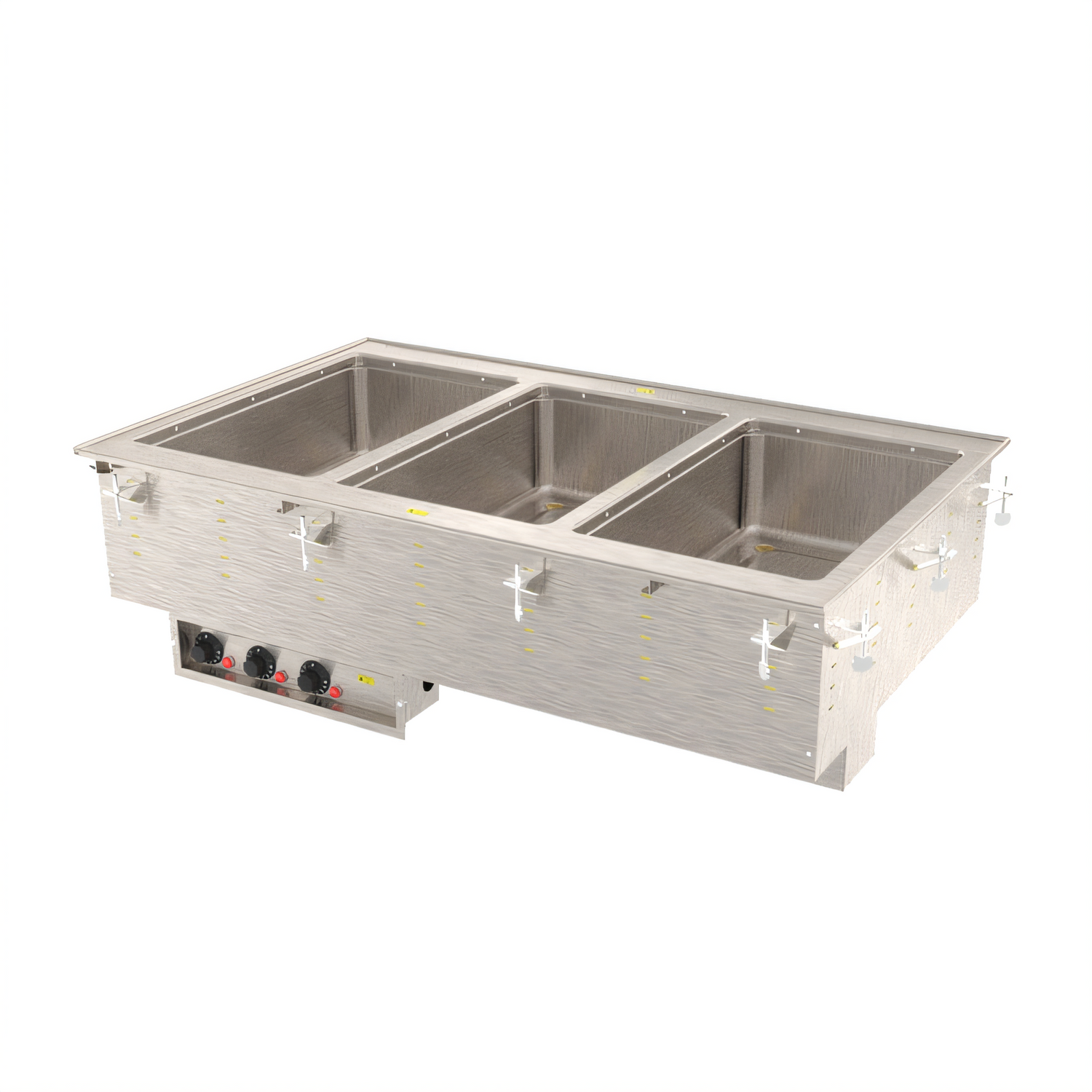

Vollrath 3-Well Marine-Grade Hot Food Well Drop-In – Auto-Fill, Thermostatic, 120 V

Keep entrées at safe, delicious serving temperatures with this plug-and-play, three-well drop-in from Vollrath. Built with corrosion-proof 316 stainless steel and a labor-saving auto-fill system, it’s the dependable solution for buffets, cafeterias,
and chef-lines that demand uncompromising performance—all while running on a standard 120-volt outlet.

Key advantages

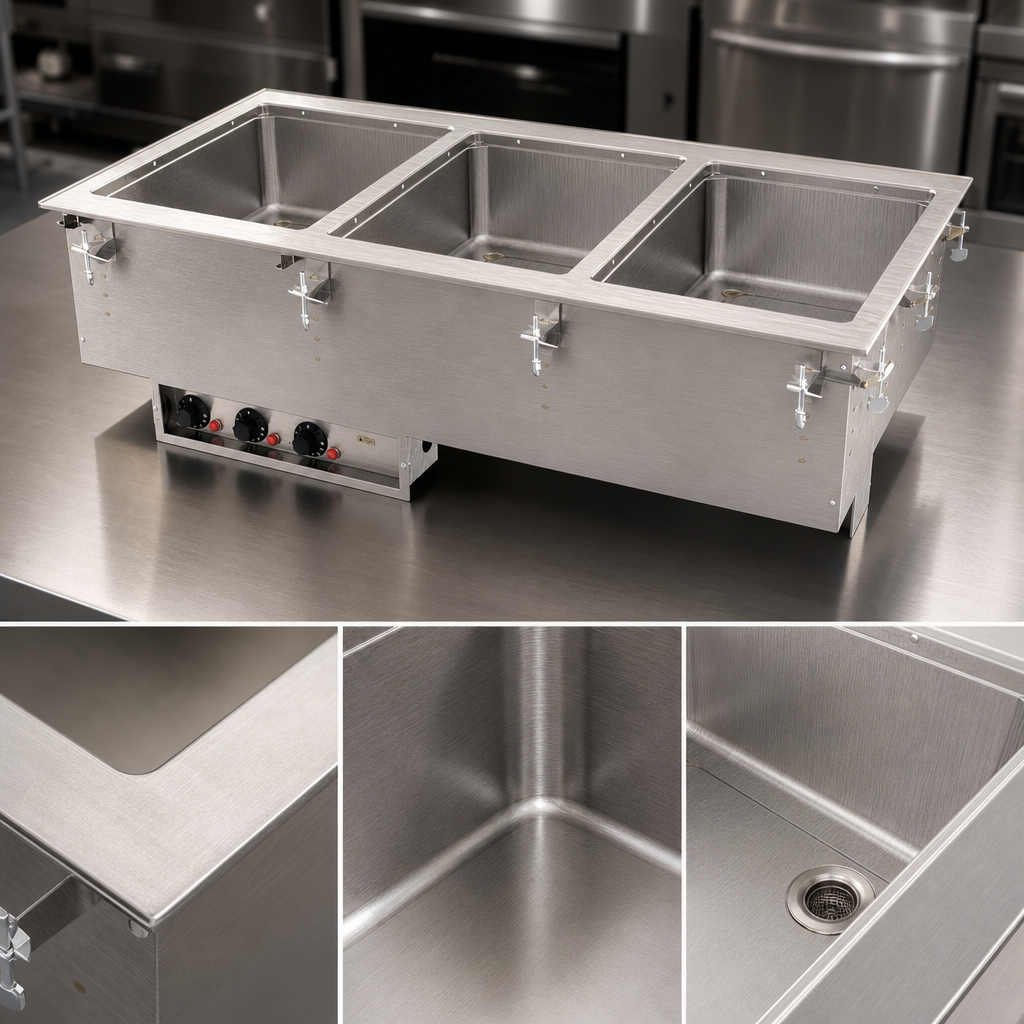

• Drawn 20-gauge 316 marine-grade wells resist pitting, chemicals and salt air.
• Auto-fill maintains the correct water level automatically—no babysitting required.
• Three independent thermostatic controls with power lights let you fine-tune each menu item.
• 18-gauge stainless steel top with drip-free flange drops flush for a clean, sanitary install.
• 1" copper manifold drain with individual well shut-offs & master shut-off speeds cleanup.
• Fully insulated cabinet (including between wells) shortens heat-up time and saves energy.
• Ships complete with 4 ft (1.2 m) tethered control panel, mounting gasket and clips for counters up to 3" (7.6 cm) thick.
• Zero-clearance design—perfect for tight buffet lines and custom millwork.
• 6 ft (1.8 m) cord with NEMA 5-20P; no hard-wiring needed.

Pan capacity

• Holds (3) full-size 12" × 20" steam table pans up to 6" (15.2 cm) deep
• Accepts fractional pans with optional adapter bars (sold separately)

Technical specs

Modular drop-ins are custom-built and cannot be cancelled or returned. Do not modify the factory-installed cord or plug—doing so voids the warranty.
