Vollrath  |  SKU: 3640480

Vollrath 3640480 Steam Tables & Food Wells

$3,632.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells Vollrath

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

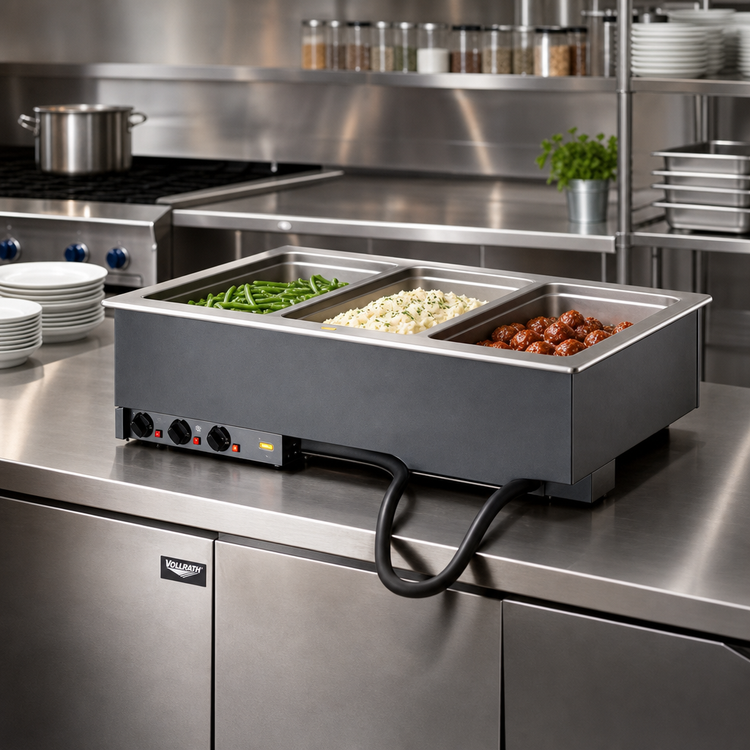

Vollrath 3-Well Auto-Fill Drop-In Hot Food Well

Model 3640480 • Thermostatic • 120 V / 1-Phase

Designed for high-volume kitchens that need precise, hands-free temperature control, this NSF-listed unit keeps three full-size (12" × 20") food pans at safe, appetizing serving temperatures—all while automatically maintaining water level so staff can focus on guests, not wells.

Why you’ll love it

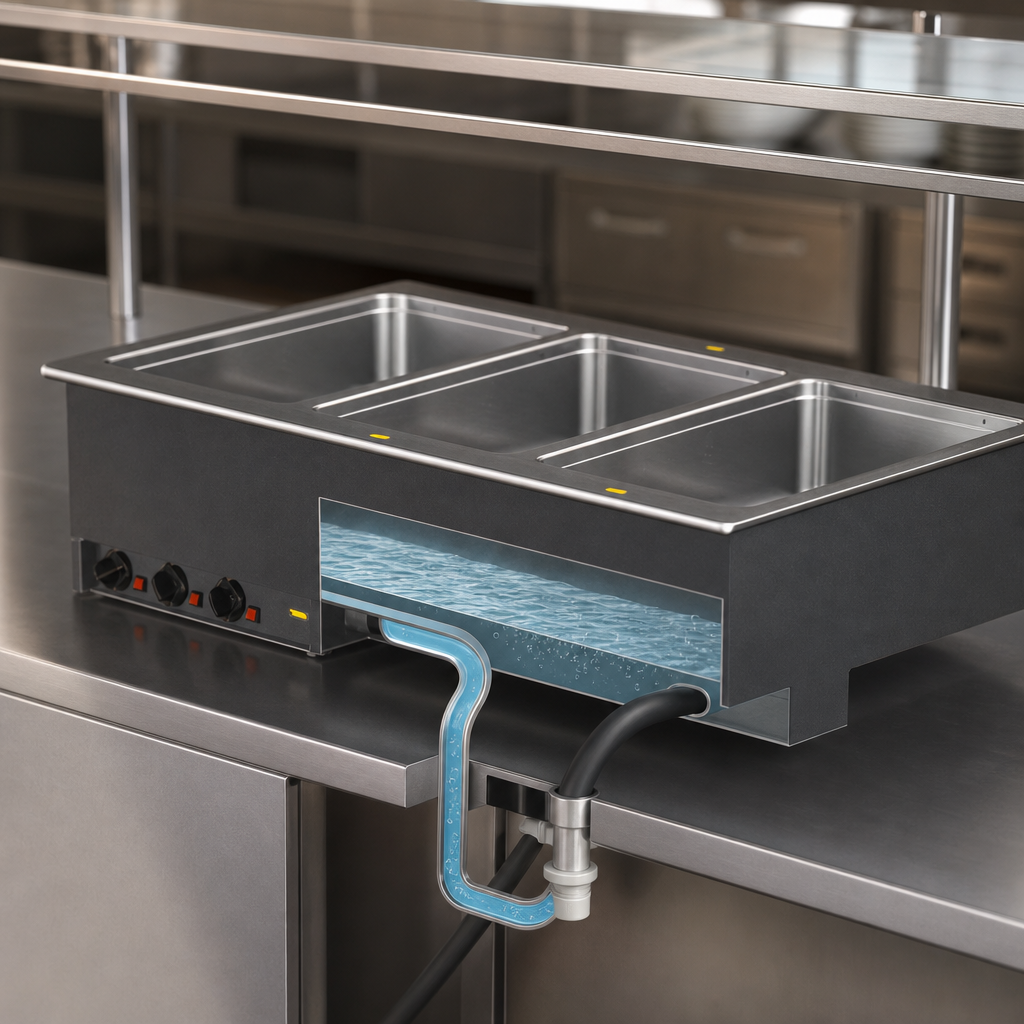

  • Auto-fill system keeps water at the perfect level for consistent, even heating.
  • Three individually insulated 20-gauge stainless-steel wells—wet operation only for optimal heat transfer.
  • Independent thermostatic controls with power indicator lights let you dial-in each menu item.
  • 1" copper manifold drain with ball valves on every well plus a master shut-off for fast cleanup.
  • Drip-free raised flange and included gasket create a sanitary, mess-free installation.
  • 18-gauge stainless-steel top and galvanized exterior housing stand up to daily commercial abuse.
  • Ships ready to plug in—6' (1.8 m) cord with NEMA 5-20P; no hard-wiring required.
  • Made in the USA & cULus listed for electrical safety.

Specifications

Number of wells 3 full-size (12" × 20")
Total wattage 1,875 W (625 W per well)
Electrical 120 V / 60 Hz / 1-ph, 15.6 A, cord & NEMA 5-20P plug included
Overall dimensions 41 ½" W × 26" D × 21 ½" H (105.4 × 66 × 54.6 cm)
Counter cut-out 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) — ⅞" (2.2 cm) corner radius required
Pan depth capacity Up to 6" (15.2 cm); adapter bars recommended for fractional pans
Drain 1" copper manifold with individual well shut-offs & master shut-off
Construction 18-ga stainless-steel top, 20-ga stainless wells, 18-ga galvanized exterior
Certifications NSF 4 (wet operation), cULus
Origin / Warranty Made in USA  |  1-year limited warranty (see Vollrath for details)

What’s in the box

  • Hot well module with auto-fill manifold drain
  • Remote stainless-steel control panel (4' tether)
  • Mounting/positioning clips for counters up to 3" thick
  • Factory-installed gasket for drip-free seal

Need to hold sheet pans? Add the optional Vollrath 19186 sheet-pan adapter (sold separately).

Important installation notes:
  • Unit is wet-operation only; water must be added before powering on.
  • Zero-clearance design is intended for indoor use in a properly ventilated space.
  • Do not modify the cord or plug—doing so voids the warranty and may create a safety hazard.
  • Modular drop-ins cannot be canceled or returned once ordered.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

146.0lbs

Construction

stainless steel top, corrosion resistant steel exterior

Pan Capacity

(3) full size (12" x 20")

Style

individual pans

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Wet or Dry operation

wet

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 120v/60/1-ph, 15.6 amps, cord with NEMA 5-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
