Description

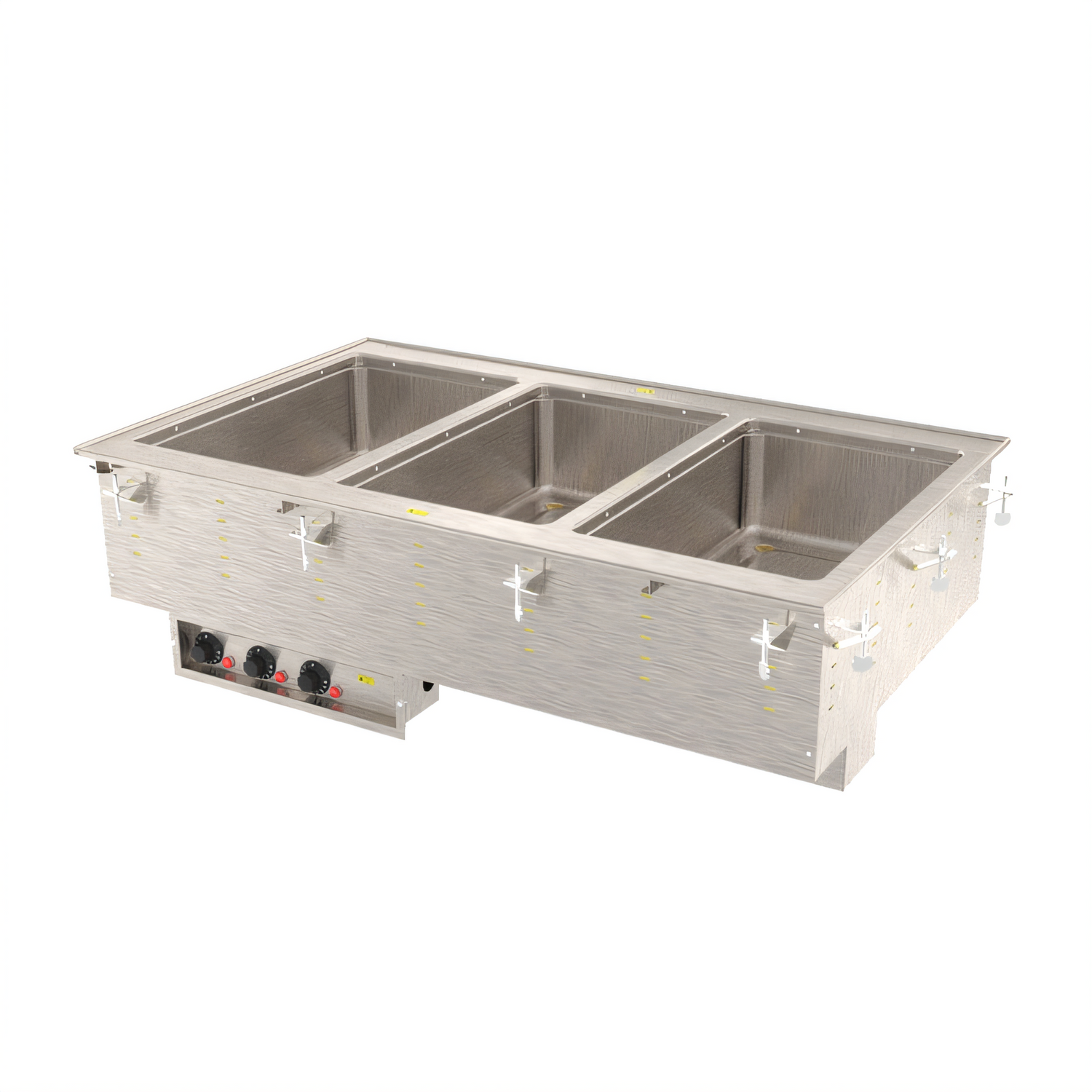

Vollrath 3-Well Marine-Grade Hot Food Drop-In, 120 V, Thermostatic Controls

Model 3640471HD • 1″ copper manifold drain • wet operation only

Keep entrées, sides and sauces at safe, appetizing temperatures with Vollrath’s three-well modular drop-in. Built from corrosion-proof 316 stainless steel and powered by precise thermostatic controls, this unit is a durable, plug-and-play solution for buffets, cafeterias and military galleys alike.

Key advantages

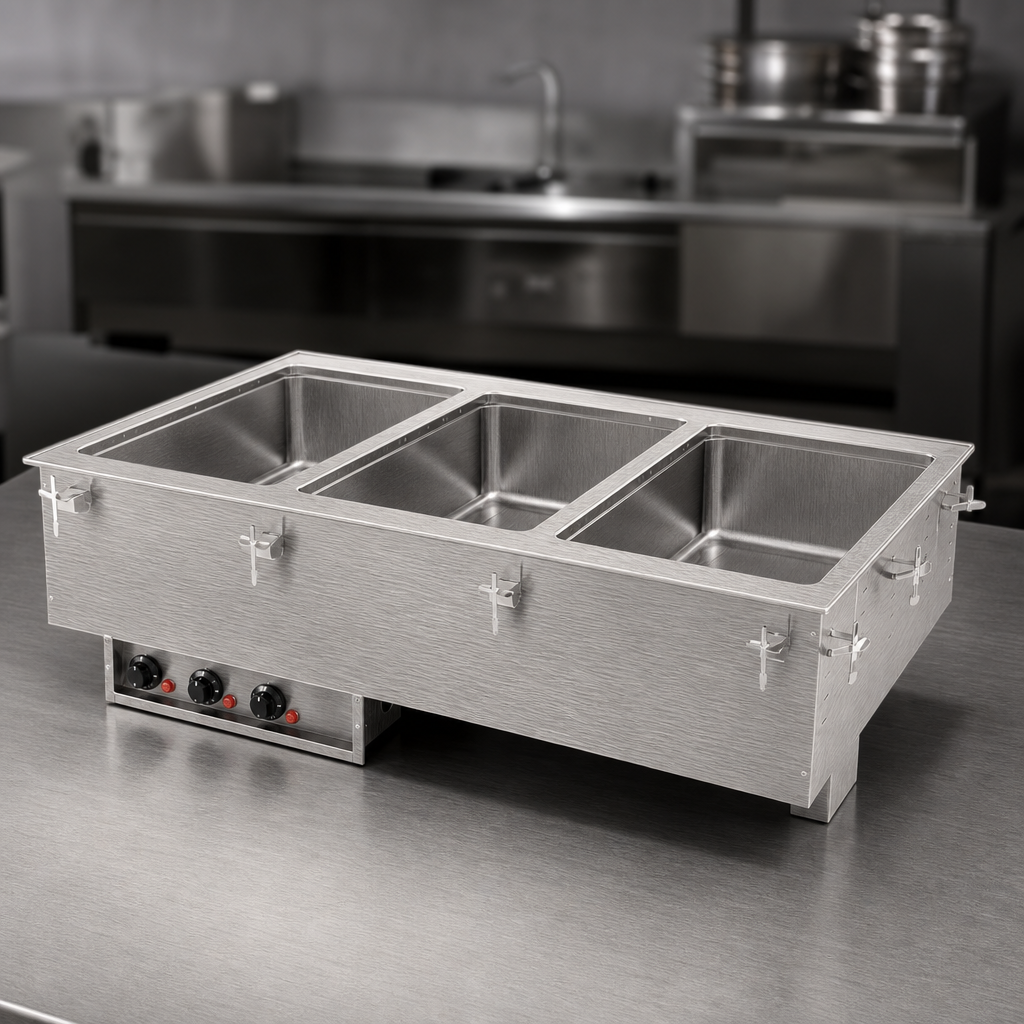

  • Marine-grade 316 stainless steel wells stand up to acidic or salty foods and aggressive cleaners.
  • Wet-only operation provides gentle, even heat for superior product quality and NSF 4 compliance.
  • Individual thermostatic controls with power lights let you fine-tune each well independently.
  • 1″ copper manifold drain with individual ball valves and master shut-off—quick, mess-free water changes.
  • Drip-free 18 ga stainless top flange delivers a seamless, professional counter finish.
  • Fully insulated on all sides (including between wells) to maximize efficiency and keep counters cool.
  • Zero-clearance, top-mount design installs from above and includes mounting clips for counters up to 3″ thick.
  • Ships with a 6′ cord and NEMA 5-50P plug—no hard-wiring required.
  • NSF & cULus listed and proudly Made in the USA.

Technical specifications

Model 3640471HD*
Number of wells (3) full-size 12″ × 20″ wells
Well construction 20 ga 316 stainless, fully insulated
Operation Wet heat only (water required)
Control type Individual thermostatic knobs with indicator lights; remote panel on 4′ tether
Total power 3000 W (1000 W per well)
Electrical 120 V / 60 Hz / 1 ph • 25 A • NEMA 5-50P plug
Drain system 1″ copper manifold, individual well shut-offs + master shut-off
Overall dimensions 41-1/2″ W × 26″ D × 21-1/2″ H
Counter cutout 40-3/4″ W × 25-1/4″ D, 7/8″ corner radius
Pan depth capacity up to 6″
Certifications NSF 4 (wet), cULus
Warranty 2-year limited parts & labor (marine-grade wells)
Origin Made in USA

*Model number shown for reference only; final unit configuration may vary by options selected.

Compatible accessories

  • Sheet-pan adapter bar (item #19186)
  • Auto-fill water kit (factory option)
  • Divider bars for fractional pans
Important: This unit is designed for wet operation only. Running the wells dry may damage the heating elements and will void the warranty. Modular drop-ins are built to order and cannot be canceled or returned once production has begun.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

135.0lbs

Construction

stainless steel construction

Style

individual pans

Wet or Dry operation

wet

Controls

thermostatic controls

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 3000 watts, 120v/60/1-ph, 25.0 amps, cord with NEMA 5-50P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
