Description

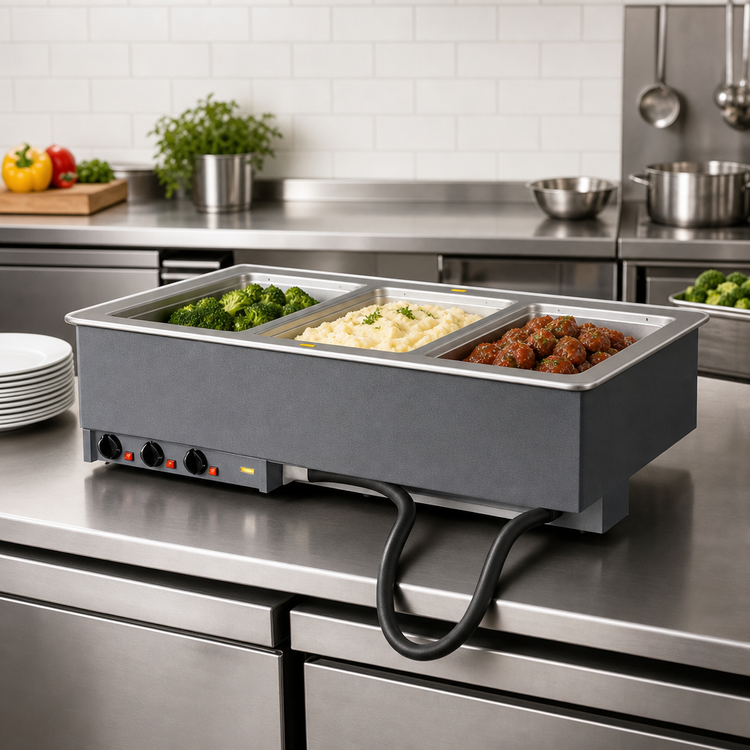

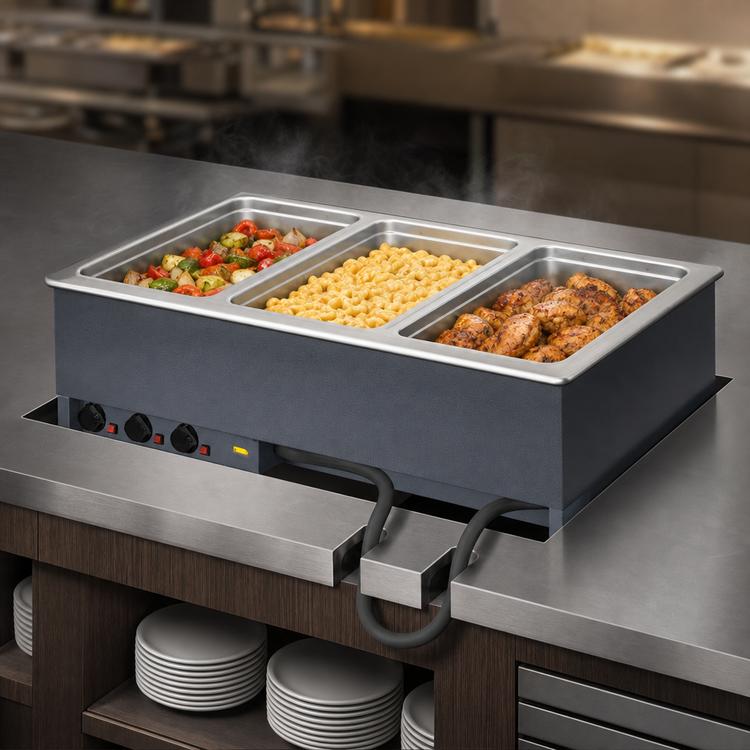

Vollrath 3-Well Drop-In Hot Food Well – 120 V, Thermostatic, Manifold Drain

Model 3640471 | Made in the USA | NSF & cULus Listed

Keep entrées, sides and sauces hot, fresh and food-safe all day long. This factory-wired drop-in features three individually controlled full-size wells, a drip-free stainless flange and a convenient 1-inch copper manifold drain system for fast clean-up​—​all in a plug-and-play package that requires no hard-wiring.

Why You’ll Love It

  • True 1000 W per well (3000 W total) delivers quick heat-up and recovery.
  • Individual thermostatic controls with power indicator lights let you dial in the perfect serving temperature for each menu item.
  • Wet operation only provides gentle, even heat that meets NSF 4 performance standards.

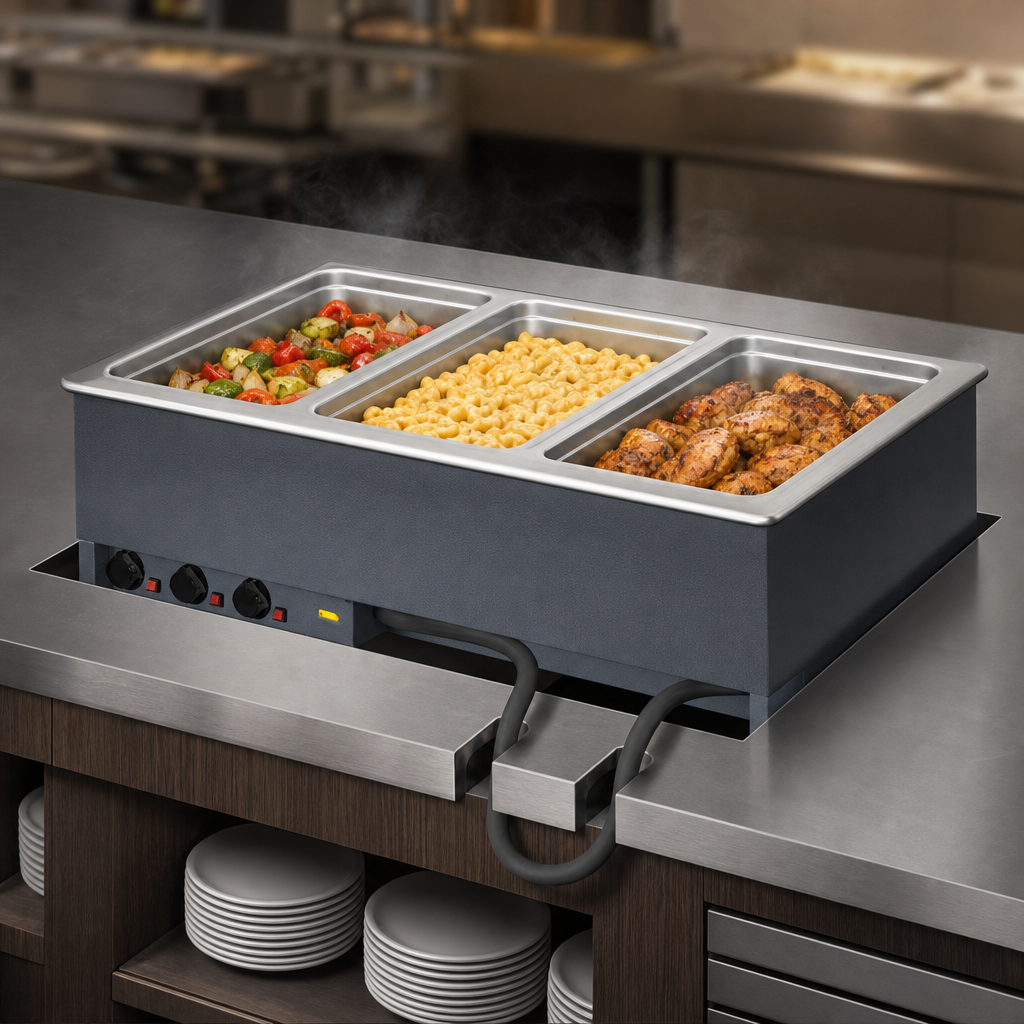

  • (3) 12 × 20 in wells are formed from durable 20-gauge stainless steel and fully insulated on all sides​—​even between wells.
  • Drip-free 18-ga stainless top flange protects your countertop and wipes clean in seconds.
  • 1 in copper manifold drain with individual ball valves plus a master shut-off speeds draining and sanitizing.
  • Zero-clearance design and included positioning clips make installation easy on counters up to 3 in (7.6 cm) thick.
  • Accepts full-size or fractional pans up to 6 in (15.2 cm) deep (adapter bars recommended for fractional pans).
  • 6 ft cord & NEMA 5-50P plug​—​just drop it in, plug it in and start serving.

Technical Specifications

Number of wells (3) full-size 12 × 20 in
Total wattage / amps 3000 W  |  25 A
Electrical 120 V / 60 Hz / 1-phase, cord & NEMA 5-50P
Controls Individual thermostatic knobs with indicator lights (remote stainless panel, 4 ft tether)
Operation Wet heat only (water required during use)
Drain system 1 in copper manifold with individual well shut-offs & master valve
Construction 18-ga stainless top flange; 20-ga stainless wells; 18-ga galvanized exterior housing; fully insulated
Overall dimensions 41 ½ in W × 26 in D × 21 ½ in H (105.4 × 66 × 54.6 cm)
Counter cut-out 40 ¾ in W × 25 ¼ in D (103.5 × 64.1 cm)  •  ⅞ in corner radius required
Certifications NSF 4 (wet), cULus
Warranty 1-year parts & labor (see Vollrath warranty for details)

Optional Accessories

  • Sheet-pan adapter bar – Item #19186
  • Auto-fill kit (factory option) for water-level maintenance
Important: This unit is designed for wet operation only. Always maintain adequate water in each well to prevent damage and ensure even heating. Orders for drop-ins are non-cancelable and non-returnable.

For full warranty terms visit  vollrathfoodservice.com. Never modify the cord or plug; doing so will void the warranty.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

135.0lbs

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Controls

thermostatic controls

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 120v/60/1-ph, 25.0 amps, cord with NEMA 5-50P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
