Vollrath  |  SKU: 3640470HD

Vollrath 3640470HD Steam Tables & Food Wells

$3,290.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

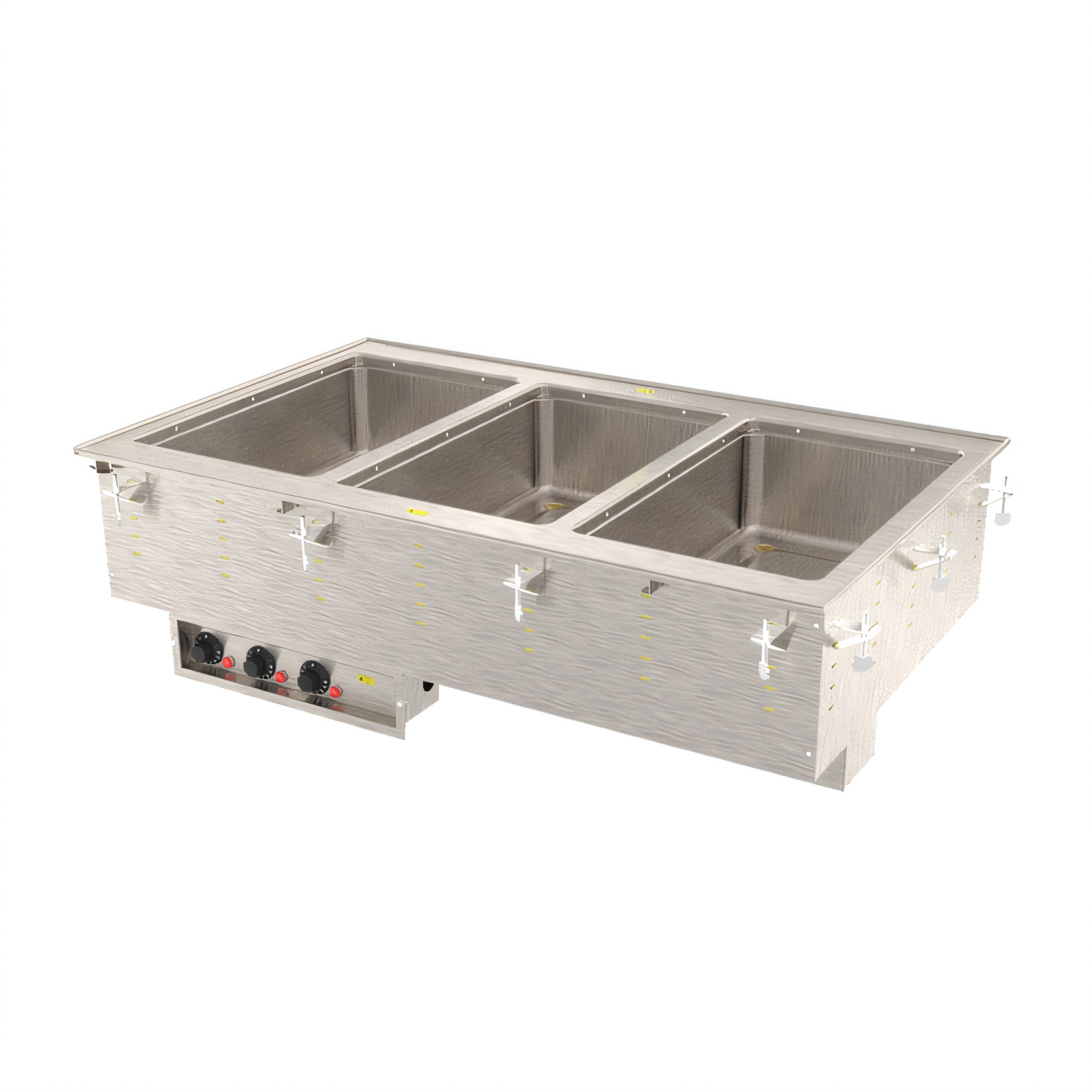

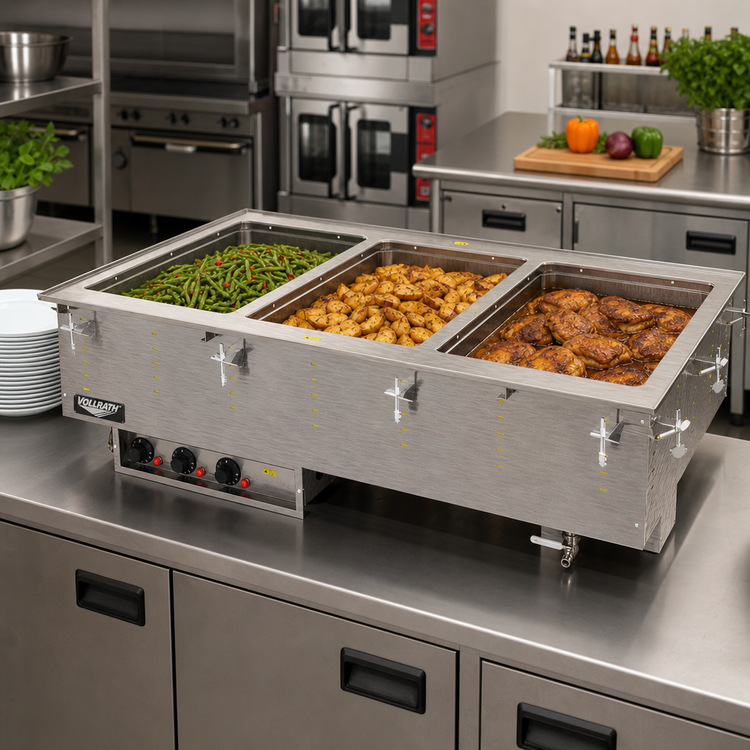

Vollrath 3-Well Marine-Grade Hot Food Drop-In, 120 V

Thermostatic controls • 1 ¾ kW total • NSF & cULus listed

Keep entrées, sides and sauces at safe serving temperatures with the durability of Type-316 stainless steel. This drop-in unit gives you three individually-controlled wells in a single, easy-to-install module that’s built for the toughest commercial environments.

Why You’ll Love It

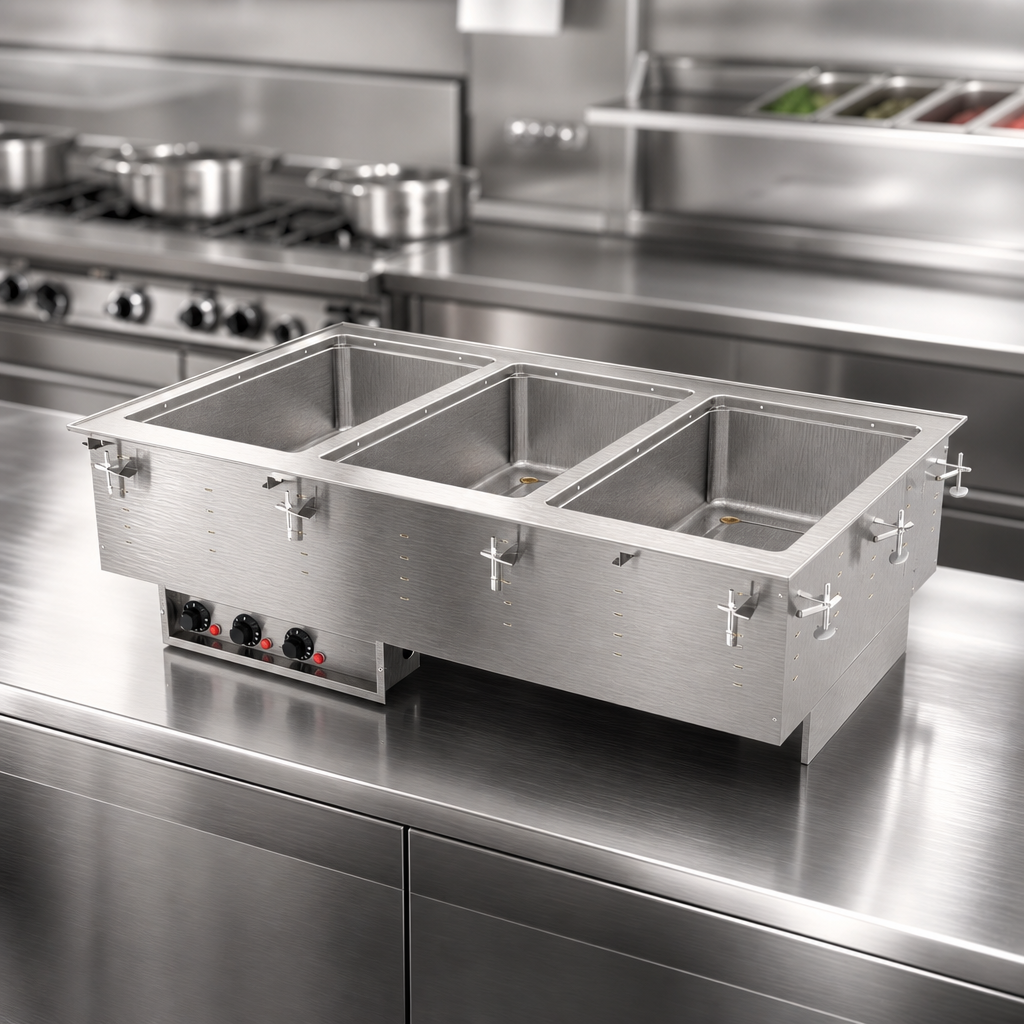

  • Marine-grade 20 ga Type-316 stainless wells resist corrosive salt, acid & cleaning chemicals.
  • Individual thermostatic controls (not infinite switches) for precise temperature management.
  • Wet-heat operation delivers even heat distribution and helps prevent food dehydration.
  • 1 in. copper manifold drain with individual shut-offs plus master shut-off—empty all wells in seconds.
  • Drip-free 18 ga stainless top flange protects counter surfaces.
  • Fully insulated on every side, including between wells, for energy savings.
  • Ships with 4 ft tethered control panel, mounting gasket & clips—no hard-wiring required.
  • Zero-clearance design maximizes under-counter space.
  • Made in the USA and backed by a 2-year Vollrath warranty.

Technical Specifications

Number of wells 3 (accepts 12 × 20 in / 1⁄1 GN pans up to 6 in deep)
Construction 20 ga 316 stainless wells, 18 ga stainless top, stainless exterior housing
Operation Wet heat only (water required)
Controls Three independent thermostats with power indicator lights
Output 625 W per well • 1 875 W total
Electrical 120 V / 60 Hz / 1-ph • 15.6 A • 6 ft cord with NEMA 5-20P plug
Overall size 41 ½ W × 26 D × 21 ½ H in (105.4 × 66 × 54.6 cm)
Cutout size 40 ¾ W × 25 ¼ D in (103.5 × 64.1 cm) • ⅞ in (2.2 cm) corner radius
Drain 1 in copper manifold with individual well ball valves & manifold shut-off
Agency listings NSF 4, cULus
Country of origin USA

What’s Included

  • Drop-in hot food well module with 1 in manifold drain
  • 4 ft remote control panel with mounting screws
  • Mounting gasket & positioning clips (for counters up to 3 in thick)
  • 6 ft power cord with factory-installed NEMA 5-20P plug

Installation Notes

  • Zero side or rear clearance required.
  • Indoor use only; room temperature & HVAC conditions can affect holding performance.
  • Unit meets NSF 4 performance standards only when operated wet.

Two-year limited warranty against defects in materials and workmanship. See the full policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

139.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Controls

thermostatic controls

Wet or Dry operation

wet

Construction

stainless steel construction

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 120v/60/1-ph, 15.6 amps, cord with NEMA 5-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
