Vollrath 3640470 Steam Tables & Food Wells
$2,834.95
Unit price
/
Unavailable
Description

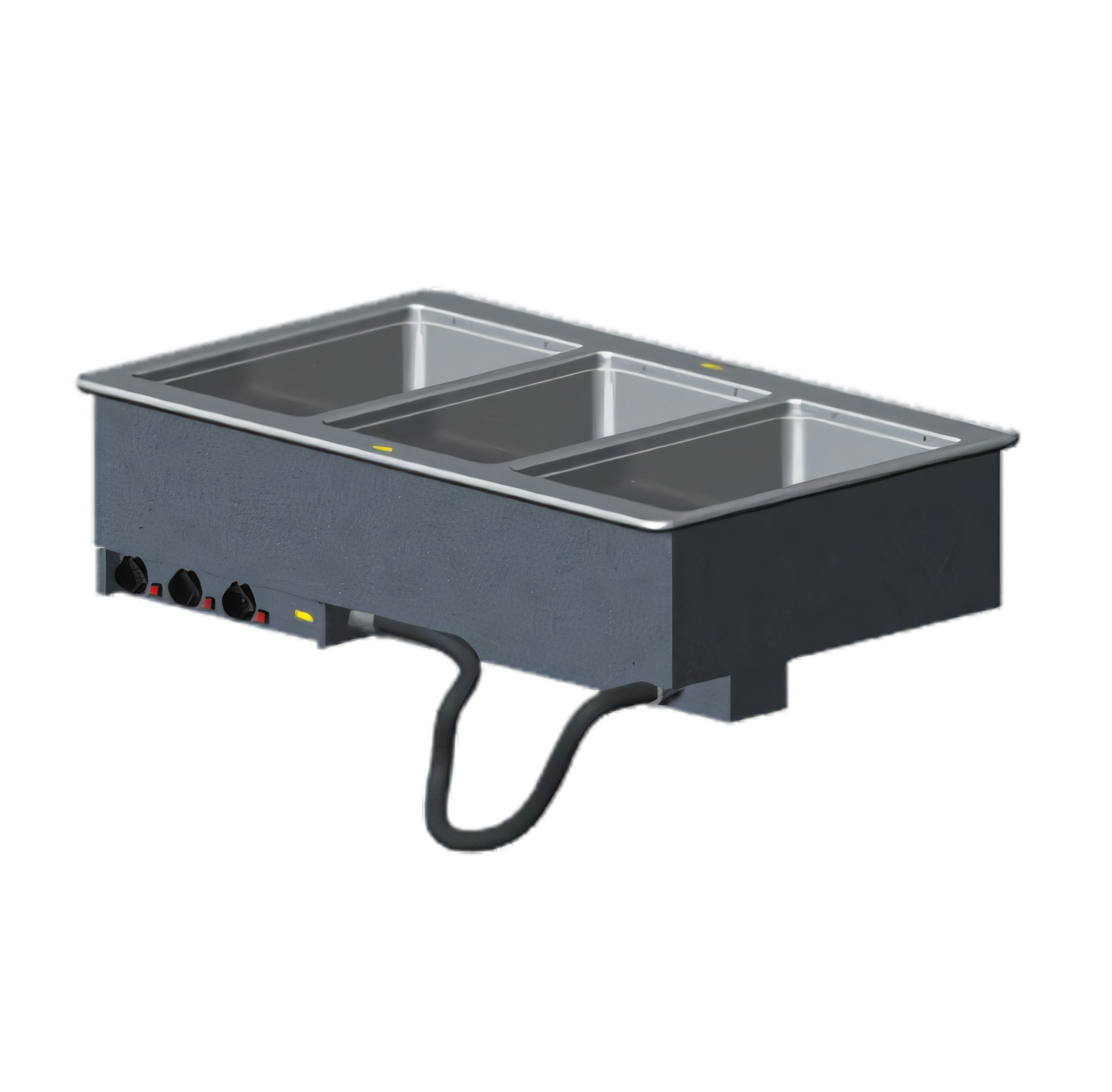

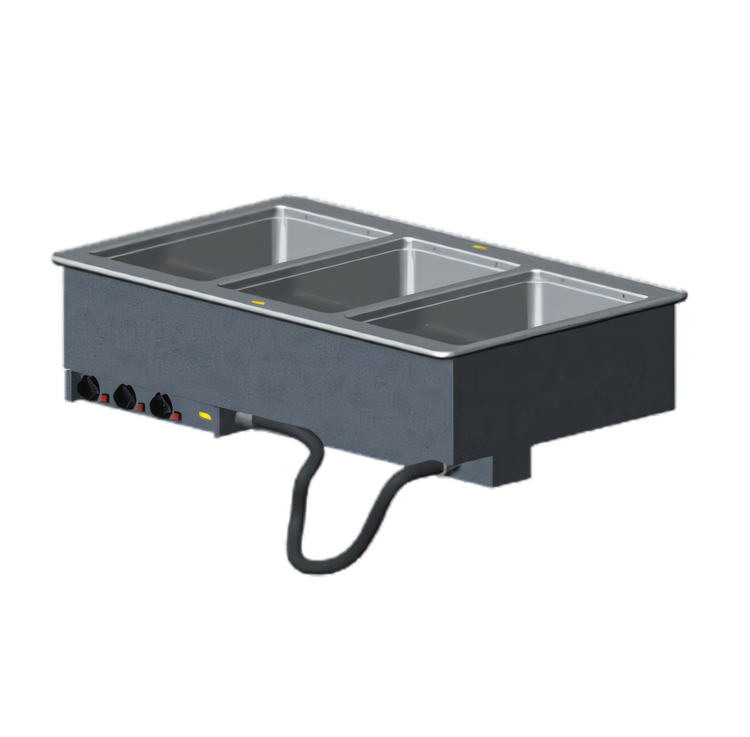

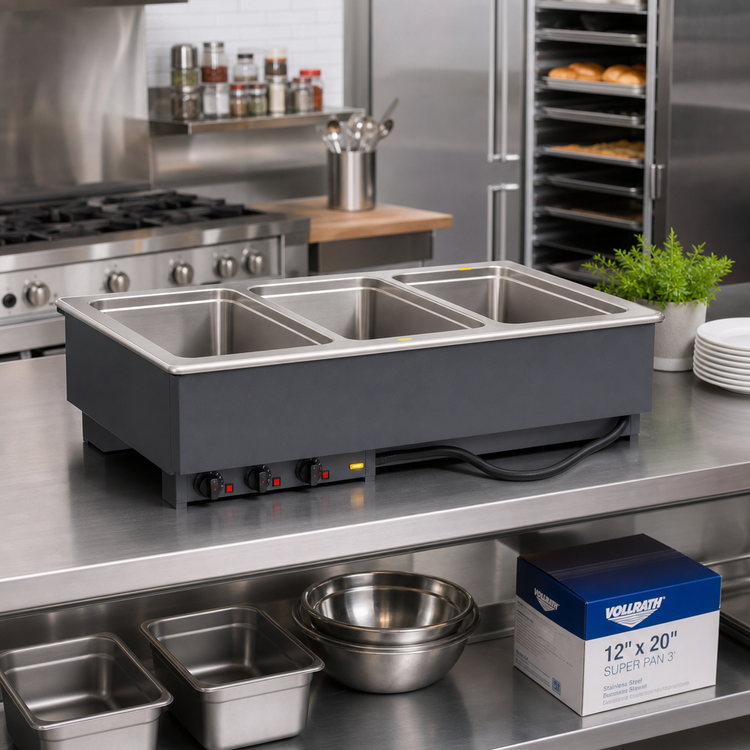

Vollrath 3-Well Drop-In Hot Food Well – Thermostatic, 120 V, Manifold Drain
Model 3640470 | 625 W per well • 1 ,875 W totalKeep entrées, sides and sauces at safe serving temperatures without the hassle of hard-wiring. This Made-in-USA drop-in installs flush with your countertop and delivers precise, even heat to three individual stainless-steel wells—all controlled from a convenient remote panel.
Why you’ll love it

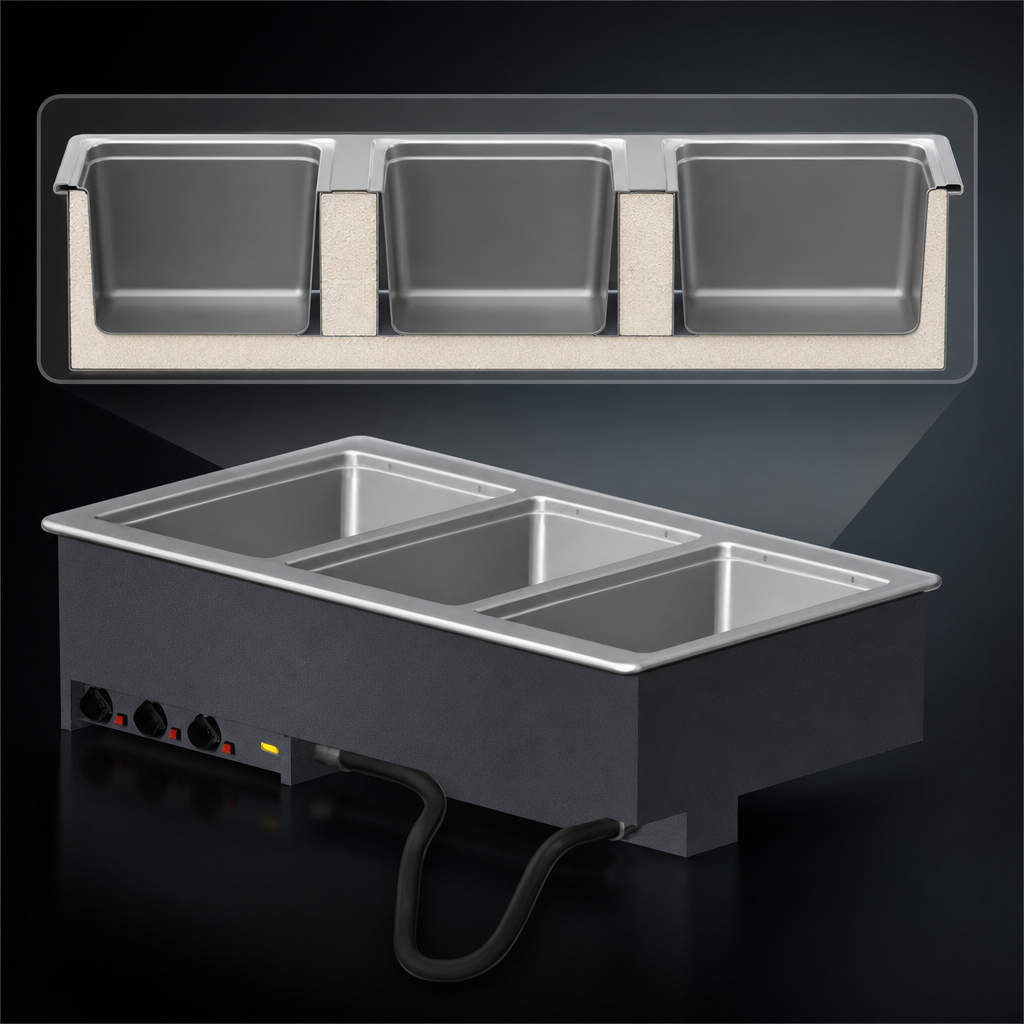

- Three insulated 12" × 20" full-size wells—accepts pans up to 6" deep.
- Individual thermostatic controls with power indicator lights for pinpoint temperature accuracy.
- Drip-free 18-gauge stainless-steel top flange for a clean, professional presentation.
- 1" copper manifold drain with ball valves on each well plus master shutoff—drain all wells from one connection.
- Wet-bath operation promotes even heating and meets NSF 4 performance standards.
- Fully insulated on all sides, including between wells, to maximize efficiency and kitchen comfort.
- 6' (1.8 m) power cord with NEMA 5-20P—plug-and-play installation.
- Zero-clearance design with positioning clips and perimeter gasket included.
- NSF & cULus listed; backed by Vollrath’s standard commercial warranty.
Technical specifications
| Overall dimensions (W × D × H) | 41 ½" × 26" × 21 ½" (105.4 × 66 × 54.6 cm) |
|---|---|
| Countertop cutout | 40 ¾" × 25 ¼" (103.5 × 64.1 cm) – 7/8" (2.2 cm) corner radius |
| Well construction | 20-gauge stainless steel, fully insulated |
| Top flange | 18-gauge stainless steel, drip-free edge |
| Exterior housing | 18-gauge galvanized steel |
| Heating style | Wet operation, thermostatically controlled |
| Output | 625 W per well / 1,875 W total |
| Electrical | 120 V / 60 Hz / 1-phase • 15.6 A • NEMA 5-20P cord & plug |
| Drain | 1" copper manifold with individual well shutoffs & master shutoff |
| Agency approvals | NSF, cULus |
| Country of origin | USA |
What’s in the box
- Remote stainless-steel control panel with 4' (122 cm) tethered harness
- Mounting/positioning clips for counters up to 3" (7.6 cm) thick
- Perimeter gasket for under-counter drip protection
- Factory-installed power cord & plug
Important: This unit is designed for wet operation only.
Maintain adequate water in each well at all times to prevent element damage.
Do not modify the factory-installed cord or plug.
For full warranty details, please visit vollrathfoodservice.com.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
NSF, cULus, Made in USA
Height
21.5in
Width
41.5in
Depth
26.0in
Shipping Weight
116.0lbs
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Controls
thermostatic controls
Drain
with drain
Wet or Dry operation
wet
Specifications
Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 120v/60/1-ph, 15.6 amps, cord with NEMA 5-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
