Vollrath 3640461HD Steam Tables & Food Wells
Description

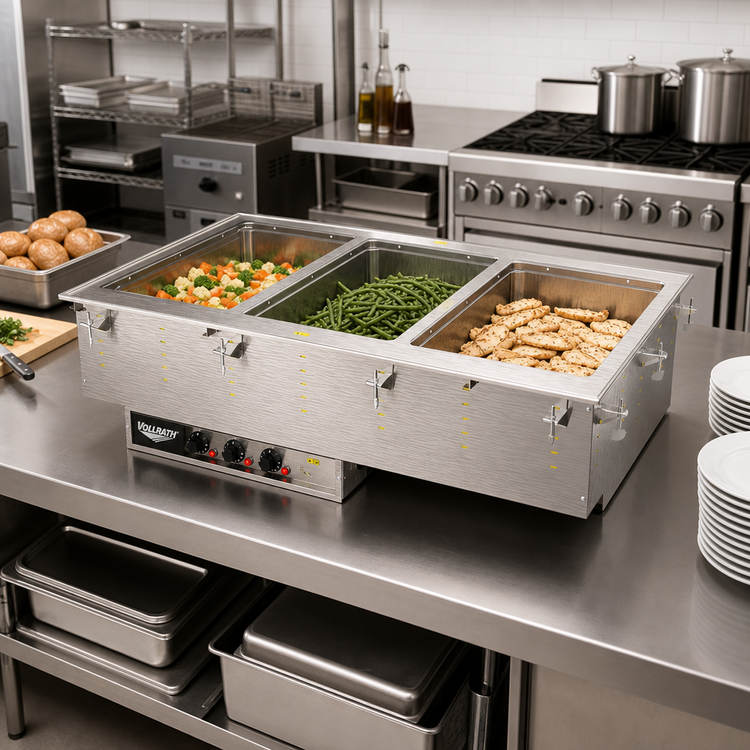

Vollrath 3-Well Modular Hot Drop-In w/ Auto-Fill
Model 3640461HD | Marine-Grade 316 Stainless Steel WellsKeep entrées, sides and sauces at safe serving temperatures without the headache of constant monitoring. Vollrath’s heavy-duty 3640461HD drop-in delivers precise wet-bath heating for three full-size pans and automatically maintains the ideal water level—perfect for high-volume buffet lines, cafeterias and back-of-house pass-thru stations.
Why you’ll love it
- Marine-grade (20 ga) 316 stainless steel wells fight corrosion from salt & acidic foods.

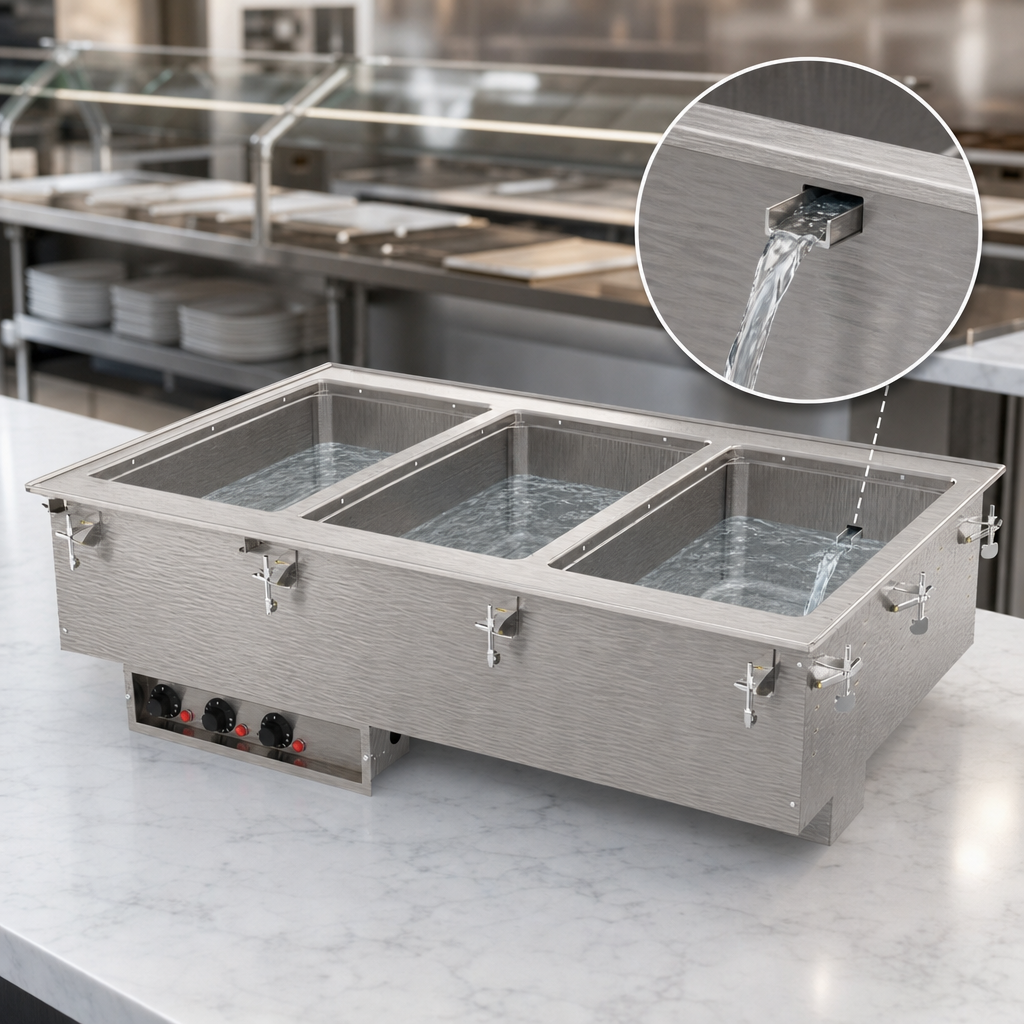

- Auto-fill system keeps wells topped off for consistent heat and less labor.
- Independent infinite controls & power lights for precise holding per well.
- Drip-free flange sits cleanly on the counter for a professional install.
- 1" copper manifold drain with individual well shut-offs speeds end-of-day cleanup.
- 6 ft tethered control panel mounts up to 4 ft away for ergonomic operation.
- Cord-and-plug 120 V design—no hard-wiring required; just drop-in, plug & serve.
- Zero-clearance sides let you maximize line-up space.
- Made in the USA, NSF & cULus listed, backed by a 2-year limited warranty.
At-a-glance specifications
| Manufacturer | Vollrath |
|---|---|
| Model # | 3640461HD |
| Well capacity | (3) full-size 12" × 20" pans, up to 6" deep |
| Operation | Wet heat only | Auto-fill |
| Controls | (3) Infinite, individual |
| Total wattage | 3,000 W (1,000 W per well) |
| Electrical | 120 V / 60 Hz / 1-ph | 25 A | NEMA 5-50P plug |
| Overall size | 41-1/2" W × 26" D × 21-1/2" H |
| Counter cut-out | 40-3/4" W × 25-1/4" D (7/8" corner radius required) |
| Construction | 18 ga stainless top, stainless exterior housing, fully insulated |
| Drain | 1" copper manifold with master shut-off + individual ball valves |
| Included | Mounting clips (counters ≤ 3" thick), 6 ft cord & plug |
| Certifications | NSF 4, cULus, Made in USA |
Simple drop-in installation
- Requires a counter cut-out of 40-3/4" × 25-1/4" with 7/8" corner radius.
- Zero side clearance permits adjacent equipment for a seamless serving line.
- Mounting clips and gasket supplied for counters up to 3" thick.
- No electrician needed—plug into a dedicated 120 V / 30 A (minimum) receptacle.
Warranty & resources
This hot well is covered by Vollrath’s 2-year limited warranty against defects in materials and workmanship. Refer to the full warranty policy for complete details. Orders for drop-ins cannot be cancelled or returned.
