Vollrath  |  SKU: 3640461

Vollrath 3640461 Steam Tables & Food Wells

$3,398.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

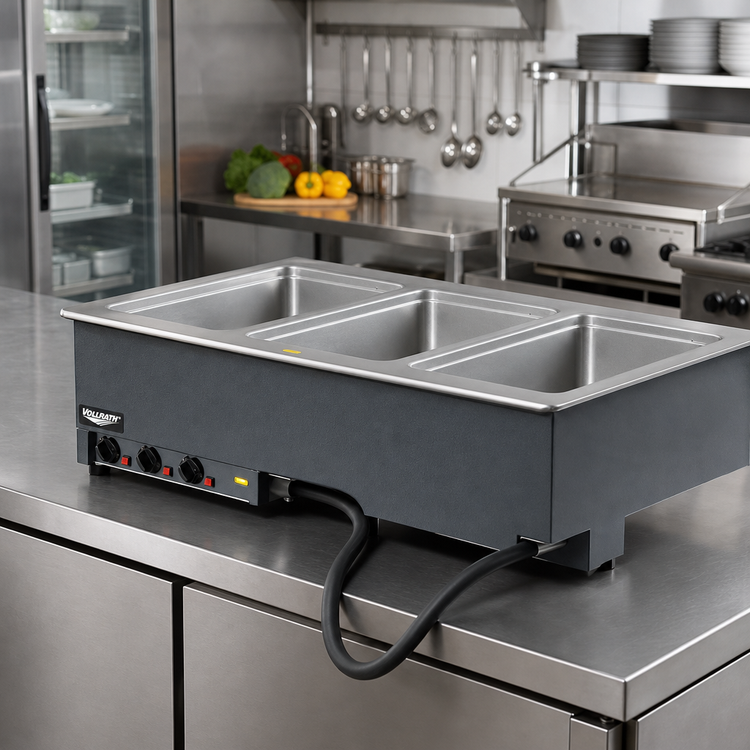

Vollrath 3640461 3-Well Hot Food Drop-In with Auto-Fill

120 V • 3000 W total • Manifold drain • Infinite controls

Keep every entrée, side or sauce at a perfect serving temperature with this self-contained Vollrath three-well module. Designed for quick top-mount installation, it arrives fully wired with a cord and plug—no hard-wiring, extra plumbing or guesswork required.

Why You’ll Love It

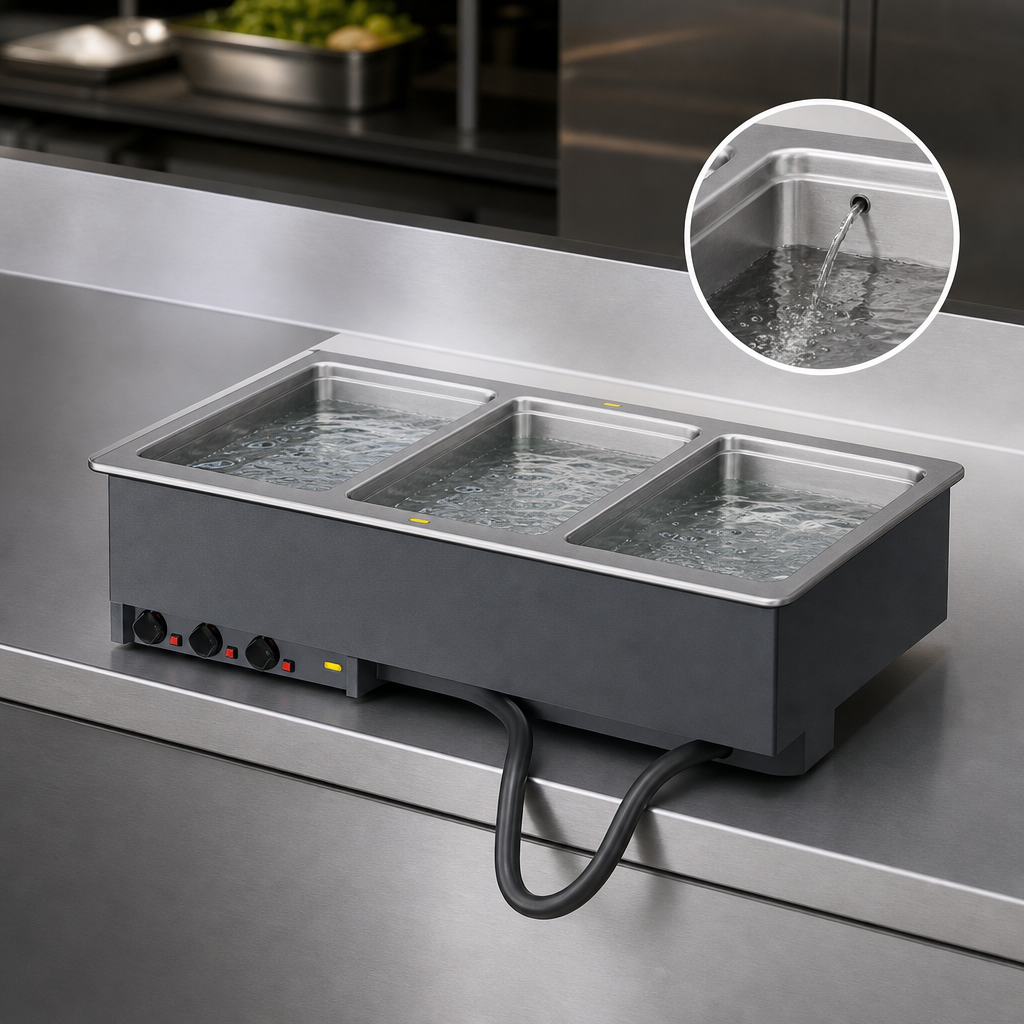

  • Auto-fill system maintains correct water level for consistent, even heating.
  • Three individual 12" x 20" wells (6" deep) accept full-size or fractional pans.
  • 20-gauge 300-series stainless steel wells are fully insulated on all sides, including between wells.
  • 18-gauge stainless top with drip-free perimeter flange for a clean, finished look.
  • 1" copper manifold drain with individual well shut-offs plus master shut-off for fast, mess-free emptying.
  • Remote stainless steel panel with infinite controls & power lights for each well; 4' (121.9 cm) tether for flexible mounting.
  • Zero-clearance drop-in design — positioning clips for counters up to 3" (7.6 cm) supplied.
  • 6' (1.8 m) cord with NEMA 5-50P plug; wet operation meets NSF 4 when water is used.
  • NSF, cULus listed and proudly Made in the USA.

Technical Specs

Item number 3640461
Wells / capacity (3) full-size 12" x 20" wells, 6" (15.2 cm) deep
Operation Wet (water required) with automatic water fill
Total wattage 3000 W   (1000 W per well)
Electrical 120 V / 60 Hz / 1-ph, 25 A, NEMA 5-50P
Overall dimensions 41 ½" W × 26" D × 21 ½" H (105.4 × 66 × 54.6 cm)
Counter cut-out 40 ¾" W × 25 ¼" D (103.5 × 64.1 cm) with 7/8" (2.2 cm) corner radius
Drain 1" copper manifold, individual & master shut-offs
Construction 18-ga. stainless top / 20-ga. stainless wells / 18-ga. galvanized exterior
Included Auto-fill hardware, remote control panel, mounting clips, gasket
Certifications NSF 4 (wet), cULus
Warranty 1-year limited (see vollrathfoodservice.com)

Perfect Pairings & Accessories

  • Sheet-pan adapter bar – Vollrath #19186 (sold separately).
  • Fractional adapter bars for customized pan layouts.
  • Super Pan V steam table pans for maximum performance.
Important:
  • Unit is designed for wet operation only; always maintain water in the wells.
  • Do not modify the factory-installed cord or plug—doing so voids the warranty.
  • Indoor use only. HVAC conditions can affect holding temperatures.
  • Drop-in orders are custom-built and cannot be canceled or returned.

Need a different voltage, well count or marine-grade construction? Explore the full lineup of Vollrath hot drop-ins on VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

140.0lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 3000 watts, 120v/60/1-ph, 25.0 amps, cord with NEMA 5-50P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
