Vollrath

Vollrath Three-Well Electric Hot Drop-In Hot Food Well with Auto-Fill Manifold Drain, Infinite Controls, and Marine-Grade Stainless Steel Wells

SKU: 3640460HD
$4,065.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Vollrath Three-Well Electric Hot Drop-In Hot Food Well with Auto-Fill Manifold Drain, Infinite Controls, and Marine-Grade Stainless Steel Wells

120 Volts, 3 Full-Size 12 x 20 Inch Pans, Wet Operation Only

Keep multiple pans hot and ready with a durable three-well drop-in that combines auto-fill convenience, wet-operation heating, and individual control over each well.

  • Three full-size wells keep soups, sauces, and entrées hot in a compact drop-in footprint.
  • Marine-grade 316 stainless steel wells and stainless steel housing are built for corrosion resistance.
  • Auto-fill manifold design supports wet operation and consistent heat retention.
  • Individual infinite controls and power indicator lights let staff manage each well independently.
  • Included cord-and-plug connection, mounting clips, and drip-free flange simplify installation.
  • Made in USA and covered by a two-year HD warranty.

Overall Dimensions:

41.5"W x 26.0"D x 21.5"H

Product Weight:

125.0 lb

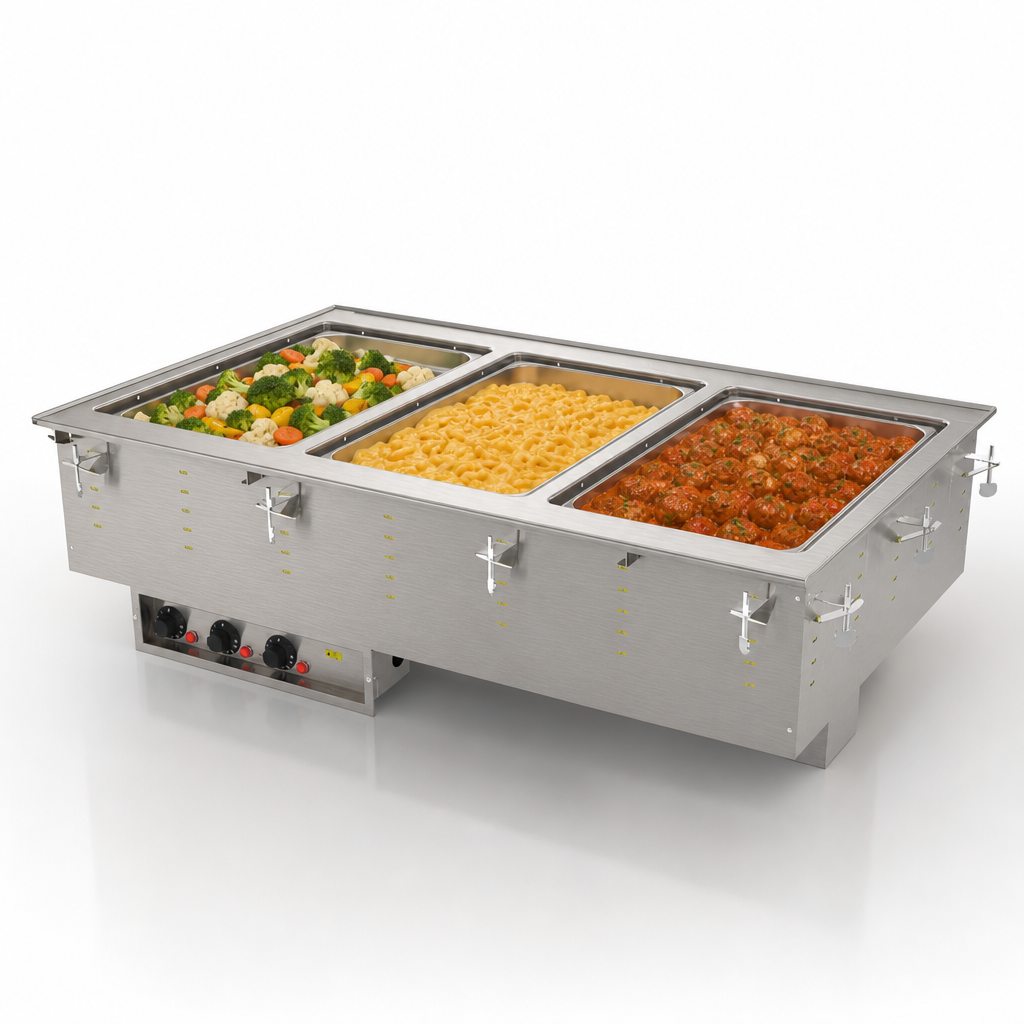

Three Full-Size Wells

Holds three 12 x 20 inch pans in separate wells for flexible buffet service.

Marine-Grade 316 Stainless Steel Wells

Drawn wells are built from SAE Type-316 stainless steel for corrosion resistance.

Auto-Fill Manifold Drain

Auto-fill design and 1-inch copper manifold drain with shutoffs help simplify water management.

Individual Infinite Controls

Each well has its own infinite control and power indicator light for independent temperature management.

Insulated Construction

Insulated on all sides, including between wells, to help hold serving temperature.

Cord-and-Plug Connection

Includes a 6-foot cord with a NEMA 5-20P plug; hard-wiring is not required.

Mounting Clips and Drip-Free Flange

Standard mounting clips and a drip-free flange help make installation cleaner and easier.

Service Access Panel

A removable bottom panel provides access for maintenance and service.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Pan Capacity 3 Full-Size 12 x 20 Inch Pans
Pan Size 12 x 20 Inches
Operation Wet
Auto-Fill Yes
Insulation Insulated
Controls Infinite
Material Stainless Steel
Interior Finish 316 Stainless Steel
Drain Connection Size 1 Inch
Voltage 120 Volts
Amps 15.6 Amps
Watts 1.875 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Cutout Width 40.75 Inches
Cutout Depth 25.25 Inches
Corner Radius 7/8 Inch
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 125 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Frequently Asked Questions

This model is wet operation only, and the documentation notes that water is required for even heating.
It holds three full-size 12 x 20 inch pans. Fractional pans up to 6 inches deep can be used with adapter bars.
Yes. This SKU is the manifold with auto-fill version.
It operates on 120 Volts, 60 Hz, 1-phase, draws 15.6 amps, and includes a NEMA 5-20P plug on a 6-foot cord.
The cutout size is 40-3/4 inches wide by 25-1/4 inches deep, with a 7/8-inch corner radius.
HD wells come with a two-year warranty against defects in materials and workmanship.
