Description

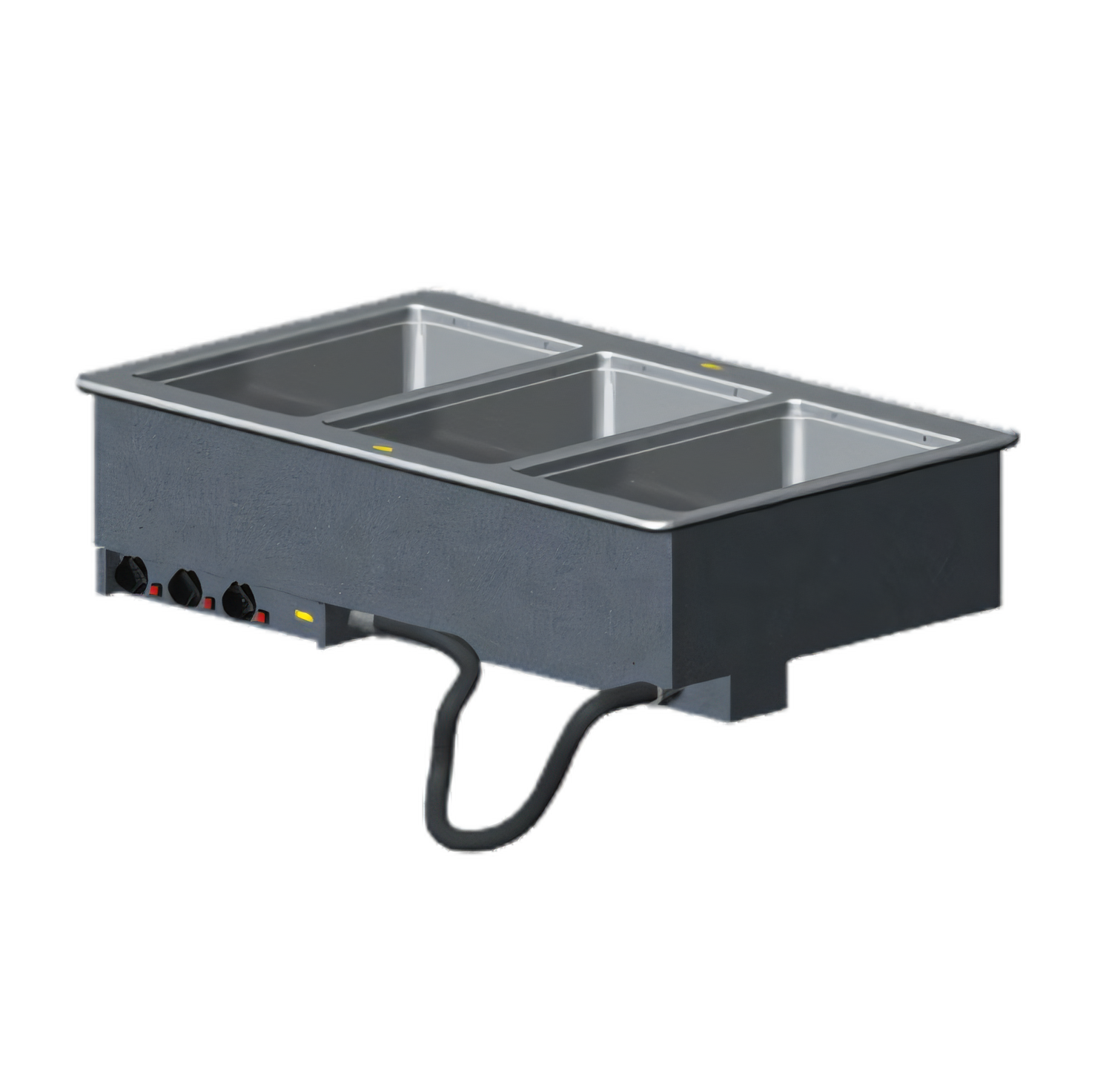

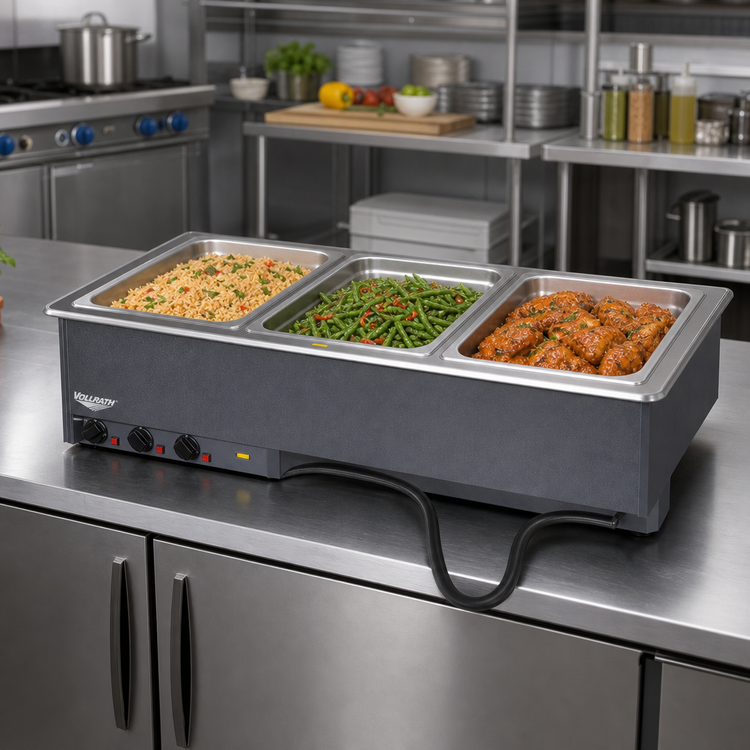

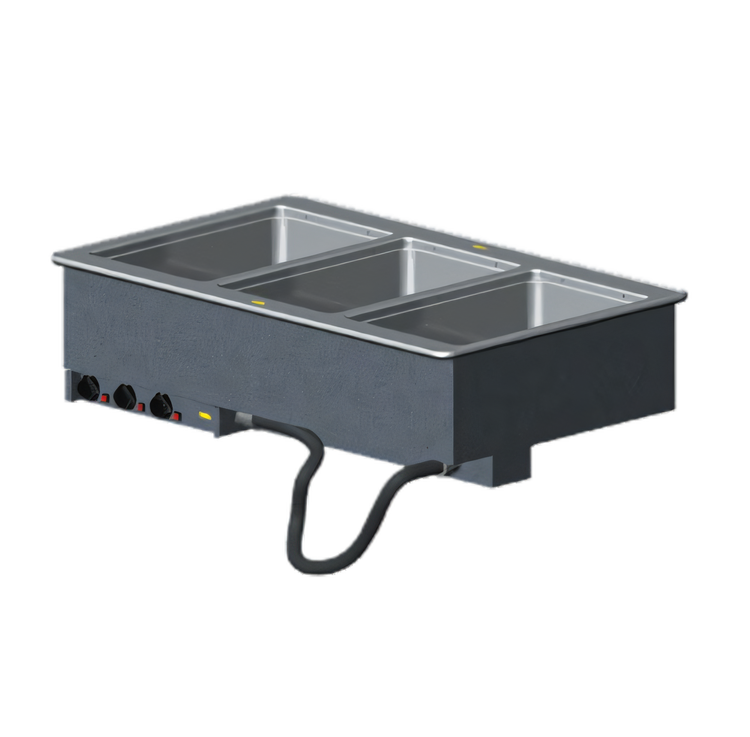

Vollrath 3-Well Auto-Fill Hot Food Drop-In, 120 V

Model 3640460 – Manifold Drain • Infinite Controls • Made in USA

Keep your buffet or serving line moving with Vollrath’s 3-well drop-in. Designed for quick installation and plug-and-play performance, it delivers precise wet-heat holding without hard-wiring and automatically maintains the correct water level all day long.

Key Advantages

  • Auto-fill system keeps wells properly hydrated—no manual refills or steam loss.
  • Three individual 625 W wells (1,875 W total) with infinite control knobs and power lights.

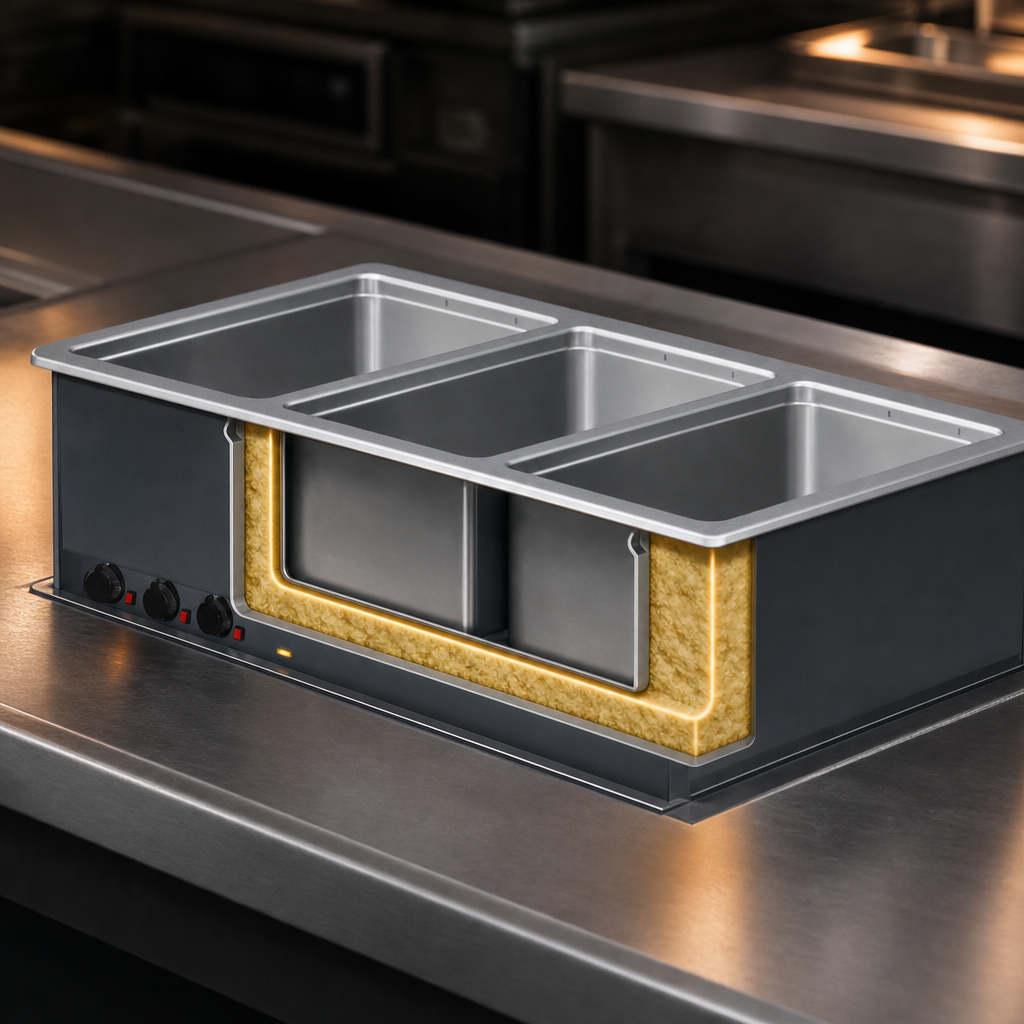

  • 20 ga. stainless wells are fully insulated on every side, including between wells, for energy efficiency.
  • Drip-free 18 ga. stainless steel top flange with factory-installed gasket for a clean, sanitary seal.
  • 1" copper manifold drain with ball-valve shut-offs on each well plus a master shut-off for fast draining.
  • Ships with 6 ft cord and NEMA 5-20P plug—just drop in, connect water & power, and start serving.
  • Zero-clearance installation and included mounting clips fit counters up to 3" thick.
  • NSF & cULus listed to meet commercial food-safety standards.

Technical Specifications

Wells 3 × full-size (12" × 20"), up to 6" deep
Operation Wet only, auto-fill
Controls 3 independent infinite dials, remote panel (4 ft tether)
Heat Output 625 W per well (1,875 W total)
Electrical 120 V / 60 Hz / 1-ph • 15.6 A • NEMA 5-20P
Overall Dimensions 41-1/2" W × 26" D × 21-1/2" H
Counter Cutout 40-3/4" W × 25-1/4" D • 7/8" corner radius
Drain 1" copper manifold with individual & master shut-offs
Construction 18 ga. stainless top • 20 ga. stainless wells • 18 ga. galvanized housing
Certifications NSF, cULus
Origin Sheboygan, Wisconsin, USA
Important: Operate with water in the wells at all times. Dry use may damage the unit and void the warranty.

Optional accessories: Sheet-pan adapter (Item 19186) and fractional pan bars are available separately.

For complete warranty terms, please visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

125.0lbs

Controls

infinite controls

Style

individual pans

Pan Capacity

(3) full size (12" x 20")

Construction

stainless steel top, corrosion resistant steel exterior

Insulated or Non-Insulated

insulated

Drain

with drain

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 1875 watts, 120v/60/1-ph, 15.6 amps, cord with NEMA 5-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
