Vollrath

Vollrath 3-Well Modular Hot Drop-In Hot Food Well with Marine-Grade 316 Stainless Steel Insulated Wells, Manifold Drain, 120V

SKU: 3640451HD
$3,097.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath 3-Well Modular Hot Drop-In Hot Food Well with Marine-Grade 316 Stainless Steel Insulated Wells, Manifold Drain, 120V

Full-Size 12 x 20 Pans, 3 kW, Infinite Controls, Wet Operation Only

Keep three full-size pans hot and ready with an insulated drop-in well built for wet operation, precise individual control, and easy countertop installation.

  • Holds three full-size 12 x 20 pans in individual insulated wells.
  • Marine-grade 316 stainless steel wells and stainless steel housing help resist corrosion.
  • Independent infinite controls and power indicator lights let you manage each well separately.
  • Wet operation only; water is required for even heating and proper food holding.
  • 1-inch copper manifold drain with individual well shutoffs and a master shutoff simplifies cleanup.
  • Includes a cord with NEMA 5-50P plug and mounting clips; hard-wiring is not required.

Overall Dimensions:

41.5"W x 26.0"D x 21.5"H

Product Weight:

118.0 lb

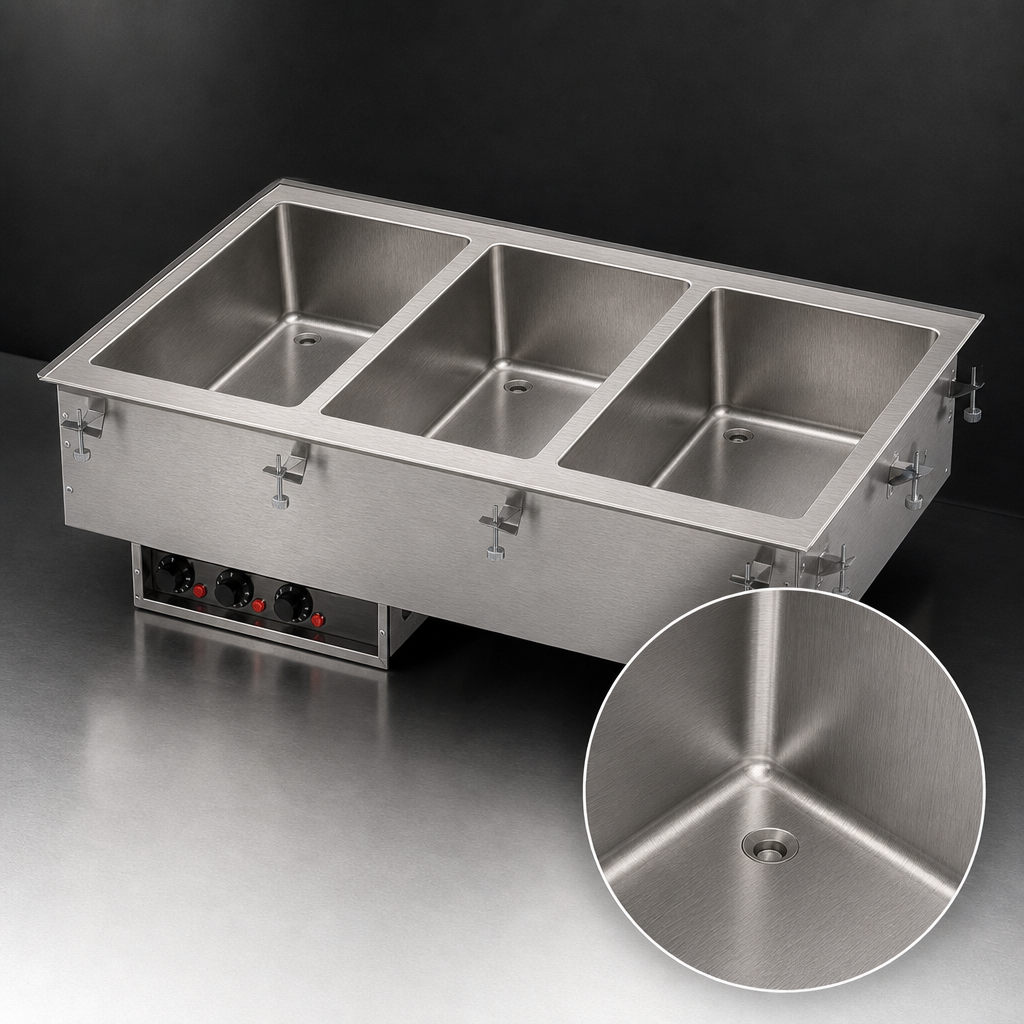

Marine-Grade 316 Stainless Steel Wells

Drawn wells are made from SAE Type-316 stainless steel for improved corrosion resistance.

Individual Infinite Controls

Each well has its own infinite control and power indicator light for precise temperature management.

Wet Operation Only

Water is required for even heating; the unit is designed for wet operation only.

Manifold Drain With Shutoffs

Includes a 1-inch copper manifold drain with individual well shutoffs and a master manifold shutoff.

Insulated Construction

Insulated on all non-exposed sides and between wells to help retain heat.

Corded 120V Connection

Supplied with a cord and NEMA 5-50P plug; no hard-wiring is required.

Top-Mount Drop-In Installation

Designed for top-mount installation and includes a gasket, drip-free flange, and mounting clips.

Service-Friendly Design

Each well has a removable bottom panel for service access.

Pan Compatibility

Accepts full-size and fractional pans up to 6 inches deep; adapter bars are recommended for fractional pans.

Stainless Steel Top and Exterior

Features an 18-gauge stainless steel top and stainless steel exterior housing for durability.

Type Hot Food Well
Style Individual Pans
Installation Type Drop-In
Compartments 3
Pan Capacity 3 Full-Size 12 x 20 Pans
Pan Size 12 x 20 Inches
Controls Infinite
Material Stainless Steel
Interior Finish 316 Stainless Steel
Drain Connection Size 1 Inch
Watts 3 kW
Voltage 120 Volts
Amps 25 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-50P
Country Of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 22 Inches
Shipping Weight 118 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year warranty against defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds three full-size 12 x 20 pans, one in each individual well.
No. It is wet operation only, and water is required for even heating.
It uses 120 Volts, 60 Hz, 1-phase power, draws 25 Amps, and includes a NEMA 5-50P plug.
Yes. It has a 1-inch copper manifold drain with individual well shutoffs and a master manifold shutoff.
It accepts full-size and fractional pans up to 6 inches deep, and adapter bars are recommended for fractional pans.
