Vollrath  |  SKU: 3640450HD

Vollrath 3640450HD Steam Tables & Food Wells

$3,097.95
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

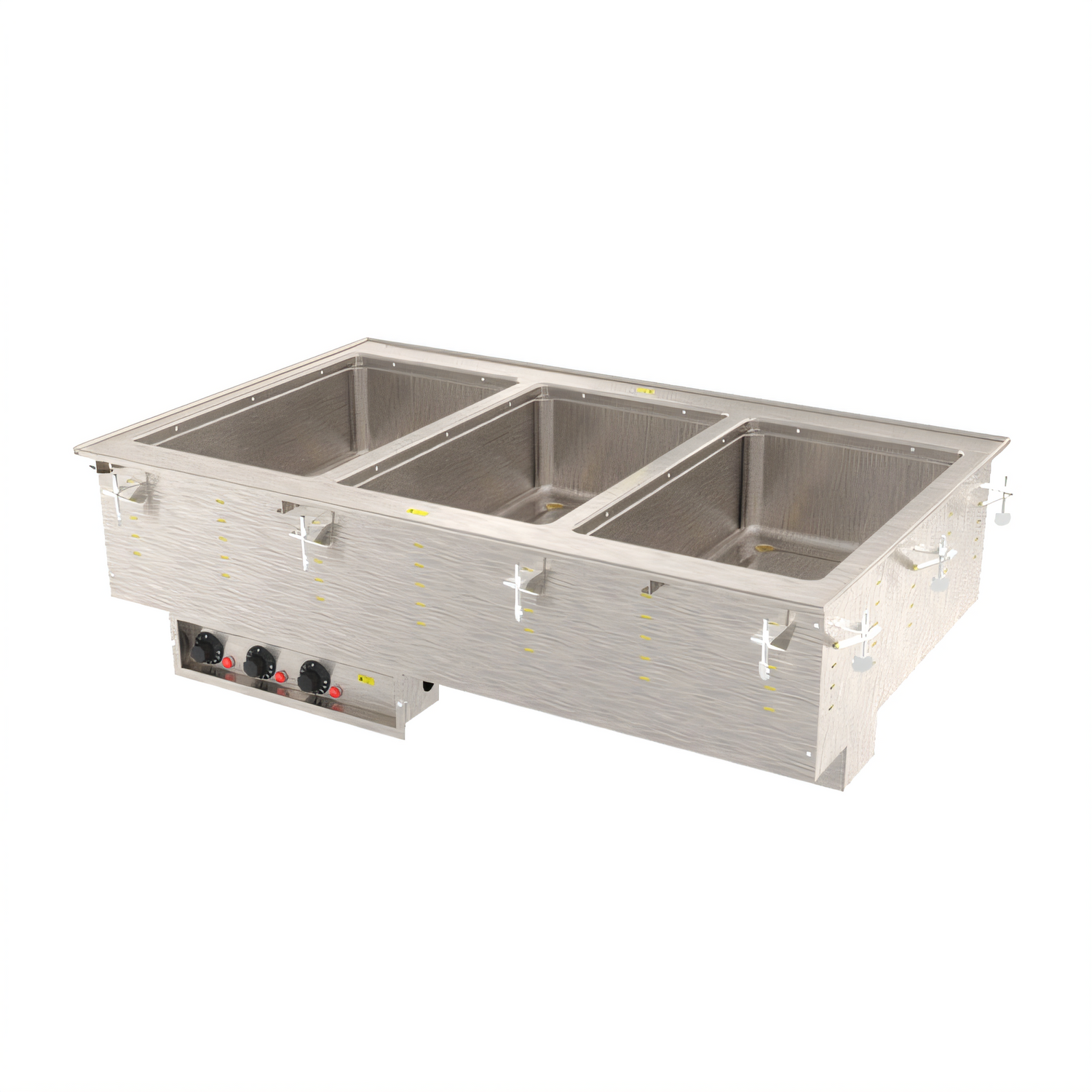

Vollrath 3-Well Modular Hot Food Drop-In – Marine-Grade

41 ½" W × 26" D • 625 W per well • 120 V plug-in unit

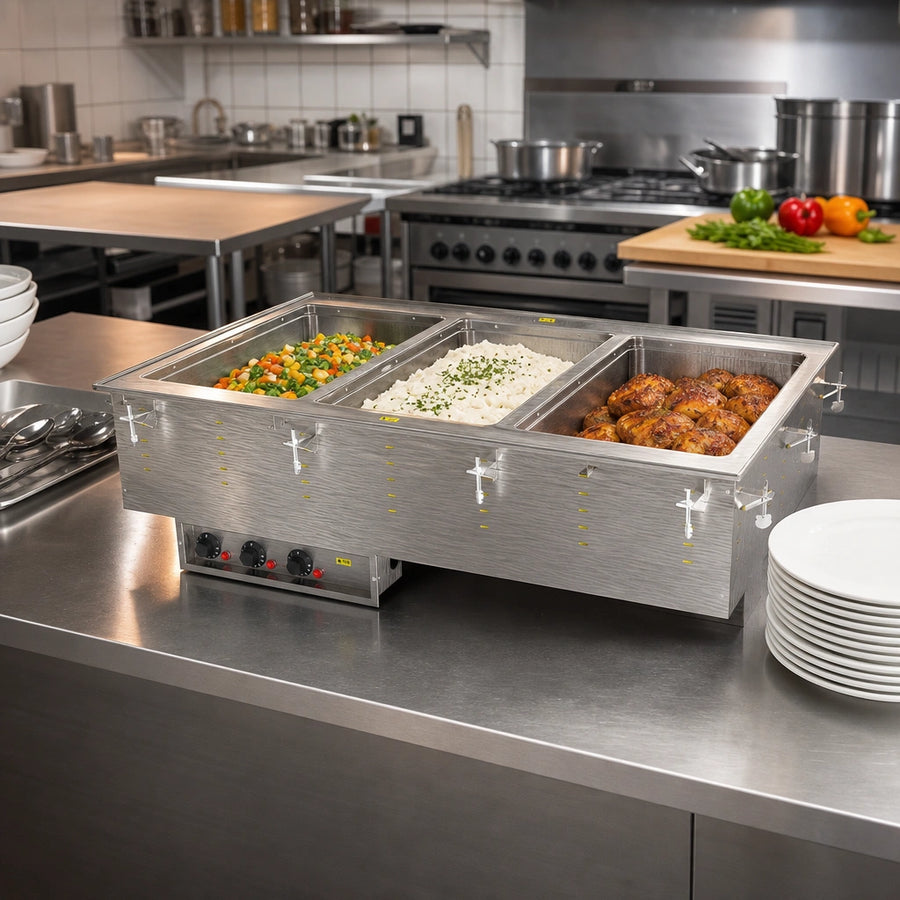

Engineered for demanding commercial kitchens and corrosive marine environments, this Vollrath three-well drop-in keeps entrées and sides hot, safe and ready to serve—no hard-wiring required.

Highlights

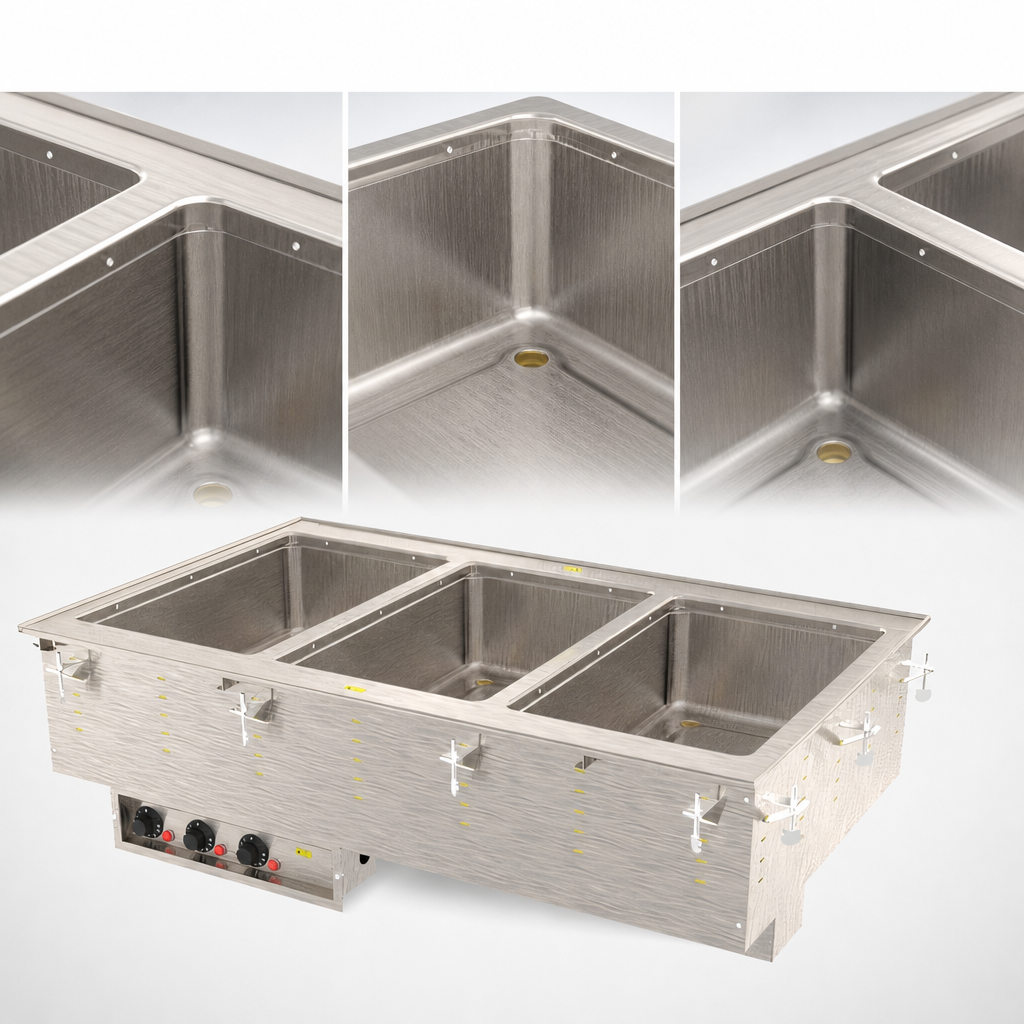

  • Three independent 12" × 20" wells formed from 20-ga 316 marine-grade stainless steel for maximum corrosion resistance.
  • Wet operation only—water bath delivers gentle, even heat and satisfies NSF 4 performance standards.
  • Individual infinite control knobs with power indicator lights mounted on a tethered 4 ft (121.9 cm) panel.
  • 1" copper manifold drain with individual well ball valves plus a master shut-off for quick, mess-free draining.
  • Drip-free mounting flange and supplied positioning clips create a clean, flush fit on counters up to 3" thick.
  • Fully insulated on all sides—including between wells—for reduced energy loss and cooler exterior surfaces.
  • Removable bottom service panels speed maintenance access.
  • 6 ft (1.8 m) cord with NEMA 5-20P plug—simply drop in, plug in and start serving.
  • NSF & cULus listed; proudly Made in the USA.

Specifications

Number of wells / size 3 × full-size 12" × 20" (1/1 GN)
Construction 20-ga 316 stainless wells, 18-ga stainless top & exterior housing
Operation Wet heat only (water required in each well)
Total power 1 875 W (625 W per well)
Electrical 120 V / 60 Hz / 1-ph, 15.6 A, NEMA 5-20P plug
Controls 3 independent infinite switches with indicator lights
Overall dimensions 41 ½" W × 26" D × 21 ½" H
Counter cut-out 40 ¾" W × 25 ¼" D • 7/8" corner radius
Drain system 1" copper manifold with individual shut-offs & master shut-off
Certifications NSF, cULus
Country of origin USA

For safe food holding and compliance with NSF 4, operate with water in each well at all times. Indoor installation only—ambient room temperature and HVAC airflow can affect holding performance.

Vollrath provides a two-year commercial warranty. Review complete details at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

21.5in

Width

41.5in

Depth

26.0in

Shipping Weight

125.0lbs

Style

individual pans

Controls

infinite controls

Insulated or Non-Insulated

insulated

Pan Capacity

(3) full size (12" x 20")

Drain

with drain

Construction

stainless steel construction

Wet or Dry operation

wet

Specifications

Hot Food Well Unit, Drop-In, electric, (3) 12" x 20" individual 20 gauge/316 marine grade stainless steel insulated wells, 41-1/2"W x 26"D x 21-1/2"H (overall), wet operation only, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, stainless steel exterior housing, includes positioning clips, 1875 watts, 120v/60/1-ph, 15.6 amps, cord with NEMA 5-20P, NSF, cULus, Made in USA (40-3/4"W x 25-1/4"D cutout size, requires 7/8" corner radius) (Refer to vollrathfoodservice.com for full warranty policy)
