Vollrath 3640450 Steam Tables & Food Wells
Description

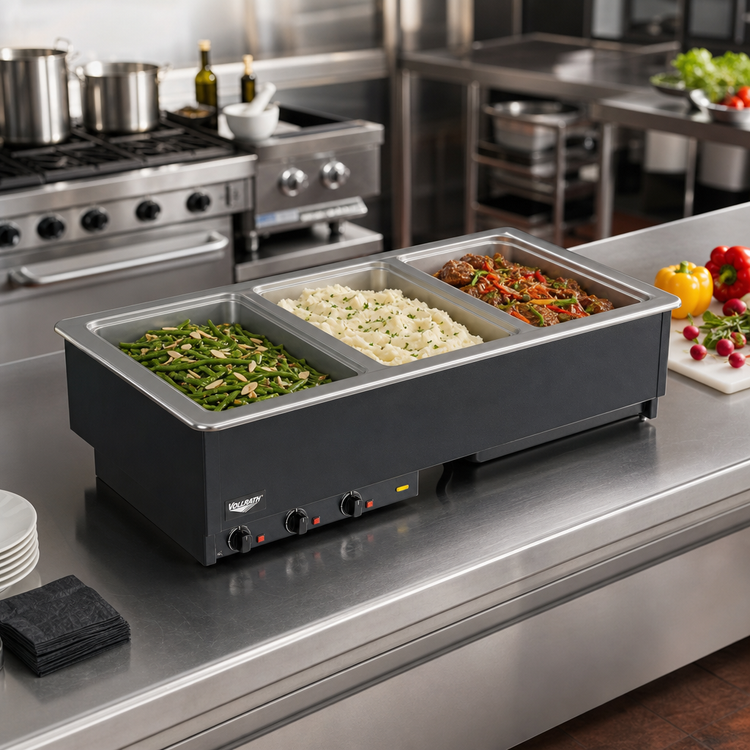

Vollrath 3-Well Drop-In Hot Food Well — 120 V Manifold Drain, Infinite Controls
Model family 36404 / Manifold version • 625 W per well (1,875 W total)Keep entrées, sides and sauces at safe - and appetizing - serving temperatures with this NSF-listed, Made-in-USA hot well module. Designed for top-mount installation, the unit arrives pre-wired with a plug and play cord so you’re warming in minutes – no hard-wiring, no hassle.
Why you’ll love it
- Three individual 12 " × 20 " wells hold full-size or fractional pans up to 6 in (15.2 cm) deep

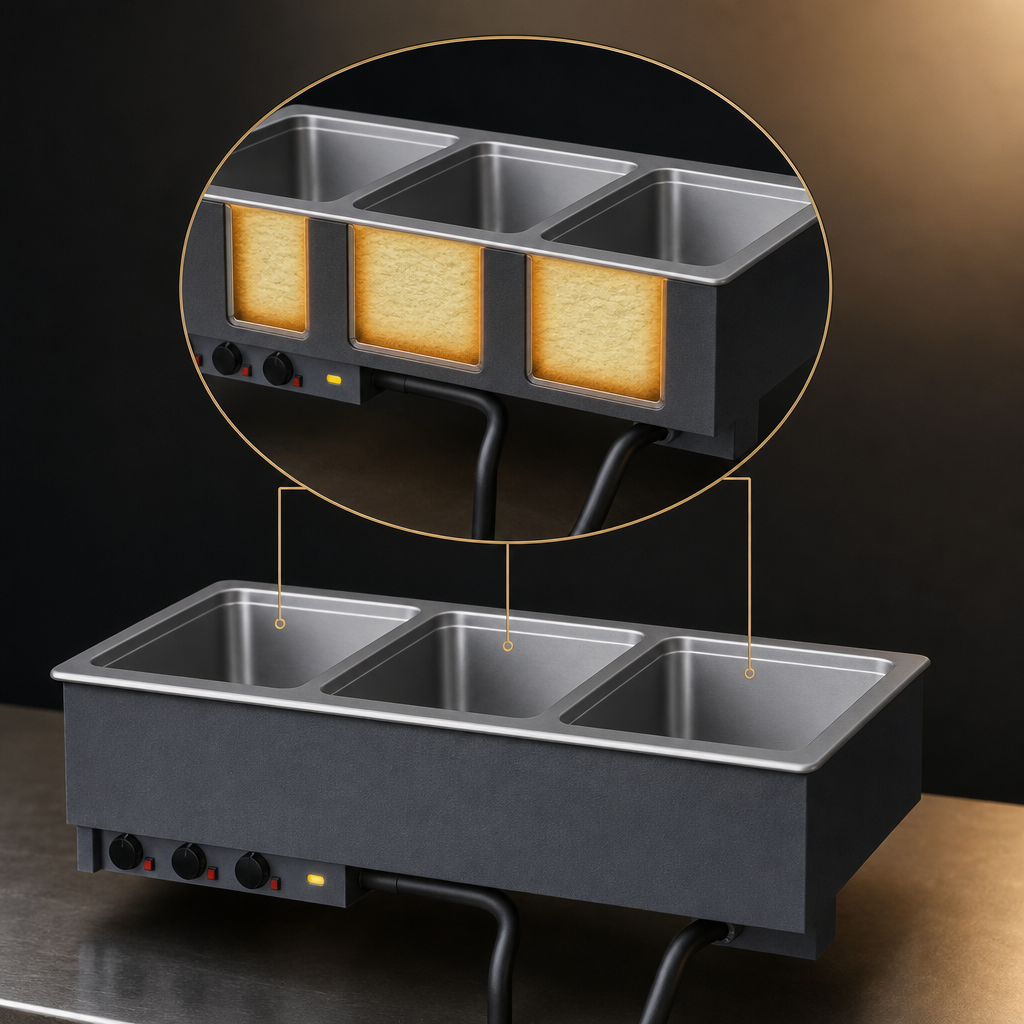

- 20 ga 300-series stainless wells fully insulated on all sides for superior heat retention
- Wet-operation only design provides even, gentle heat that preserves food quality
- 1 " copper manifold drain with shut-off for each well & master shut-off – empty all wells from a single point
- Remote stainless control panel (4 ft tether) with dedicated infinite control & power light for each well
- Drip-free stainless flange and included gasket keep countertops clean
- Zero-clearance mounting plus positioning clips for counters up to 3 in (7.6 cm) thick
- 18 ga stainless top & durable galvanized exterior housing stand up to daily commercial use
- Ships with 6 ft (1.8 m) cord & NEMA 5-20P plug – fits any 120 V, 20 A receptacle
- cULus & NSF listed for safe, reliable operation
Key specifications
| Number of wells | 3 (individual, insulated) |
|---|---|
| Pan size | 12 " × 20 " full-size hotel pans (accepts fractional with adapter bars) |
| Operation | Wet heat only – water required in each well |
| Controls | Infinite manual control, one per well, with pilot light |
| Drain | 1 " copper manifold drain, individual well shut-offs + master shut-off |
| Total wattage | 1,875 W (625 W per well) |
| Electrical | 120 V / 60 Hz / 1-phase · 15.6 A · NEMA 5-20P |
| Overall dimensions | 41 ½ " W × 26 " D × 21 ½ " H (105.4 × 66 × 54.6 cm) |
| Counter cut-out | 40 ¾ " W × 25 ¼ " D (103.5 × 64.1 cm) · 7/8 " corner radius |
| Materials | Wells & top: 300-series stainless (20 / 18 ga) · Exterior: 18 ga galvanized steel |
| Certifications | NSF 4 · cULus |
| Country of origin | USA |
Adapter bars (Vollrath #19186) recommended when using fractional pans.
Warranty & support
Covered by Vollrath’s standard one-year parts & labor warranty. Review full terms at VollrathFoodservice.com. For assistance, contact Vollrath Technical Services at 800-628-0832.
